RAM-GDS-CHARGE-V7CU

RAM GDS Modular 10-30V Charger Cable with Male USB Type-C (RAM-GDS-CHARGE-V7CU)

$67.00 You Save 15% ( $12.00 ) You Save 15% ( $12.00 )

Included:

1 x RAM GDS Modular 10-30V Charger Cable with Male USB Type-C (RAM-GDS-CHARGE-V7CU)

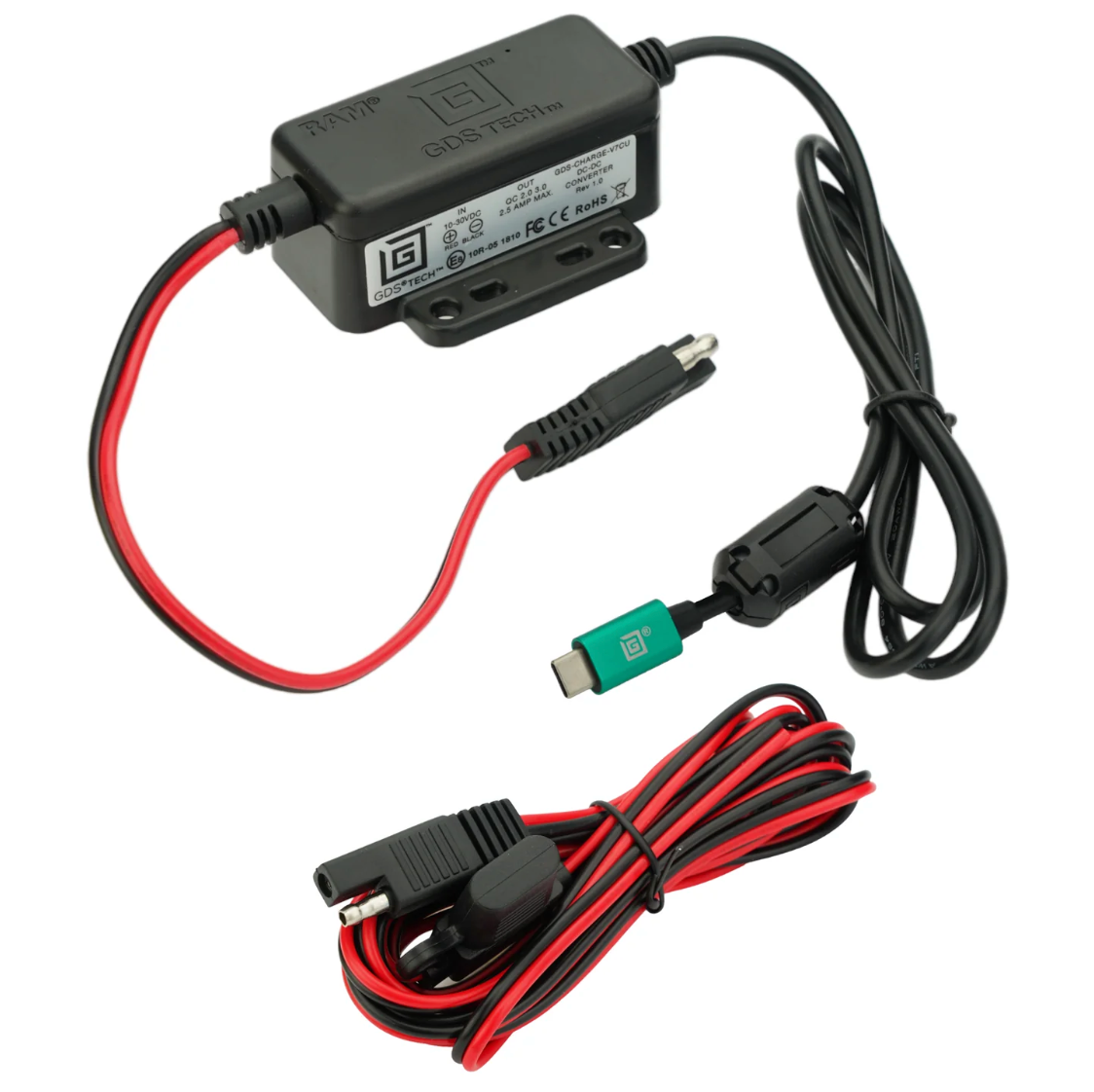

The RAM-GDS-CHARGE-V7CUGDS^® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS^® vehicle solution. By connecting directly to the power source of your vehicle, the GDS^® Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery. Always Protected. Always Connected.^®

Always Protected. Always Connected.®
Hardwire charger includes USB Type-C male connection with input of 10-30VDC and output of 5.42 - 9VDC
When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
Part of the GDS^® Ecosystem^™ to keep devices protected, connected, and charged in nearly any application
Backed by a 3-year warranty

Specs

packaging type:

Poly Bag

input voltage:

10-30VDC

output voltage:

5.42-9VDC

output current:

2.5A max

input connector:

Bare Wire

input cable length:

2.5 Meters

output connector:

USB Type-C Male

Output Cable Length:

1 Meter

Operating Temperature:

-10°C to +70°C

Storage Temperature:

-40°C to +70°C

Regulatory:

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

Certifications:

CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton

Warranty:

3 year warranty

Weight:

0.47 lb

Additional Information:

This charger will not support Power Delivery. For a Power Delivery version, see RAM-GDS-CHARGE-V3C-2U.

Help

Instructions

Instructions for Modular Hardwire Charger

Collections: All, Best Selling Products, Car Mounts, Charging | Cables | Electronics, Motorcycle Mounts, Newest Products, Other Mounts, Phone Mounts, Spare Parts

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
