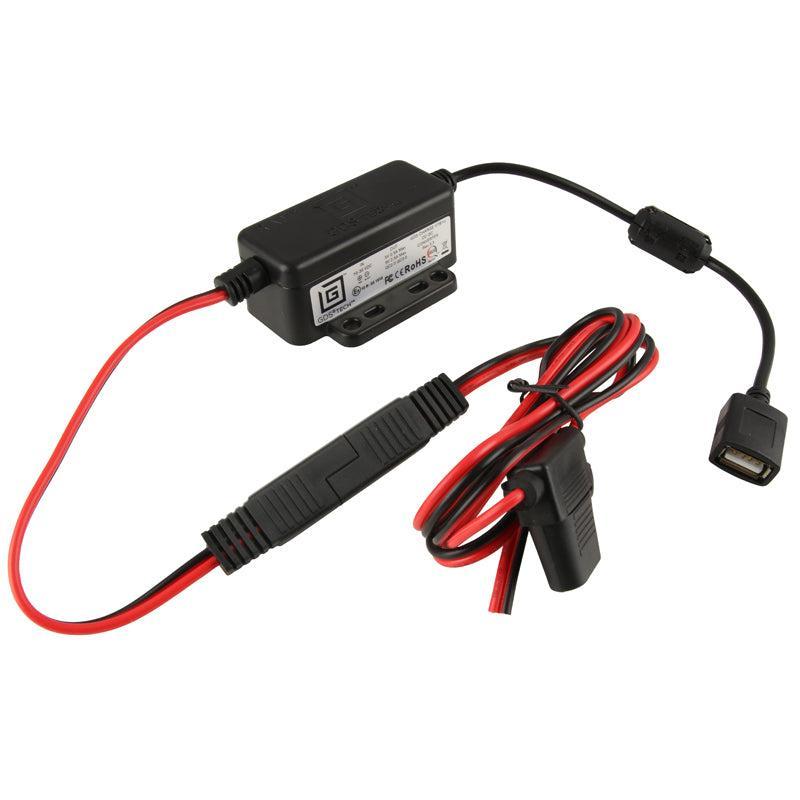

RAM GDS Modular 10-30V Charger Cable with Female USB-A Connector (RAM-GDS-CHARGE-V7B1U)
$81.00$90.00
Size Guide
Included:
- 1 x RAM GDS Modular 10-30V Charger Cable with Female USB-A Connector (RAM-GDS-CHARGE-V7B1U)
The RAM-GDS-CHARGE-V7B1U GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. Always Protected. Always Connected.®
- Hardwire charger includes USB Type-A female connector
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
Specs
Packaging Type
Poly bag
Input Voltage
10–30VDC
Output Voltage
5–9VDC*
Output Current
2.5A max
Input Connector
Female USB Type A
Input Cable Length
1.2 meters including 2-pole flat marine connector
Output Cable Length
0.2 meters
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Protection & Compliance
Over voltage protection
Short circuit protection
Reverse polarity protection
Moisture resistant
RoHS compliant
WEEE compliant
SAE J-1113-5 load dump rated
FCC, CE, UKCA, IC
Certifications
E-Mark
RCM
IEC/UL 62368-1
Warranty
3 years
Weight
0.31 lb
Additional Information
5V output via USB 2.0 BC1.2 and DCP mode. 9V output via AFC and QC 2.0.
To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
