RAM-B-174U

RAM Motorcycle Brake/Clutch U-Bolt Mount (RAM-B-174U)

3 reviews
Size Guide
9 items left

Included:

  • 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
  • 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)
  • 1 x RAM Motorcycle Combo Base with 1" Ball (RAM-B-309-7U)

The RAM-B-174U features a 1" diameter rubber ball, a standard length (9cm) double socket arm, plus hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter.

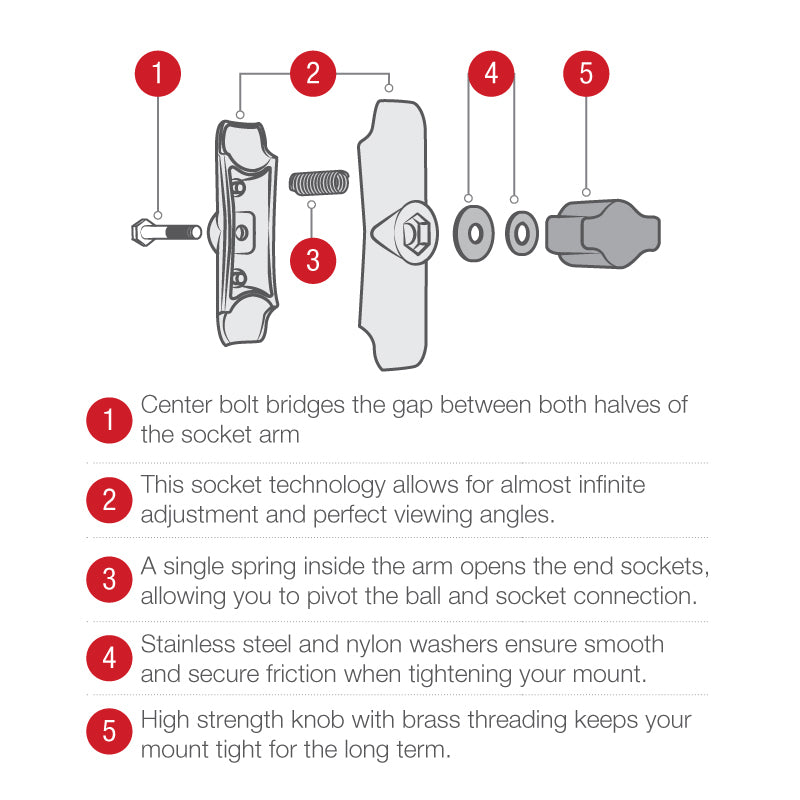

The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows you to move the mount to your optimum viewing position.

Specifications
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size
  • LIFETIME WARRANTY

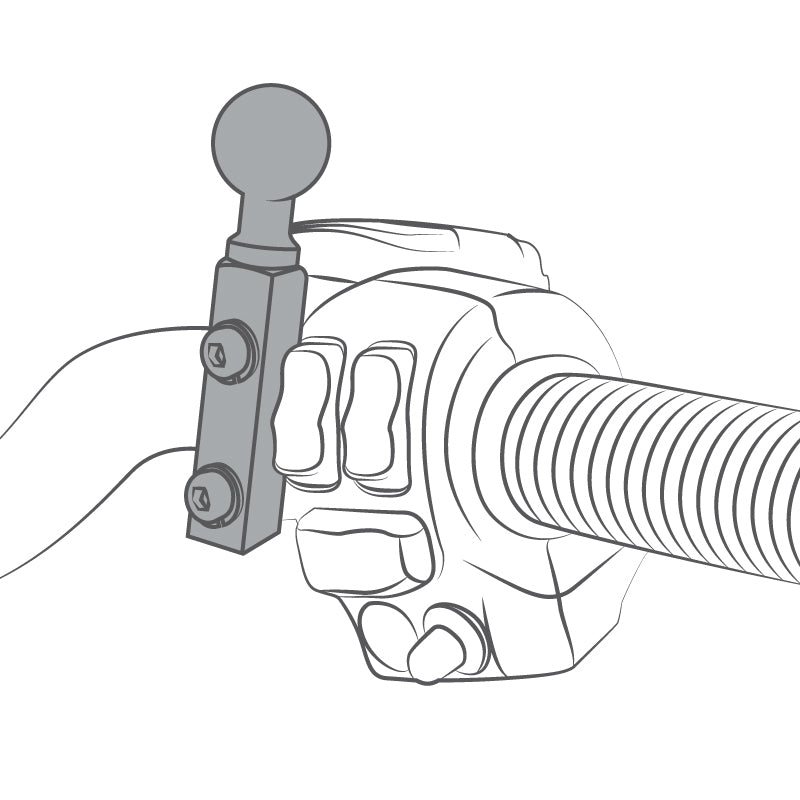

Note: The RAM-B-174U can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the RAM-B-174U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 0.94" and a maximum of 1.58".

The "U" in the part number reflects product packaged in poly bag.

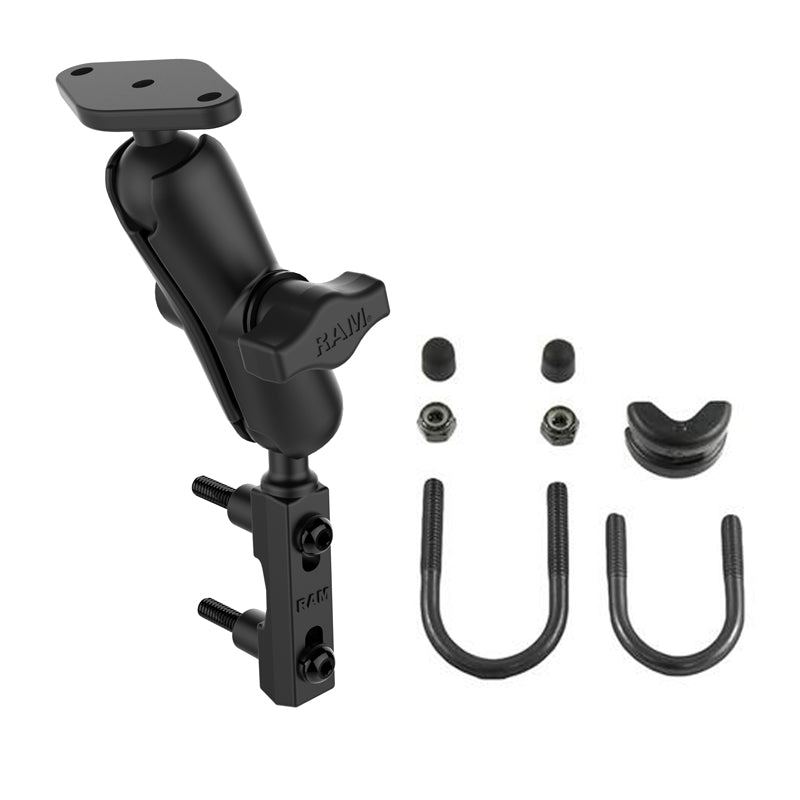

Included with Purchase:
1 x Base/ball adapter (attaches directly to cradle)
1 x Standard size double socket arm
1 x Mounting base (mounts to either brake/clutch reservoir or rail/handlebar)
PLUS Hardware for mounting to either brake/clutch reservoir or rail/handlebar
