RAM-B-309-2U

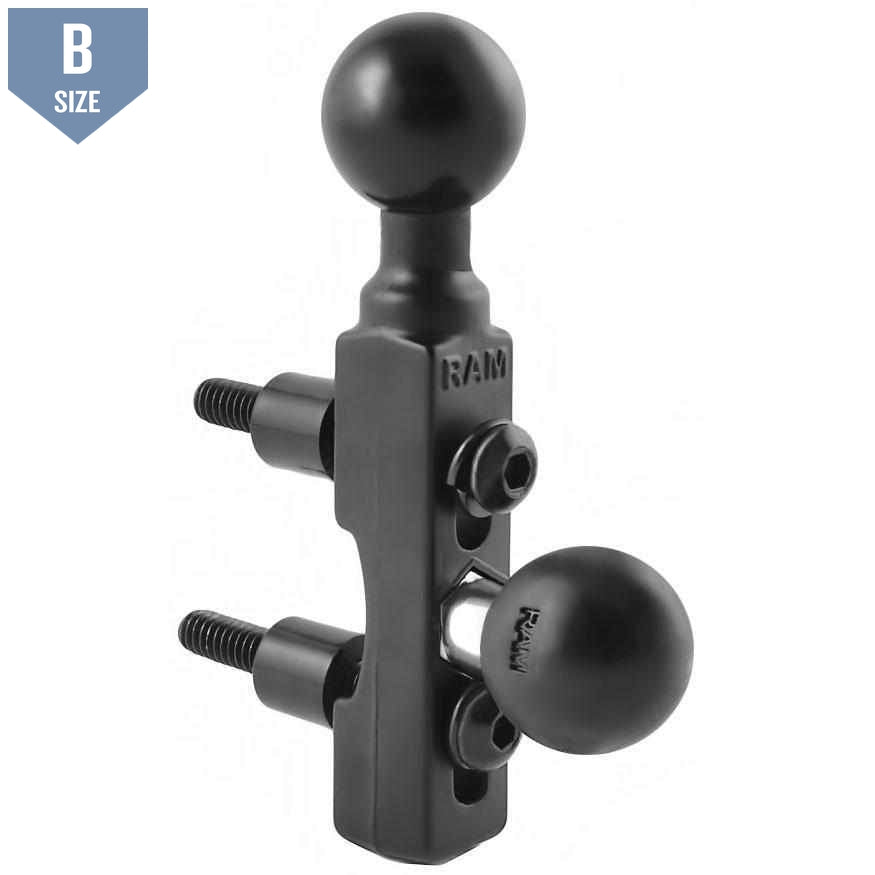

RAM Motorcycle Brake/Clutch Double Ball Base (RAM-B-309-2U)

Ball-and-Socket Size Guide

or make 4 interest-free payments of $9.49 AUD fortnightly with Afterpay More info

Included:

  • 1 x RAM Motorcycle Brake/Clutch Base with 1" Ball (RAM-B-309-1U)
  • 1 x RAM Ball for Motorcycle Brake/Clutch Reservoir Base (RAM-B-309-3U)

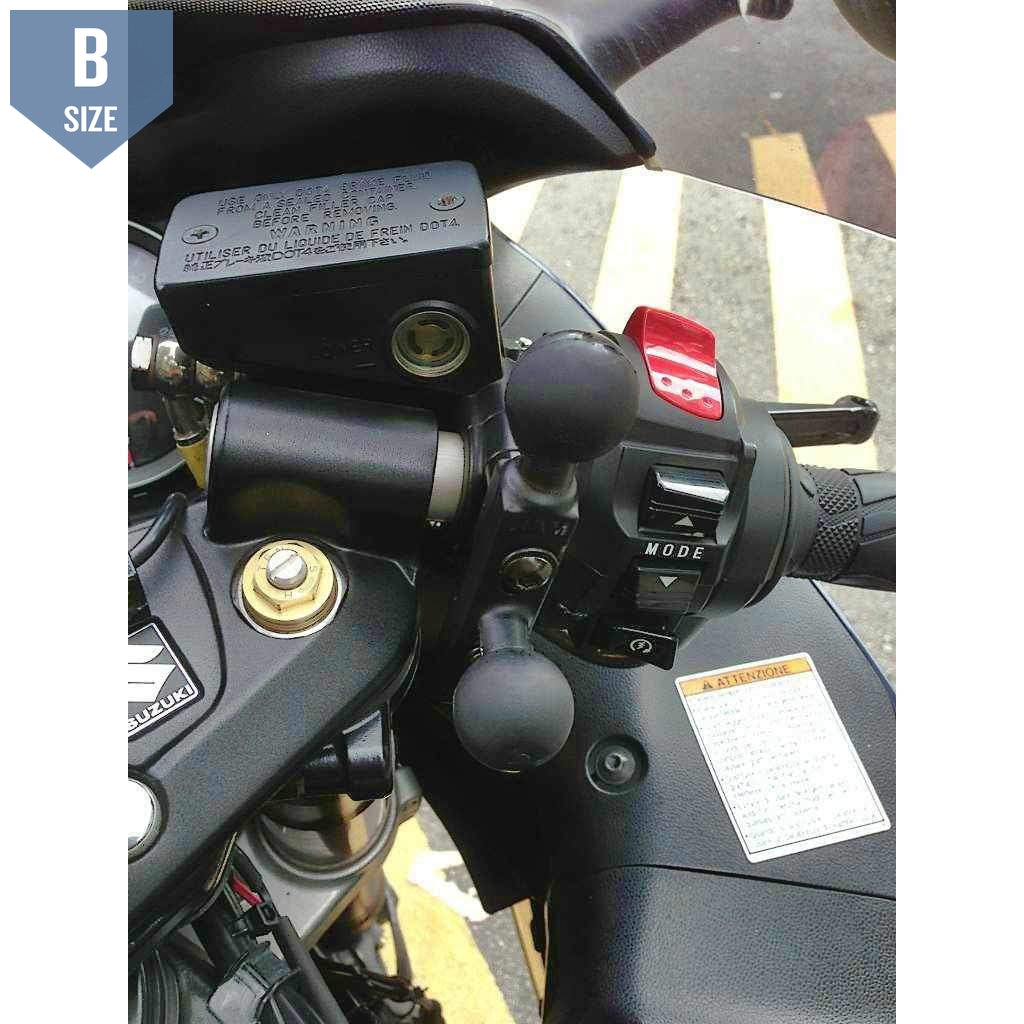

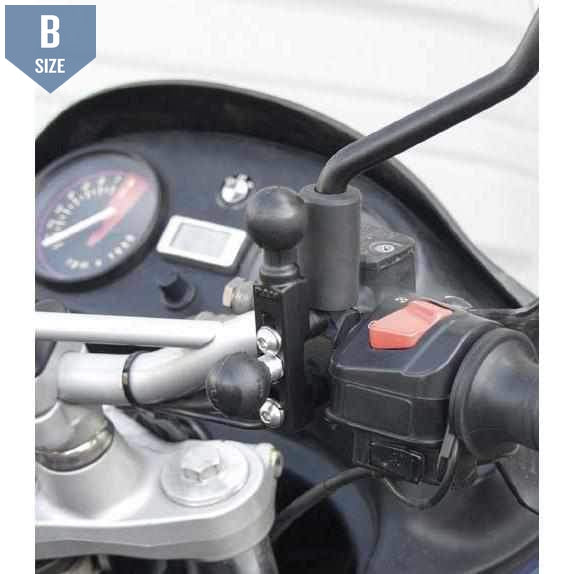

The RAM-B-309-2U attaches to your handlebar clutch/brake clamp, left or right side, and holds two B Size (1" diameter) mounting balls.

The ball that is connected between the hole centers is removable. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit.

To see if the RAM-B-309-2U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 0.94" and a maximum of 1.58".

Specifications
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size
  • Weight: 0.3 lbs

Note: The "U" in the part number reflects product packaged in poly bag.

(RAM-B-309-2U)
