RAM-109V-BU

RAM Vertical Swing Arm Base (RAM-109V-BU)

Name: RAM Vertical Swing Arm Base (RAM-109V-BU)
Brand: RAM Mounts
SKU: RAM-109V-BU
Price: 69.0 AUD
Availability: InStock
Rating: 5.0 (1 reviews)

.price-ui--loading { display: block !important; opacity: 1 !important; }

$69.00$76.00You Save 9% ($7.00)

Size Guide

Included:

1 x RAM Vertical Swing Arm Base (RAM-109V-BU)

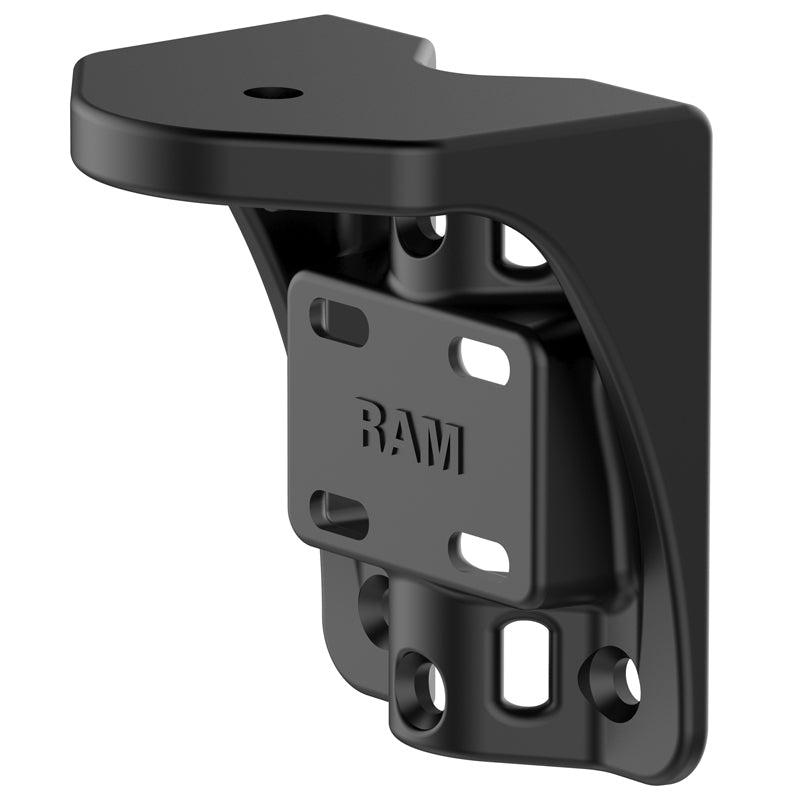

The RAM-109V-BU is the standalone vertical base that is supplied with the RAM-109VU and RAM-109VSB. Only the vertical base is supplied with the RAM-109V-BU, as per the product photos.

Specs

MATERIALS
Marine-grade aluminum

WEIGHT
1.15 lbs.

DRAWING FILE
See Drawing

YouTube video player

Collections: Best Selling RAM® Mounts, Marine Mounts, Newest RAM® Mounts, RAM® Components, Shop All RAM® Mounts

Type: Mount Arms

Category: Arm, Base, Fishfinder, Garmin, Humminbird, Lowrance, Marine, Raymarine, Swing

Ball Sizes		Short Arm	Medium Arm	Long Arm
A Size	Overall Length	N/A	2.11" / 53.6 mm	3.57" / 90.7 mm
A Size	Socket-to-Socket	N/A	1.67" / 42.4 mm	3.12" / 79.3 mm
B Size	Overall Length	2.42" / 61.5 mm	3.73" / 94.7 mm	6.00" / 152.4 mm
B Size	Socket-to-Socket	1.75" / 44.5 mm	3.00" / 76.2 mm	5.31" / 134.9 mm
C Size	Overall Length	3.56" / 90.4 mm	5.69" / 144.5 mm	9.13" / 231.9 mm
C Size	Socket-to-Socket	2.50" / 63.5 mm	4.66" / 118.4 mm	8.00" / 203.2 mm
D Size	Overall Length	5.10" / 129.5 mm	8.44" / 214.4 mm	12.98" / 329.7 mm
D Size	Socket-to-Socket	3.60" / 91.4 mm	6.88" / 174.8 mm	11.41" / 289.8 mm
E Size	Overall Length	7.31" / 185.7 mm	12.63" / 320.8 mm	N/A
E Size	Socket-to-Socket	4.98" / 126.49 mm	9.88" / 251 mm	N/A
