RAM-E-111U-D
RAM Large Marine Electronics Mount - E Size Short Arm (RAM-E-111U-D)
$556.00$629.00
Size Guide
Included:
- 1 x RAM Large Universal Plate with E-Size Ball (RAM-E-111BU)
- 1 x RAM Short Clamp Arm E Size 3.38" Socket (RAM-E-201U-D)
- 1 x RAM Round Base with 3.38" E Ball (RAM-E-202U)

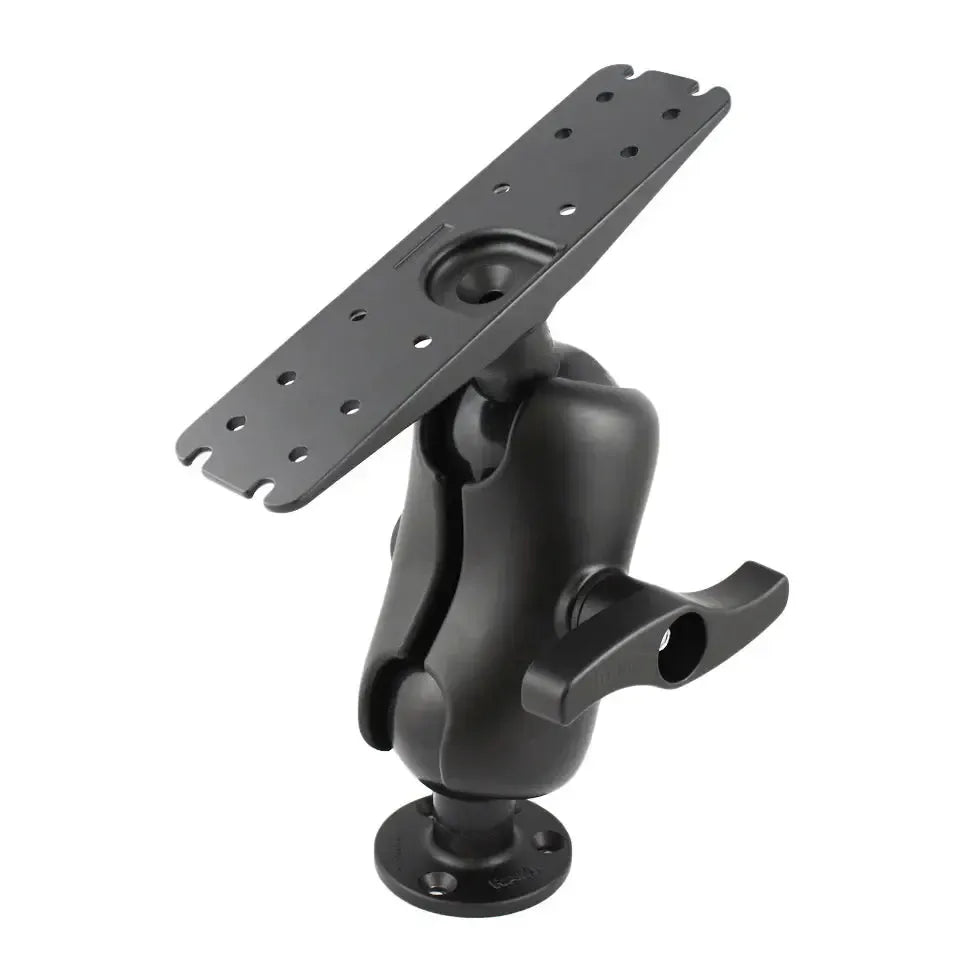

The RAM-E-111U-D is a universal mounting bracket with a selection of mounting hole locations. This mount consists of E-Size components, including a short (12.6cm) arm, large 3"x11" plate for mounting, and 3.68" diameter round base.
In certain applications additional holes may need to be drilled for proper fit with your electronic device.
Specifications
Hardware Included
-
(4) Shoulder washers: 0.312" × 0.187" (7.9 mm × 4.7 mm)
Socket to Socket Length
-
4.975" (126.4 mm)
Hole Pattern
-
See drawings
Ball Size
-
E Size (3.38" / 85.9 mm)
Weight Capacity
-
Standard use: 15 lb (6.8 kg)
-
Heavy-duty use: 10 lb (4.5 kg)
Materials
-
Marine-grade aluminium
Packaging Type
-
Poly bag
Weight
-
8.6 lb (3.90 kg)
Additional Information
-
This plate is a universal mounting bracket with multiple mounting hole locations. In some applications, additional holes may need to be drilled to ensure proper fit with your electronic device.
