RAM 6" Vertical Swing Arm for Fishfinders (RAM-109VU)

Included:

• 1 x RAM 6" Vertical Swing Arm for Fishfinders (RAM-109VU)

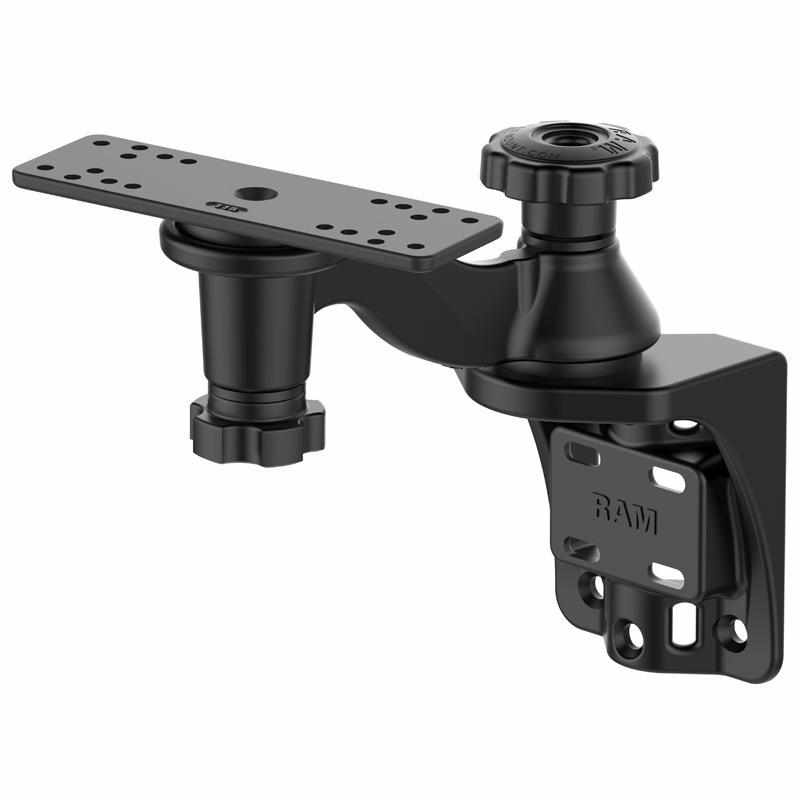

The RAM-109VU mount features a 6" long swing arm mounted on a vertical surface mounting base. Connected to the end is a rectangular 6.25" x 2" RAM mounting plate for securing your marine device to.

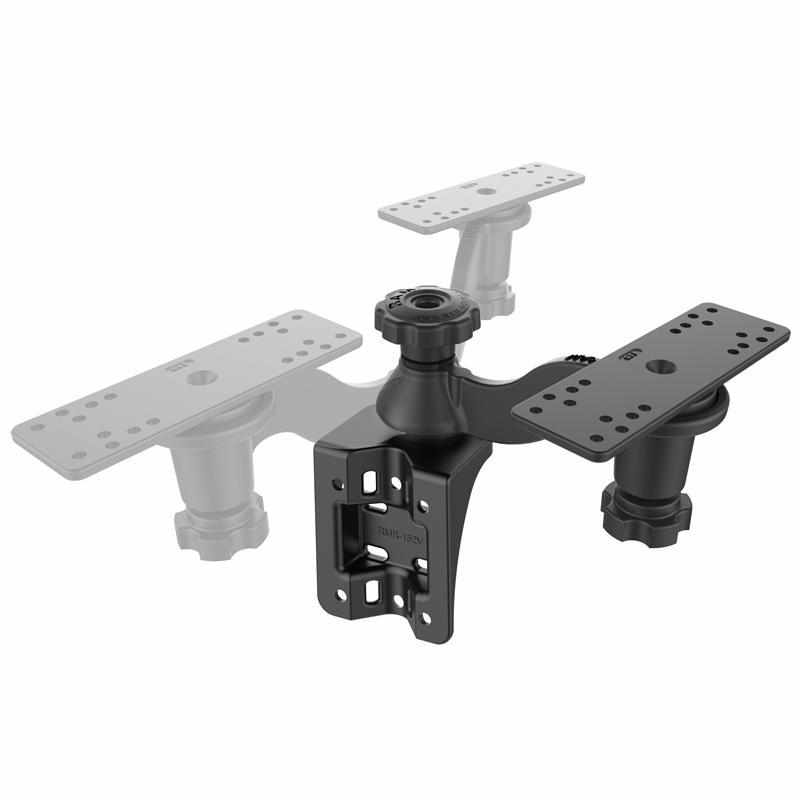

Each pivoting point on the mount provides complete 360-degree rotation.

Specs

• Dimensions:
  Overall length of swing arm assembly: 290mm (11.4375")
  Overall height: 215mm (8.45")
  Centre of knob to centre of ball socket: 152mm (6")

• Material: Powder Coated Marine Grade Aluminum
• Weight Capacity: Up to 8 lbs (3.7kg)
• Weight: 2.6 lbs.

Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. For some applications, additional holes may need to be drilled for a better fit with your electronic device.

Plate Hole Patterns

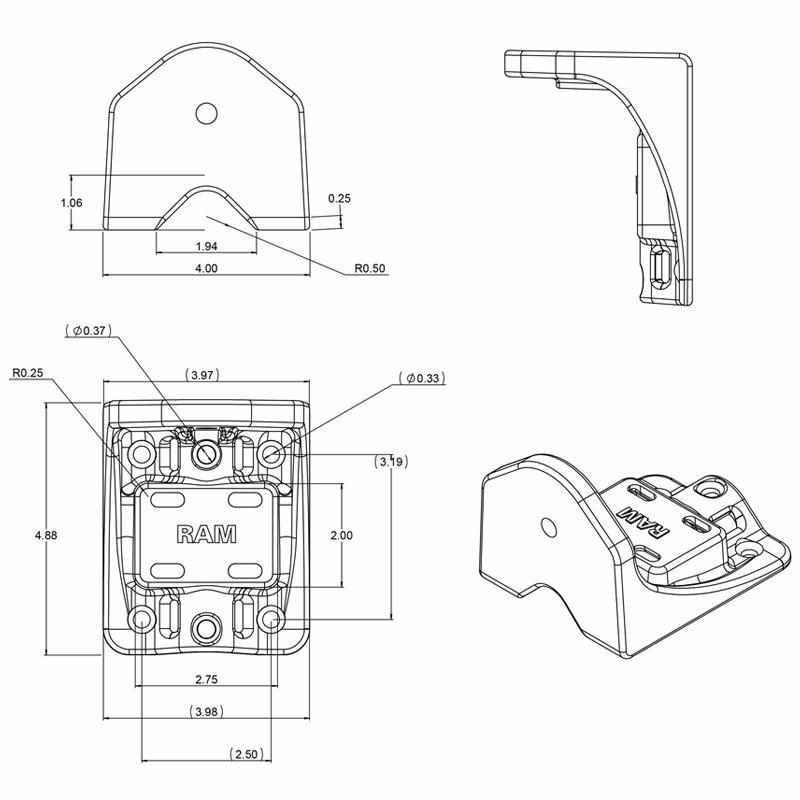

VERTICAL BASE DRAWING FILE
