RAM-238-WCT
RAM Universal Wheelchair Ball Base C (RAM-238-WCT)
$42.00$59.00
Size Guide
Included:
- 1 x RAM Universal Wheelchair Ball Base C (RAM-238-WCT)

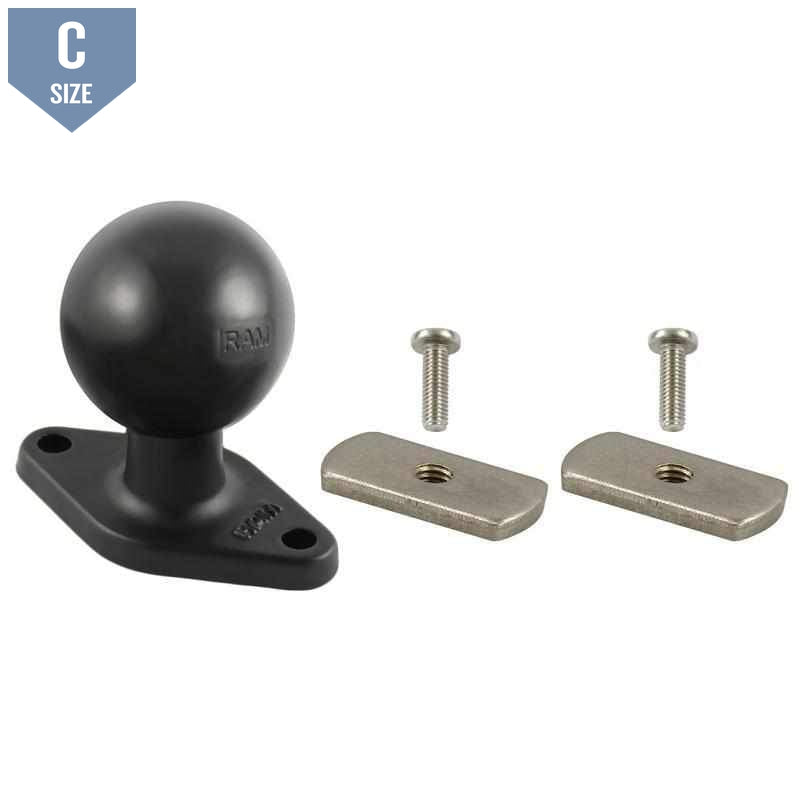

This RAM ball base (RAM-238-WCT) features a RAM-238U Diamond Base with an appropriate hardware pack that accommodates the arm and seat tracks on most major wheelchair brands.
Some of these brands include Invacare, Permobil, and Quickie, and more as well as any other universal mounting point.
Hardware Pack:
- (QTY. 2) #10-32 x 1/2" Machine Screw
- (QTY. 2) #10-32 T-Nut (3/8" x 5/8")
- (QTY. 2) #10-32 T-Nut (1/2" x 1")
- (QTY. 2) M4 x 12mm Machine Screw
- (QTY. 2) M4 x 20mm Machine Screw
- (QTY. 2) M4 Stainless Steel Washer
- (QTY. 2) M4 Nylock Nut
This ball base features a 1.5" (C-Size) ball, strong enough to mount a Tablet.
Connect this base to a variety of compatible RAM arms and extensions (C-Size) to build a custom mount to meet your specific needs.
Specs
- Material: Powder Coated Marine Grade Aluminum
- Ball Size: C Size 1.5" Rubber Ball
- Weight: 0.3 lbs.
