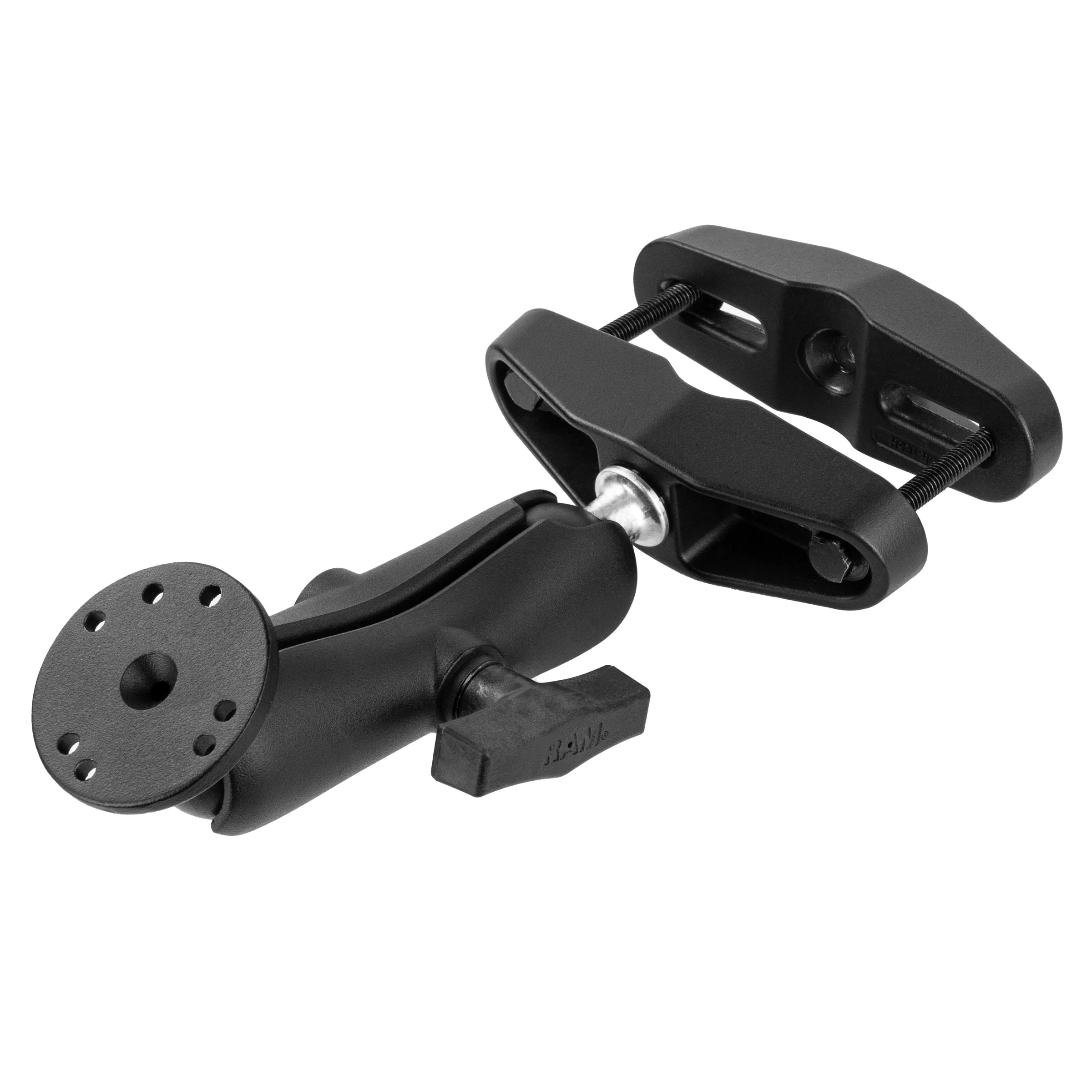

RAM Universal Post Clamp Mount w/ Round Plate & C-Size Medium Arm (RAM-101U-247)

Included:

• 1 x RAM Square Post Clamp Base for 1.75"–4" Posts, C Size (RAM-247U)
• 1 x RAM Medium Double Socket Arm, C Size (RAM-201U)
• 1 x RAM Round Plate with 1.5" C Size Ball (RAM-202U)

A post-clamp mounting combination with an adjustable RAM-247U base, medium C size arm and round output plate. It fits square-post widths of 1.75"–4" using the slotted clamp base.

The rubber ball-and-socket joints adjust at both ends of the arm and help dampen shock and vibration.

Holder and device are sold separately. The round output plate accepts a matching flat-backed 4-hole AMPS holder or dock. A holder with its own 1.5" C size ball can use the arm directly without the upper plate.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Arm Length: Medium
• Output Connection: 4-hole AMPS round plate, 30 x 38mm
• Post Width: 1.75"–4" (44.45–101.6mm); square posts
• Overall Arm Length: 5.69" (144.5mm), RAM-201U
• Socket-to-Socket Length: 4.66" (118.36mm)
• Round Plate: 2.5" (63.5mm) diameter
• Hole Pattern: 4-hole AMPS: 1.181" x 1.496" (30 x 38mm); 3-hole 120-degree pattern: 1.812" (46.02mm) diameter
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Materials: Powder-coated marine-grade aluminium
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.
• Hardware Included:
  • 2 x 5/16"-18 x 3.5" hex bolts, 2 x 5/16"-18 nuts, 2 x flat washers, 2 x lock washers and 2 x rubber caps

Packaging may vary; all listed components are genuine RAM.

Help

Check both post dimensions, bolt reach and surrounding clearance.

Check the complete assembly’s weight and loading conditions. The weakest component and mounting surface determine the usable capacity.
