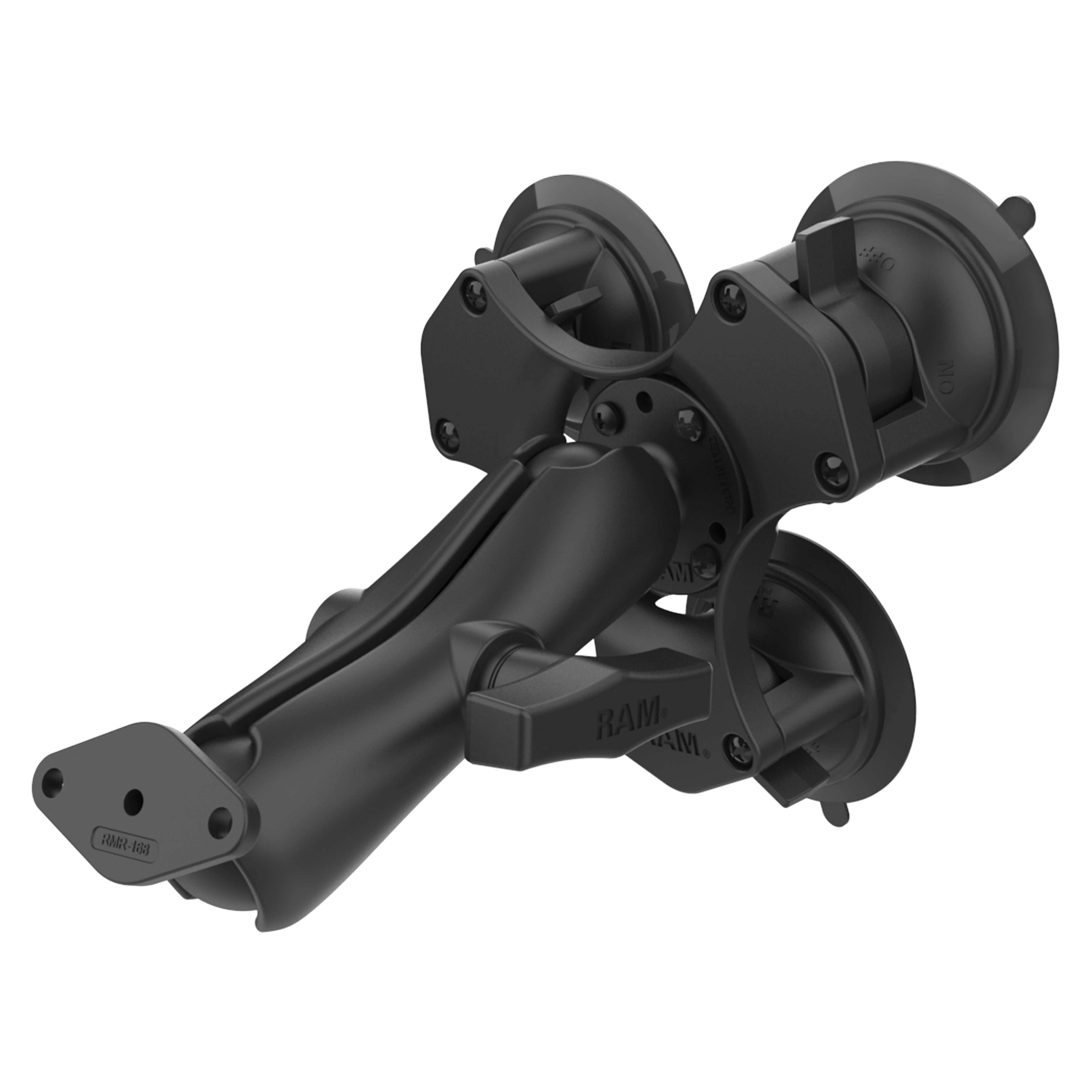

RAM Triple Suction Mount w Standard C Size Arm & Diamond Plate (RAP-365-138U)

Included:

• 1 x RAM Triple Suction Cup Ball Base C Size (RAP-365-224-1U)
• 1 x RAM Standard Double Socket Arm C Size (RAM-201U)
• 1 x RAM Diamond Ball Plate C Size (RAM-238U)

The RAP-365-138U combines three Twist-Lock suction cups with a medium C Size arm and diamond plate. Use it on clean, flat, non-porous surfaces such as suitable glass or windows, with enough space for the complete suction footprint.

The arm adjusts at both ball joints. Attach a compatible holder using the plate's AMPS pattern. Device holder sold separately.

Specifications

• Suction Cups: 3 x 3.3" (83.8 mm) diameter cups; total width 7.95" (201.9 mm)
• Ball Size: C Size 1.5" (38.1 mm) rubber balls
• Arm Length: 5.69" (144.5 mm) overall; 4.66" (118.4 mm) socket-to-socket
• Holder Plate: 2.43" × 1.31" (61.7 × 33.3 mm)
• Hole Pattern: 2-hole AMPS, 1.912" (48.6 mm) spacing
• Weight Capacity: Standard use: 4 lbs (1.81 kg); heavy-duty use: 3 lbs (1.36 kg)
• Weight: 1.81 lb (approximately 821 g)
• Material: Marine-grade aluminium and high-strength composite
• Packaging: Poly bag
• Warranty: RAM limited lifetime warranty; suction-cup rubber is a wear item and is excluded
• Hardware Included:
  • Assembly hardware

Fitment: All three cups need a clean, suitable contact area. Check the surface geometry, secure attachment and total supported weight before use.

Help

• RAM suction cup installation guide

Holder Connection: The supplied diamond plate is for a flat-backed holder with the matching 2-hole AMPS pattern. A holder with its own C Size ball can connect directly to the arm in place of the upper plate.
