RAM Tough-Mag 88MM Magnetic Adapter w/ 2-Hole AMPS Pattern (RAM-MAG88DU)

Included:

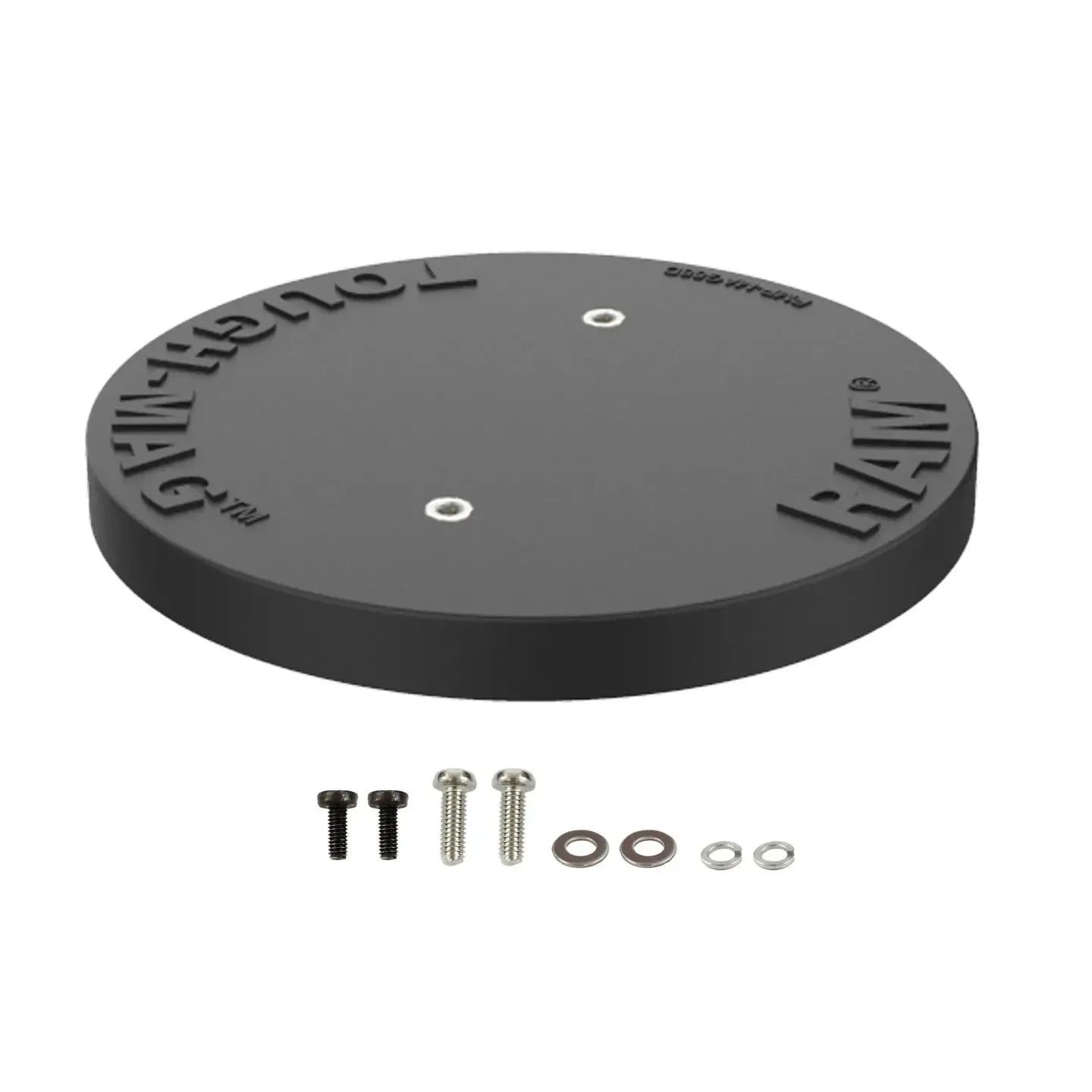

• 1 x RAM® Tough-Mag™ 88MM Diameter Magnetic Adapter with 2-Hole AMPS Pattern (RAM-MAG88DU)

Features

• Magnetic base contains a 2-hole AMPS pattern with M4 threaded inserts for attaching a compatible holder or base
• RAM^® Tough-Mag^™ 88mm base magnetises to any ferrous metal surface
• 10 industrial-strength N52 grade magnets hold up to 2 lbs (0.91kg)
• Rubber coating helps protect surfaces from scratches
• Creates a low-profile magnetic mounting solution
• Backed by a lifetime warranty

Introducing the RAM-MAG88DU. The RAM^® Tough-Mag^™ 88MM Diameter Magnetic Adapter with 2-Hole AMPS Pattern can be secured to any compatible holder or base to create a low-profile mounting solution that magnetises to any ferrous metal surface. This base features 10 industrial-strength N52 grade magnets and a rubber coating that helps protect the metal surface you’re attaching to.

Specifications:

HARDWARE INCLUDED
(2) M4 x 10mm machine screws
(2) M4 x 12mm machine screws
(2) M4 flat washers
(2) M4 lock washers

PRODUCT DIMENSIONS
Diameter: 3.46" (87.9 mm)
Thickness: 5/16" (7.9 mm)

HOLE PATTERN
2-Hole AMPS: 1.912" (48.6 mm)

WEIGHT CAPACITY
Up to 2 lbs (0.91 kg)

MATERIALS
N52 magnets, qty 10
Rubber coating

PACKAGING TYPE
Poly bag

WEIGHT
0.71 lb (0.32 kg)

Help

Is the reverse side flat?
Yes, the reverse side is flat. There are no mounting options, lettering, or anything else on the reverse side.
