RAM Tough-Mag 48MM 4-Point Magnetic Mounting Base (RAM-MAG48-4SU)

Included:

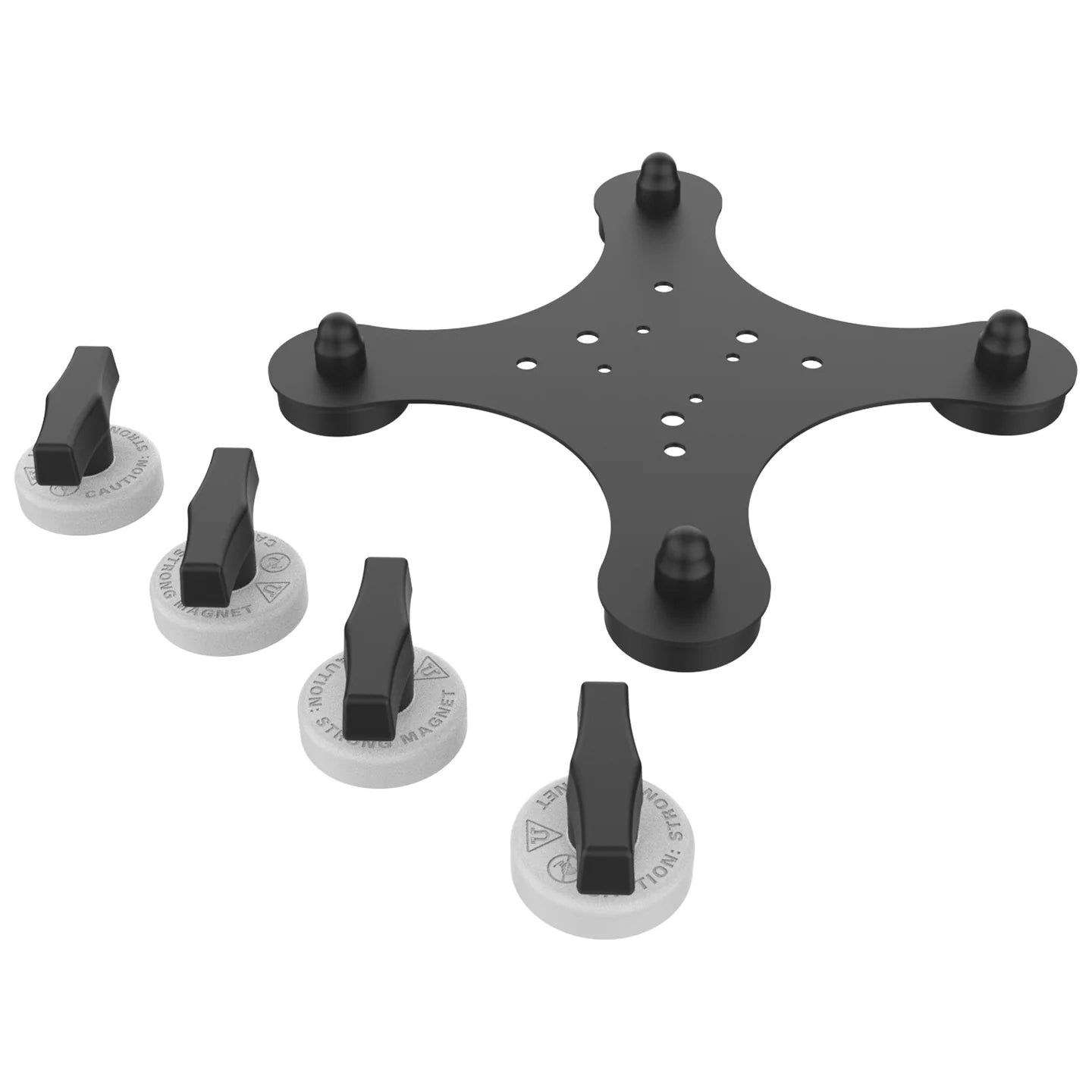

• 1 x RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base (RAM-MAG48-4SU)

Features

• Four-point aluminium mounting plate designed for secure magnetic attachment through flat glass and similar surfaces up to 6mm thick
• Four handled external magnets pair with the four magnetic points on the mounting plate for a strong, removable installation

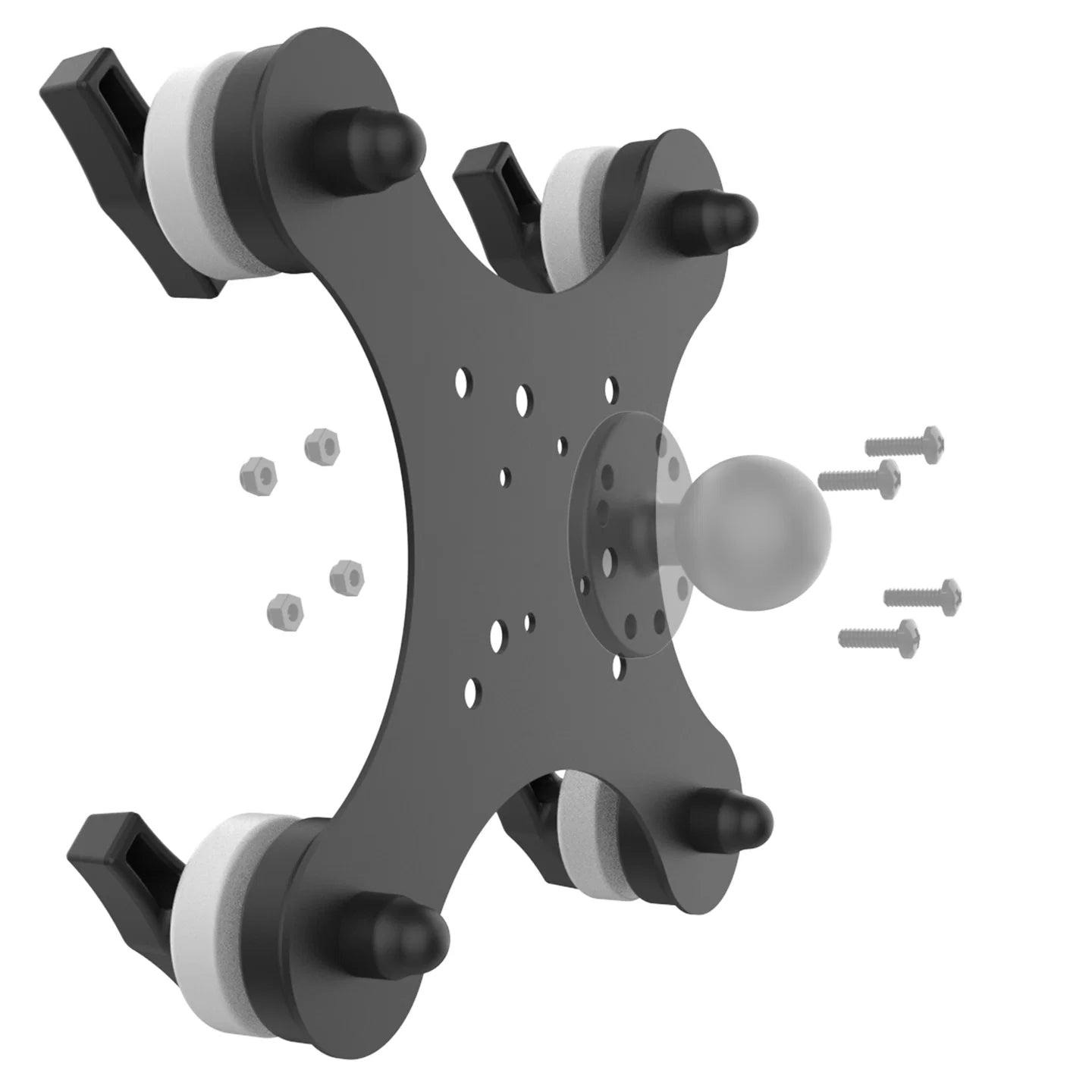

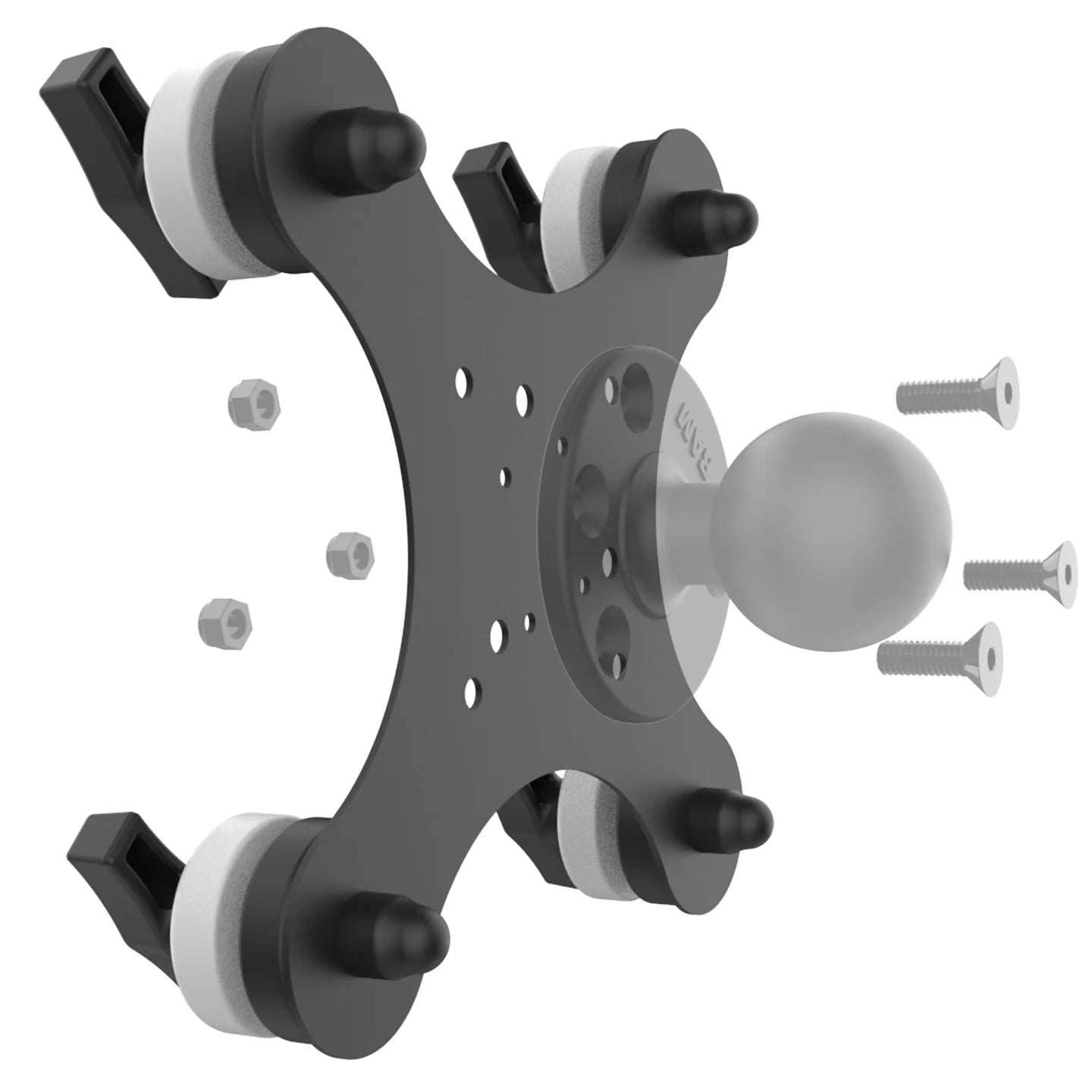

• Pre-drilled 4-hole AMPS and 75 x 75mm VESA patterns for attaching compatible C or D size RAM^® drill-down ball bases
• Rubber-coated magnets help protect the mounting surface and soften the initial magnetic impact
• Handles on the external magnets make installation and removal easier
• Backed by a lifetime warranty

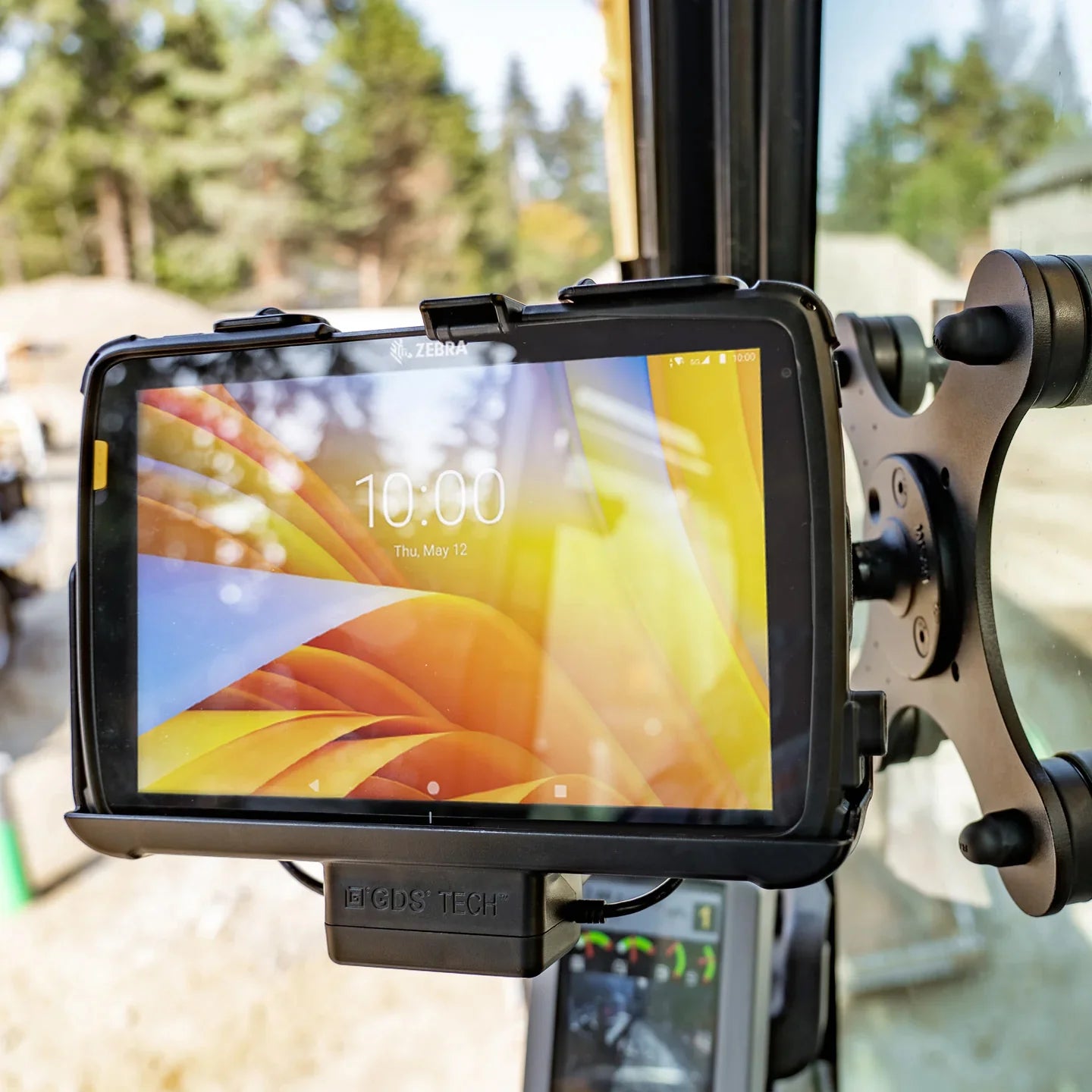

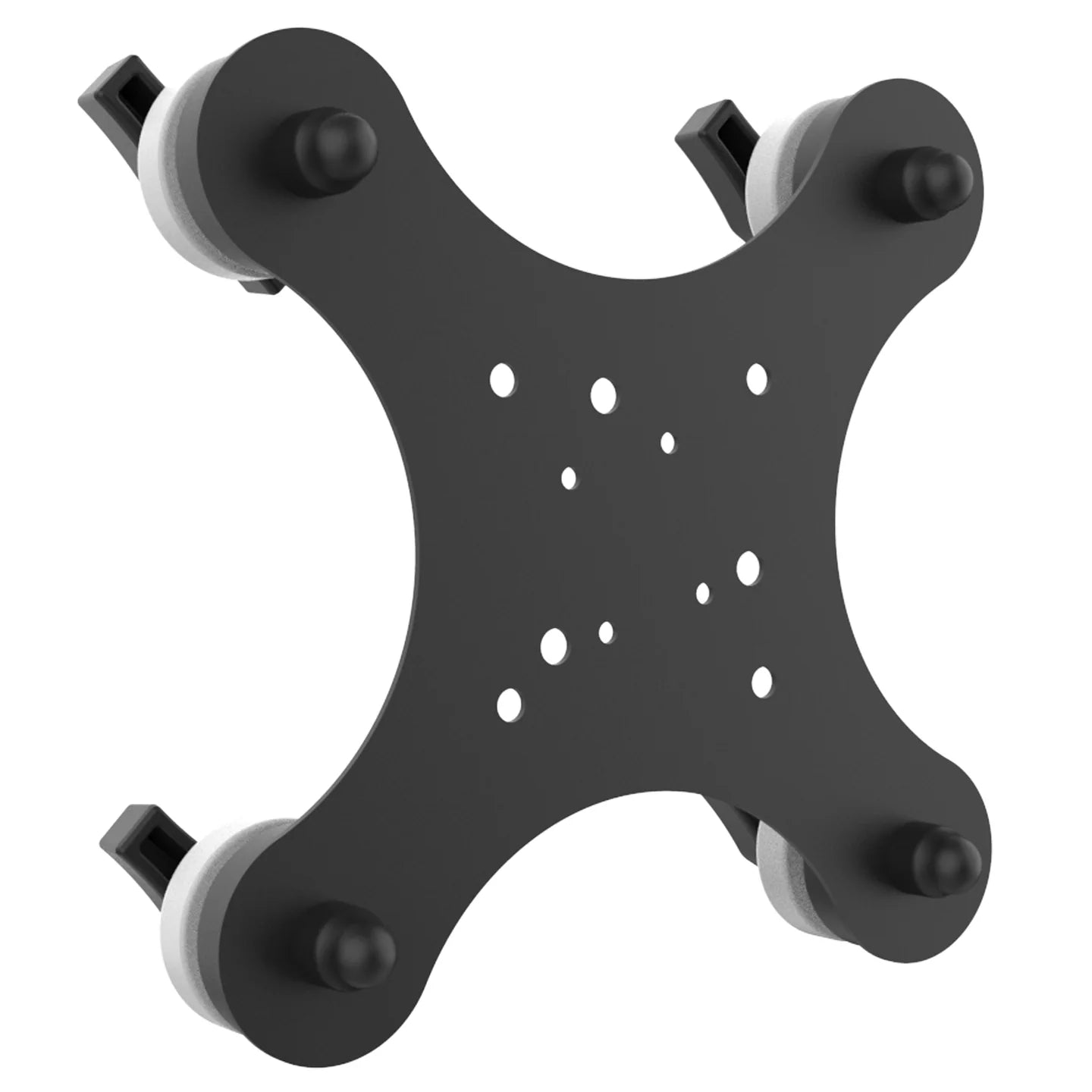

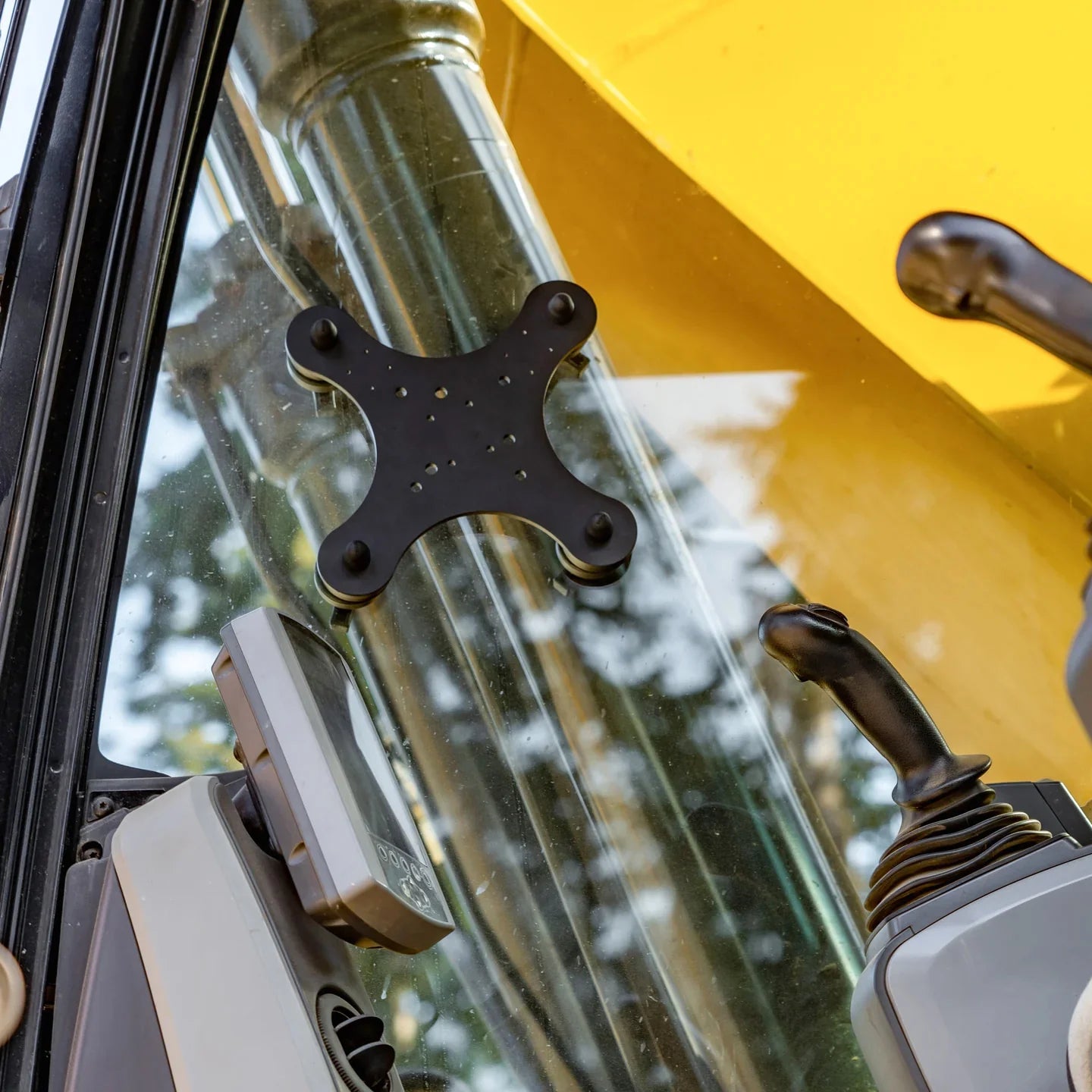

Introducing the RAM-MAG48-4SU. The RAM^® Tough-Mag^™ 48MM 4-Point Magnetic Mounting Base provides a heavy-duty mounting point on sturdy flat surfaces such as windows. The aluminium plate sits on one side of the surface, while four handled external magnets secure the assembly from the opposite side. Integrated AMPS and VESA hole patterns allow a compatible RAM^® C or D size drill-down ball base to be added for building out your mounting system.

Specifications

HARDWARE INCLUDED
Assembly hardware
(4) #10-24 x 5/8" machine screws
(4) #10-24 nyloc nuts
(3) 5/16"-18 x 1" machine screws
(3) 5/16" nyloc nuts

PRODUCT DIMENSIONS
Overall Length: 8.99"
Overall Width: 8.99"
Overall Thickness (inside surface): 1.64"

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA

MAXIMUM SURFACE THICKNESS
6mm

PACKAGING TYPE
Poly bag

WEIGHT
4.52 lb

Help

Important: The magnets used with this mount are extremely strong. Keep the magnets separated during assembly and follow the RAM^® installation instructions carefully.
