RAM-101-225B2-SAM52CP-V7CU

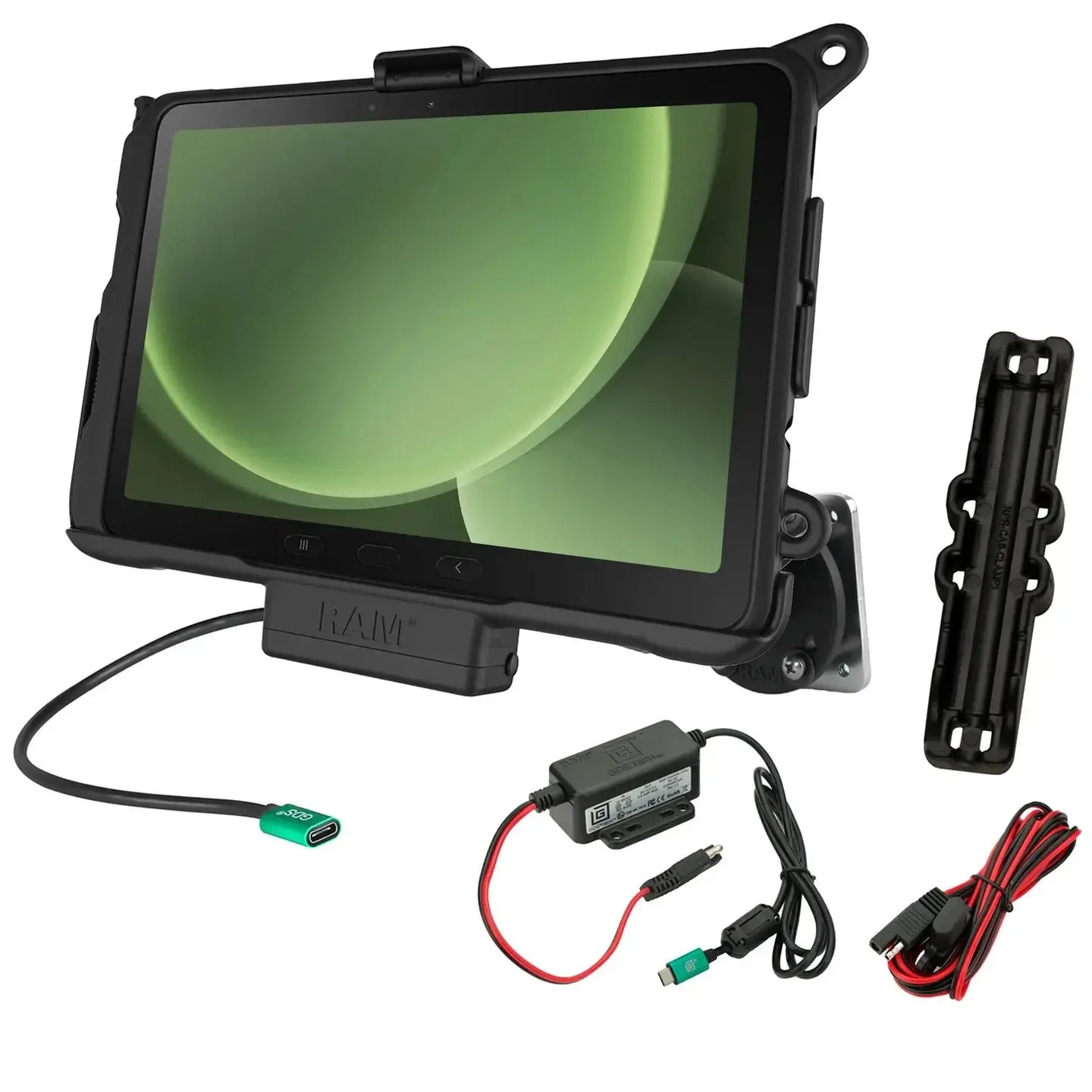

RAM EZ-Roll'r USB-C Powered Mount for Samsung Tab Active5 Pro & 4 Pro (RAM-101-225B2-SAM52CP-V7CU)
$370.00$430.00
Size Guide

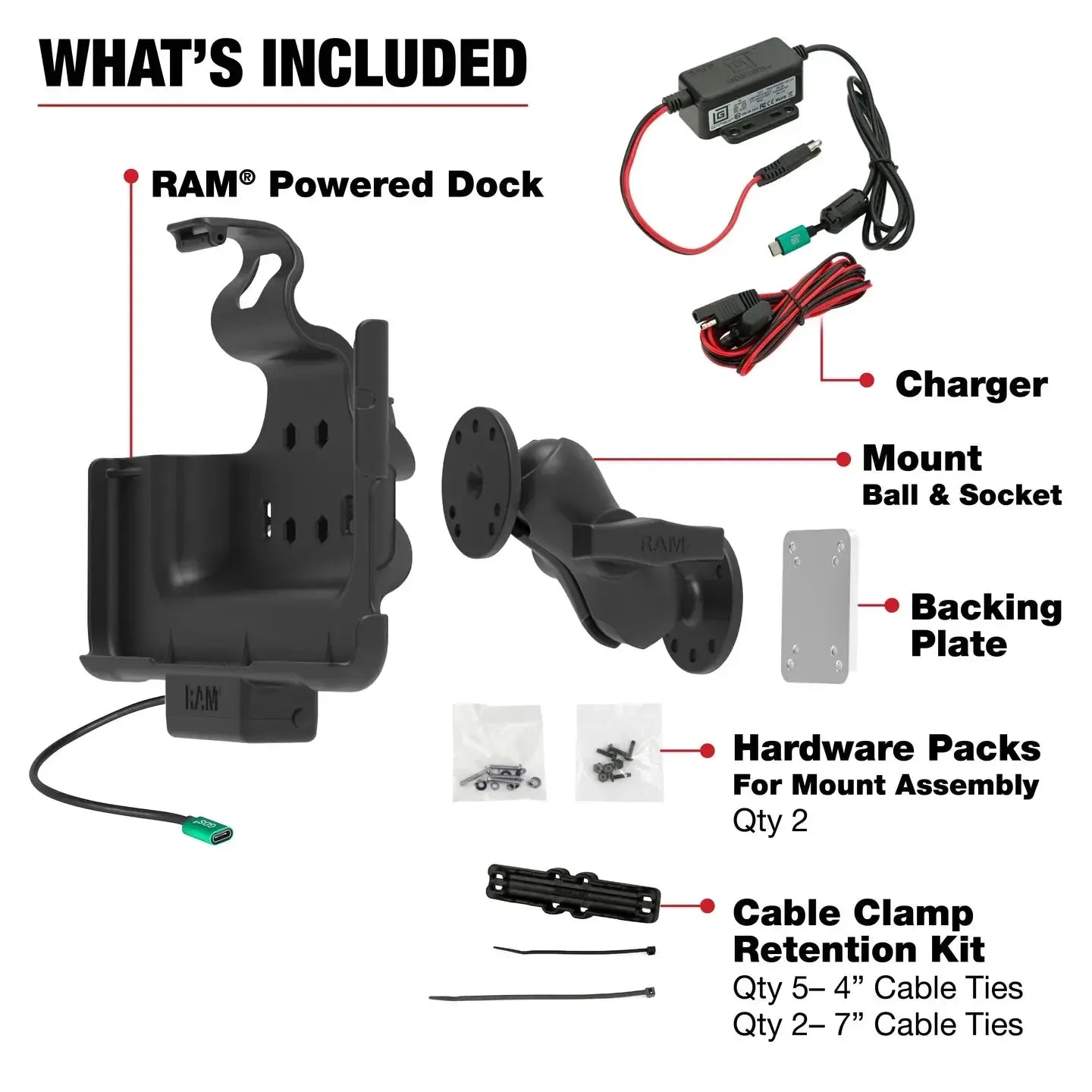

Included:
- 1 x RAM USB-C Powered Dock for Samsung Tab Active5 Pro, Active4 Pro (RAM-HOL-SAM52CPU)
- 1 x RAM GDS Modular 10-30V Charger Cable with Male USB Type-C (RAM-GDS-CHARGE-V7CU)
- 1 x RAM Double Ball Mount with Backing Plate (RAM-B-101U-225B2)
FEATURES
- Bundle includes the RAM® USB-C Powered Dock and C size double ball mount with medium arm, backing plate adapter, and cable clamp
- Powered dock designed specifically for the Samsung Galaxy Tab Active4 Pro series wrapped in the RAM® Skin™ or Samsung OEM case
- Next gen charging with integrated pogo pin docking contacts that match the Tab Active5 Pro's pogo pads for a fumble-free charging experience and port-protection
- Backed by a 3-year warranty

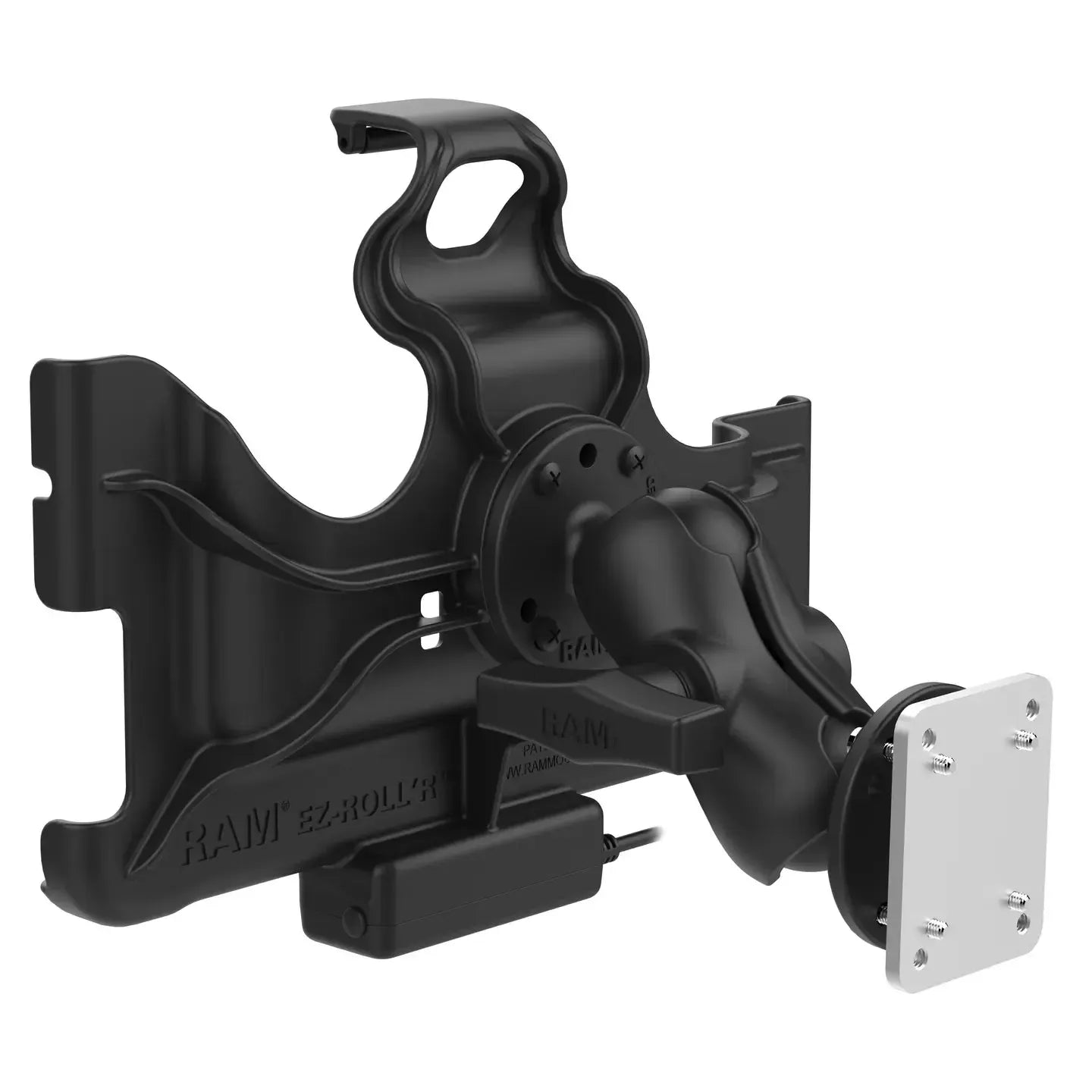

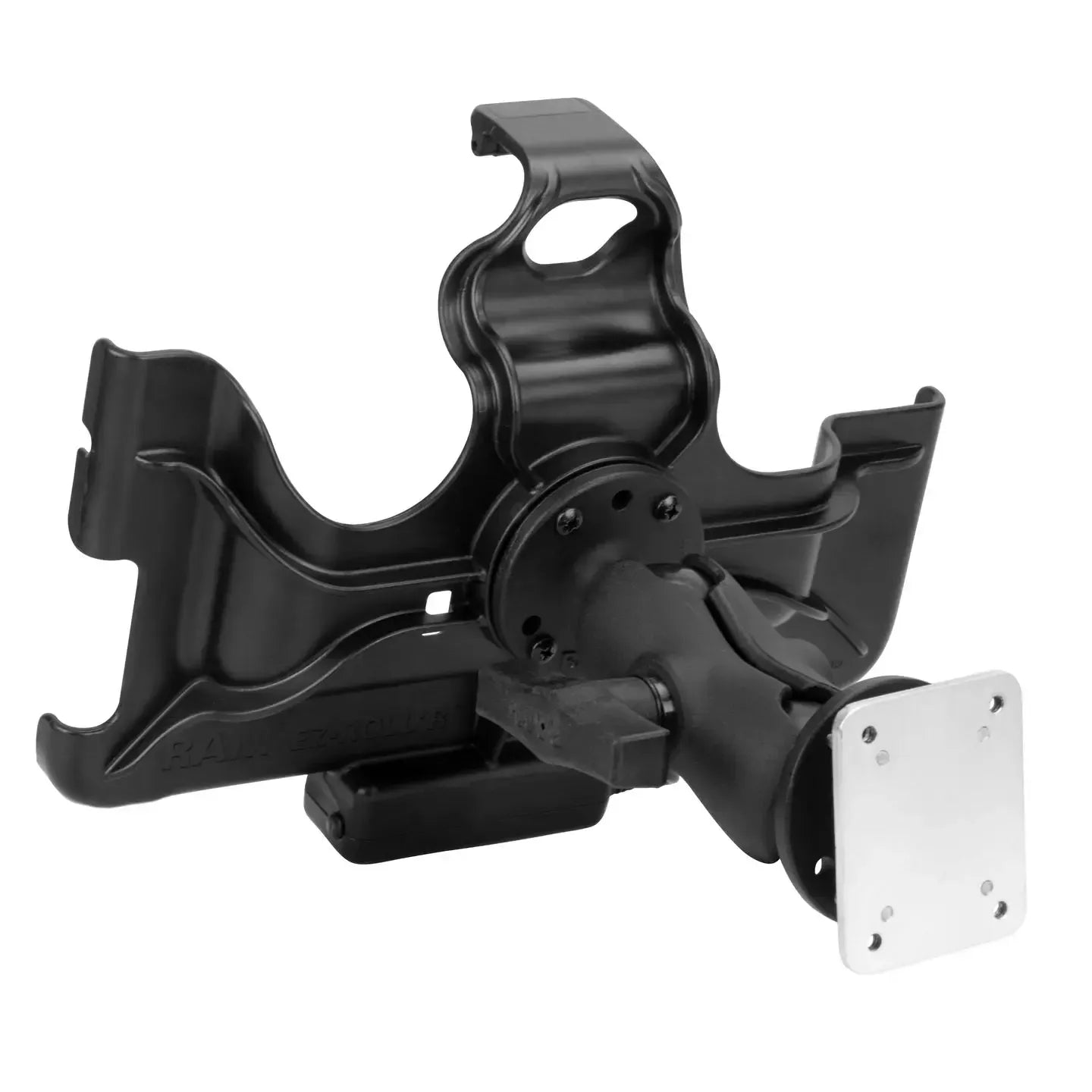

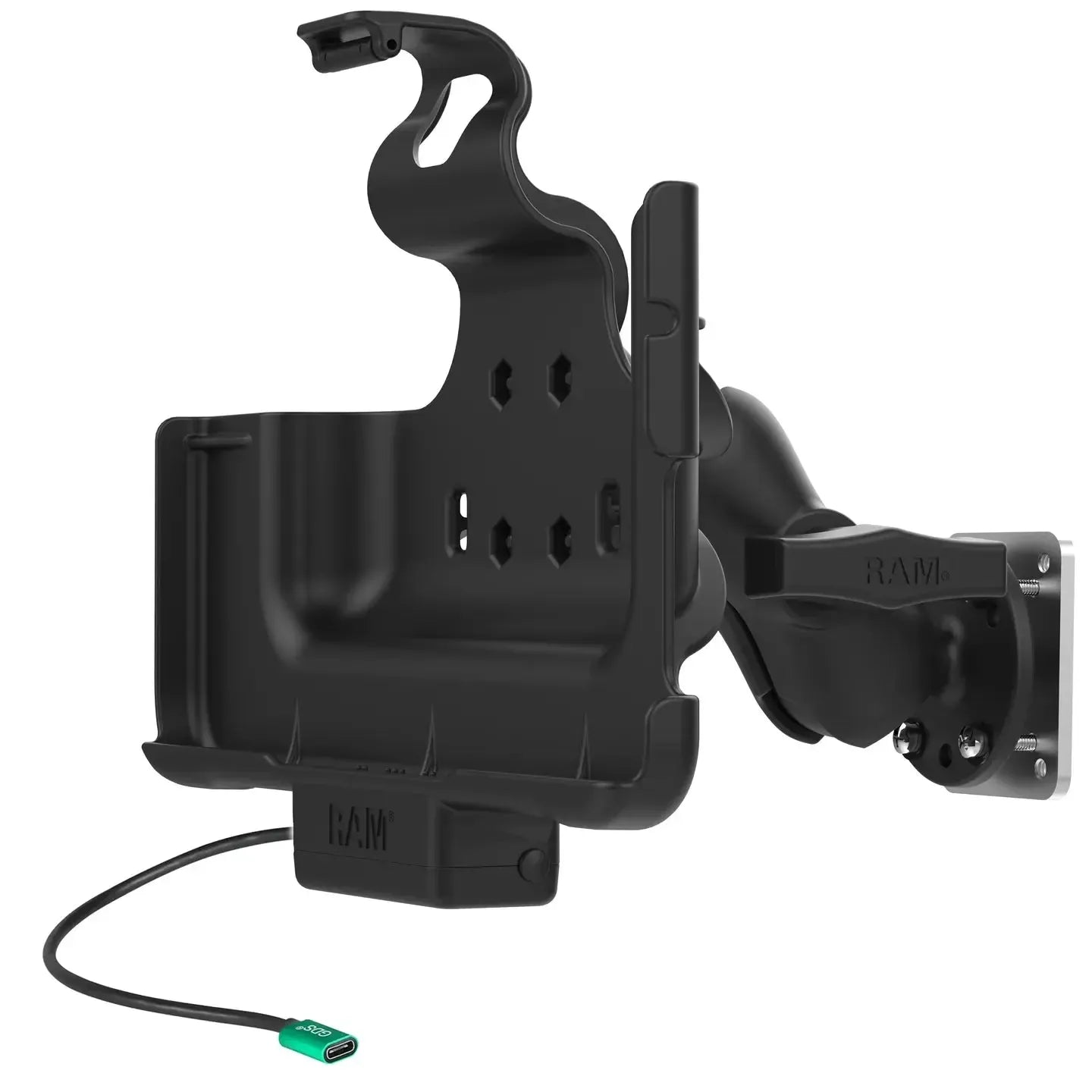

The RAM Powered Dock & Dashboard Mount for Samsung Tab Active5 Pro (RAM-101-225B2-SAM52CP-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active Pro series in your fleet. It contains one RAM® USB-C Powered Dock, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. When undocking, a simple push the lever upwards to release the device. The RAM® Powered Dock is backed by a 3-year warranty.
Specs
Hardware Included:
Assembly hardware
(1) 2.10" x 2.60" steel backing plate (53.3mm x 66.0mm)
(4) #8-32 x 1" screws (25.4mm)
(4) #8 split lock washers
(4) #8 flat washers
(1) cable clamp
(1) hardwire charger
Socket-to-Socket Length:
3" (76.2mm)
Ball Size:
C Size, 1.5" (38.1mm)
Weight Capacity:
Standard use: 4 lb (1.81kg)
Heavy-duty use: 3 lb (1.36kg)
Materials:
Steel
Marine-grade aluminium
High-strength composite
Packaging Type:
Poly bag
Input Voltage:
5.3–5.4VDC
Output Voltage:
5VDC
Power Output:
500mA
Input Connector:
USB Type-C female
Input Cable Length:
215mm
Operating Temperature:
-10°C to +70°C
Storage Temperature:
-40°C to +70°C
Regulatory:
Overvoltage/load dump compliance: meets SAE J-1113
FCC
CE
UKCA
IC
Certifications:
E-Mark certification
Integrated short circuit protection
WEEE and RoHS compliant
USB 2.0 BC 1.2 DCP support
IEC/UL 62368-1
Weight:
2.55 lb (1.16kg)
Compatibility
- Galaxy Tab Active5 Pro
- Galaxy Tab Active4 Pro
- Galaxy Tab Active Pro
Help
Instructions for Modular Hardwire Charger
Something failing? By all means get in contact with us at info@modestmounts.com.au
However, we have found it is VERY rarely the cradles or cables in these instances (we sell thousands of these per year and have almost no electronics failures.)
Often just cleaning the pogo pads with contact cleaner and cloth or even a pencil eraser, solves most issues, provided the pins have not worn down.
