RAM C-Size Medium Double Magnetic Round Plate Bundle (RAM-101-333-MAG88U)

Included:

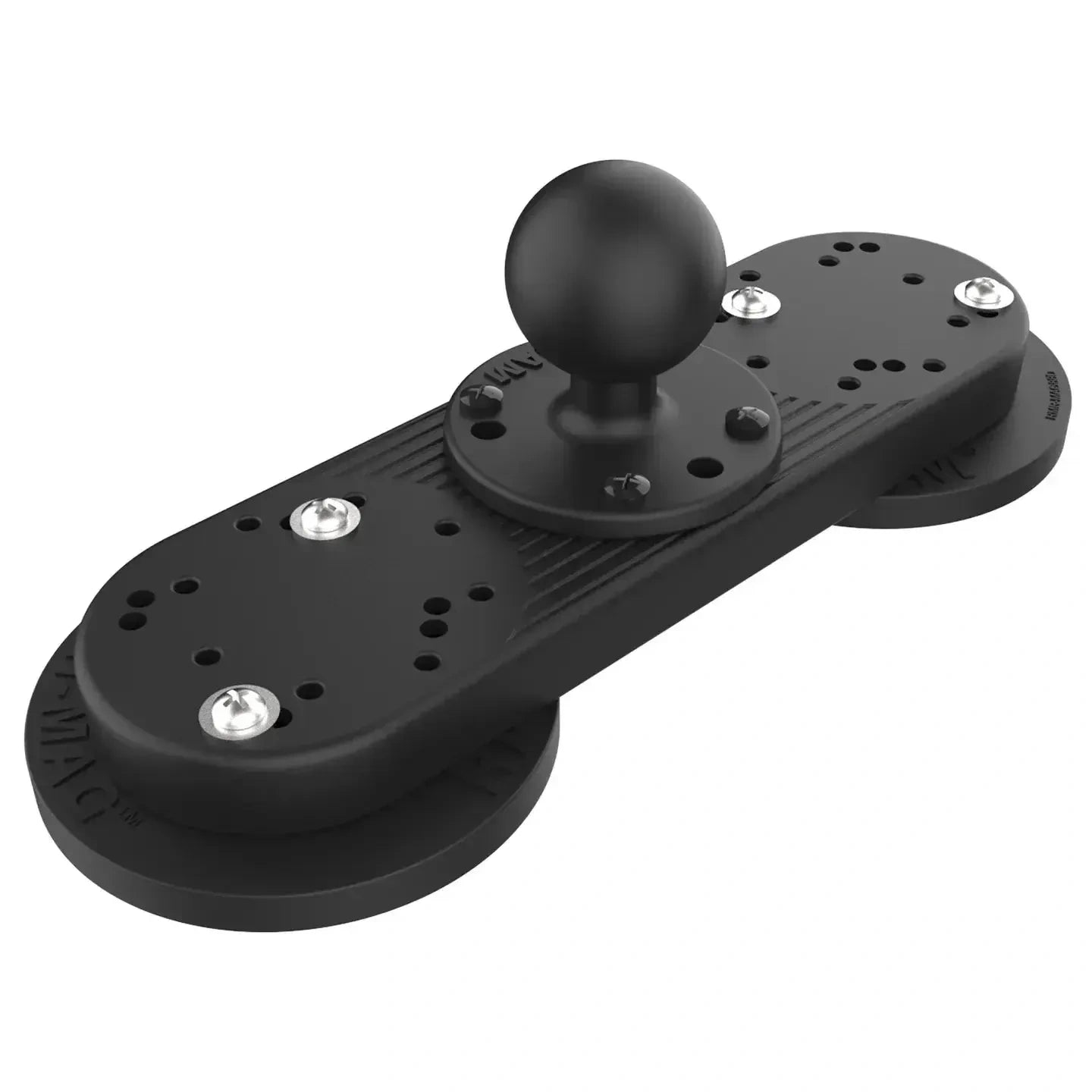

• 1 x RAM Tough-Mag Double Magnetic Ball Base (RAM-202-333-MAG88U)

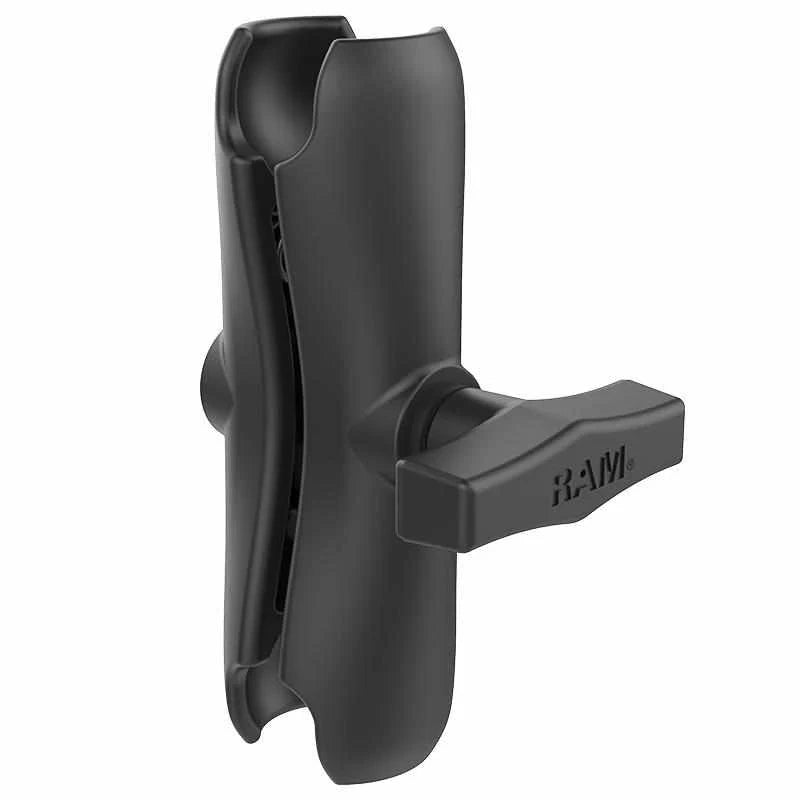

• 1 x RAM Standard Double Socket Arm C Size (RAM-201U)

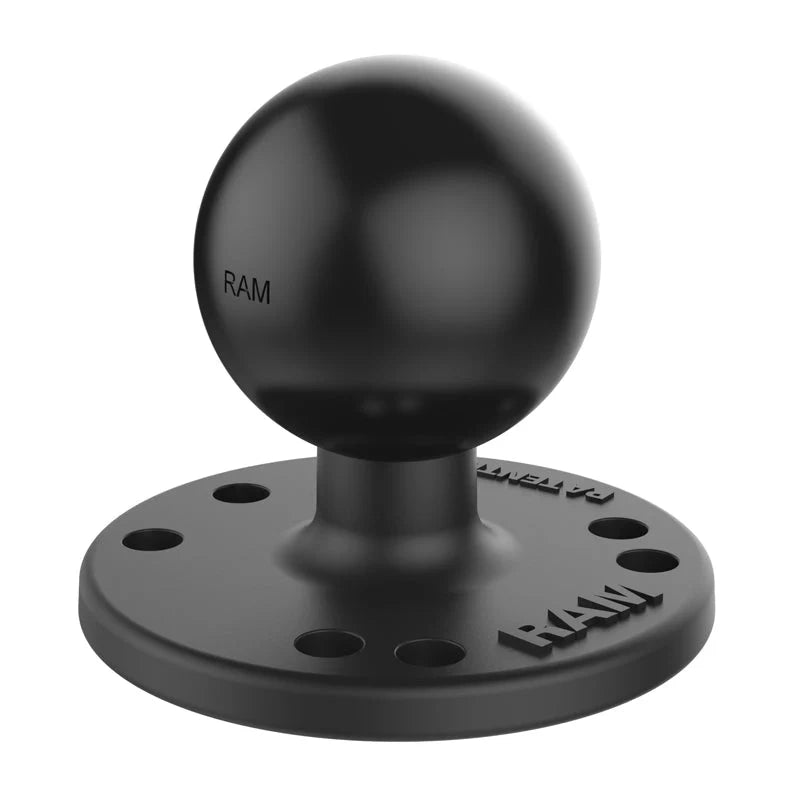

• 1 x RAM Round Ball Plate C Size (RAM-202U)

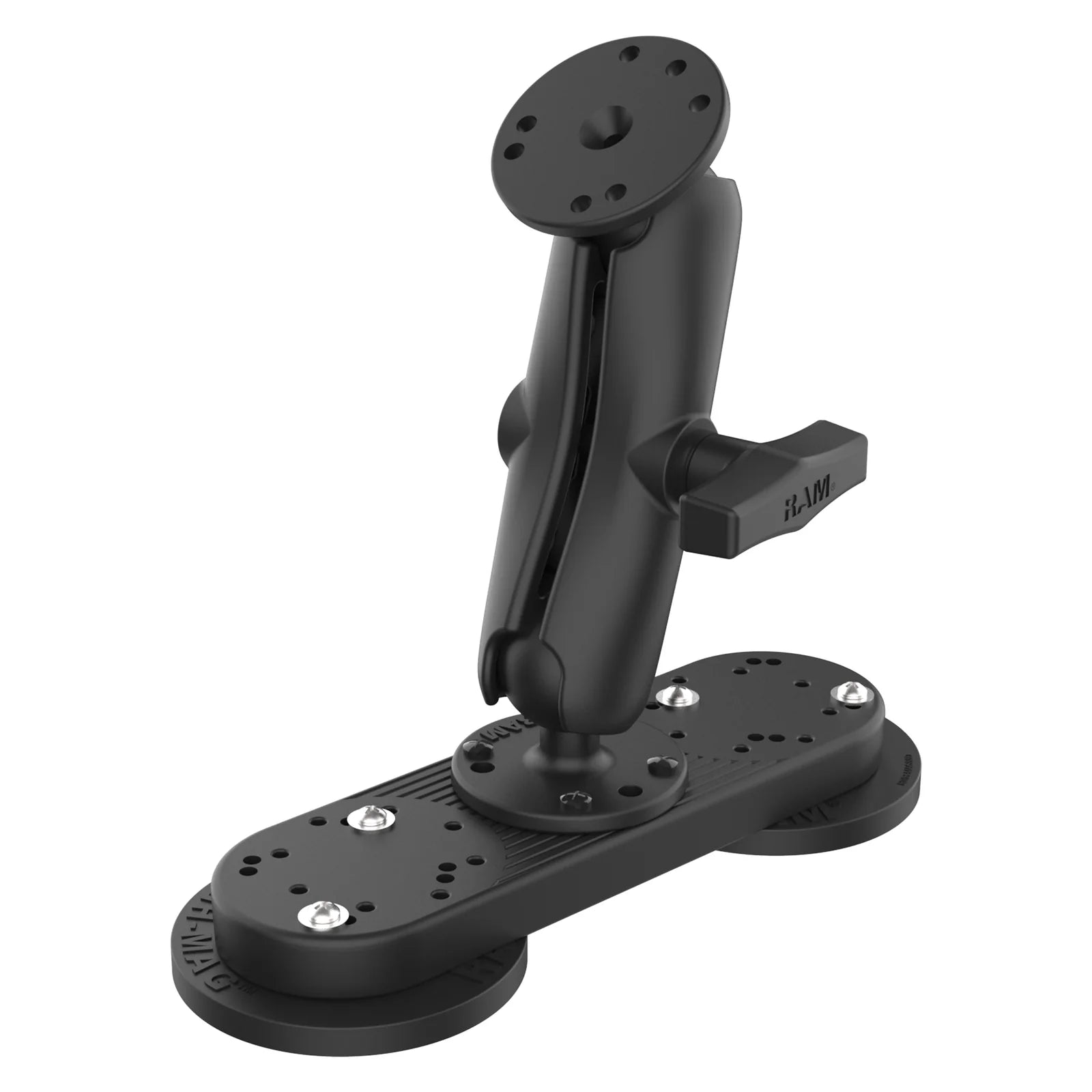

This RAM mounting kit combines a dual-puck Tough-Mag base with a medium C Size arm and round plate. It provides a removable mounting point on suitable ferrous metal, with a rubber-coated base to help protect the surface.

The arm adjusts at both ball joints. Attach a compatible holder using the plate's AMPS pattern. Device holder sold separately.

Specifications

• Ball Size: C Size 1.5" (38.1 mm) rubber balls
• Arm Length: 5.69" (144.5 mm) overall; 4.66" (118.4 mm) socket-to-socket
• Holder Plate: 2.5" (63.5 mm) diameter
• Hole Pattern: 4-hole AMPS: 1.181" × 1.496" (30 × 38 mm); 3-hole 120°: 1.812" (46.0 mm) diameter
• Weight Capacity: Standard use: 4 lbs (1.81 kg); heavy-duty use: 3 lbs (1.36 kg)
• Material: Powder-coated marine-grade aluminium, N52 magnets and rubber-coated magnetic base
• Warranty: RAM component limited lifetime warranty
• Hardware Included:
  • Assembly hardware

Packaging may vary; all listed components are genuine RAM.

Fitment: Check that the surface is ferrous, flat and suitable for the magnetic base. Confirm secure attachment for the intended load and movement; magnetic pull strength is not the mount's payload rating.

Holder Connection: The supplied round plate is for a flat-backed holder with the matching 4-hole AMPS pattern. A holder with its own C Size ball can connect directly to the arm in place of the upper plate.
