RAM-109HSB
RAM 6" Horizontal Swing Arm with Swivel Ball & Socket (RAM-109HSB)
$179.00$188.00
Size Guide
Included:
- 1 x RAM 6" Horizontal Swing Arm with Swivel Ball & Socket (RAM-109HSB)

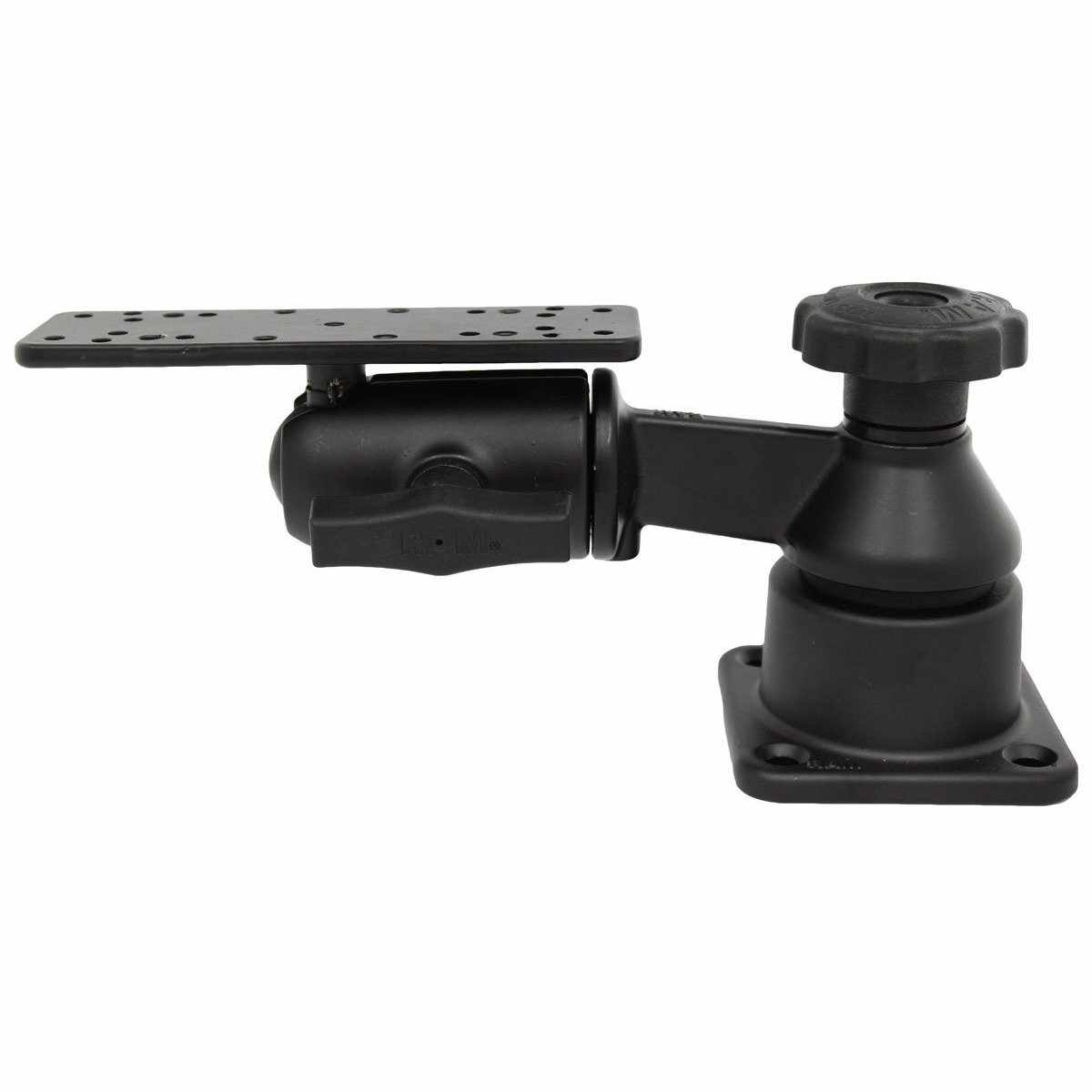

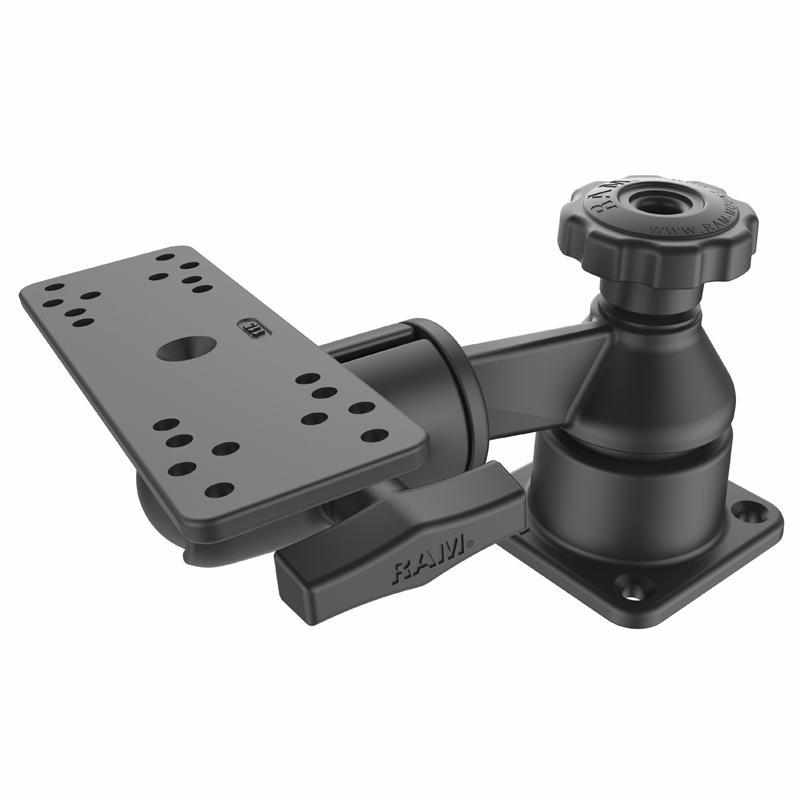

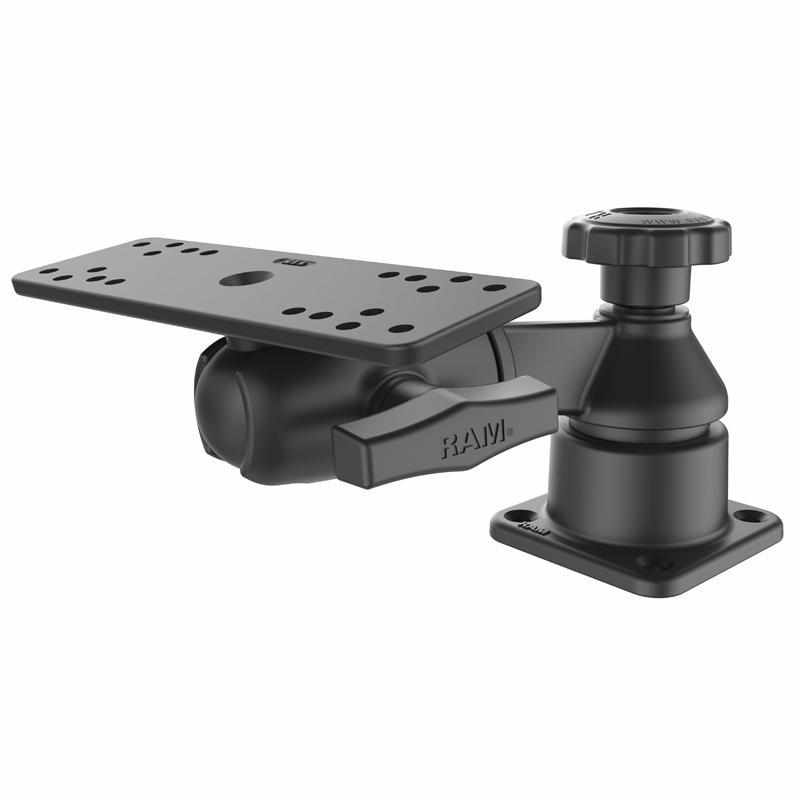

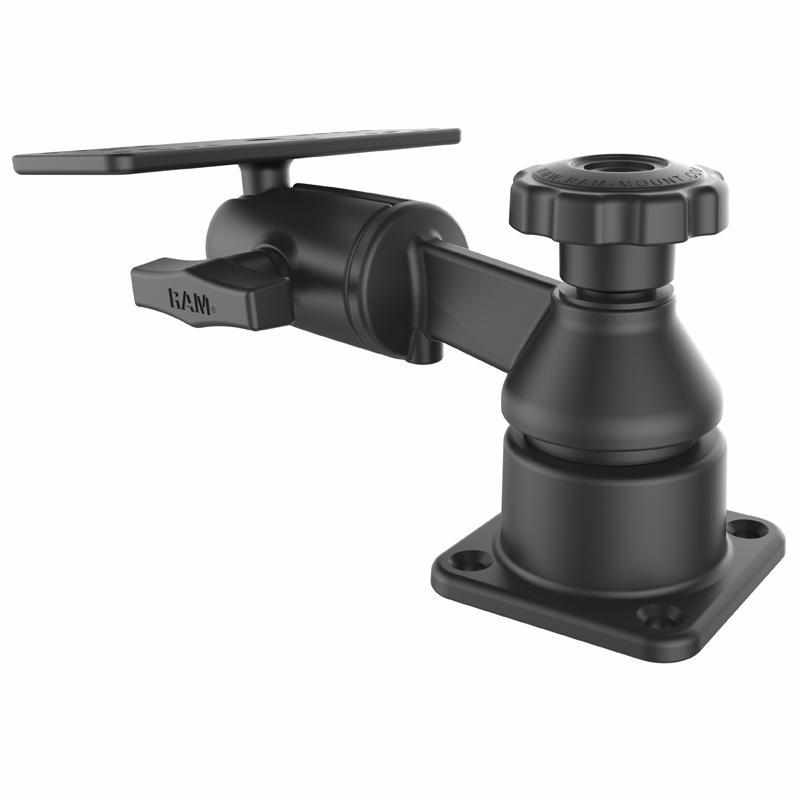

The RAM-109HSB single swing and socket arm mount features a 6" STRAIGHT swing arm mounted on a horizontal surface mounting base. At the end of the mount is a rectangular 6.25" x 2" top base. The pivoting point of the rectangle base allows 180 degree rotation, the swing arm allows a 360 degree rotation.
Specifications
- Center of knob to center of ball socket: 6"
- Overall Length of swing arm assembly: 10.75"
- Height from base to top of knob: 4.89"
- Material: Powder Coated Marine Grade Aluminum
- Ball Size: C Size 1.5" Rubber Ball
- Note: Part number reflects product packaged in clear clam shell for store shelf display. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
- Weight Capacity: Up to 4 lbs
- Weight: 1.98 lbs.
Compatibility
-
Garmin
echoMAP Chirp 72-95 Series
ECHOMAP Plus 72-97 Series
ECHOMAP UHD 62-95 Series
ECHOMAP Ultra 102sv
ECHOMAP Ultra 105sv
ECHOMAP Ultra 106sv
GPSMAP 722
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8416
GPSMAP 8416xsv
GPSMAP 8610
GPSMAP 8610xsv
GPSMAP 8612
GPSMAP 8612xsv
GPSMAP 8616
GPSMAP 8616xsv
GPSMAP 922
GPSMAP 922xs
GPSMAP 923
GPSMAP 923xsv
GPSMAP 942
GPSMAP 942xs
GPSMAP 943
GPSMAP 943xsv
GPSMAP 1223
GPSMAP 1223xsv
GPSMAP 1243
GPSMAP 1243xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Striker Plus 9sv
Striker Vivid 9sv
Fishfinders and GPS Chartplotters -
Humminbird Helix 8
Humminbird Helix 9
Humminbird Helix 10
Humminbird Helix 12 -
Lowrance HDS Carbon 7
Lowrance HDS LIVE 7
Lowrance HDS LIVE 9
Lowrance HDS LIVE 12
Lowrance HOOK2-7

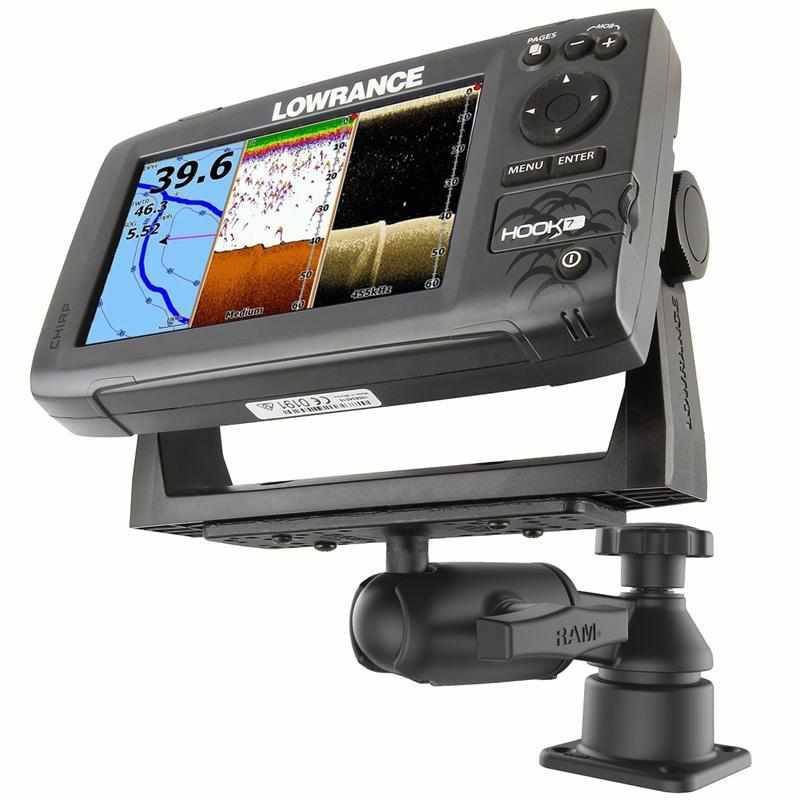

Lowrance Hook 7 Reveal
Lowrance Hook 9 Reveal
Lowrance HOOK2-9 - Garmin Fishfinders and GPS Chartplotters
- Humminbird Fishfinders and GPS Chartplotters
- Lowrance Fishfinders and GPS Chartplotters
- Raymarine Fishfinders and GPS Chartplotters
Collections: All, Best Selling Products, Marine Mounts, Newest Products, RAM Components
Type: Mounts & Holders
Category: Arm, Base, Fishfinder, Garmin, Humminbird, Lowrance, Marine, Misc, Raymarine, Swing
