RAM-D-101U-C

RAM Short Arm Two Round Bases D Size (RAM-D-101U-C)

Size Guide

Included:

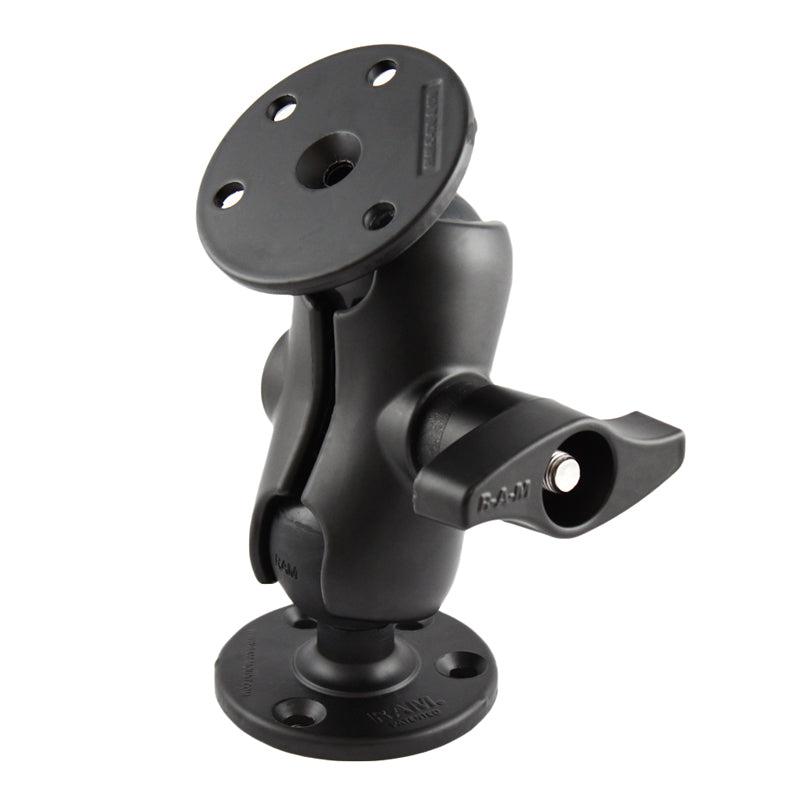

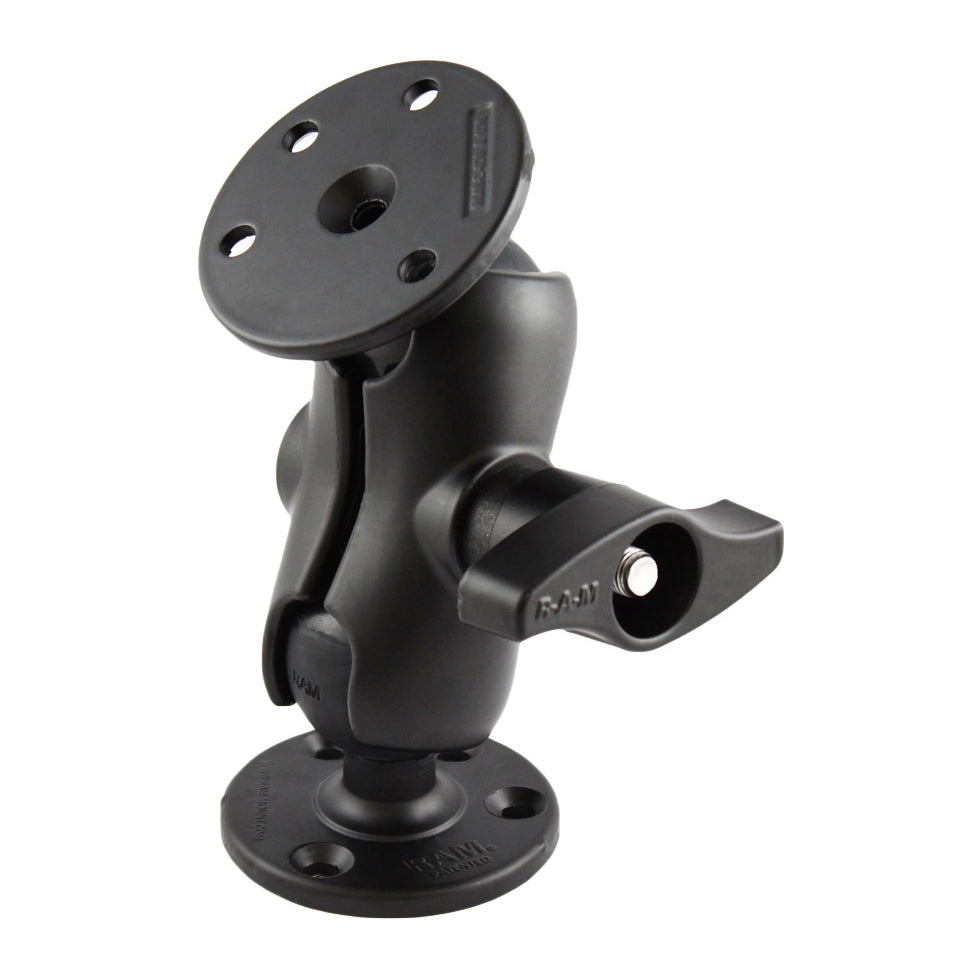

The RAM-D-101U-C consists of (2 qty) 3.68" diameter round bases and SHORT length double socket arm (91.4mm socket to socket).

The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

The RAM® rubber ball-and-socket technology allows for almost infinite adjustment of your mount and perfect viewing angles for your device. High-quality materials keep your device safe, secure, and easy to reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your device.

Specifications
  • Overall Height: 7.875" (200mm)
  • Socket-to-socket length: 3.6" (91.4mm)
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 2.25" Rubber Ball Size
  • Weight Capacity: 2.75kg / 6 lbs (Standard), 2.25kg / 5 lbs (Heavy-Duty)
  • Weight: 1.36kg
  • Lifetime Warranty

Note: The "U" in the part number reflects product packaged in poly bag.
