RAM-111BTU
RAM 6.25" x 2" Rectangular Plate Adapter for Swing Arms (RAM-111BTU)
Included:
- 1 x RAM 6.25" x 2" Rectangular Plate Adapter for Swing Arms (RAM-111BTU)
The RAM-111BTU connects your fishfinder, chartplotter or radio bracket to a compatible RAM-109 series swing arm. Its rectangular plate offers multiple pre-drilled mounting holes.

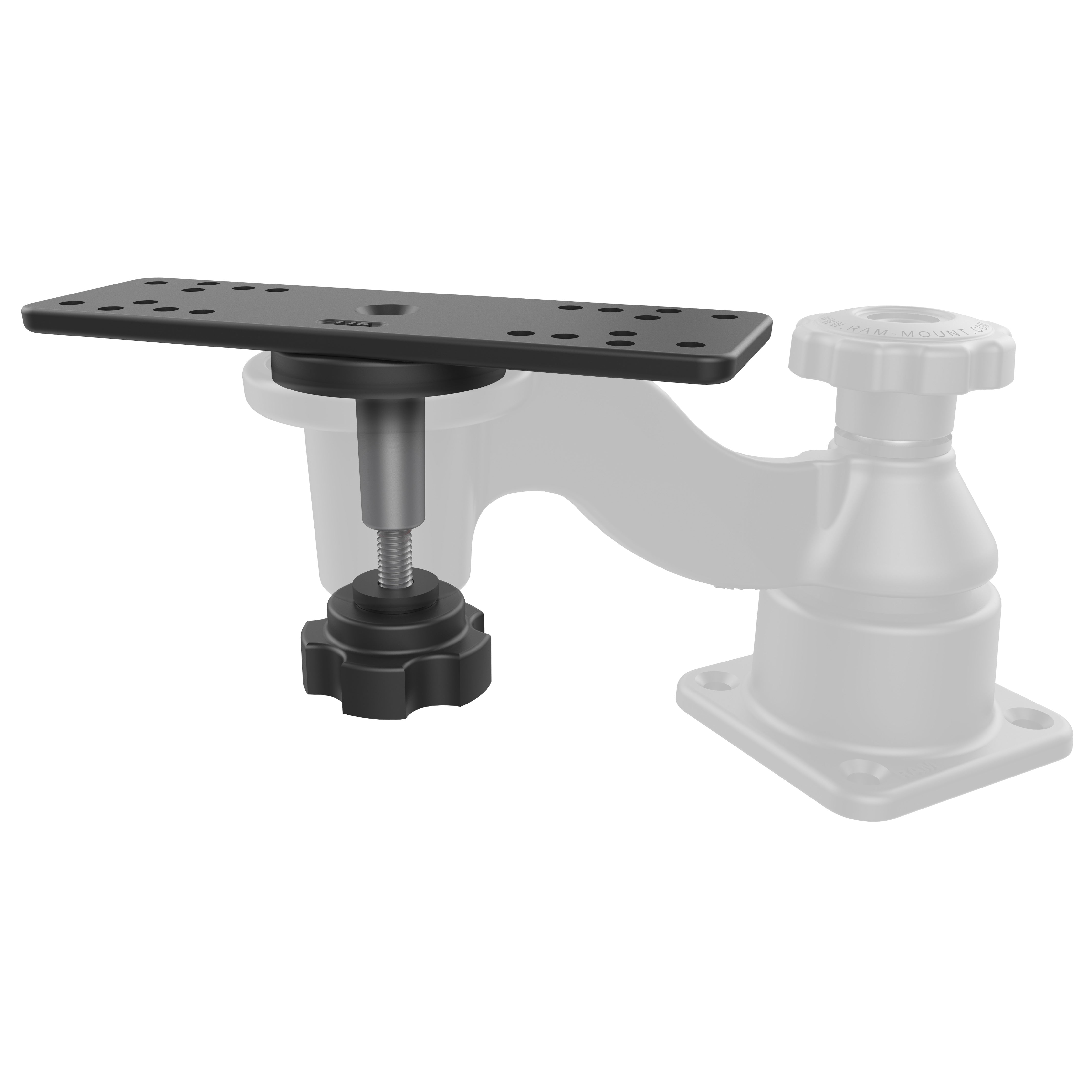

The fixed post beneath the plate slides into the arm and is secured by the included upper tightening knob. Swing arm, mounting base and electronic device are sold separately. The faded components in the installation image are shown for reference only.
Specs
- Plate size: 158.75mm x 50.8mm (6.25" x 2")
- Material: Marine-grade aluminium
- Weight: Approx. 222g (0.49 lb)
- Knob thread: 5/16"-18 with 31.75mm (1.25") stud
- Packaging: Poly bag
- Warranty: RAM lifetime warranty

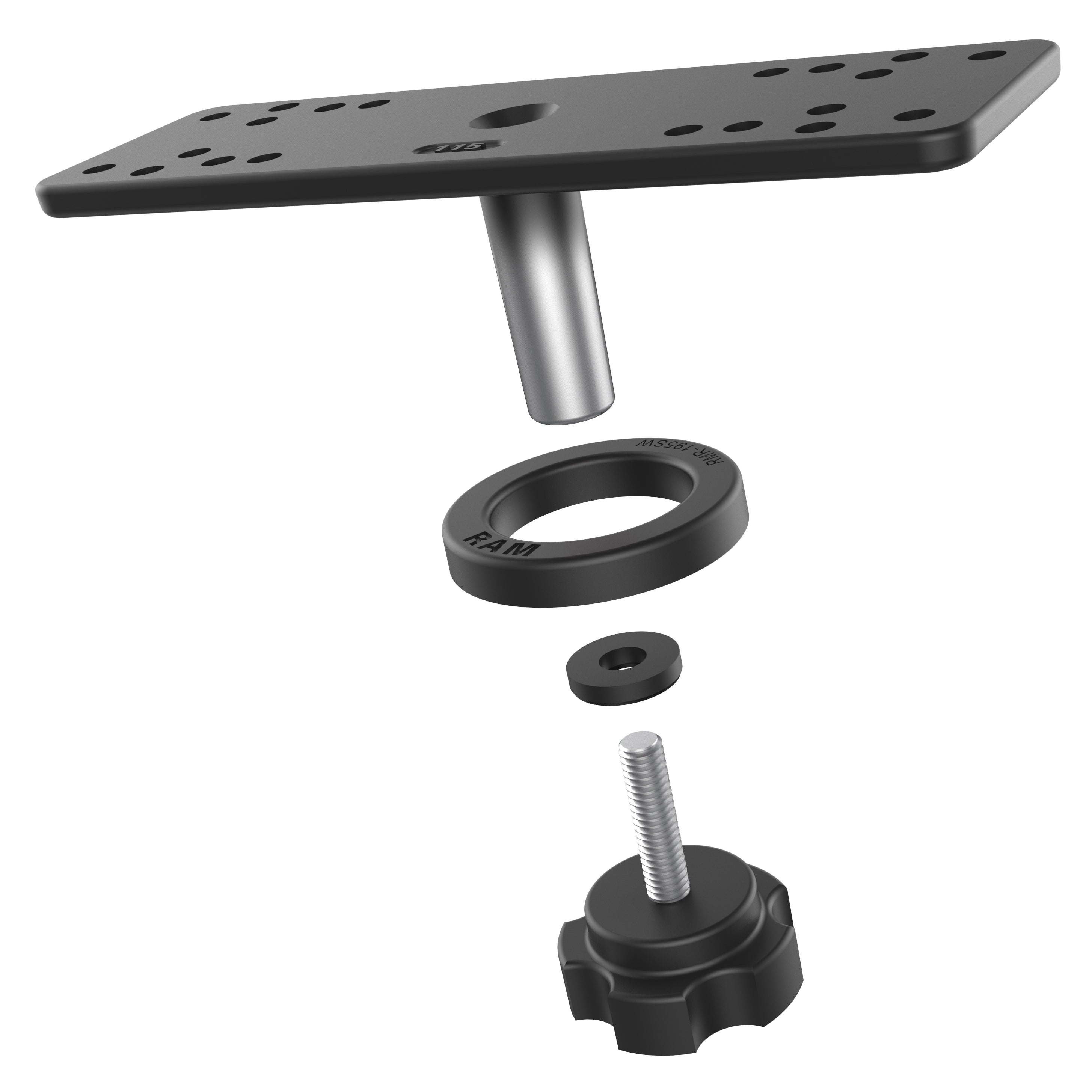

Hardware Included:
- 1 x 5/16"-18 x 1.25" tightening knob
- 1 x 2" nylon washer
- 1 x 1.7" nylon washer
- 1 x 5/16" stainless steel washer
- 1 x 0.77" nylon washer
Compatibility
Designed for RAM-109 series swing arms, including the RAM-109-1APU curved arm.
Supports selected Garmin, Lowrance, Humminbird and Raymarine fishfinder or chartplotter brackets, plus CB and ham radio gimbal brackets. Check your bracket's mounting-hole spacing before ordering. Some applications require additional holes to be drilled in the plate.
Garmin
Lowrance
Humminbird
Raymarine
Help
Replacing the upper connection? This product includes the complete plate, tightening knob and listed washers. It is not a knob-only pack.
Not sure which component you need? Contact us with your mount model and a photo of the connection.
