RAM-HOL-PD5BU
RAM Quick-Grip Pro Phone Holder with Ball (RAM-HOL-PD5BU)
$170.00$178.00You Save 4% ($8.00)
Size Guide
Included:
- 1 x RAM Quick-Grip Pro Phone Holder (RAM-HOL-PD5U)
- 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

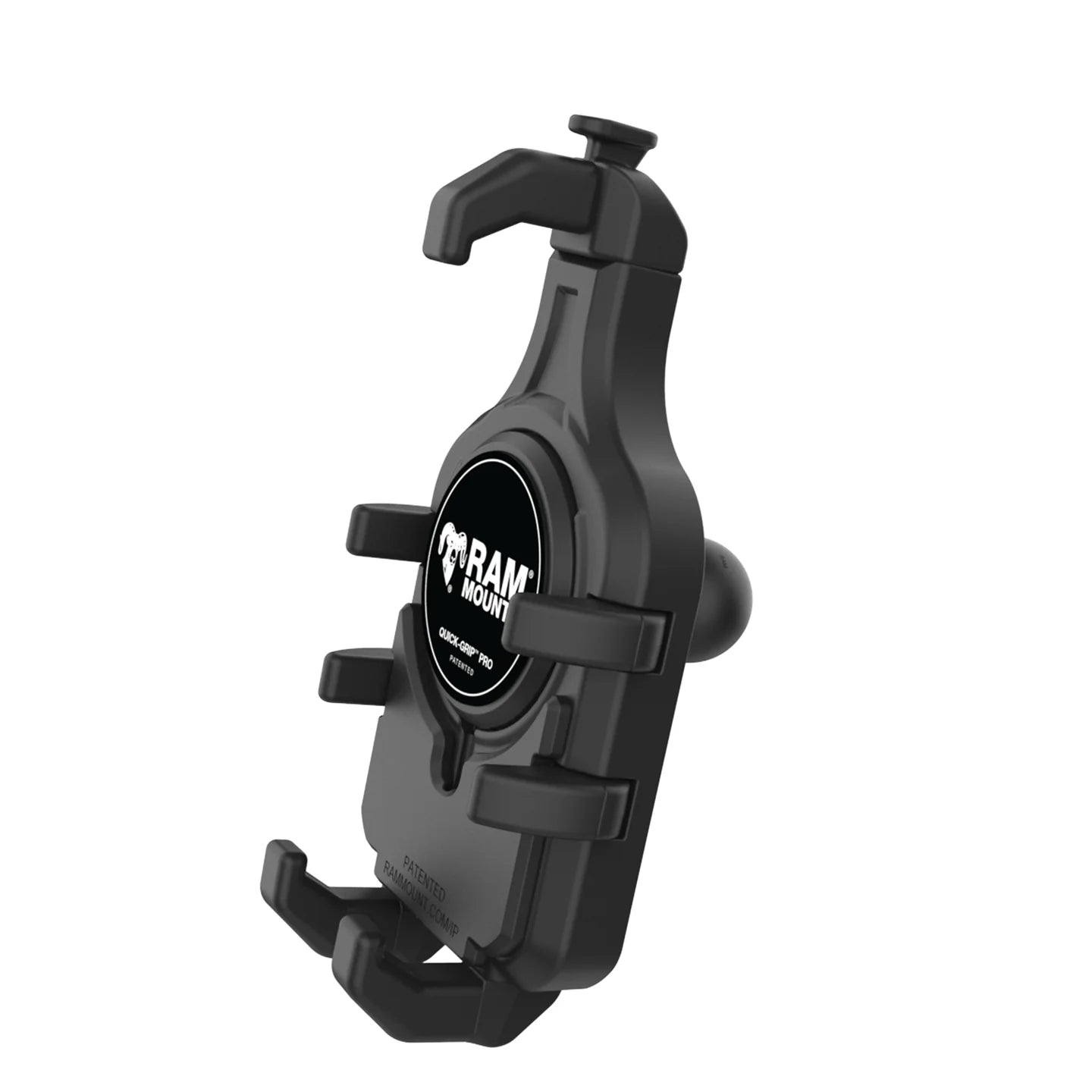

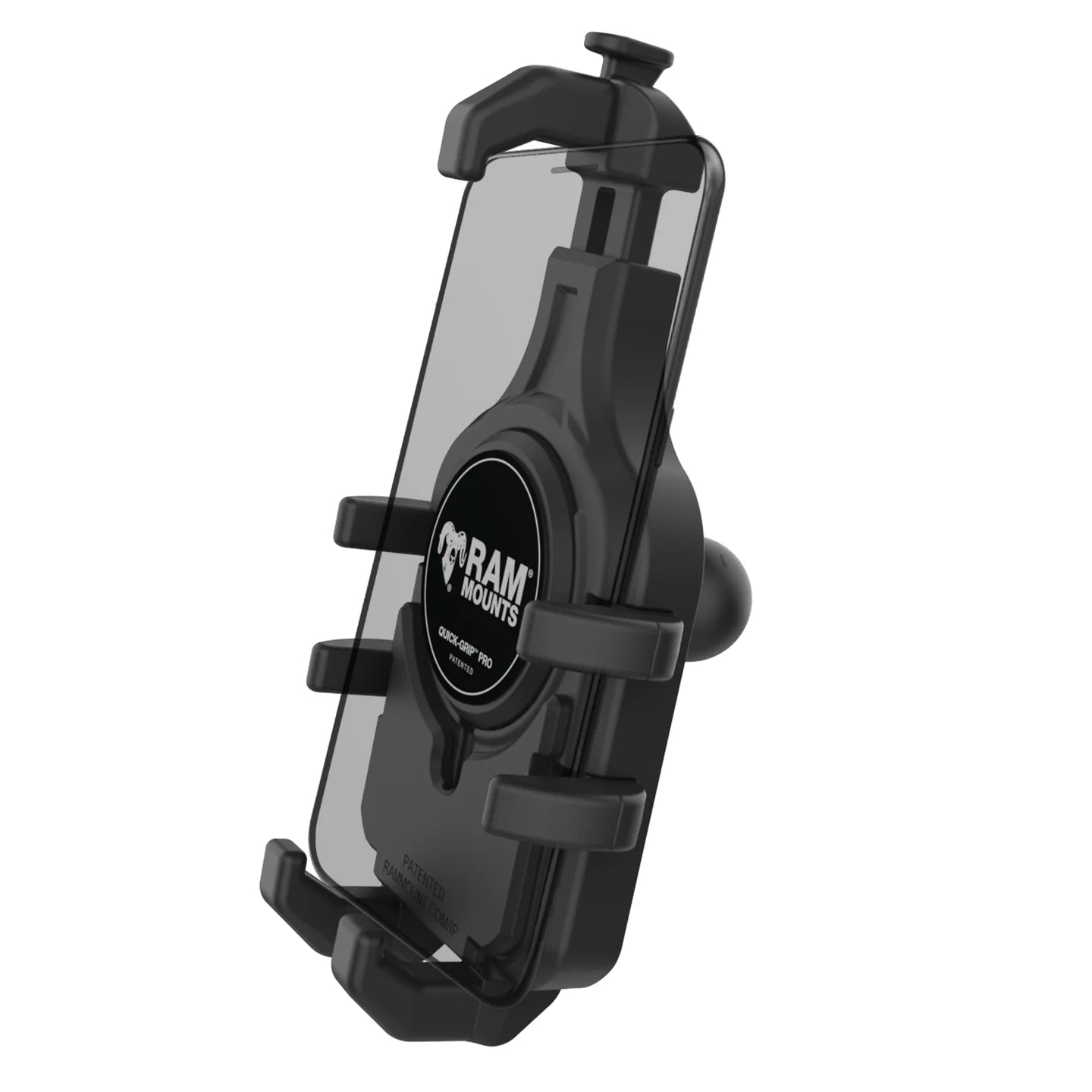

The RAM® Quick-Grip™ Pro Phone Holder with Ball (RAM-HOL-PD5BU) is the next evolution of the RAM® Quick-Grip™ series. Re-designed with a sleek profile and rubber-overmoulded side arms, it provides a secure, non-slip hold for a wide range of smartphones and handheld devices.
The spring-loaded design allows easy one-handed insertion and removal. Its adjustable side arms can be positioned to securely support your phone while maintaining access to its ports and side buttons.

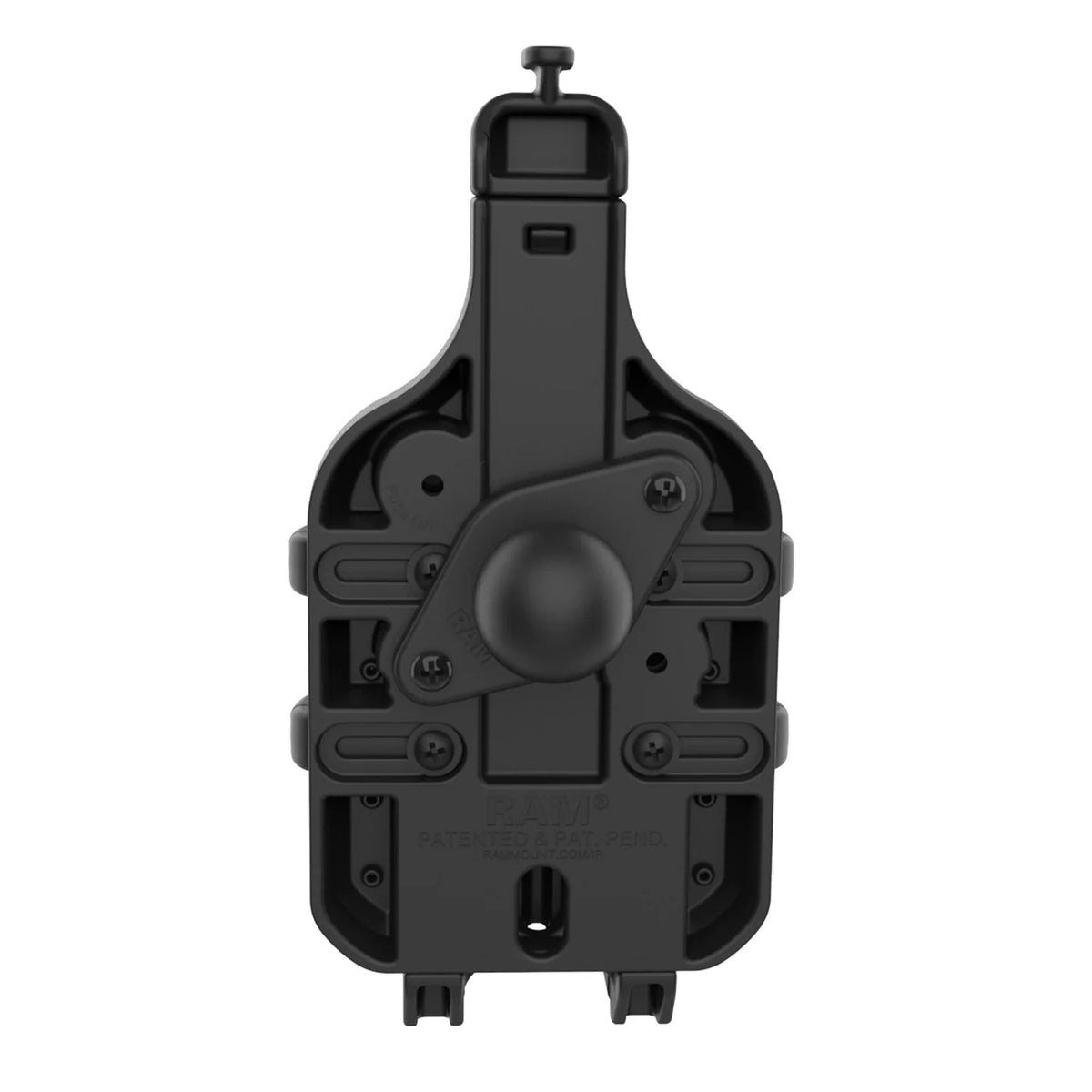

This version already includes the powder-coated marine-grade aluminium RAM-B-238U diamond adapter with a B size 1" RAM® ball. It is ready to connect to any compatible B size RAM® double socket arm, so you do not need to purchase a separate diamond ball adapter.
Check the holder dimensions below or the Compatibility tab for examples of compatible devices. Measure your device with its case, sleeve or skin fitted when checking the overall size.

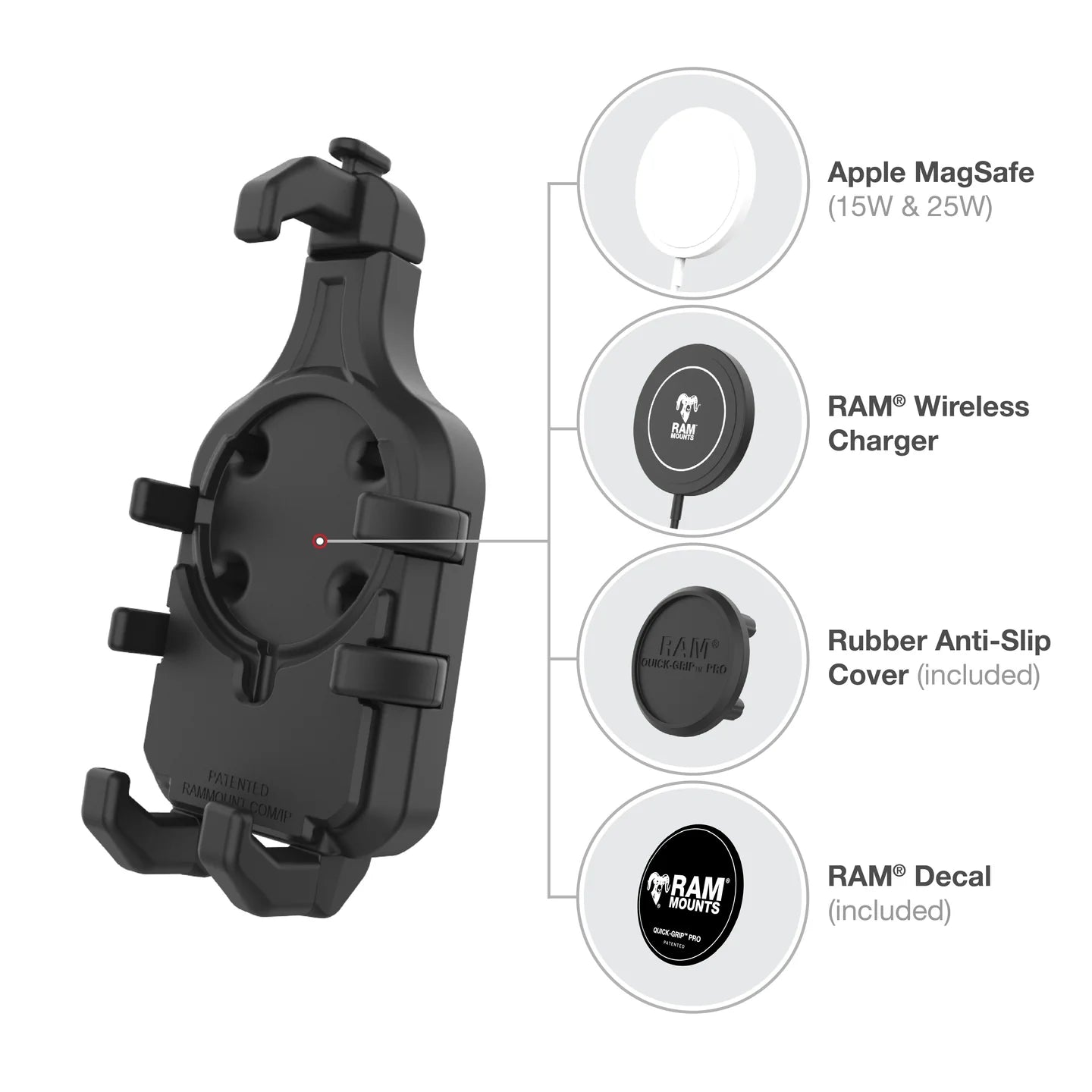

This phone holder also features an integrated cavity for an Apple MagSafe charging puck, allowing the holder to be converted into a wireless charging solution. You can alternatively install the RAM Qi2 15W Wireless Charger.
A charging puck is not included. For non-charging use, the included anti-slip cover provides a flush contact surface when no charging puck is installed.
Features

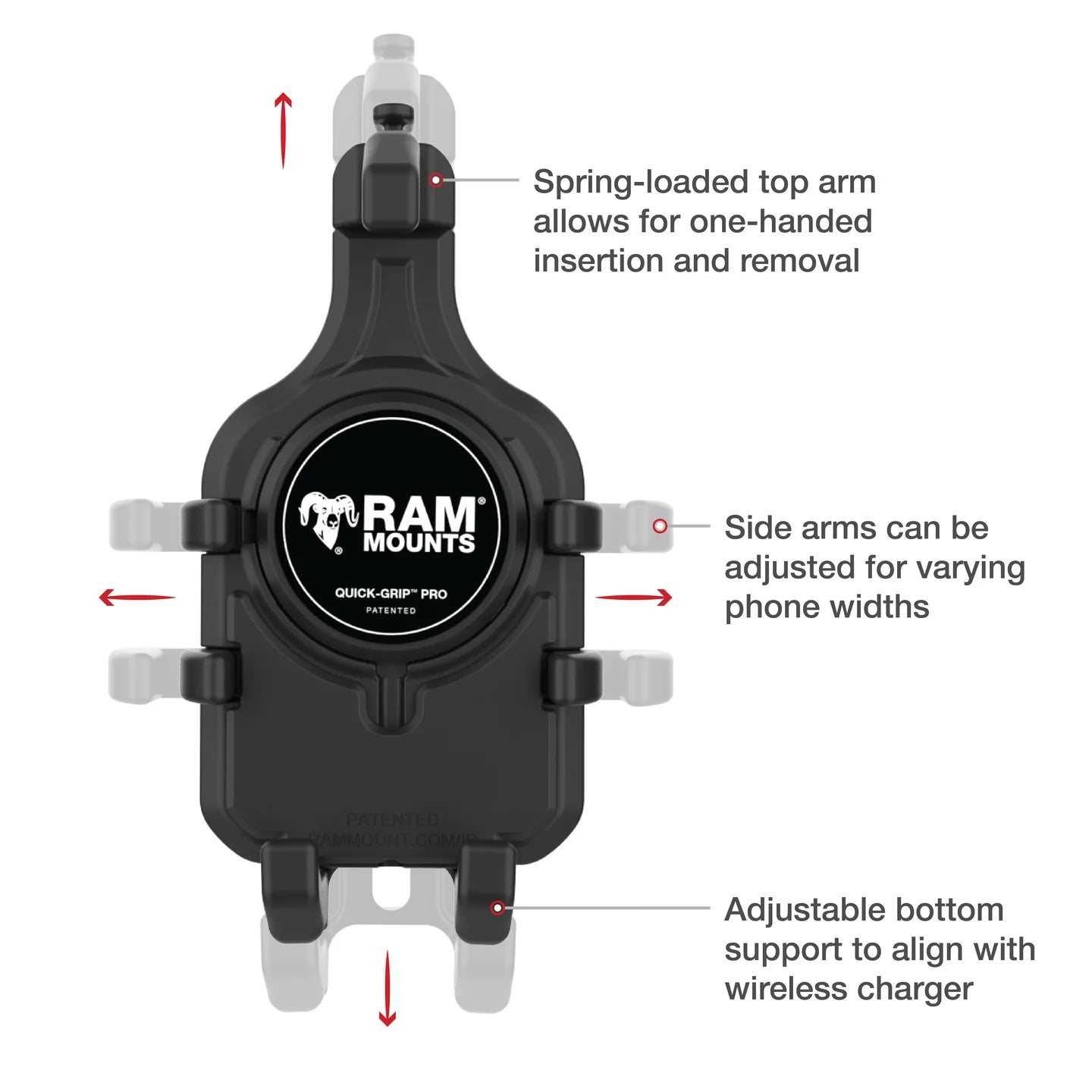

- Spring-loaded holder allows easy one-handed insertion and removal
- Adjustable side supports are overmoulded with soft rubber to provide a secure, non-slip hold
- Integrated cavity is compatible with an Apple MagSafe charging puck
- Non-slip cover and charging puck adhesive are included
- Includes the powder-coated marine-grade aluminium RAM-B-238U diamond base with B size 1" ball for connection to compatible RAM® double socket arms
- Includes an optional device tether for rugged and open cockpit environments
- Made of high-strength composite and powder-coated marine-grade aluminium for durability and reliability in demanding environments
- Backed by a lifetime warranty
Specifications

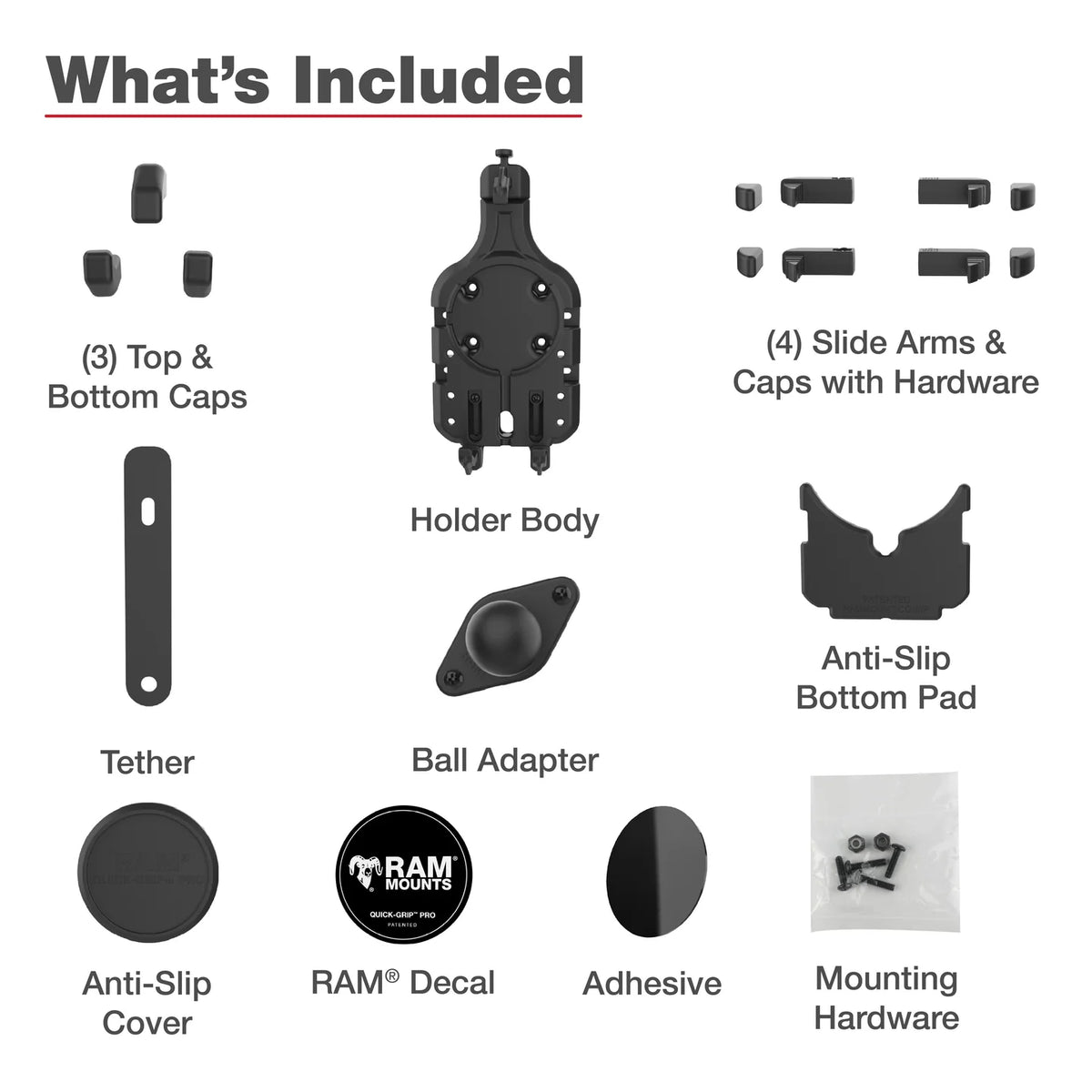

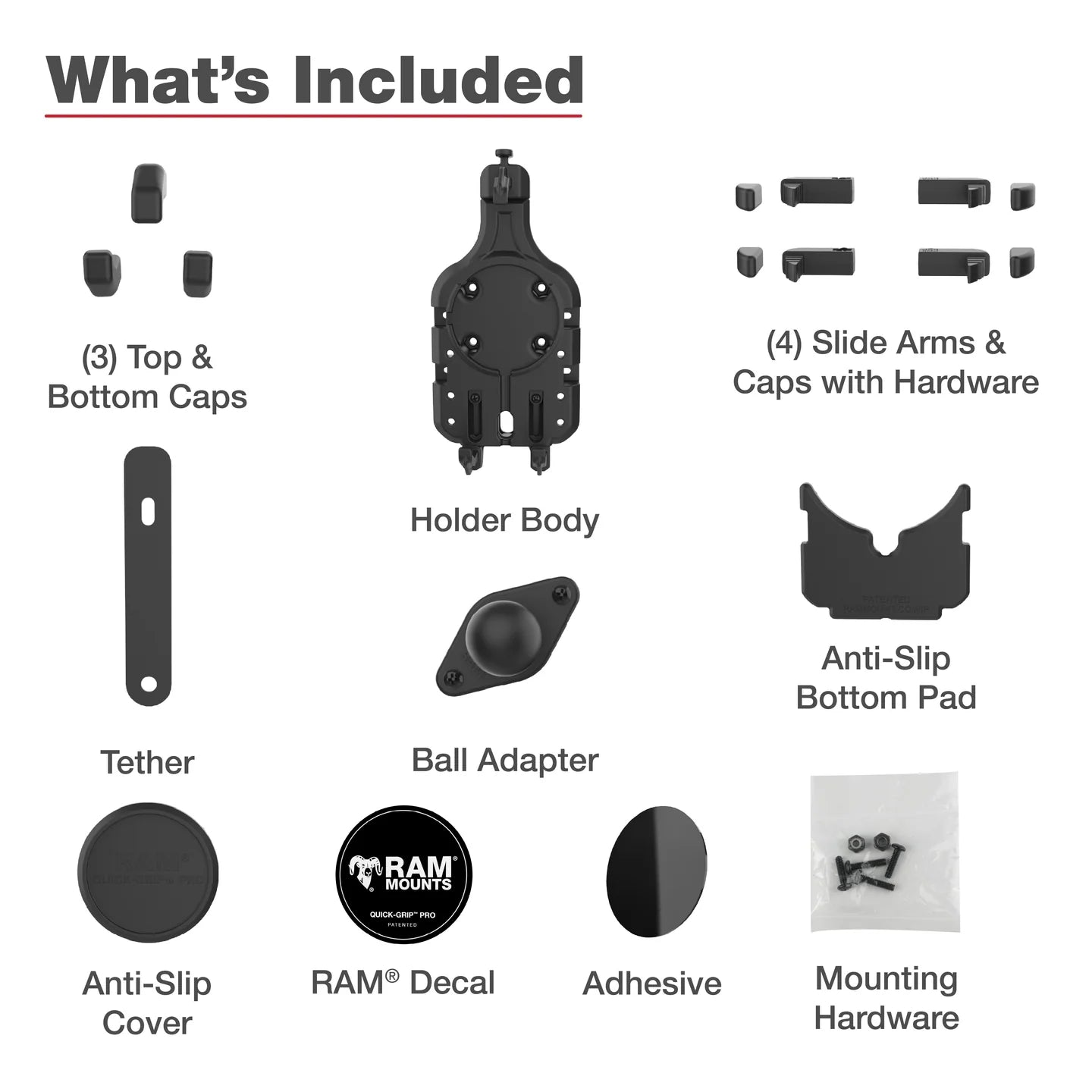

Hardware Included:
Assembly hardware
Optional device tether
Anti-slip cover
Anti-slip pad
Charging puck adhesive
Interchangeable support caps
Holder Dimensions:
Height range: 5.5" - 7.75" (139.7 mm - 196.9 mm)
Width range: 2.625" - 3.75" (66.7 mm - 95.3 mm)
Max depth: 0.67" (17.0 mm)
Ball/Socket Size:
B Size, 1" (25.4 mm)
Attachment Pattern:

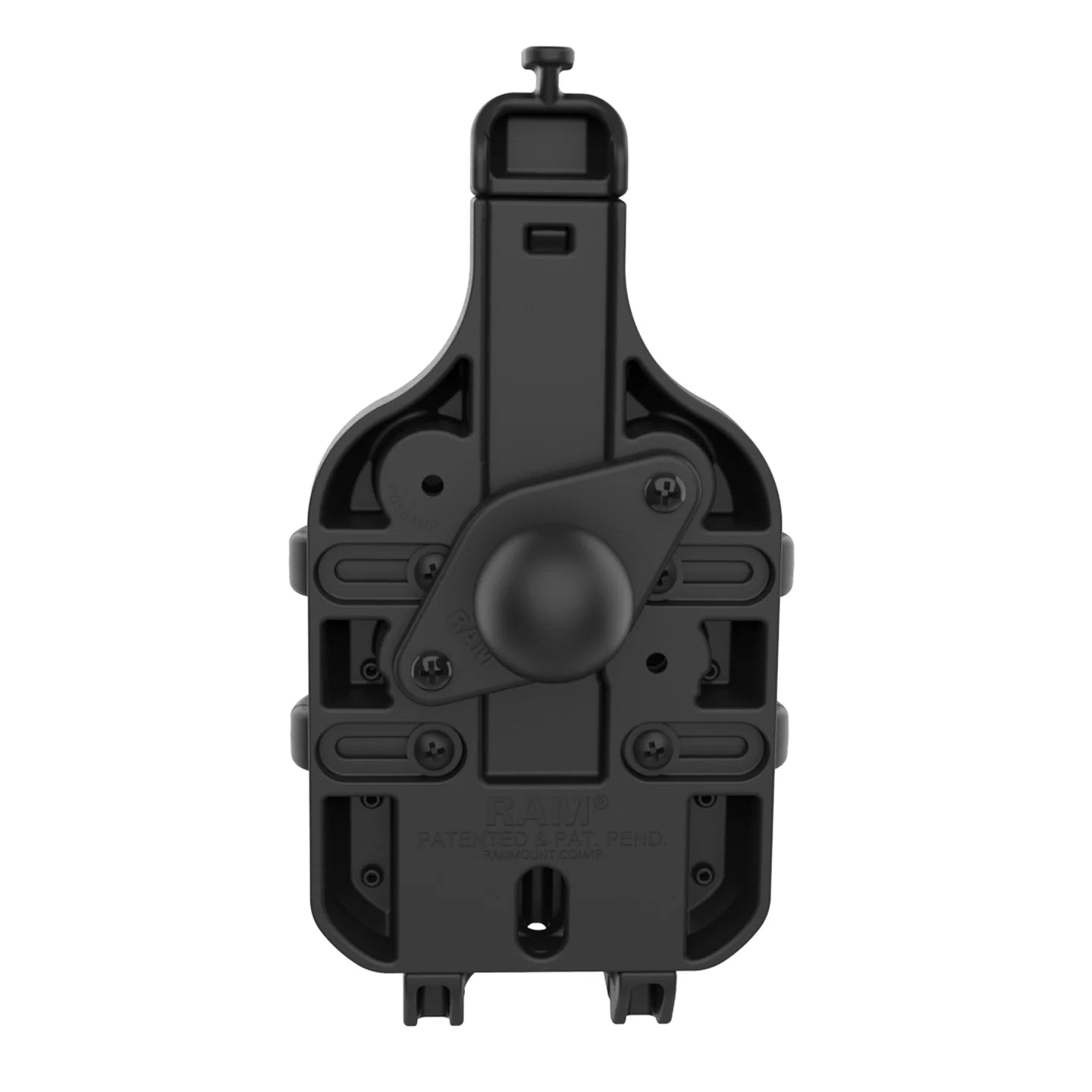

The RAM-B-238U diamond ball attaches to the holder using the 2-hole AMPS pattern
Weight Capacity:
Standard Use: 2 lbs (0.91 kg)
Heavy-Duty Use: 1 lb (0.45 kg)
Materials:
High-strength composite
Powder-coated marine-grade aluminium
Packaging Type:
Poly Bag
Weight:
0.54 lb (0.245 kg)
Additional Information:
Exposure to vibrations, such as those generated by high-powered motorcycle engines, may affect iPhone cameras. Click here to learn more.
The top hook may block the front-facing camera or facial recognition system on selected phones.
Help
Instructions
Documents
Do I need to buy a diamond ball adapter separately?
No. This kit already includes the powder-coated marine-grade aluminium RAM-B-238U diamond adapter with a B size 1" RAM® ball. It can connect directly to a compatible B size RAM® double socket arm.
Does this product include a wireless charging puck?
No. An Apple MagSafe or compatible RAM charging puck is sold separately. The included anti-slip cover allows the holder to be used normally without a charging puck.
What devices will this holder suit?
It suits phones and other handheld devices within the listed height, width and depth ranges. Measure your device with its case, skin or sleeve fitted before ordering.
Will the holder block Face ID or my front camera?
The top support may block the front-facing camera or facial recognition system on selected phone models. Please check the camera position on your phone before ordering.
Does the holder include a tether?
Yes. An optional device tether is included and is recommended for open cockpit and rugged applications.
