RAM Motorcycle Combo Base with Double 1" Ball (RAM-B-309-8U)

Size Guide

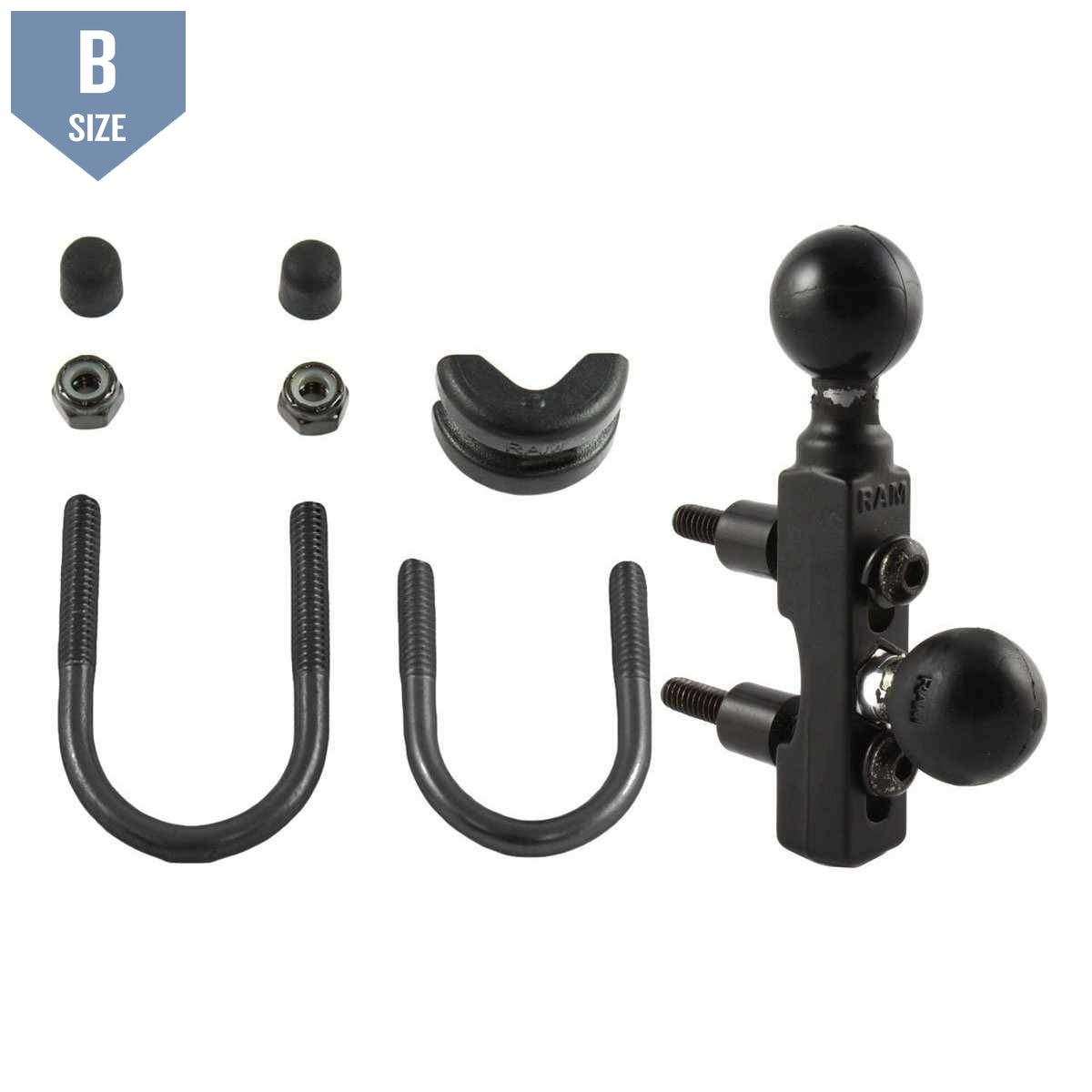

  • 1 x RAM Motorcycle Combo Base with 1" Ball (RAM-B-309-7U)
  • 1 x RAM Ball for Motorcycle Brake/Clutch Reservoir Base (RAM-B-309-3U)

The RAM-B-309-8U combo handlebar and brake/clutch reservoir base allows you to have the ultimate flexibility in mounting. Mount to either your handlebar or brake/clutch, almost infinite adjustment and perfect viewing angles are providing in this kit. Standard or metric thread stainless steel bolts, provided in the kit.

The RAM-B-309-8U can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter.

To see if the RAM-B-309-8U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 0.94" and a maximum of 1.58".

  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber Ball "B" Size
  • Weight: 0.45 lbs

Note: The "U" in the part number reflects product packaged in poly bag.
