RAM Large Tough-Claw and Medium B-Size Socket Arm Bundle (MM-B-ROLLBAR-MEDIUM-SOCKET)

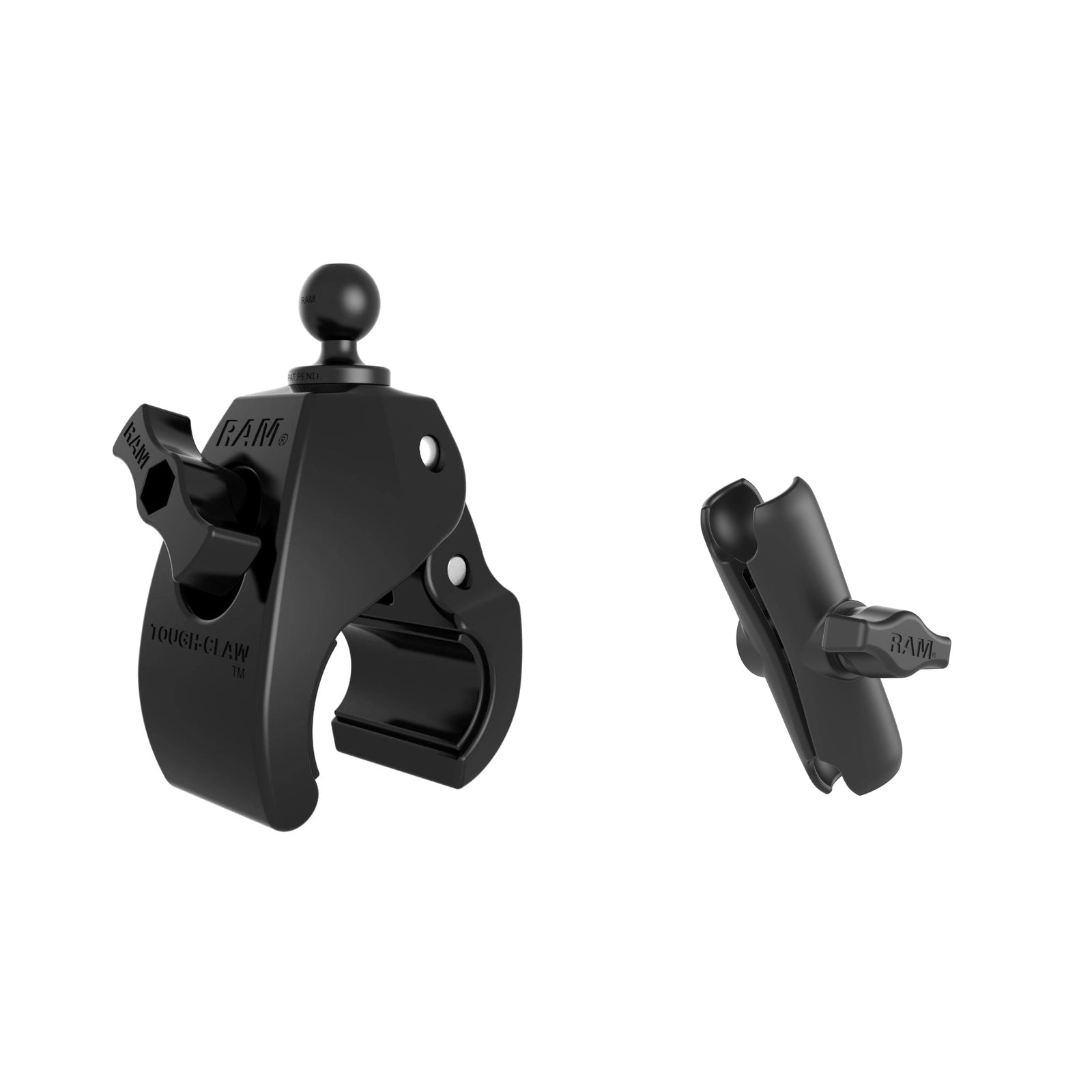

Included:

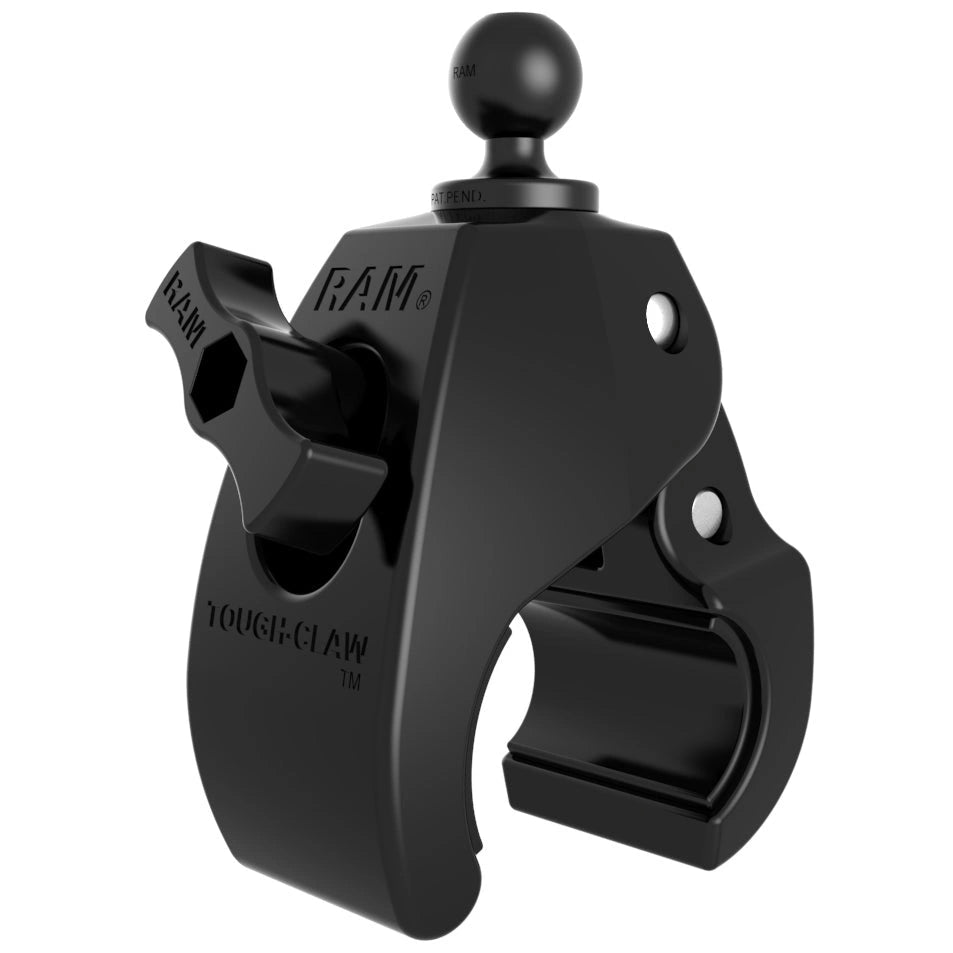

• 1 x RAM Large Tough-Claw Clamp with B Size Ball (RAP-B-401U)
• 1 x RAM Standard Double Socket Arm B Size (RAM-B-201U)

The large Tough-Claw fits suitable rails and roll bars from 1" to 2.2" (25.4–55.9 mm) in outside diameter. Its hand-tightened clamp allows tool-free fitting and removal, with rubber gripping pads to help protect the surface.

Holder sold separately. The upper B Size socket accepts a holder with an integrated 1" B Size ball. A flat-backed cradle needs a compatible B Size ball plate or adapter purchased separately. C Size ball-backed holders do not fit this arm.

Specifications

• Round-Rail Diameter: 1"–2.2" (25.4–55.9 mm)
• Ball and Socket Size: B Size 1" (25.4 mm)
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Clamp Base Dimensions: 5.94" (150.9 mm) high and 2.25" (57.2 mm) wide, per RAM
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the installed clamp connection
• Materials: High-strength composite clamp with stainless-steel hardware; marine-grade aluminium arm

Packaging may vary; all listed components are genuine RAM.

Fitment: Measure the actual rail diameter and check shape, gripping area, surface condition and clearance. Make sure the loaded mount cannot rotate or slide. Keep it clear of controls, doors, occupant movement and moving parts. Do not infer fit from a vehicle or roll-bar name alone.

RAM component limited lifetime warranty.

No holder or upper mounting plate is included.
