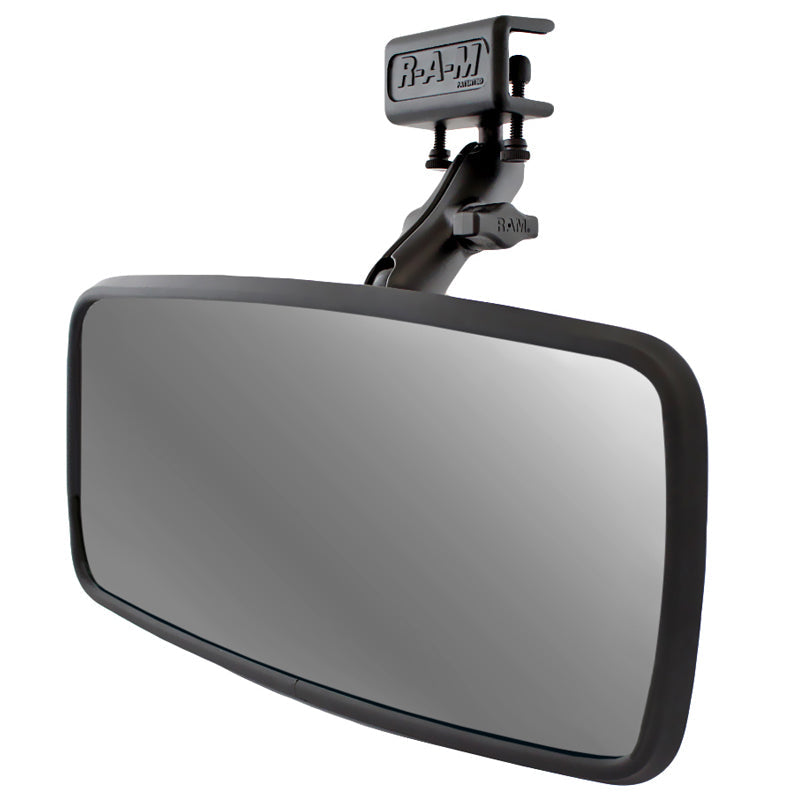

RAM Glare Shield Clamp Mount with Rear View Mirror (RAM-B-126)

Included

• 1 × 7 × 14-inch physical rear view mirror
• 1 × factory mirror connection / ball adapter for ski mirror (RAM-B-126CU)
• 1 × RAM medium B-size double socket arm (RAM-B-201U)
• 1 × RAM glare shield clamp ball base (RAM-B-259U)
• Assembly hardware

Supplied as one complete RAM factory kit, RAM-B-126.

This adjustable rear view mirror assembly clamps to the lip edge of a suitable flat surface up to 5/8 inch thick (approximately 15.9 mm). The clamp and double socket arm use RAM’s B-size / 1-inch ball system, with adjustment at both ends of the arm.

Specifications

• Mirror size: 7 × 14 inches
• Medium arm socket-to-socket spacing: 3 inches
• Maximum suitable flat-lip thickness: 5/8 inch; this is not a round-rail diameter range

Check the surface, clamp engagement, sight lines and clearance for the actual installation. Follow the RAM glare shield and window clamp instructions and exact product guidance.

Help

Resources

• RAM glare shield and window clamp instructions (PDF)
• RAM product details and Q&A

What type of mirror lens is used?
RAM identifies a convex safety-glass lens that provides a wide-angle view. Source: RAM product Q&A.
