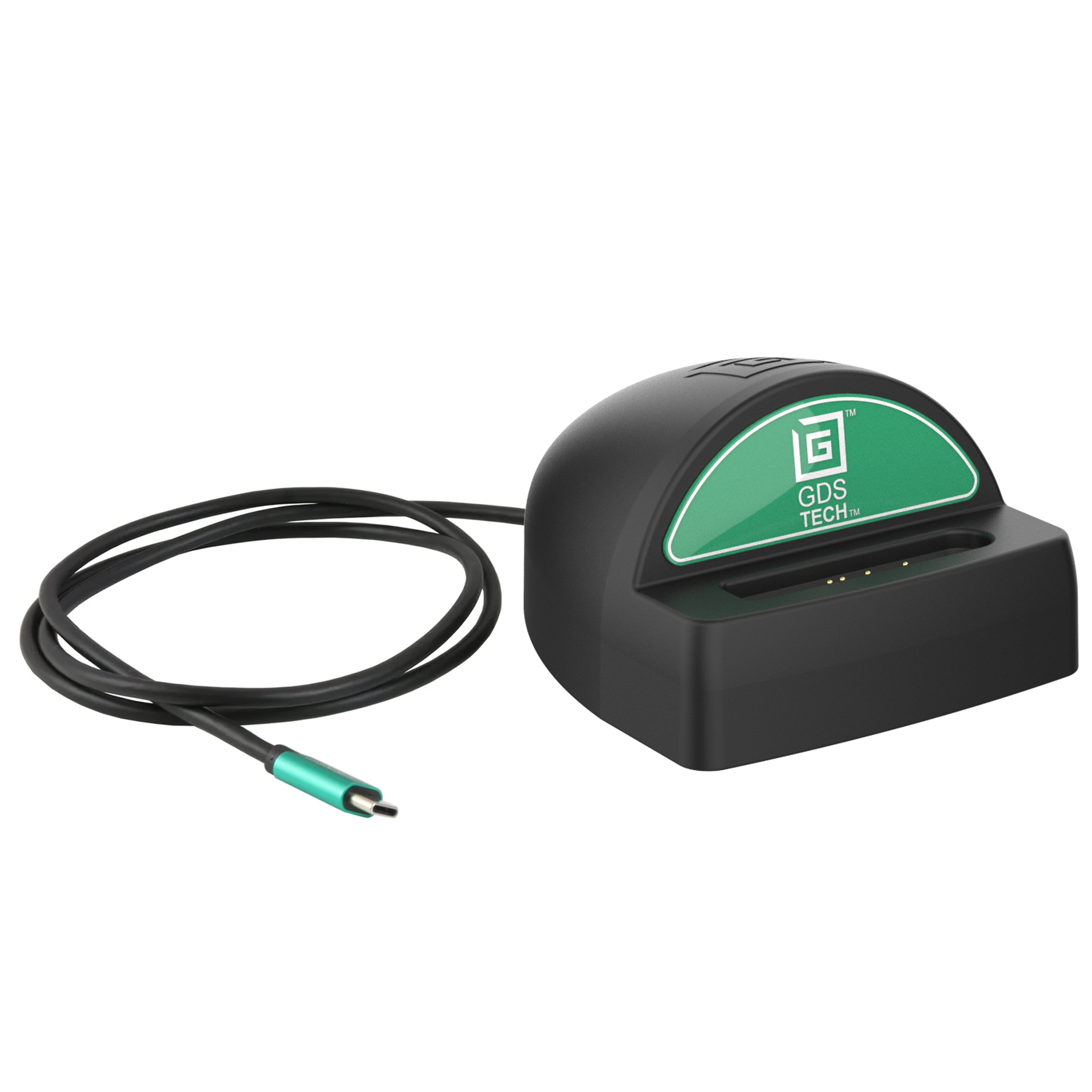

RAM GDS Desktop Dock with USB-C 2.0 Power Delivery for Large Tablets (RAM-GDS-DOCK-D9U)

Included:

• 1 x RAM GDS Desktop Dock with USB-C 2.0 Power Delivery for Large Tablets (RAM-GDS-DOCK-D9U)

Features

• Low-profile desktop dock for larger tablets in compatible bottom-contact IntelliSkin cases
• Power Delivery through the integrated 1m USB-C male cable
• Supports a maximum output of 20V at 3A
• USB 2.0 data transfer up to 480Mbps with a compatible host connection
• Backed by a 3-year warranty

Overview

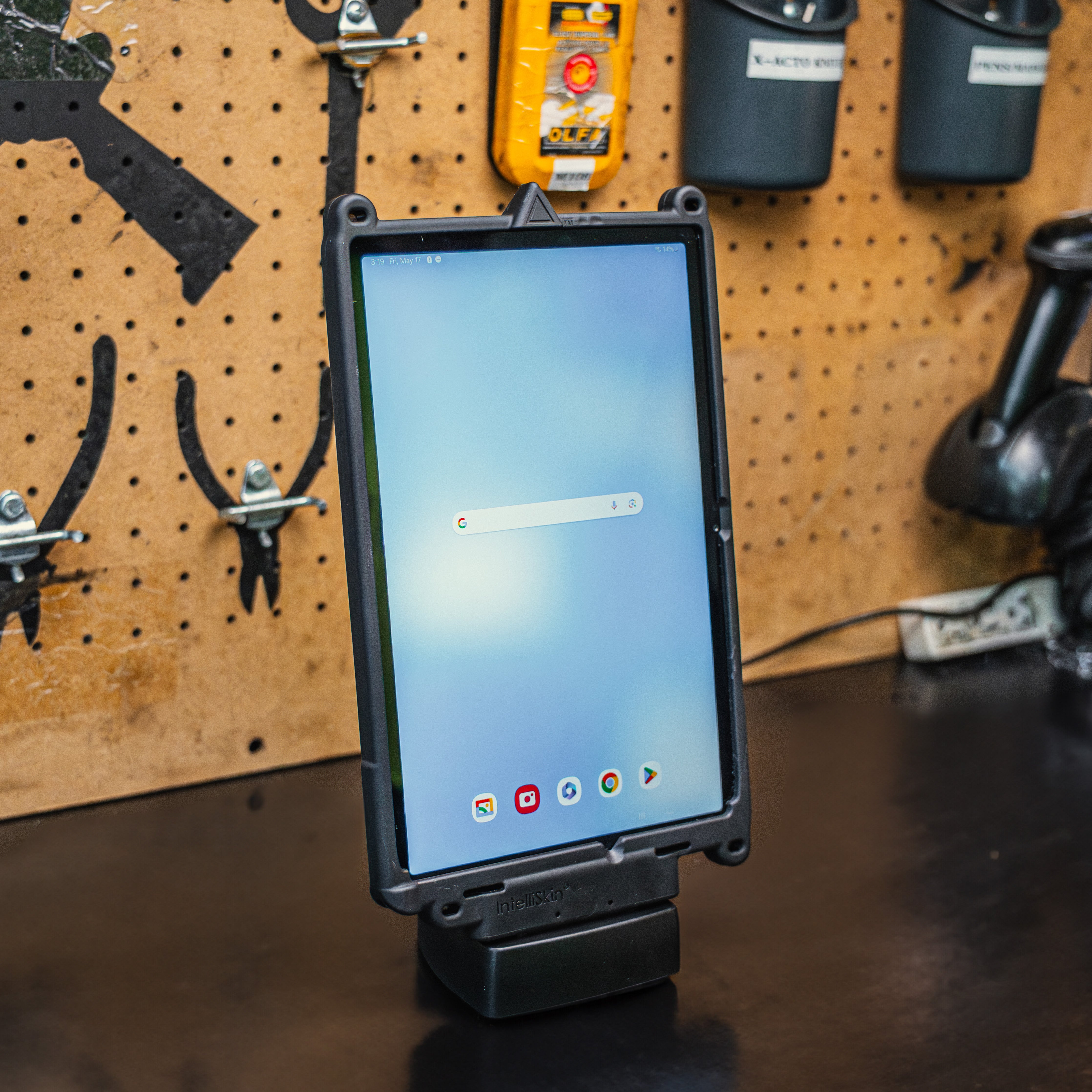

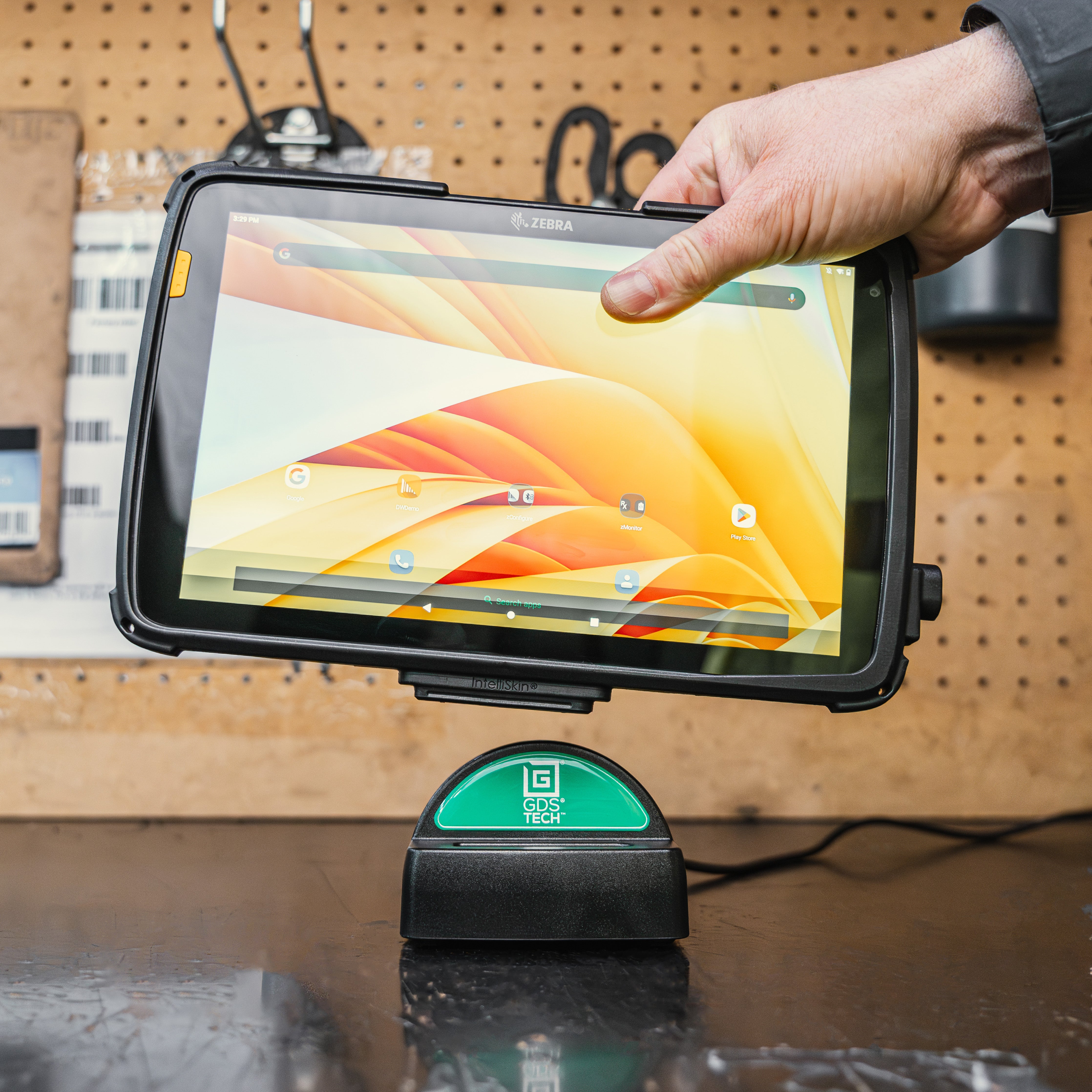

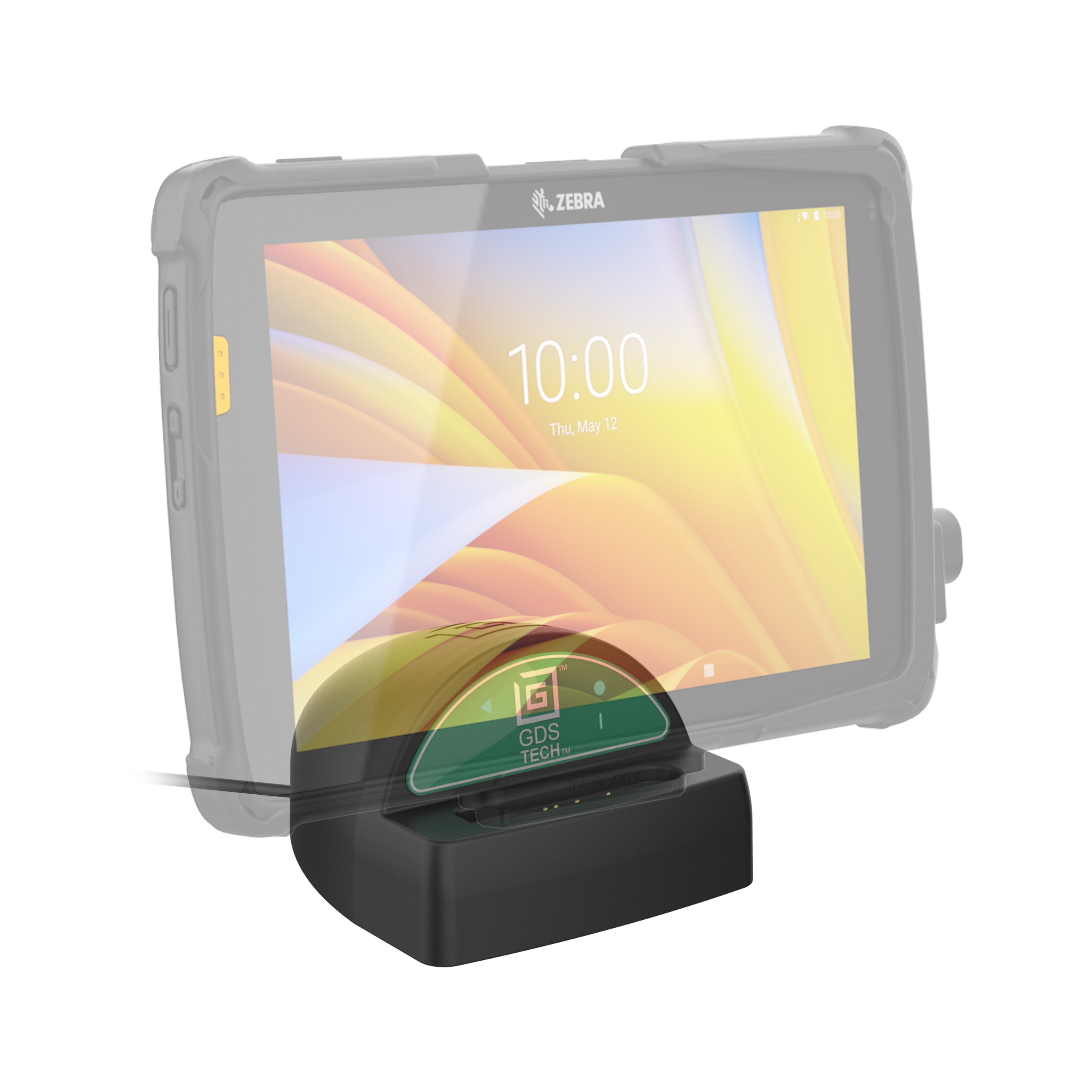

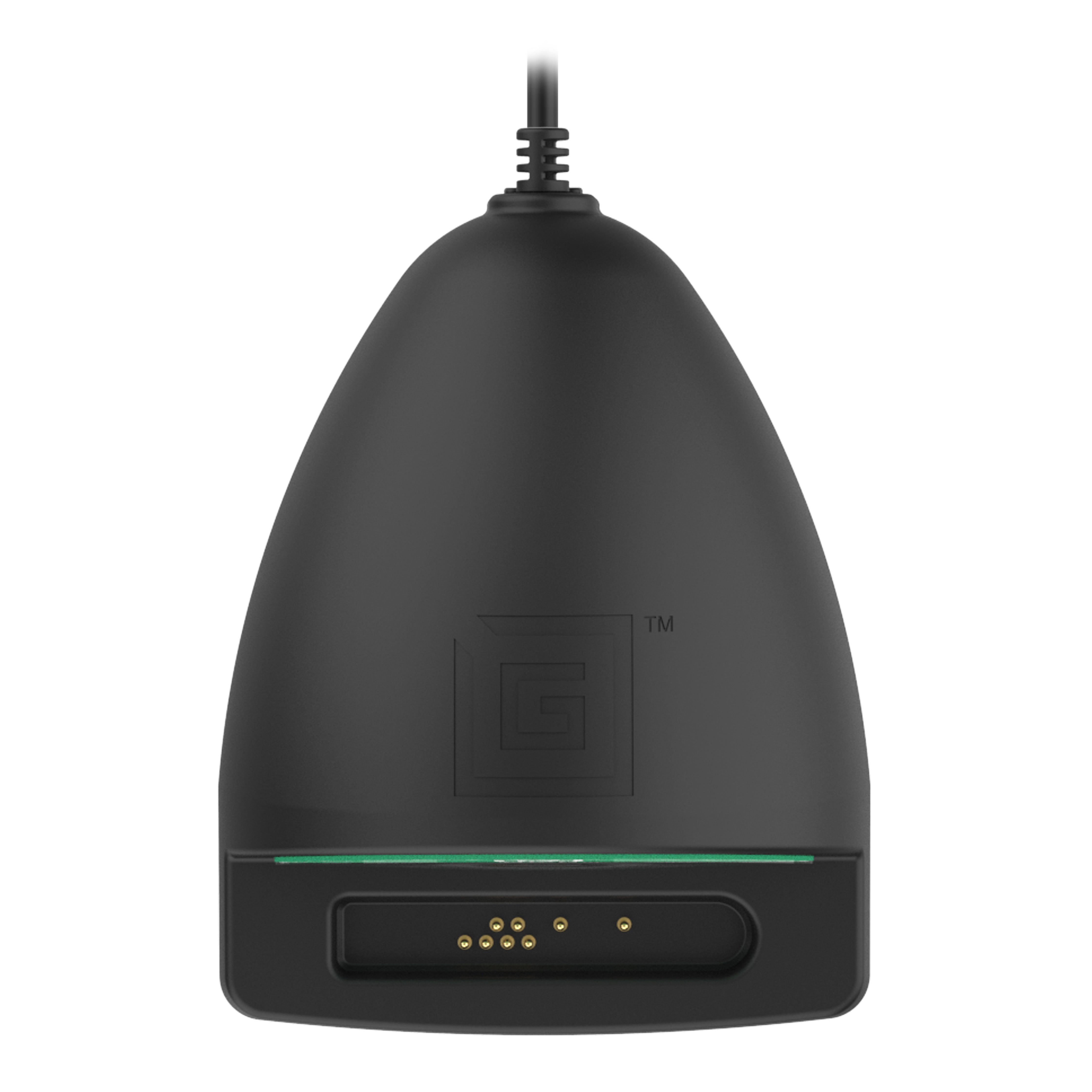

The RAM-GDS-DOCK-D9U provides a desk or counter charging point for larger IntelliSkin-wrapped tablets. Its bottom pogo contacts connect to the matching pads on the case, so the tablet can be docked without plugging a cable into the device.

The integrated USB-C cable is included; the exact-device IntelliSkin and suitable USB-C power supply are sold separately. No vehicle mount or separate Uni-Conn retention button is needed for ordinary desktop use.

This is the USB 2.0 D9U model. It supports data through a compatible USB host connection, up to 480Mbps; a wall charger provides charging only. There is no separate USB-A peripheral port. For phones and small tablets needing a USB-A peripheral connection, see RAM-GDS-DOCK-D7AU.

Specs

Compatibility

• For matching bottom-contact IntelliSkin cases, including Next Gen, Hard Case and standard Thin-Case designs. The rear-pogo TCB version is a different contact family and will not charge in this dock.

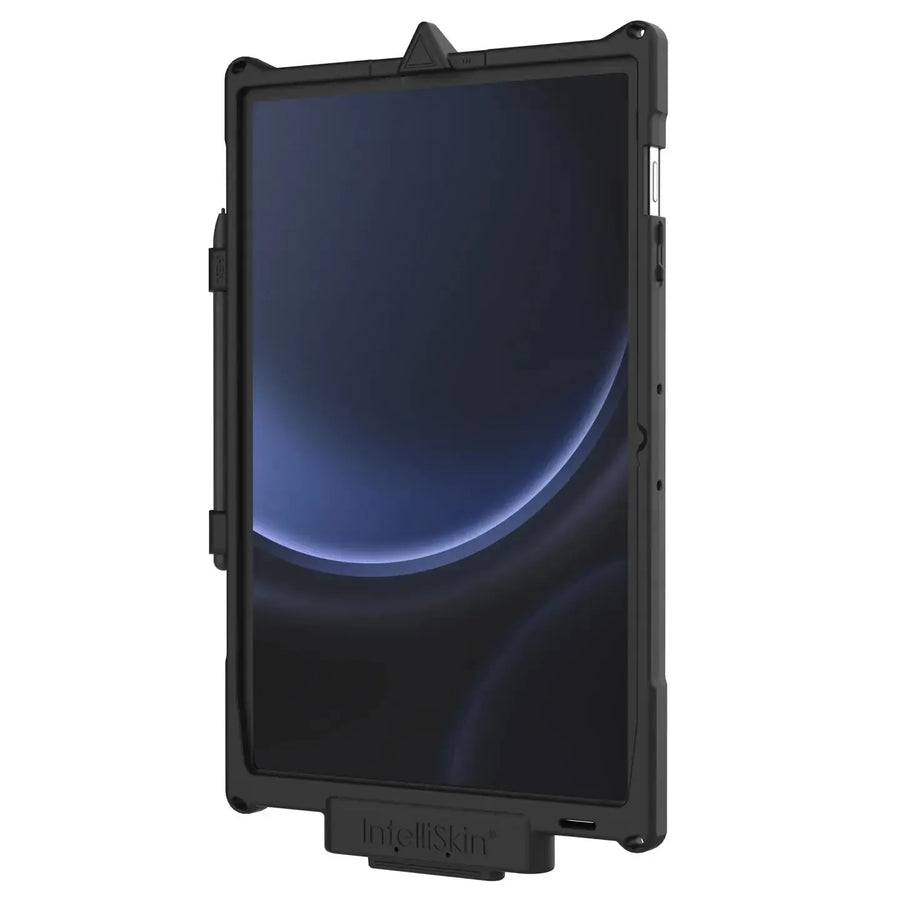

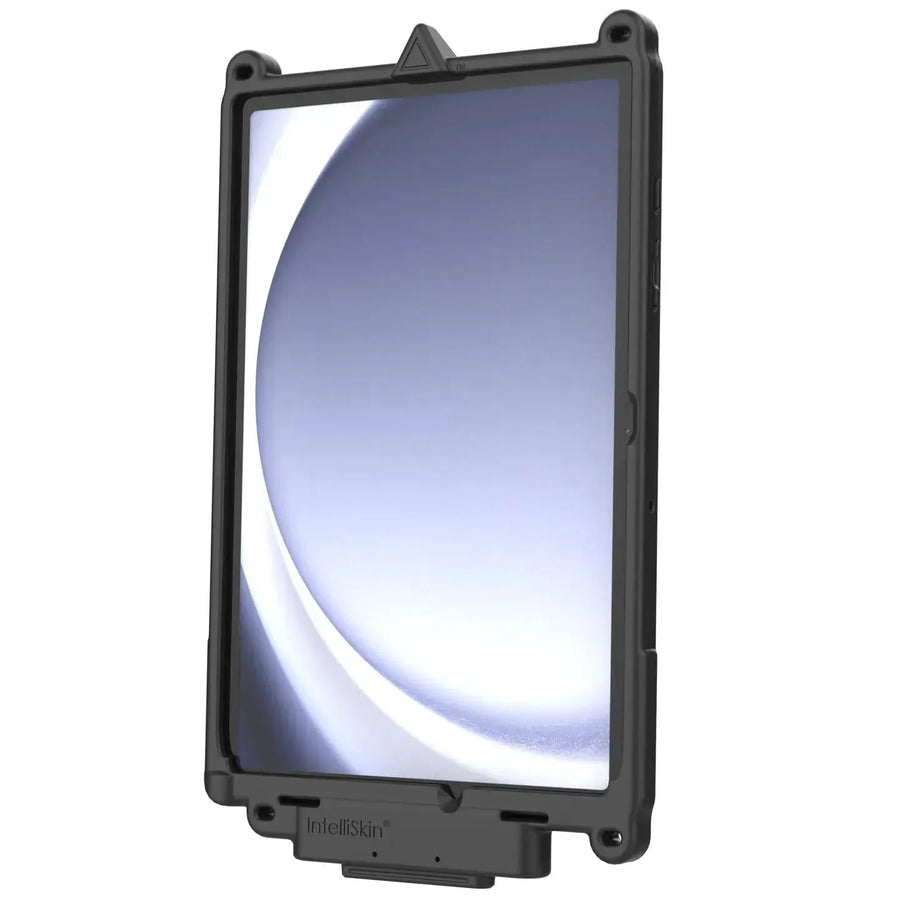

• Compatible case examples include Galaxy Tab A9+ Next Gen (RAM-GDS-SKIN-SAM88-NG), Galaxy Tab S10+ / S9+ / S9 FE+ Next Gen (RAM-GDS-SKIN-SAM87-NG) and Galaxy Tab A9+ standard Thin-Case (RAM-GDS-SKIN-SAM88-TCD).

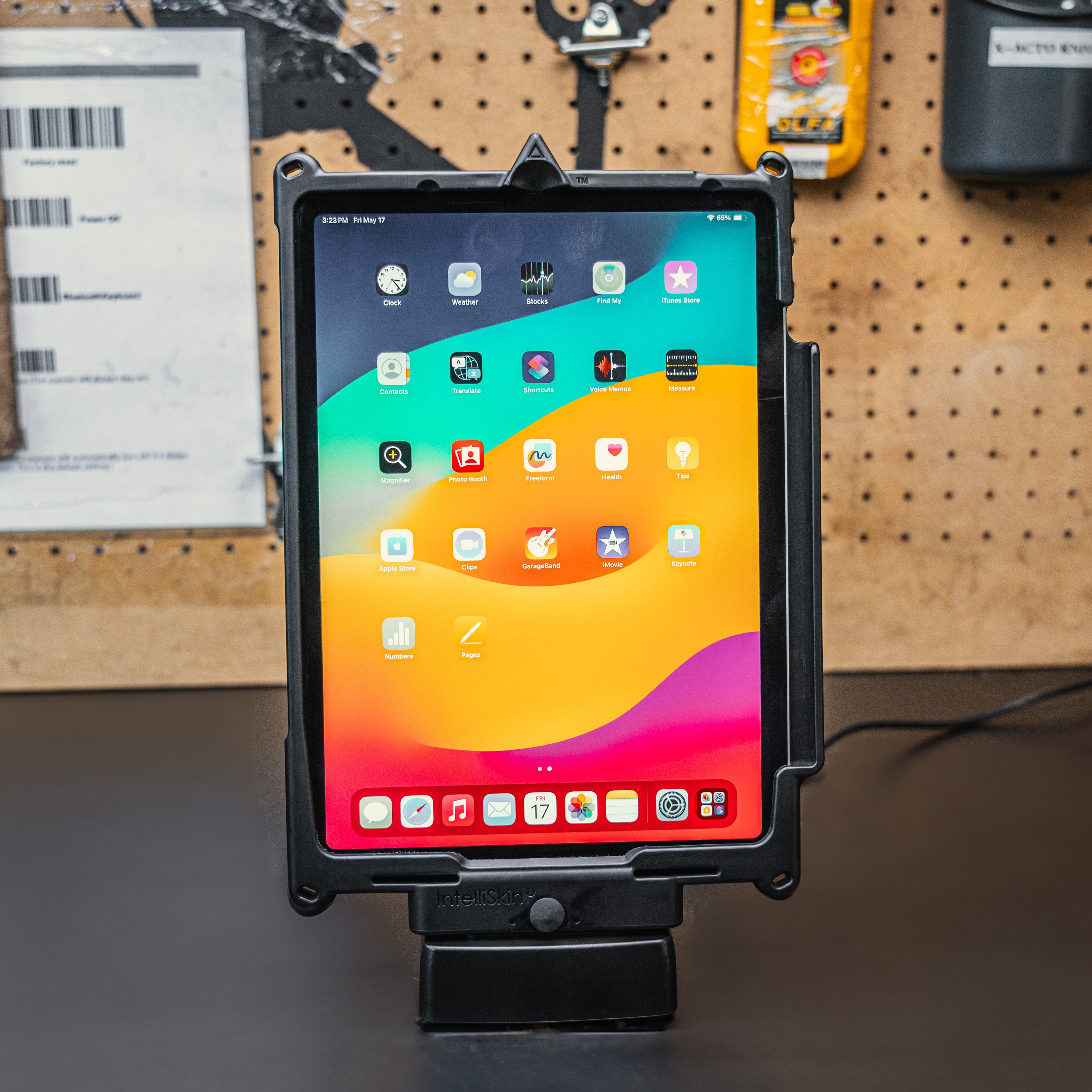

• For iPad 10th Gen or iPad (A16), choose IntelliSkin Next Gen RAM-GDS-SKIN-AP40-NG. Match the case to the exact device.

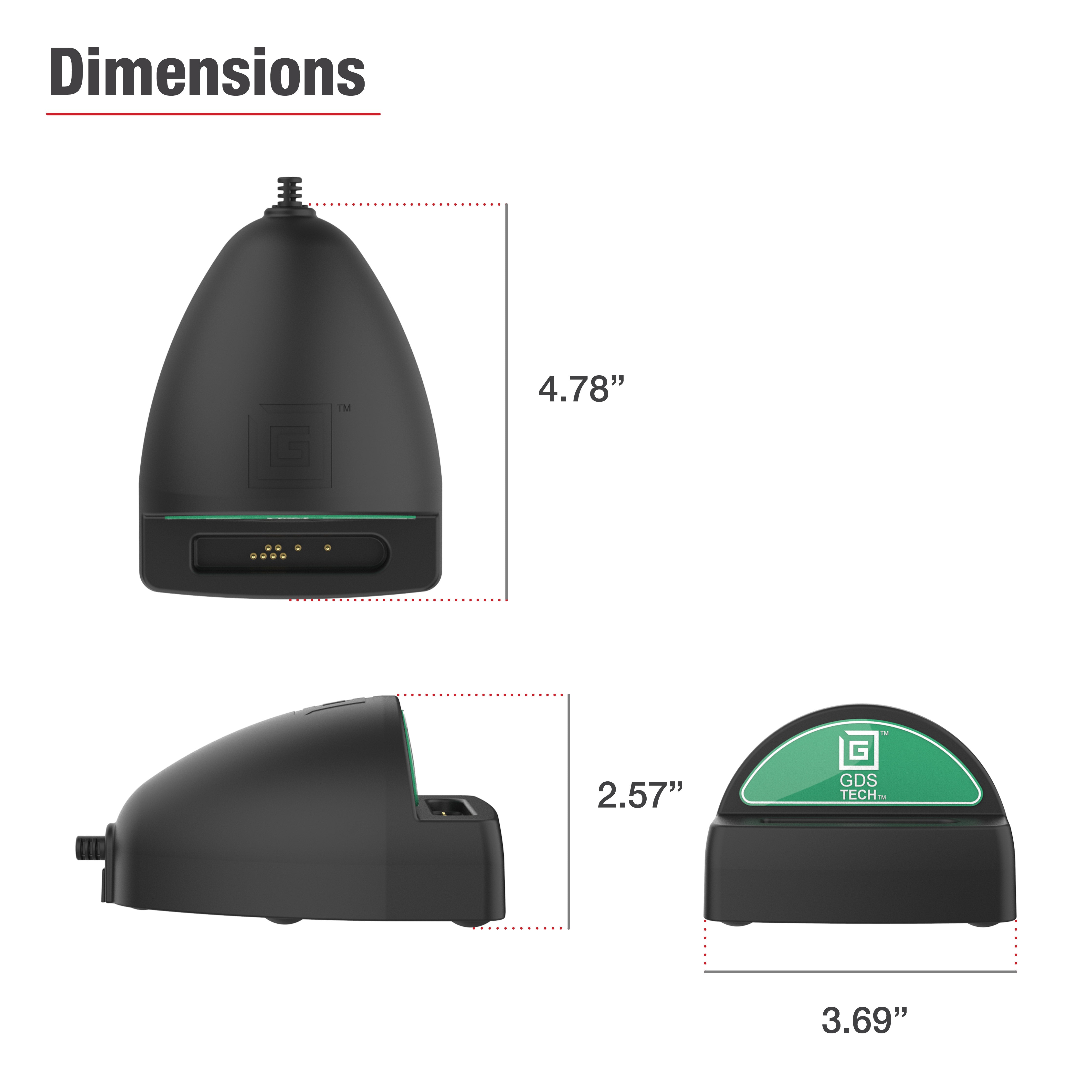

• The dimensions above are overall dock measurements, not minimum or maximum tablet dimensions. Charging performance depends on the device, case and power supply.

Help

Need assistance? Get in contact with us at info@modestmounts.com.au with your exact device, IntelliSkin part number and intended installation.
