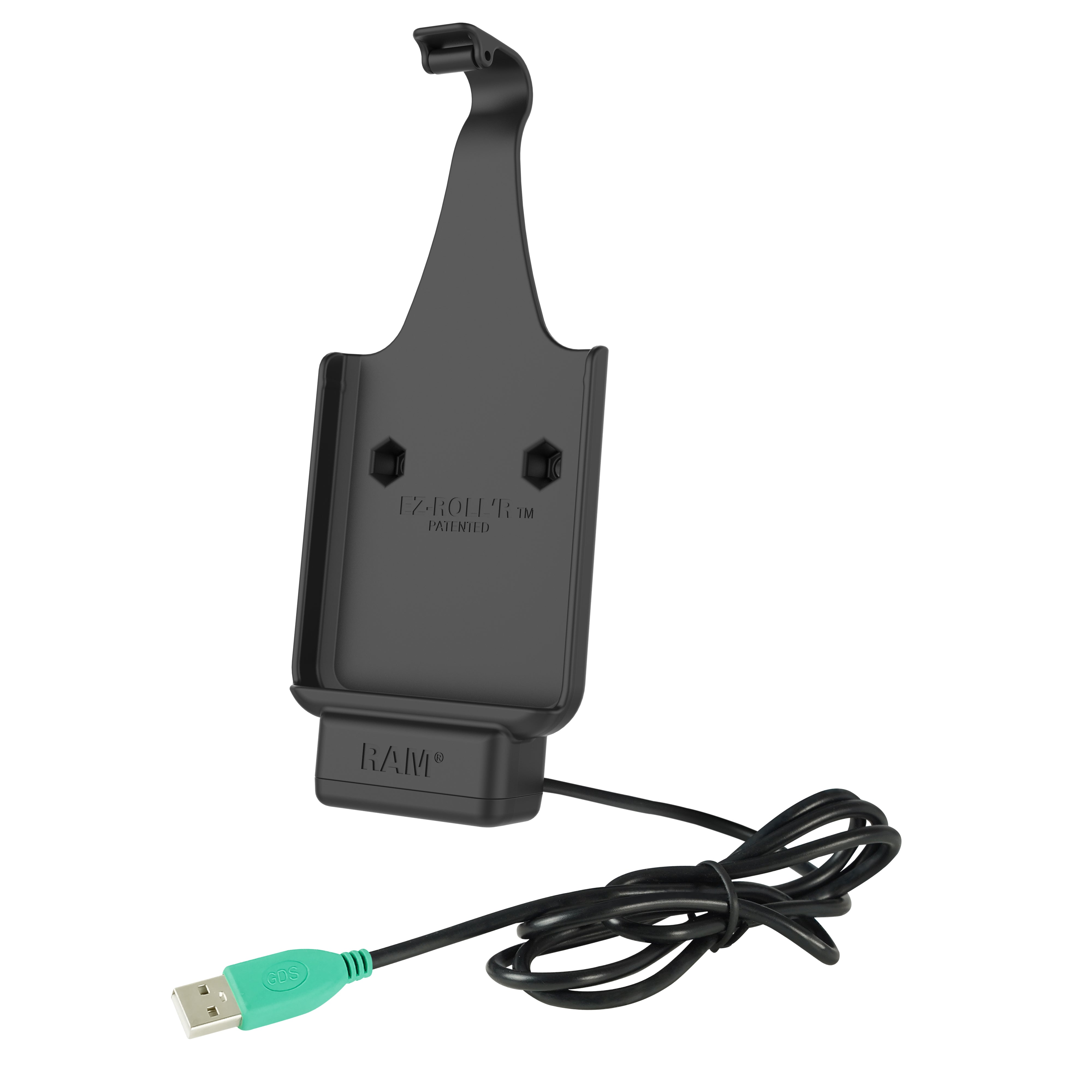

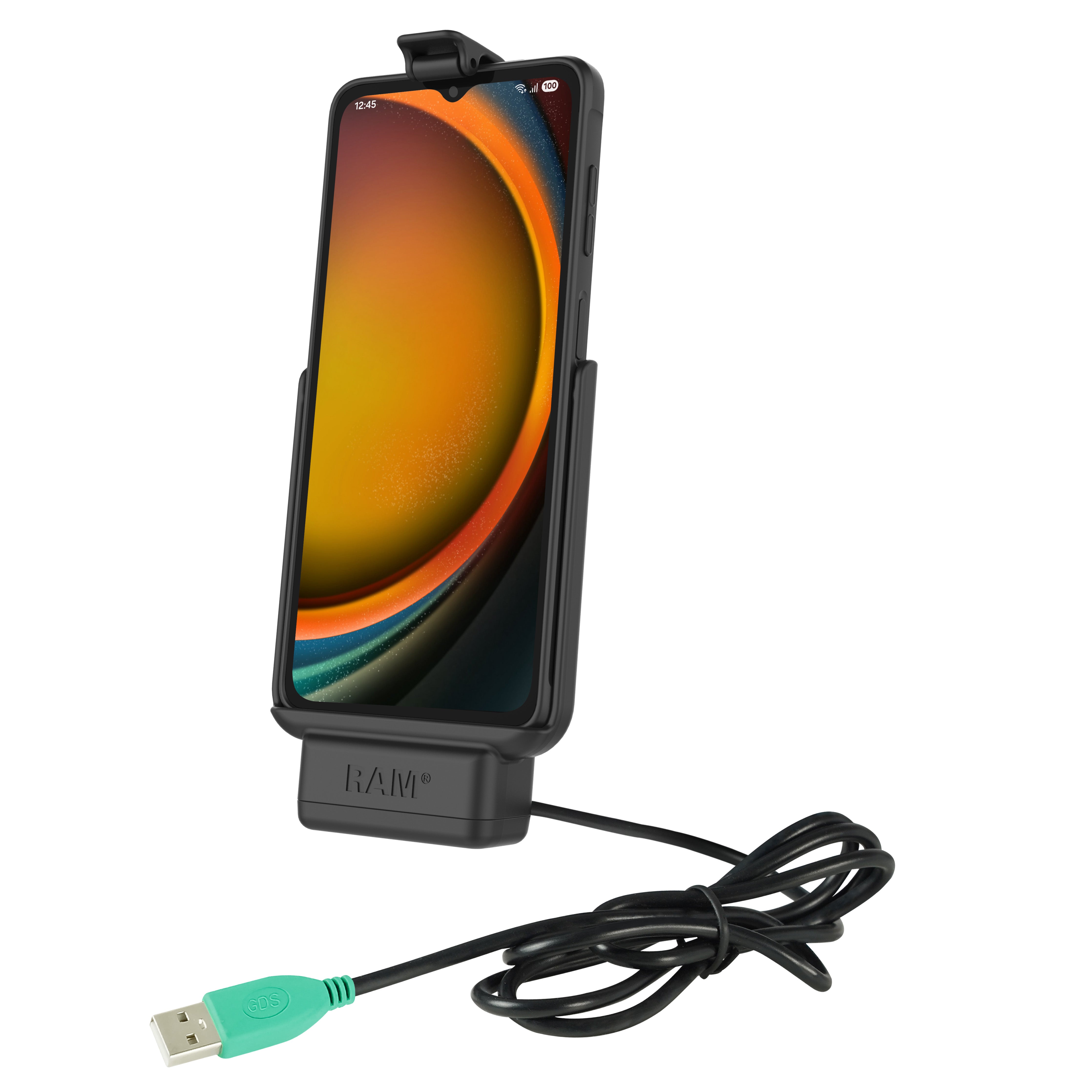

RAM EZ-Roll'r Powered Dock for Samsung XCover6 Pro & XCover7 Pro Without Case (RAM-HOL-SAM84PU)

Included:

• 1 x RAM EZ-Roll'r Powered Dock (RAM-HOL-SAM84PU) with 1.25 m USB-A male power lead
• 2 x #8-32 x 5/8-inch machine screws and 2 x #8-32 Nyloc nuts

3-year manufacturer warranty.

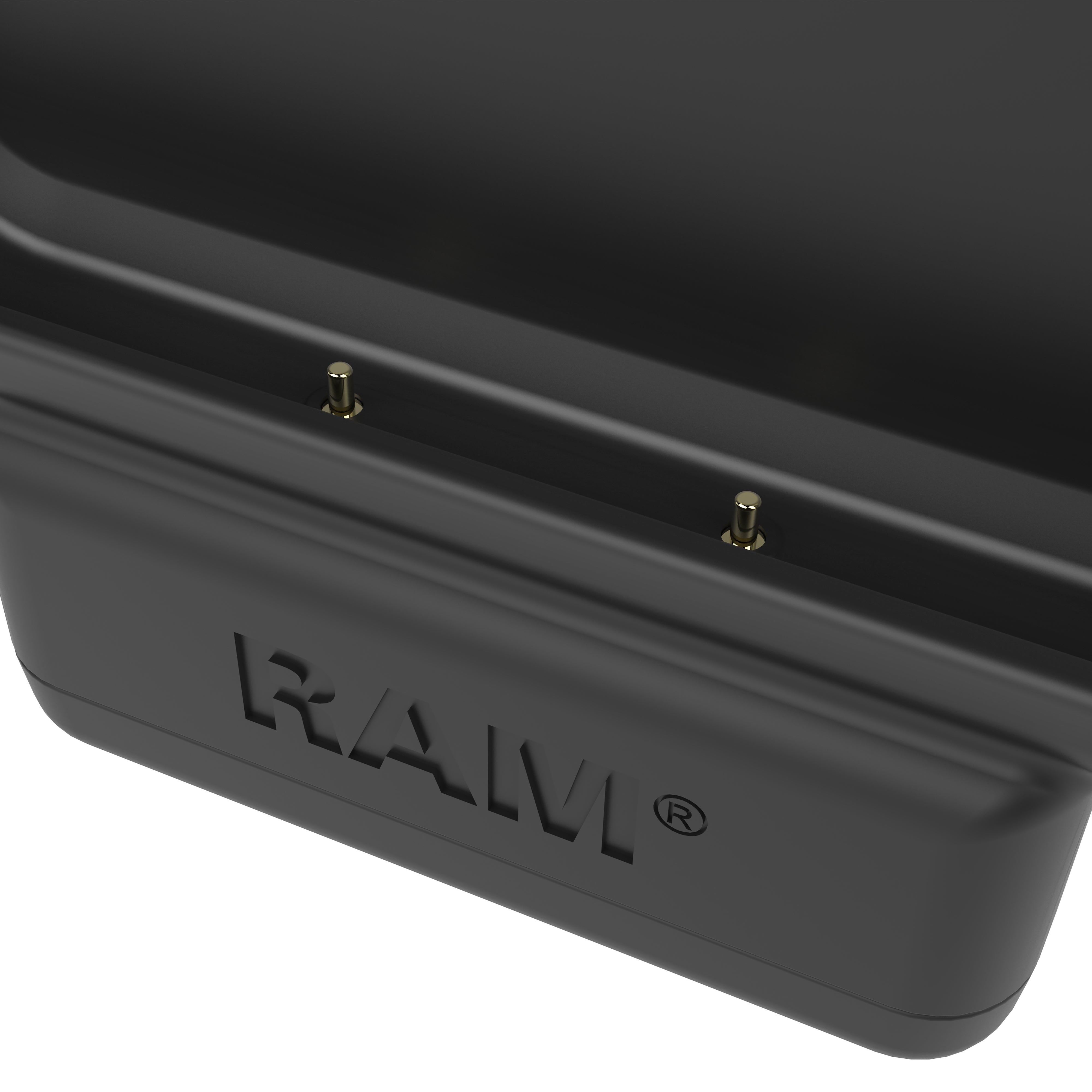

The RAM-HOL-SAM84PU is a model-specific powered dock for the Samsung Galaxy XCover6 Pro and XCover7 Pro without a case. Two integrated pogo-pin contacts provide the charging connection while the phone's buttons and cameras remain accessible.

Power and mounting

The dock takes power through its USB-A male lead. A suitable USB-A power source or charger must be selected separately for the installation. For a forklift, confirm the vehicle's electrical supply and charger requirements before choosing a power adapter.

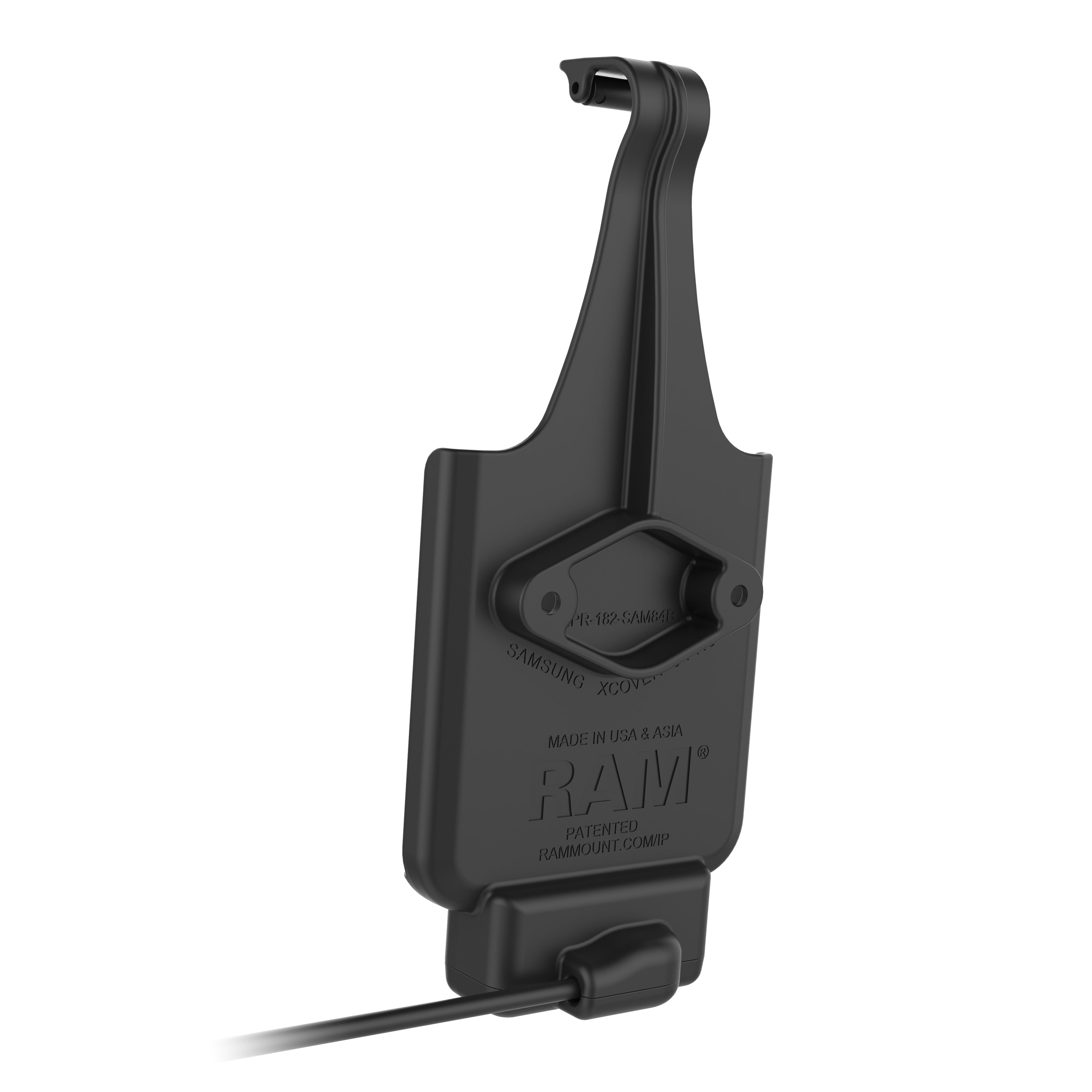

The rear 2-hole AMPS pattern accepts a B- or C-size RAM diamond ball base. For a B-size setup, add the separately sold RAM-B-238U diamond ball base. The phone, ball base, arm, vehicle mounting base and charger are not included.

Specifications

• Mounting pattern: 2-hole AMPS, 1.912 inches (48.56 mm) centre to centre
• Overall dimensions: 7.75 x 3.38 x 1.38 inches, approximately 196.9 x 85.9 x 35.1 mm (height x width x depth)
• Material: High Strength Composite
• Weight: 0.29 lb (approximately 132 g)
• Packaging: poly bag
• Warranty: 3 years

Compatibility

• Samsung Galaxy XCover6 Pro without a case
• Samsung Galaxy XCover7 Pro without a case
