RAM-B-166-202AU

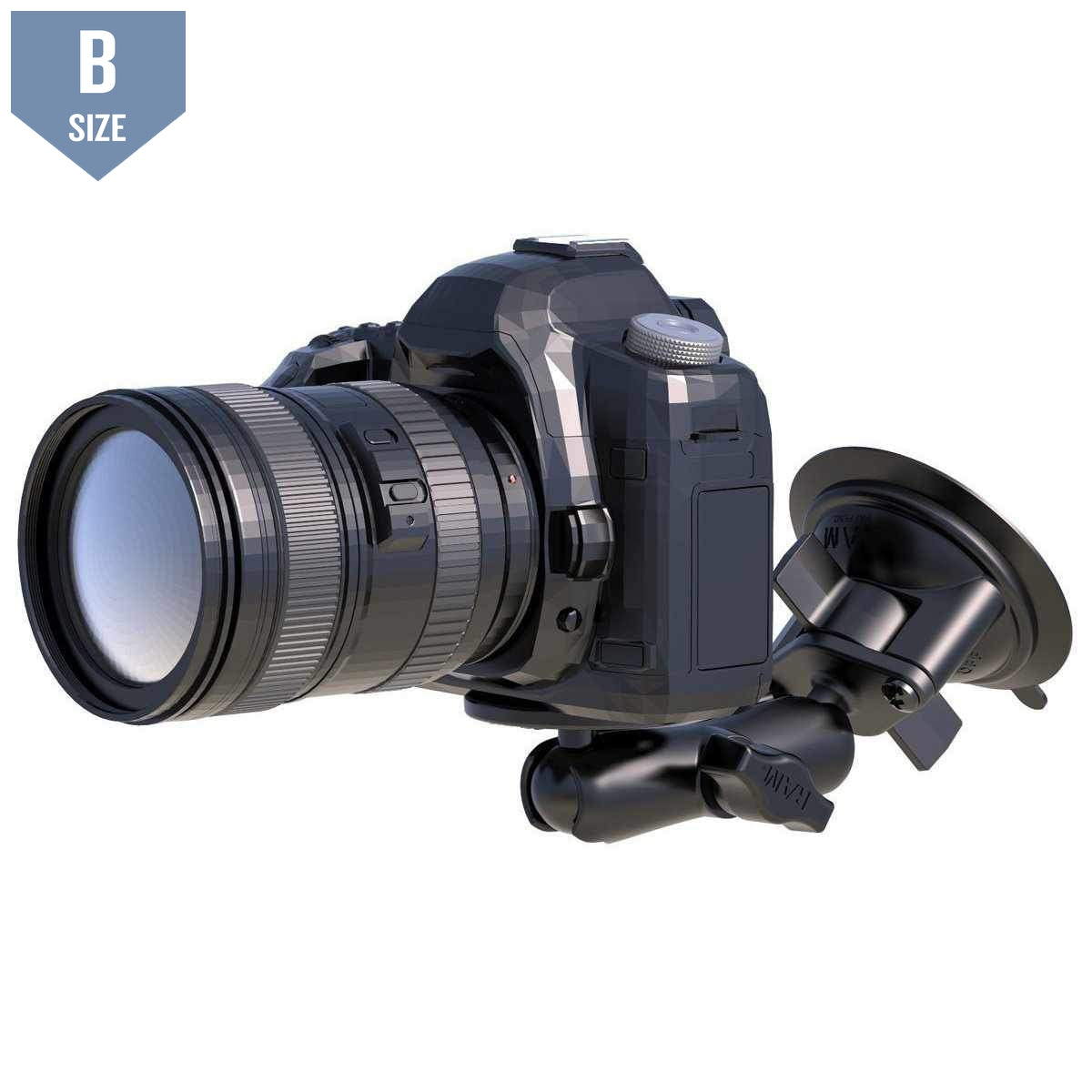

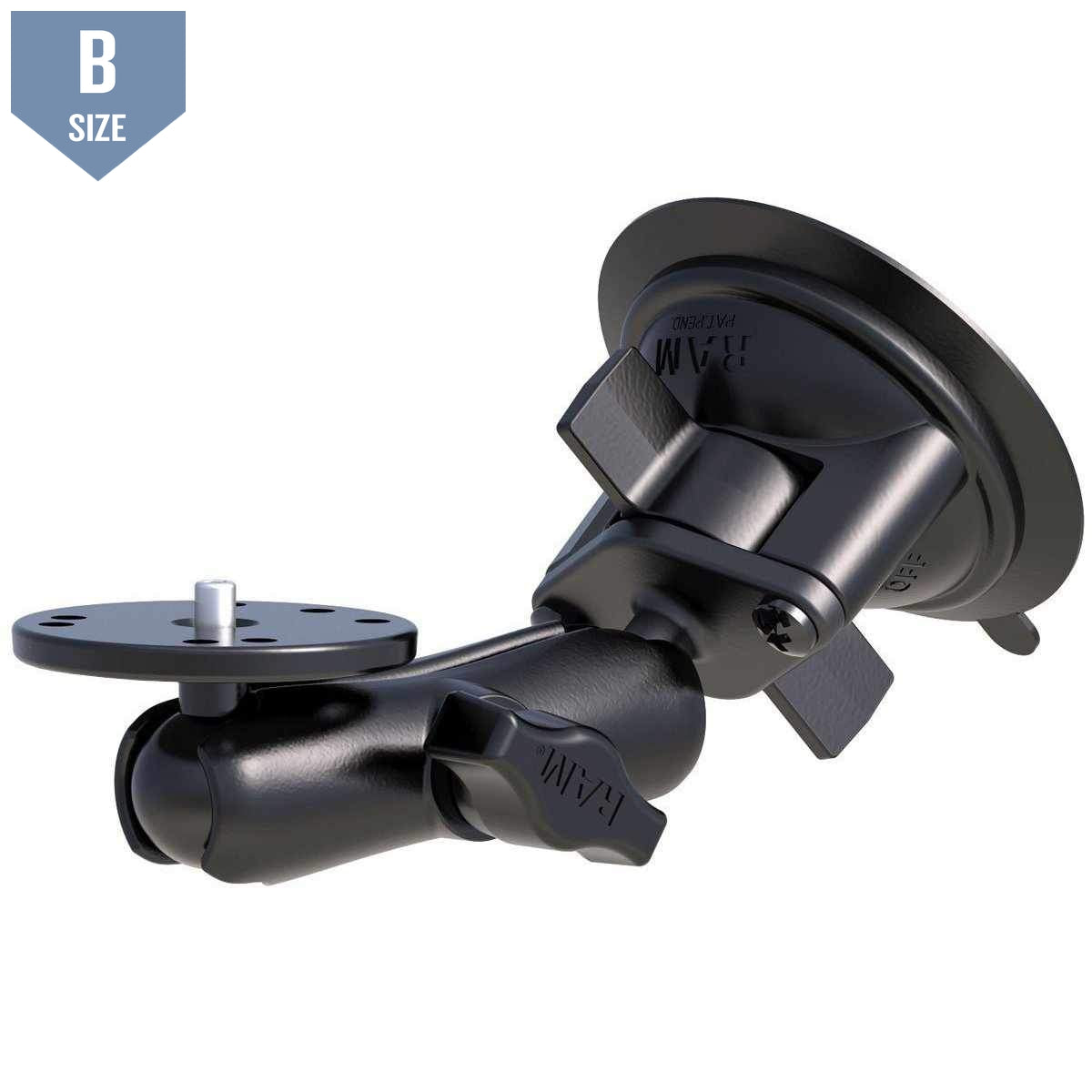

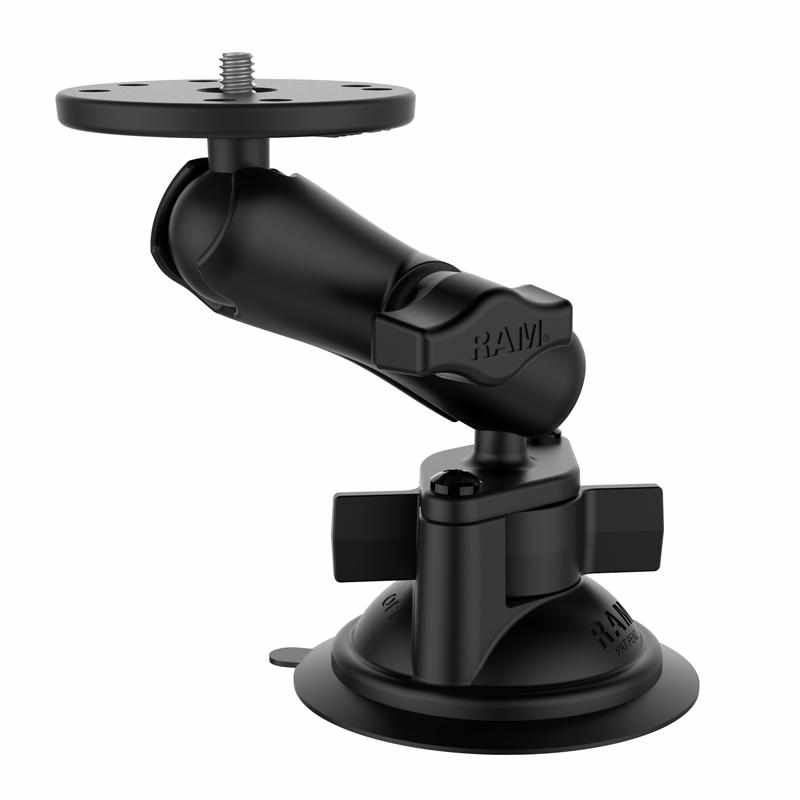

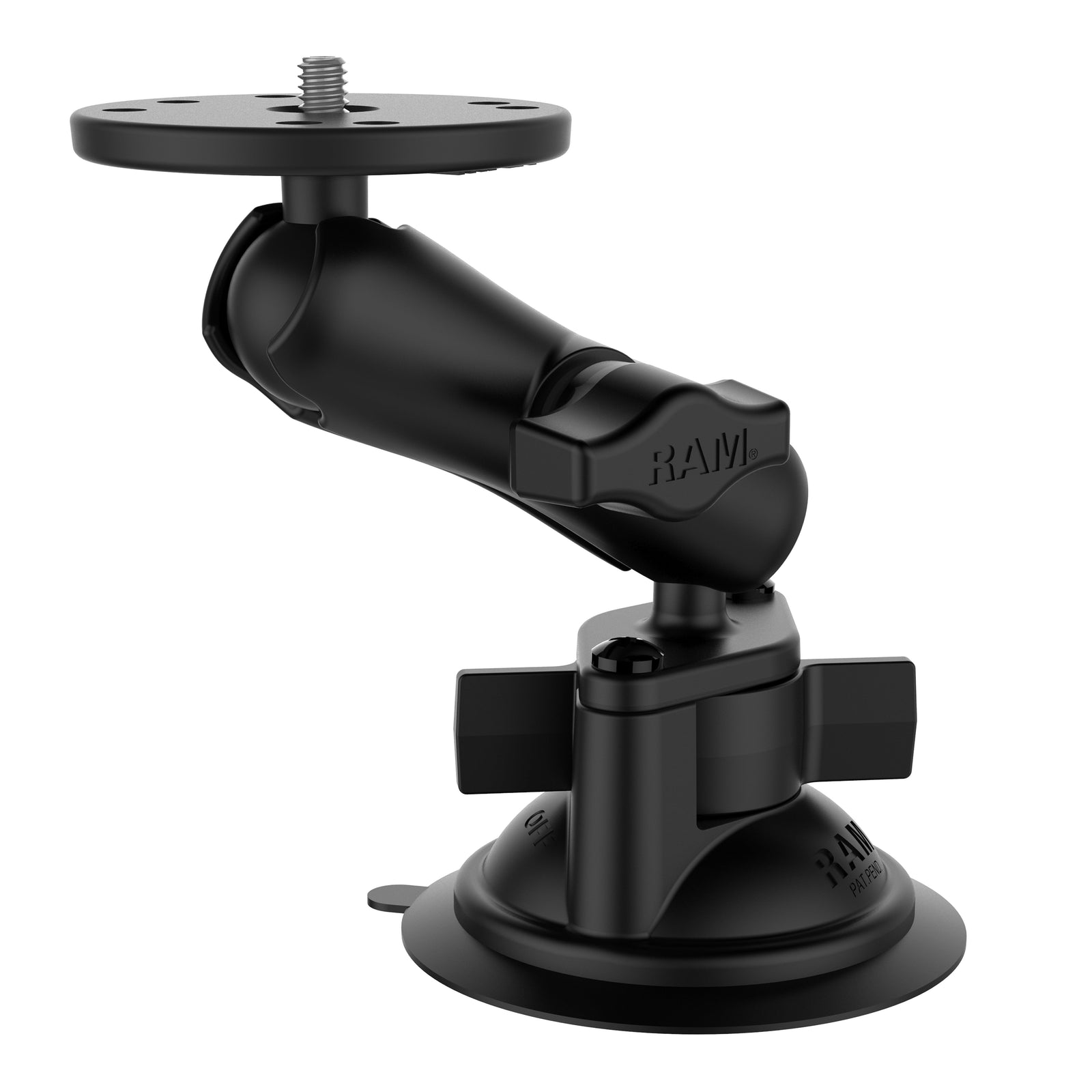

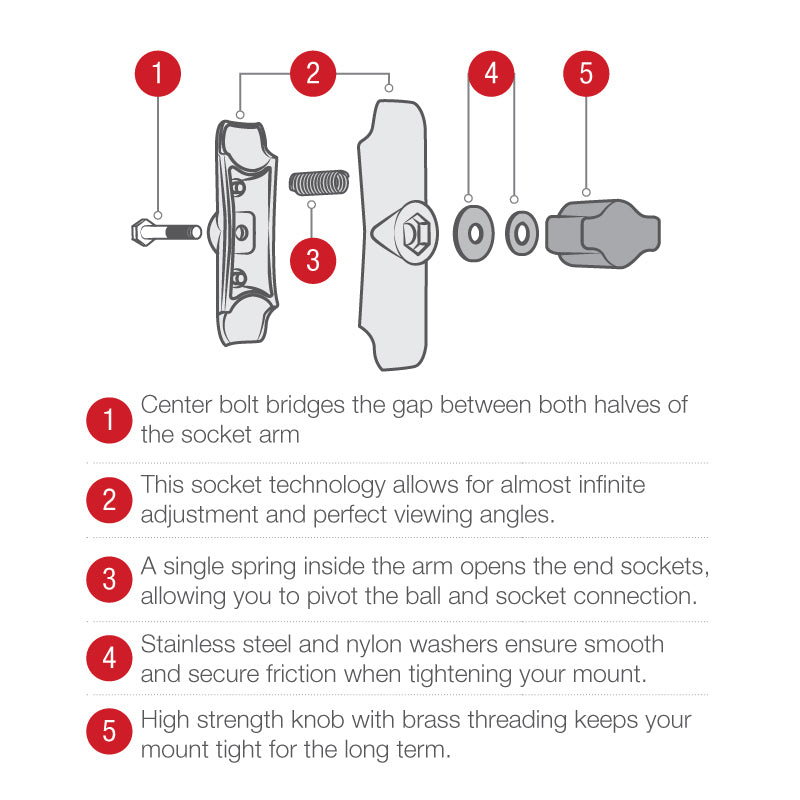

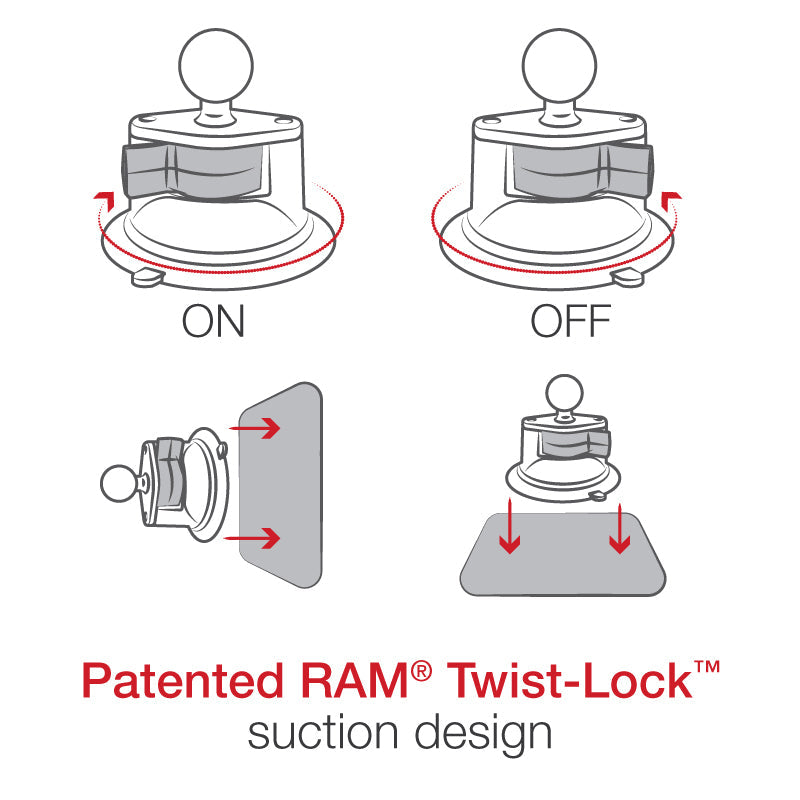

The RAM-B-166-202AU consists of a 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

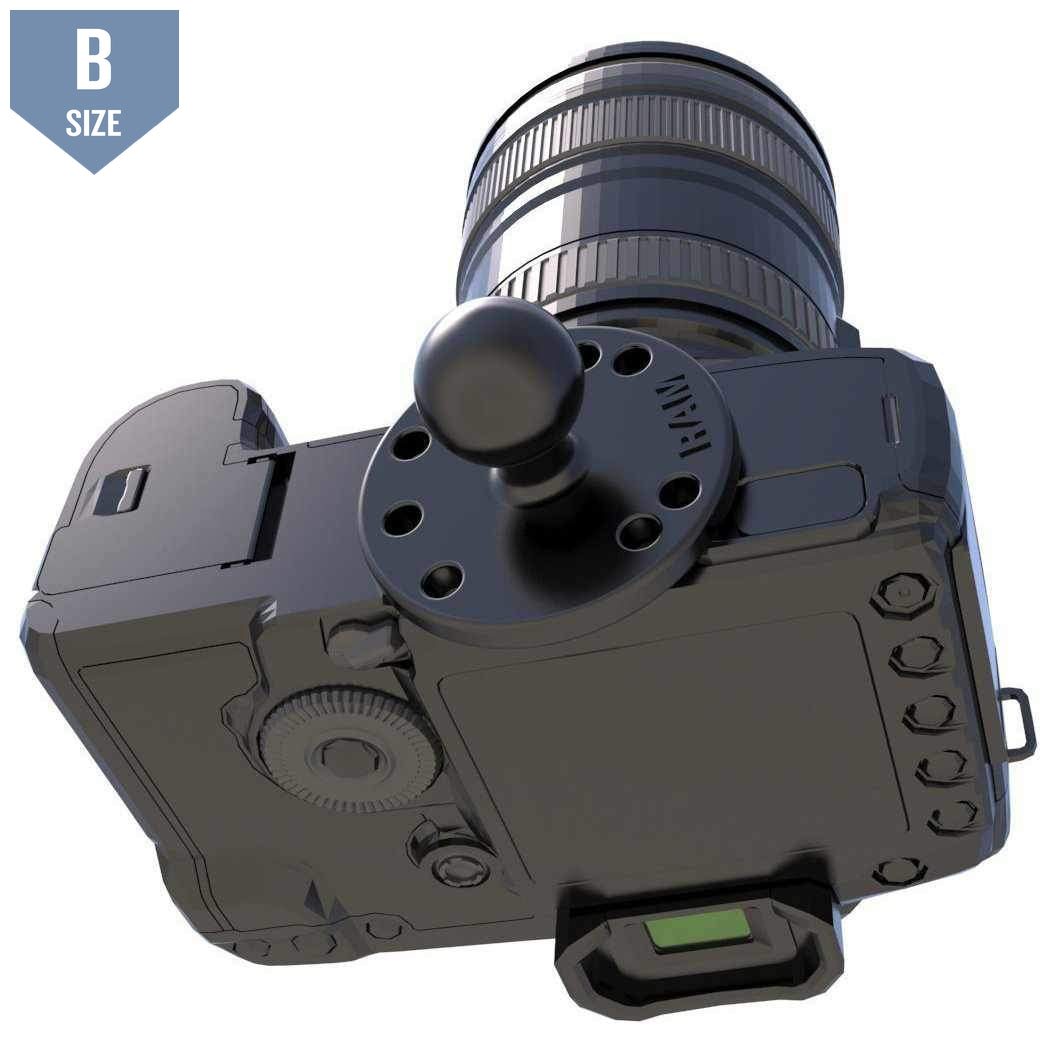

The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centred, the round base provides support and stability for cameras that rest on top of it.
The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
Note: The "U" in the part number reflects product packaged in poly bag.
Collections: All, B Size Components 1", Best Selling Products, Car Mounts, Newest Products, Phone Mounts, RAM Components
Thank you for submitting a review!
Your input is very much appreciated. Share it with your friends so they can enjoy it too!
Happy wit this as it connects to my camera and the windscreen. I don't use it a lot, but still very good.
Supports my nikon on the car's exterior while we drive. Have to be pretty trustworthy for something like that - and it is
Can't really go wrong with RAM Mounts. This, again, is a great mount and does exactly what it says it does.
Sign up to get the latest on sales, new releases and more …
Ball Sizes | Short Arm | Medium Arm | Long Arm | |
---|---|---|---|---|
A Size | Overall Length | N/A | 2.11" / 53.6 mm | 3.57" / 90.7 mm |
Socket-to-Socket | N/A | 1.67" / 42.4 mm | 3.12" / 79.3 mm | |
B Size |
Overall Length | 2.42" / 61.5 mm | 3.73" / 94.7 mm | 6.00" / 152.4 mm |
Socket-to-Socket | 1.75" / 44.5 mm | 3.00" / 76.2 mm | 5.31" / 134.9 mm | |
C Size | Overall Length | 3.56" / 90.4 mm | 5.69" / 144.5 mm | 9.13" / 231.9 mm |
Socket-to-Socket | 2.50" / 63.5 mm | 4.66" / 118.4 mm | 8.00" / 203.2 mm | |
D Size | Overall Length | 5.10" / 129.5 mm | 8.44" / 214.4 mm | 12.98" / 329.7 mm |
Socket-to-Socket | 3.60" / 91.4 mm | 6.88" / 174.8 mm | 11.41" / 289.8 mm | |
E Size | Overall Length | 7.31" / 185.7 mm | 12.63" / 320.8 mm | N/A |
Socket-to-Socket | 4.98" / 126.49 mm | 9.88" / 251 mm | N/A |
