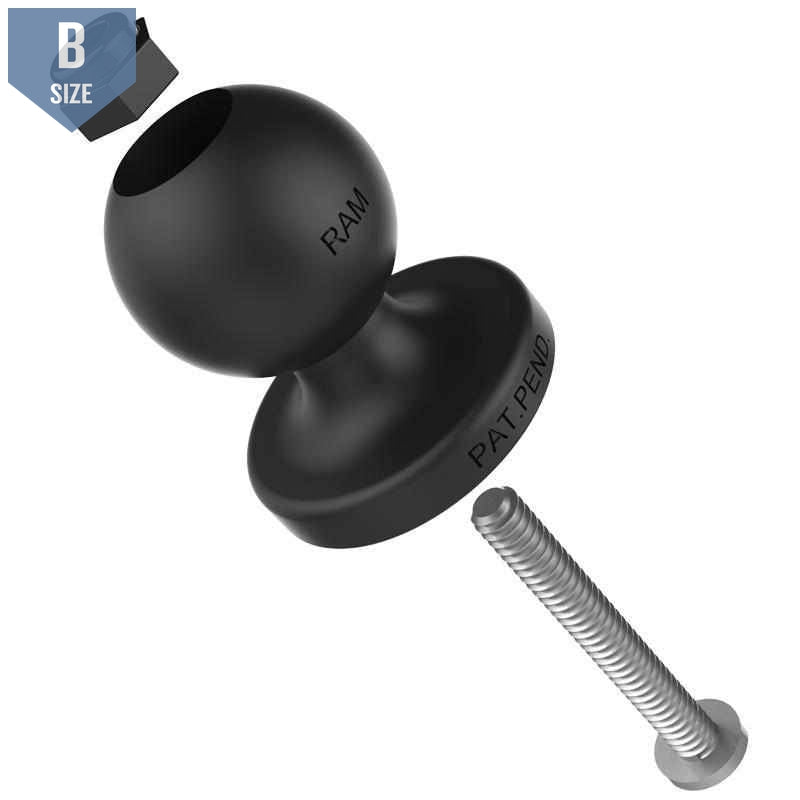

RAP-B-351-1U

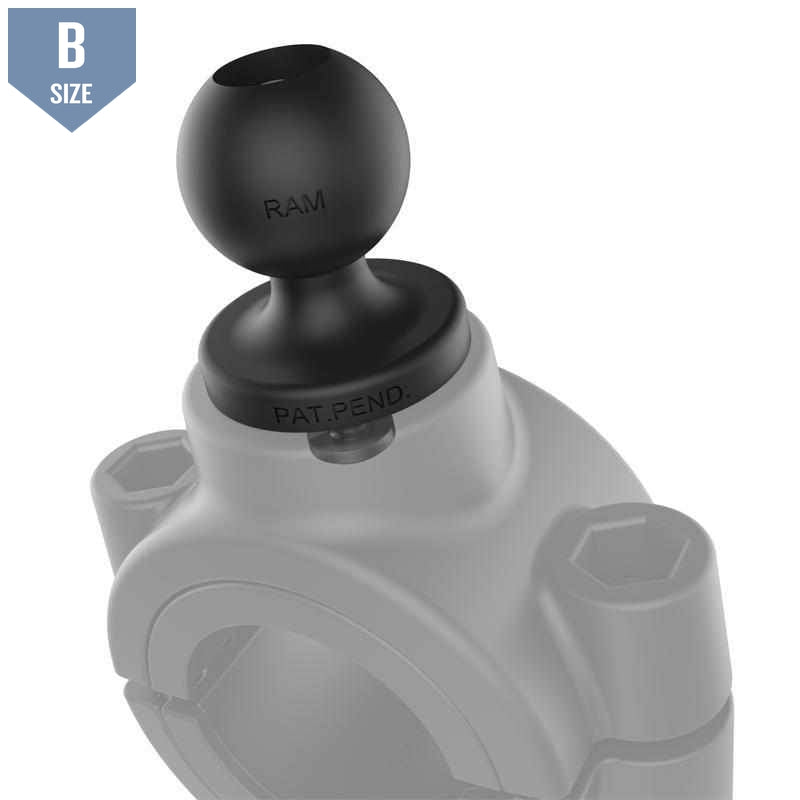

The RAP-B-351-1U allows you to mount an additional device to your 1.5” – 2” Torque™ Rail Base. Use the included hardware to easily attach the add-on to your Torque Rail Base.
With an extra B Size Ball, you have the ability to mount multiple devices to your ATV or UTV, such as two action cameras or even two spotlights. The choice is yours and the possibilities are almost endless.
Material:
High Strength Composite
Ball Size:
B Size 1" Rubber Ball
Diameter
1.23" Diameter
Hole Size
0.19” major diameter for a 10-24 metric screw(this is what is included) 4mm
Note:
Part number reflects product packaged in a poly bag.
Collections: All, B Size Components 1", Best Selling Products, Motorcycle Mounts, Newest Products, RAM Components, Torque™
Here at Modest Mounts we strive to process all orders received before 12:00pm AEDT on the same business day we receive them.
We currently offer the following domestic freight options*:
Our choice of courier service depends on the particular route/destination of your delivery, however the majority of all orders are sent with Australia Post, Startrack Premium, StarTrack Express & Sendle.
Note: Postage fee may be a little higher for some of the heavy or large items.
Read more on our Shipping & Delivery
Within 30 days of your purchase, we will happily accept returned items for refund or a replacement providing they are in re-saleable condition. To initiate a return, send us an email at info@modestmounts.com.au - DO NOT send items back to our office address.
Full information available here.
Yes. RAM Mounts come with a lifetime warranty.
Please visit http://www.rammount.com/warranty for all information.
Sign up to get the latest on sales, new releases and more …
Ball Sizes | Short Arm | Medium Arm | Long Arm | |
---|---|---|---|---|
A Size | Overall Length | N/A | 2.11" / 53.6 mm | 3.57" / 90.7 mm |
Socket-to-Socket | N/A | 1.67" / 42.4 mm | 3.12" / 79.3 mm | |
B Size |
Overall Length | 2.42" / 61.5 mm | 3.73" / 94.7 mm | 6.00" / 152.4 mm |
Socket-to-Socket | 1.75" / 44.5 mm | 3.00" / 76.2 mm | 5.31" / 134.9 mm | |
C Size | Overall Length | 3.56" / 90.4 mm | 5.69" / 144.5 mm | 9.13" / 231.9 mm |
Socket-to-Socket | 2.50" / 63.5 mm | 4.66" / 118.4 mm | 8.00" / 203.2 mm | |
D Size | Overall Length | 5.10" / 129.5 mm | 8.44" / 214.4 mm | 12.98" / 329.7 mm |
Socket-to-Socket | 3.60" / 91.4 mm | 6.88" / 174.8 mm | 11.41" / 289.8 mm | |
E Size | Overall Length | 7.31" / 185.7 mm | 12.63" / 320.8 mm | N/A |
Socket-to-Socket | 4.98" / 126.49 mm | 9.88" / 251 mm | N/A |
