RAM 6" Straight Extension Arm for Swing Mount (RAM-VB-109-3U)

Included:

• 1 x RAM 6" Straight Extension Arm for Swing Mount (RAM-VB-109-3U)

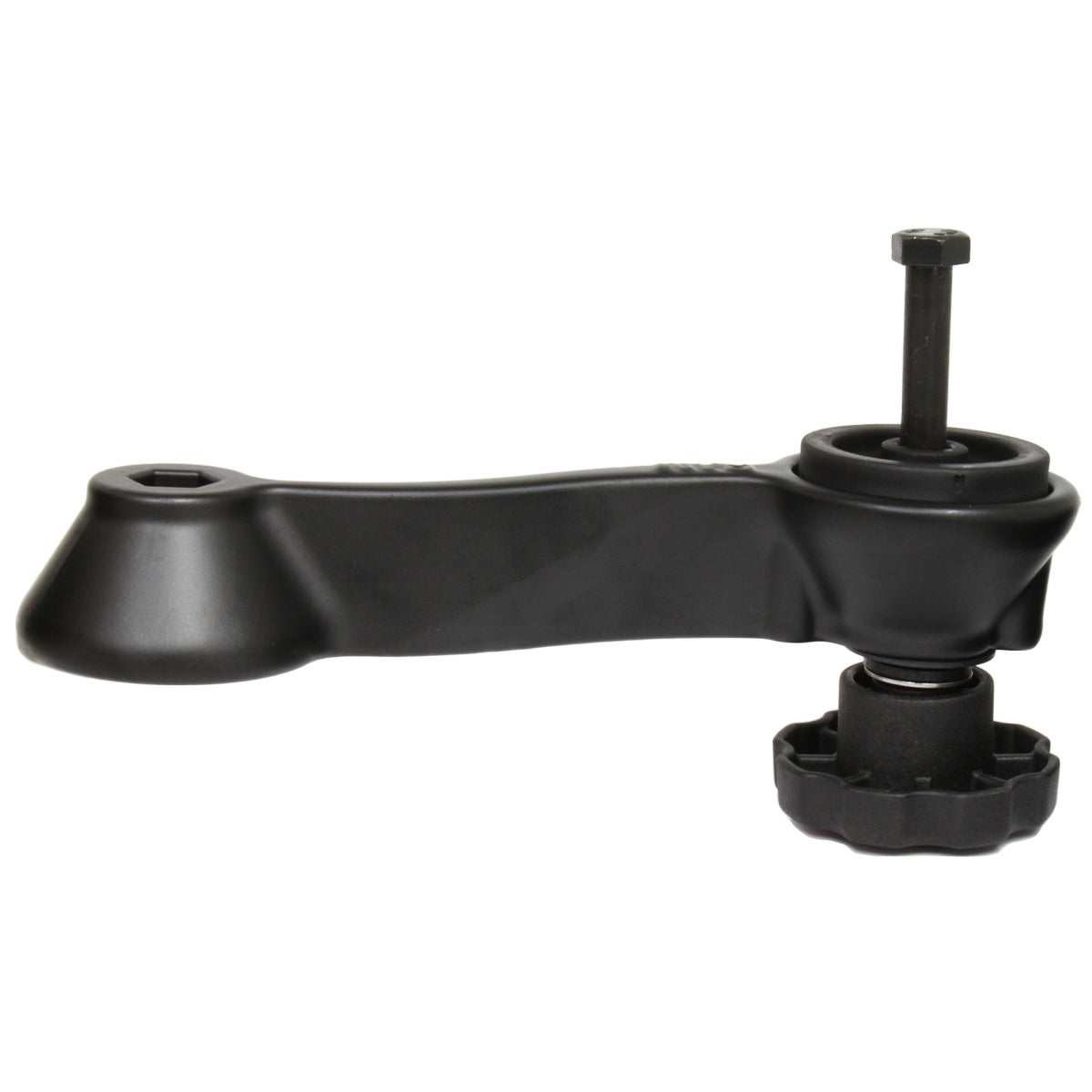

The RAM-VB-109-3U is a 6" swing arm extension designed to connect between the top of a RAM Tele-Pole™ and the RAM-VB-109-2U swing arm with socket.

The bolt and knob connection allows the swing arms to pivot at the centre joint. Loosen the knob to adjust the position, then tighten it to secure the arms in place. Made from marine-grade aluminium, this extension adds reach to compatible Tele-Pole and selected RAM-109 swing-arm setups.

Specs

• Part Number: RAM-VB-109-3U
• Length: 6" (152.4mm)
• Material: Marine-grade aluminium
• Weight: Approximately 526g (1.16 lb)
• Hardware Included:
  • 1 x 3/8"-16 x 4" Hex Bolt
  • 1 x 2" Rubber Washer
  • 1 x 1.25" Fender Washer
  • 2 x Steel Washers
  • 1 x Thrust 6-Bearing Washer
  • 1 x 3/8"-16 Knob

Compatibility

Want to extend an existing RAM-109VU or RAM-109HU?
Choose the RAM-109-1AU 6" curved extension for these standard curved-arm fishfinder mounts. RAM uses that extension in the corresponding 12" double-arm kits, RAM-109V-1U and RAM-109H-1U.

The RAM-VB-109-3U on this page is not confirmed by RAM as a direct add-on extension for the RAM-109VU or RAM-109HU. Its use in other RAM-109 configurations does not establish compatibility with those complete mounts. For a modified setup, send us your mount's part number and a photo so we can help check the right extension.

• Tele-Pole setups: Connects between the top of a RAM Tele-Pole™ and the RAM-VB-109-2U swing arm with socket.
• Selected RAM-109 swing-arm configurations: RAM includes this extension in the RAM-109VS-5NBU kit, paired with the RAM-109V-BU vertical base and RAM-VB-110-5NBU swivel socket arm.

Please note: This is an extension component. The Tele-Pole, RAM-VB-109-2U socket arm, device holder and device are sold separately.
