RAM-202U-2525
RAM 1.5" C Ball with 2" x 2" Hole Pattern (RAM-202U-2525)
$39.00$45.00You Save 13% ($6.00)
Size Guide
Included:
- 1 x RAM 1.5" C Ball with 2" x 2" Square Hole Pattern (RAM-202U-2525)

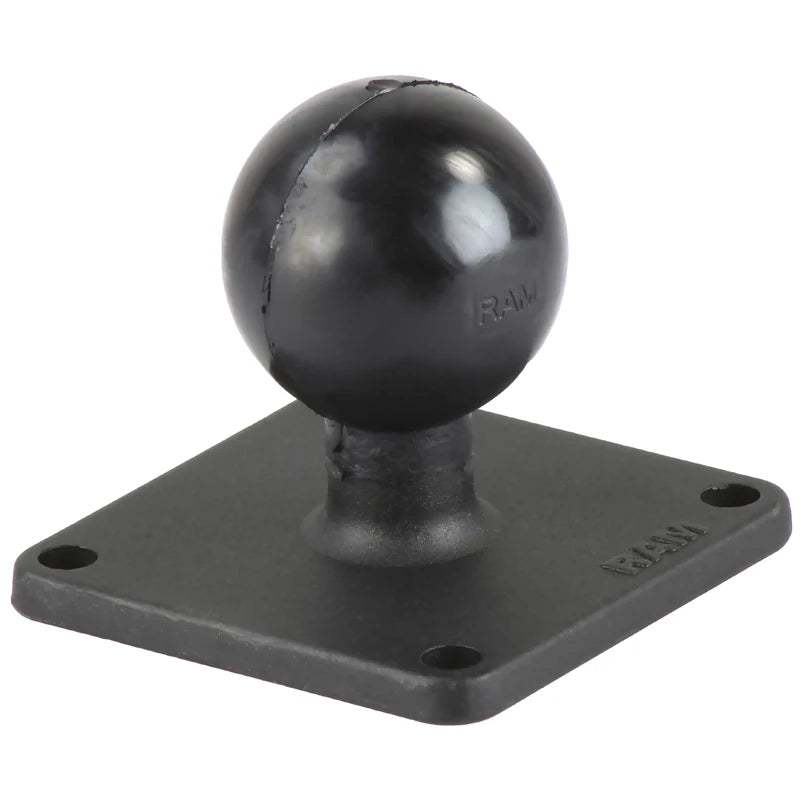

The RAM-202U-2525 contains a 1.5" diameter C size rubber ball connected to a 2.5" x 2.5" square plate with a 4-hole pattern of 2" x 2" centre to centre. This component is designed for creating a strong drill-down mounting point and connects to any RAM C size double socket arm.
Specs
- Material: Powder Coated Marine Grade Aluminum
- Ball Size: C Size 1.5" Rubber Ball
- Plate Dimensions: 2.5" x 2.5"
- Hole Pattern: 2" x 2" (~50.8mm x 50.8mm) centre to centre
- Weight Capacity: Standard Use: 4 lbs | Heavy-Duty Use: 3 lbs
- Packaging Type: Poly Bag
- Note: The "U" in the part number reflects product packaged in poly bag.
- Weight: 0.25 lbs.
Help
- Mounting Hardware: Mounting hardware is not included with this component.
- Recommended Hardware: Use 1/4"-20 stainless steel hardware for installation.
- Hole Pattern: The 2" x 2" hole pattern refers to the centre-to-centre spacing between the mounting holes.
- Plate Size: The square plate itself measures 2.5" x 2.5".
- Reference Guide: For further hole pattern information, see the RAM Hole Pattern Reference Guide.
