RAM® Mounts: Ball Sizes & Weight Capacities

This video explains RAM® ball sizes and weight capacity guidance, helping customers choose between A, B, C, D and E size components for different devices and mounting conditions.

What this video covers

This video explains how RAM® ball sizes relate to device weight, mounting environment and expected vibration. It is a useful guide for choosing between A, B, C, D and E size RAM® mounting components.

The video covers the typical ball diameter for each size and explains that smaller sizes are suited to lighter devices, while larger sizes are used for heavier electronics or more demanding environments. It also highlights that rougher applications, such as boats, forklifts and other high-vibration setups, may call for moving up a size.

This page is especially helpful if you are building a mount from separate parts and need to make sure the holder, arm and base are from the same RAM® size family.

Use the related products and collections below to find compatible RAM® Mounts parts available from Modest Mounts in Australia.

Related products

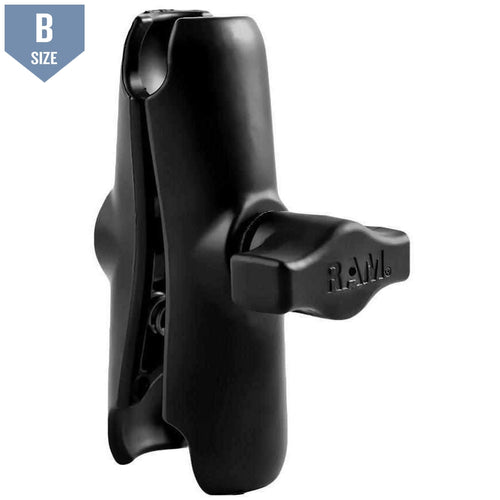

RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)

RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)

RAM Round Base with 1" B Ball (RAM-B-202U)

RAM Round Base with 1" B Ball (RAM-B-202U)

RAM Standard Clamp Arm C Size 1.5" (RAM-201U) - Modest Mounts

RAM Standard Clamp Arm C Size 1.5" (RAM-201U)

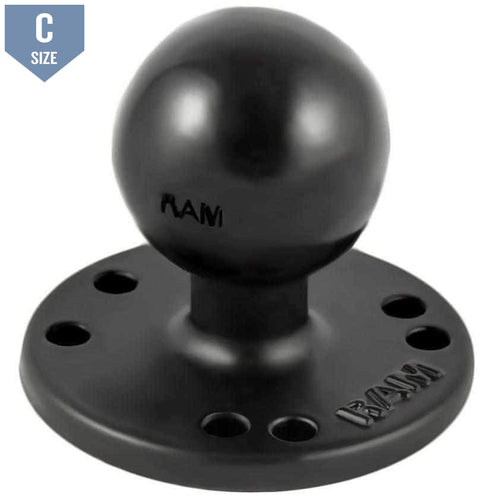

RAM Round Base with 1.5" C Ball (RAM-202U)

RAM Round Base with 1.5" C Ball (RAM-202U)

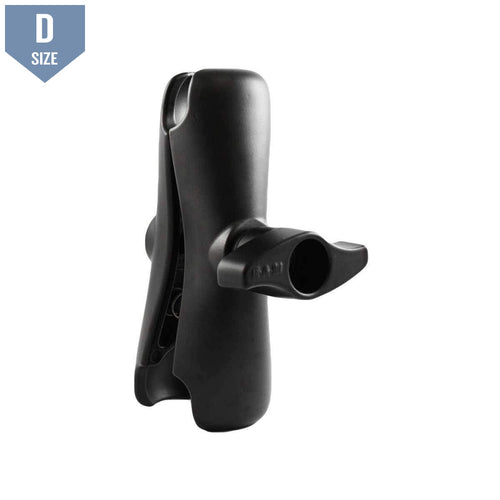

RAM Standard Clamp Arm D Size 2.25" (RAM-D-201U)

RAM Standard Clamp Arm D Size 2.25" (RAM-D-201U)

RAM Round Base with 2.25" D Ball (RAM-D-202U) - Modest Mounts

RAM Round Base with 2.25" D Ball (RAM-D-202U)

Related collections

B Size Components 1"

C Size Components 1.5"

D Size Components 2.25"

E Size Components 3.38"

Transcript

This video provides an overview of the various ball-and-socket mounting components offered by RAM® Mounts, designed to accommodate different types of devices. Key takeaways include:
• Variety of Sizes: RAM® Mounts offers five different ball-and-socket sizes, ranging from 9/16" to 3 3/8" in diameter.
• Weight Capacities: Each size is engineered for specific weight and use cases:
• A-Size (9/16"): Up to 1 lb for light use.
• B-Size (1"): Up to 5 lbs (light use) or 2 lbs (rugged use). Best for cell phones and small tablets.
• C-Size (1.5"): Up to 10 lbs (light use) or 5 lbs (rugged use). Ideal for laptops and heavier tablets.
• D-Size (2.25"): Up to 15 lbs (light use) or 10 lbs (rugged use). Often used for fish finders and depth sounders on boats.
• E-Size (3.38"): Up to 20 lbs (light use) or 15 lbs (rugged use). Designed for military-grade computers.
• Versatility: All components feature dual ball-and-socket technology, allowing for unlimited adjustment and flexibility.
• Application Advice: For harsh or high-vibration environments, such as forklifts or boats, the company recommends selecting one size up from your device's standard recommendation to ensure a more secure and stable mount.
