RAM Cradle for Panasonic Toughpad FZ-G1 (RAM-HOL-TAB19U)

Included:

• 1 x RAM Cradle for Panasonic Toughpad FZ-G1 (RAM-HOL-TAB19U)

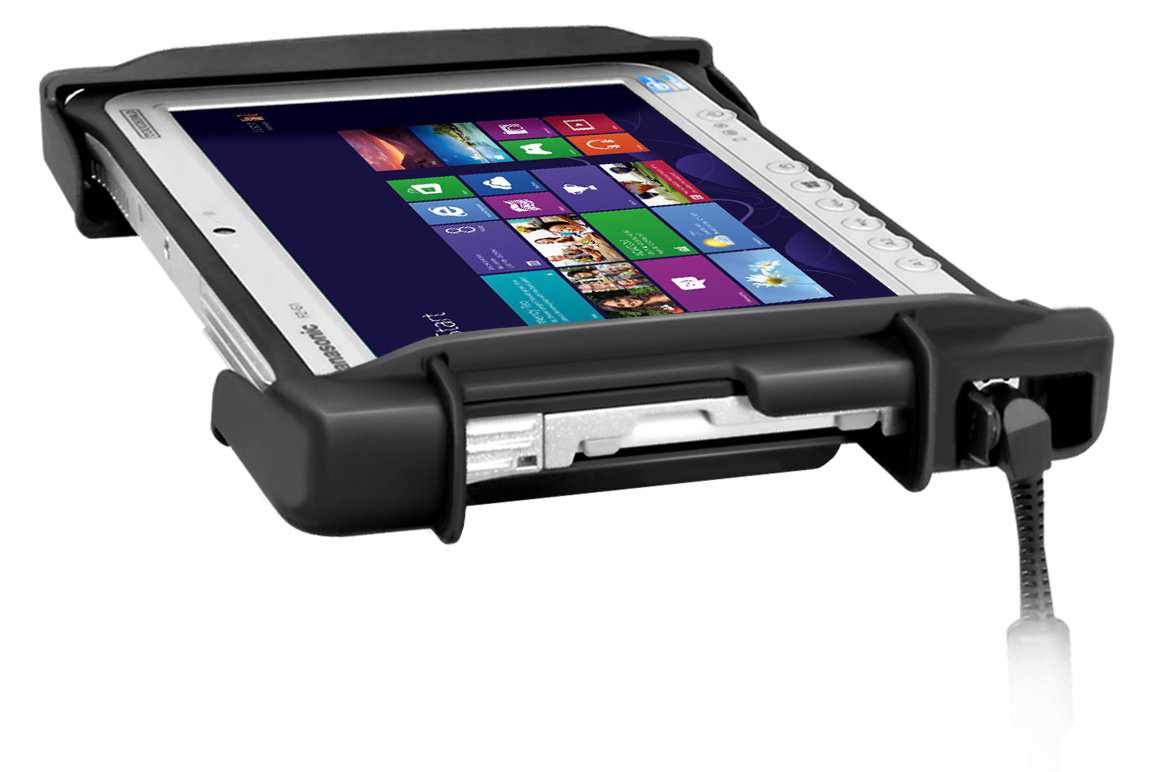

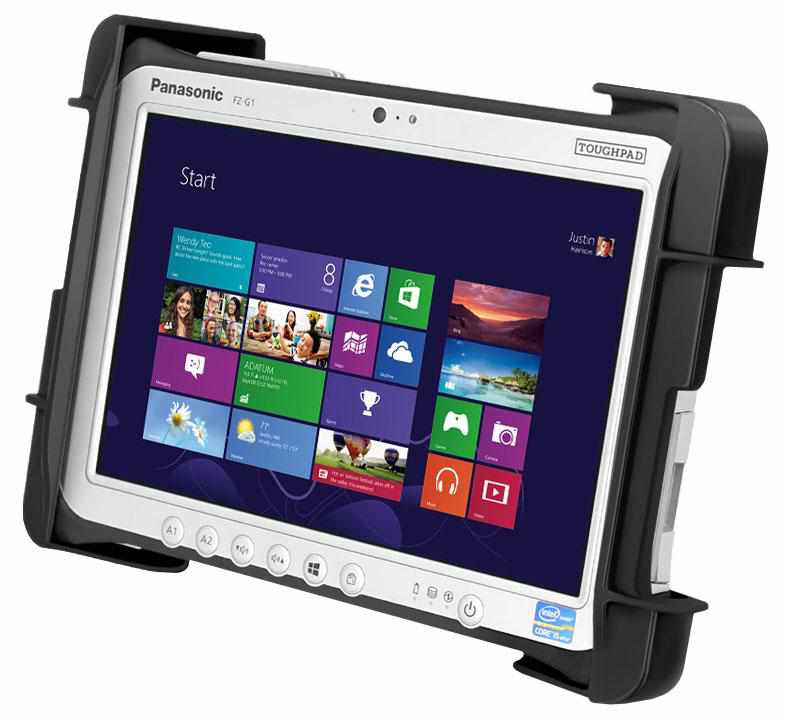

The RAM-HOL-TAB19U RAM Mount High Strength Tab-Tite Cradle is designed to hold the Panasonic Toughpad FZ-G1 without a protective case. This spring-loaded design makes it easy to load and unload your tablet (See 'Compatibility' tab below), while keeping it secure on the go.

Quickly lock the cradle, keeping your iPad or other tablet secure and safe from theft.

CRADLE DIMENSIONS
Height Range: 10.75" - 13.375"
Width Range: 6.5" - 7.75"
Depth Range: 0.13" - 0.93"

Specs

• HARDWARE INCLUDED
  Assembly Hardware
  (4) #8-32 x 5/8" Machine Screws
  (4) #8-32 x 1/2" Machine Screws
  (4) #8-32 Nylock Nuts

  HOLDER DIMENSIONS
  Height Range: 10.75" - 13.375"
  Width Range: 6.5" - 7.75"
  Depth Range: .13" - .93"

  HOLE PATTERN
  4-Hole AMPS: 1.181" x 1.496"

  MATERIALS
  High strength composite

  WEIGHT
  0.75 lbs.

  Note: The "U" in the part number reflects product packaged in poly bag. This holder will not support the Panasonic Toughpad FZ-G1 with an extended battery pack.

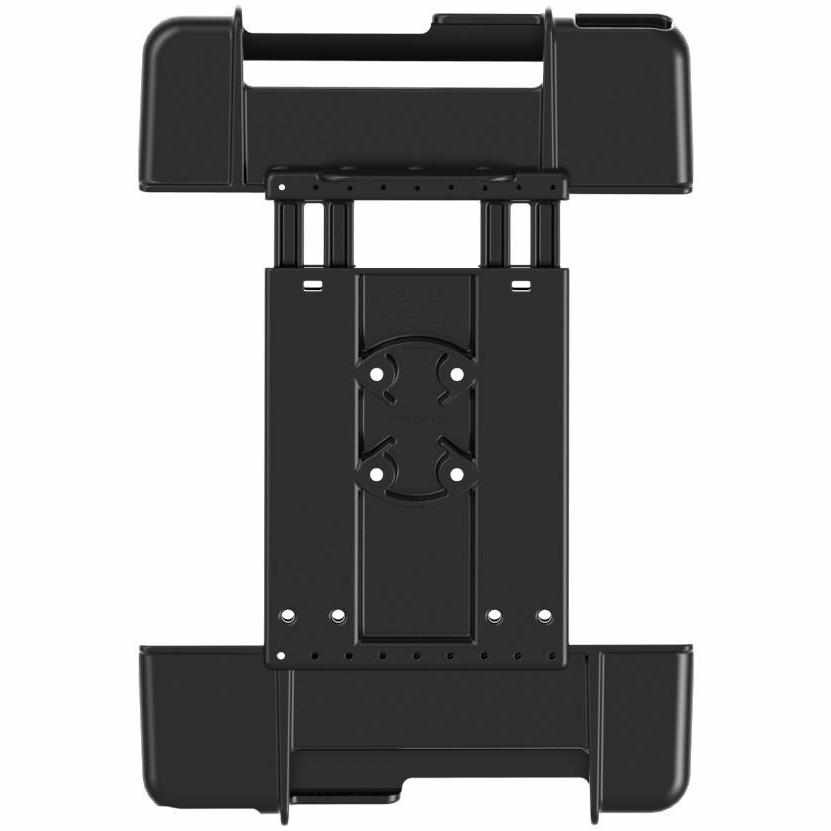

The backplate of the cradle is interchangeable with different support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet.

Help

RAM holders and cases can be secured in any application, with a range of RAM mounting ball plates and socket arms, in different sizes and lengths. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

Compatibility

Examples of compatible devices:

Examples only. Please double check your device dimensions, especially if using a case, skin, sleeve or screen protector.

Amazon
Fire HD 10 with Case

ASUS
MeMO Pad FHD 10 with Case
Transformer Pad with Case

Dell
Venue 11 Pro with Case
Venue 11 Pro 7000 with Case

HP
ElitePad 900 with Case

Lenovo
Tab A10 with Case
ThinkPad 10 with Case
Yoga Tablet 10 with Case
Yoga Tablet 10 HD+ with Case
Tab P12 Pro with Case

Panasonic
Toughpad FZ-G1

Samsung
Galaxy Tab S8 Plus with Case

Zebra
L10 XSLATE 10.1
ET5x 10" with Case
