RAM-B-238-WCT

RAM Universal Wheelchair Ball Base B (RAM-B-238-WCT)

Size Guide
5 items left

Included:

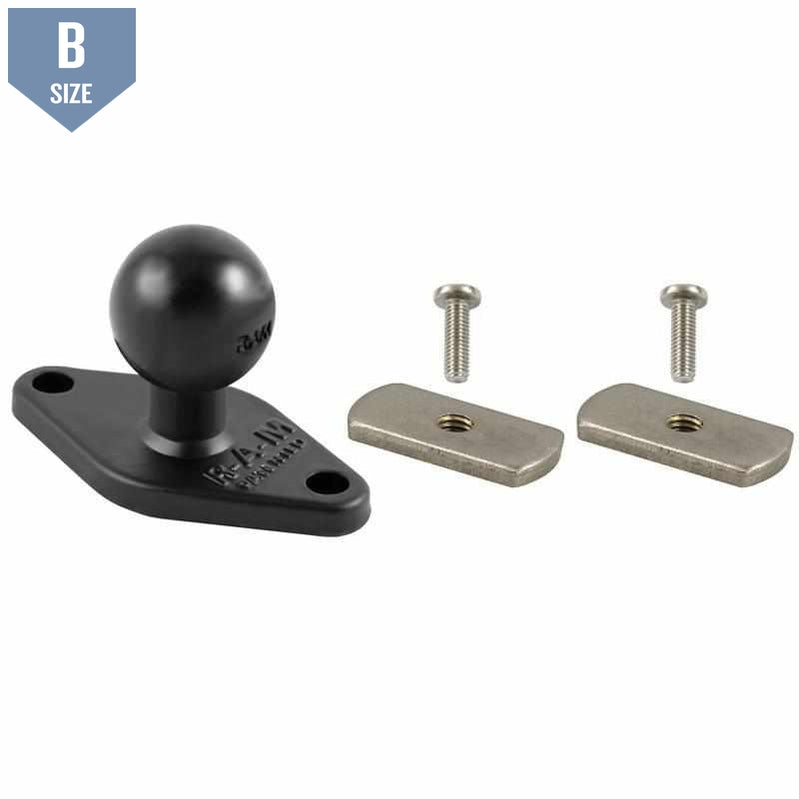

  • 1 x RAM Universal Wheelchair Ball Base B (RAM-B-238-WCT)

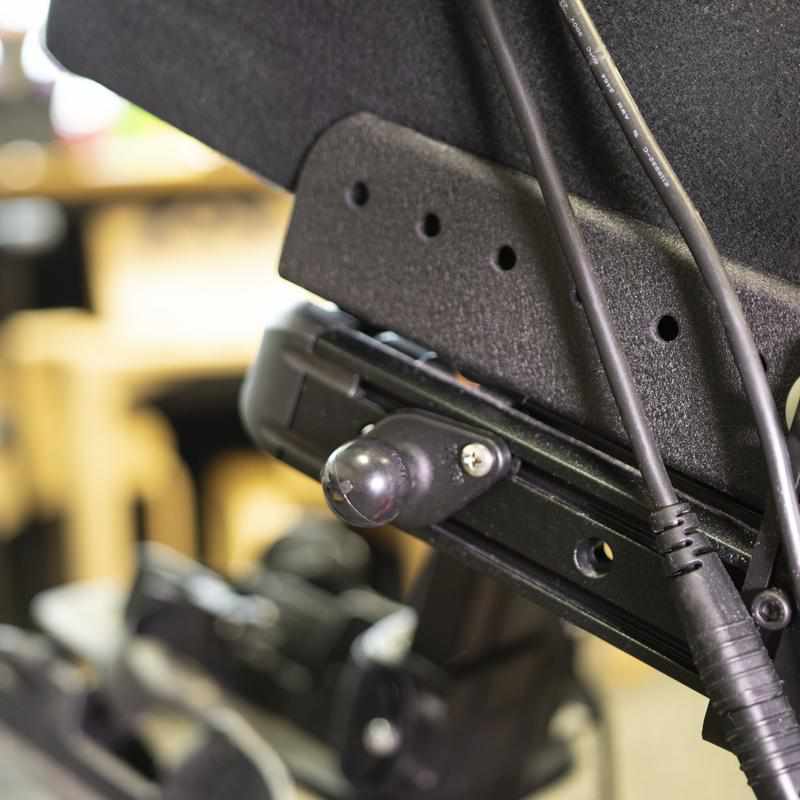

    This RAM ball base (RAM-B-238-WCT) features a RAM-B-238U with an appropriate hardware pack that accommodates the arm and seat tracks on most major wheelchair brands.
    Some of these brands include Invacare, Permobil, and Quickie, and more as well as any other universal mounting point.

      This ball base features a 1" (B-Size) ball, strong enough to mount a Phone, Cameraor Small Tablet (such as iPad Mini)

      Connect this base to a variety of compatible RAM arms and extensions (B-Size) to build a custom mount to meet your specific needs.

      Specs
      • HARDWARE INCLUDED
        (2) #10-32 T-Nuts
        (2) #10-32 Flat Weld Nuts
        (2) #10-32 x 1/2" Machine Screws
        (2) M4 x 12mm Machine Screws
        (2)M4 x 20mm Machine Screws
        (2) M4 Stainless Steel Washers
        (2) M4 Nylock Nuts

      • T-BOLT DIMENSIONS
        Large: .48" x .95"
        Small: .375" x .593"

      • HOLE PATTERN
        2-Hole AMPS: 1.912"

      • BALL/SOCKET SIZE
        B Size (1")

      • WEIGHT CAPACITY
        Standard Use: 2 lbs
        Heavy-Duty Use: 1 lb

      • MATERIALS
        Marine-grade aluminum

      • WEIGHT
        0.22 lbs.
