RAM U-Bolt Mount w GoPro Adapter (RAM-B-149Z-GOP1U)

Included:

• 1 x RAM 1" Ball Mount with GoPro Adapter (RAP-B-202U-GOP1)
• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 x RAM Rail Base 0.5" – 1.25" with U-Bolt & 1" Ball (RAM-B-231ZU)

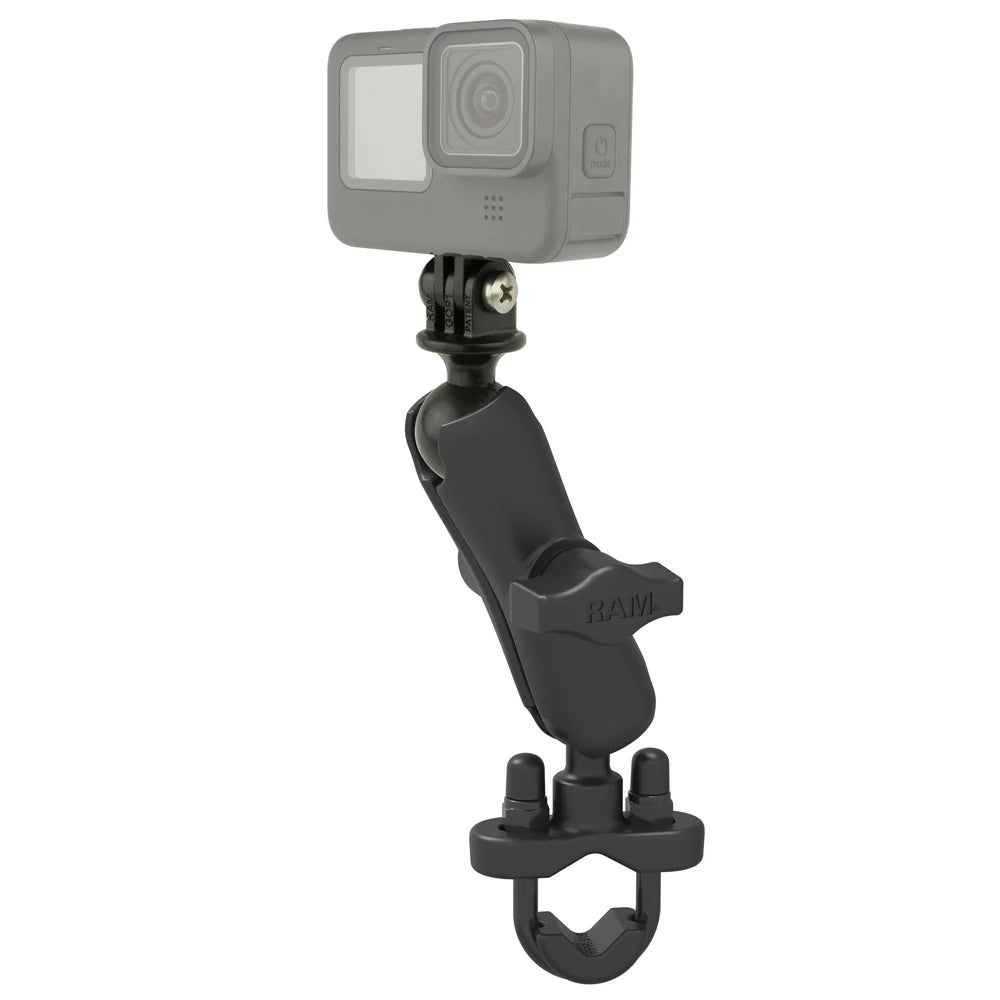

A complete RAM u-bolt camera-mounting assembly with a standard-length aluminium B size arm. The RAP-B-202U-GOP1 adapter connects compatible GoPro-style camera mounting fingers to a 1 inch ball; the double-socket arm joins it to the mounting base.

Adjustable ball-and-socket joints at both ends of the arm let you aim the camera and change its recording angle.

Camera, camera case and any model-specific adapter are not included. Your camera or case must have a compatible GoPro-style finger/hinge interface. Bare 1/4 inch-20 tripod sockets and proprietary magnetic connections do not attach directly to this adapter.

Measure the round rail: the supplied U-bolts and spacer cover 0.5–1.25 inch (12.7–31.8mm) diameters. Check access around the rail and full control, cable and steering clearance.

Specifications

• Camera Adapter Hardware: Assembly hardware supplied with RAP-B-202U-GOP1; follow the linked camera-adapter instructions
• Base Hardware: 2 x U-bolts, 2 x Nyloc nuts, 2 x rubber caps and 1 x U-bolt spacer.
• Ball/Socket Size: B Size, 1 inch (25.4mm)
• Arm Socket-to-Socket Length: 3 inches (76.2mm)
• Materials: Marine-grade aluminium, high-strength composite and steel hardware
• Weight Capacity: 2 lb (0.91kg) standard use; 1 lb (0.45kg) heavy-duty use. Include camera, case and accessories in the mounted load.
• Warranty: RAM components are covered by the manufacturer’s limited lifetime warranty terms.

Packaging may vary; all listed components are genuine RAM.

Help

Check the camera attachment, arm knob and base security before use. Suitability depends on the actual installation and load.

• Action Camera Ball Adapter Instructions
