RAM Strap Clamp Mount w GoPro Adapter (RAM-B-108-GOP1U)

Included:

• 1 x RAM 1" Ball Mount with GoPro Adapter (RAP-B-202U-GOP1)
• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 x RAM V-Shape Base w 1" Ball for Rails & Yokes (RAM-B-108BU)

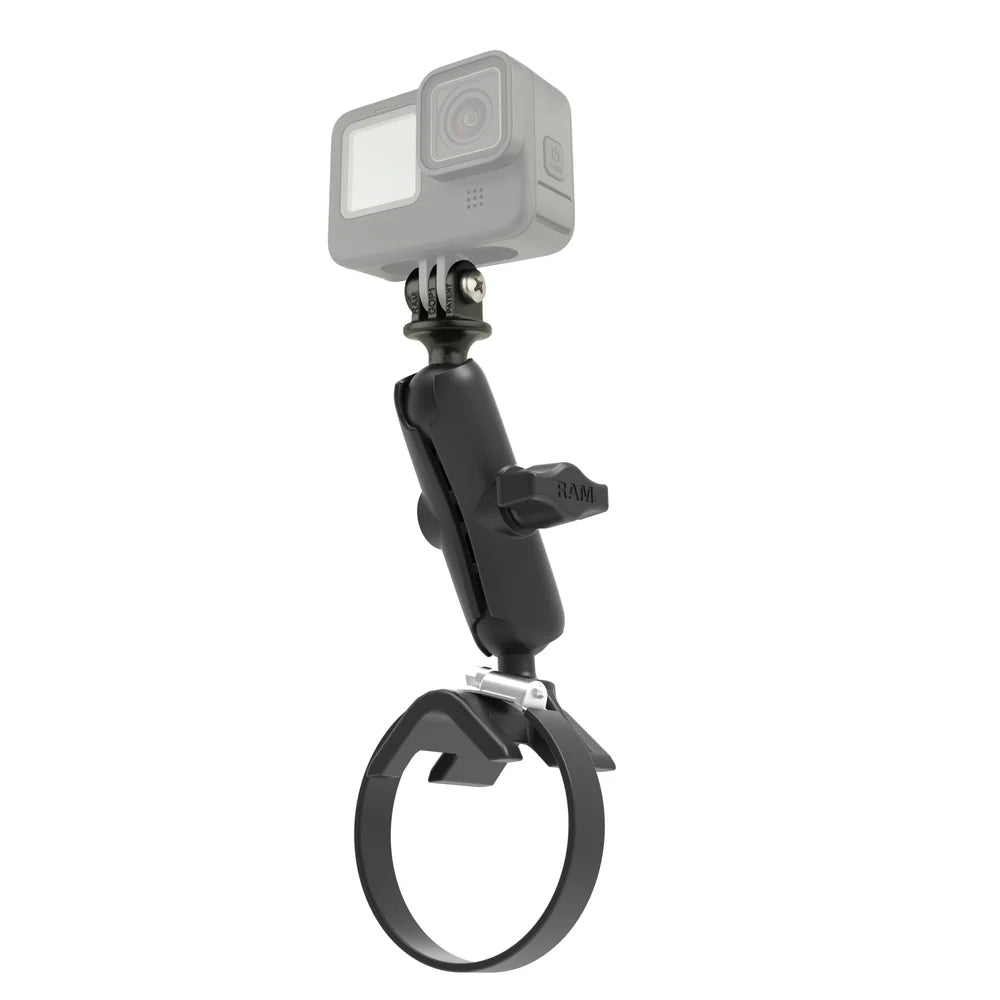

A complete RAM strap clamp camera-mounting assembly with a standard-length aluminium B size arm. The RAP-B-202U-GOP1 adapter connects compatible GoPro-style camera mounting fingers to a 1 inch ball; the double-socket arm joins it to the mounting base.

Adjustable ball-and-socket joints at both ends of the arm let you aim the camera and change its recording angle.

Camera, camera case and any model-specific adapter are not included. Your camera or case must have a compatible GoPro-style finger/hinge interface. Bare 1/4 inch-20 tripod sockets and proprietary magnetic connections do not attach directly to this adapter.

Fits 1–2.1 inch (25.4–53.3mm) diameter round rails. Check rail shape, access around it and camera clearance. Fit the supplied rubber strip as directed and keep the assembly clear of controls and moving parts.

Specifications

• Camera Adapter Hardware: Assembly hardware supplied with RAP-B-202U-GOP1; follow the linked camera-adapter instructions
• Base Hardware: 1 x #20 worm-drive strap clamp, 1 x #28 worm-drive strap clamp and 1 x 6 inch rubber strip.
• Ball/Socket Size: B Size, 1 inch (25.4mm)
• Arm Socket-to-Socket Length: 3 inches (76.2mm)
• Materials: Marine-grade aluminium, high-strength composite and steel hardware
• Weight Capacity: 2 lb (0.91kg) standard use; 1 lb (0.45kg) heavy-duty use. Include camera, case and accessories in the mounted load.
• Warranty: RAM components are covered by the manufacturer’s limited lifetime warranty terms.

Packaging may vary; all listed components are genuine RAM.

Help

Check the camera attachment, arm knob and base security before use. Suitability depends on the actual installation and load.

• Action Camera Ball Adapter Instructions
