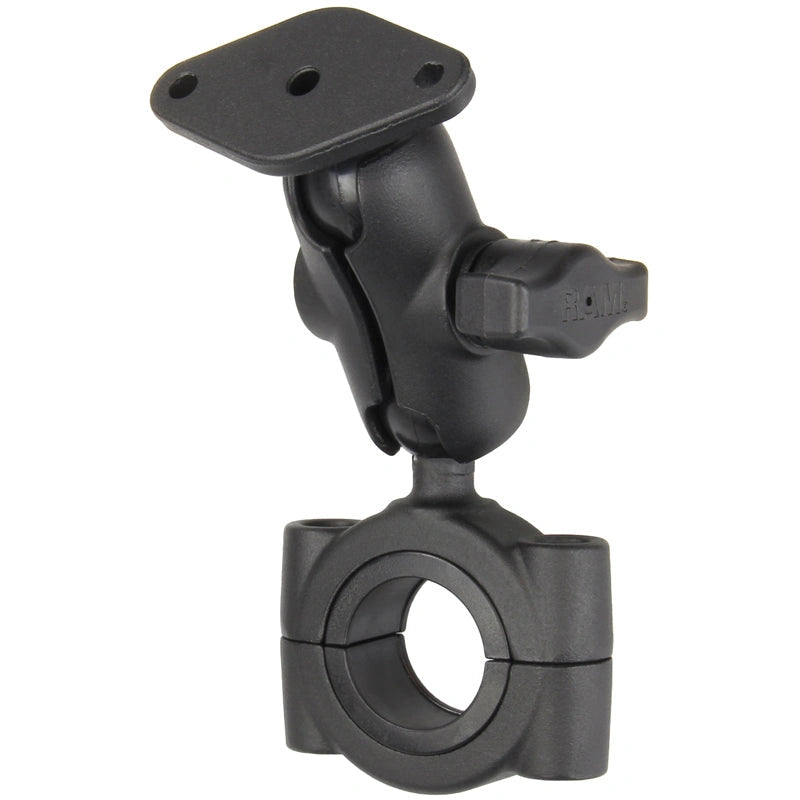

RAM Short Torque Rail 1.125–1.5 inch Diamond Plate Bundle (RAM-B-408-112-15-A-238U)

Included:

• 1 × RAM Handlebar Rail Mount 1.125 - 1.5" B (RAM-B-408-112-15U)
• 1 × RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
• 1 × RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

A compact Torque rail mounting assembly with a short B-size arm and diamond adapter plate. It clamps around round handlebars or rails with an outside diameter of 1.125–1.5 inches (28.58–38.1 mm). Sizing inserts protect the rail and improve the fit; nylon-insert lock nuts help resist loosening.

Supplied as genuine RAM components matching the official RAM-B-408-112-15-A-238U configuration. Packaging may vary. Device holder and device are sold separately.

Price reference: The compare-at price of A$106.00 is the combined supplier RRP of the included components, not a packaged-kit RRP.

Specifications

• Ball Size: B size, 1 inch (25.4 mm).
• Rail Clamp Range: 1.125–1.5 inches (28.58–38.1 mm) outside diameter.
• Short Arm: 1.75 inches (44.5 mm) socket-to-socket; 2.42 inches (61.5 mm) overall.
• Diamond Plate Hole Pattern: 2-hole AMPS, 1.912 inches (48.6 mm) between hole centres.
• Materials: Marine-grade aluminium.
• Base Installation Hardware: Two #10-24 × 1-inch socket-head cap screws, two #10-24 Nyloc nuts, two 1.12-inch split reducing bushings, two 1.27-inch split reducing bushings, one 5/32-inch hex key and one 127 × 17 mm rubber adhesive strip.
• RAM Weight Rating: Standard use: 2 lb (0.91 kg). Heavy-duty use: 1 lb (0.45 kg).

Help

Measure the rail before ordering and use the correct included inserts. The base requires the supplied hex key for installation. Follow the Torque base installation instructions and inspect the fasteners regularly. Screws for attaching a holder to the diamond plate depend on the holder; use its specified hardware and screw length. These holder screws are not listed as included in this bundle.

Assess the full holder, case and device load, mounting surface, reach and vibration against the rating. Check all joints and fasteners before use.

Compatibility

Choose a flat-backed holder with a matching 2-hole AMPS connection and suitable fasteners. A holder with an integrated 1-inch B-size ball can connect directly to the arm instead of the included diamond plate. C-size balls require a matching C-size arm. Check the selected holder’s device and case dimensions separately.
