RAM M10 x 1.5 Ball and Medium Socket Arm Bundle (MM-B-MIRROR-M1015-MEDIUM-SOCKET)

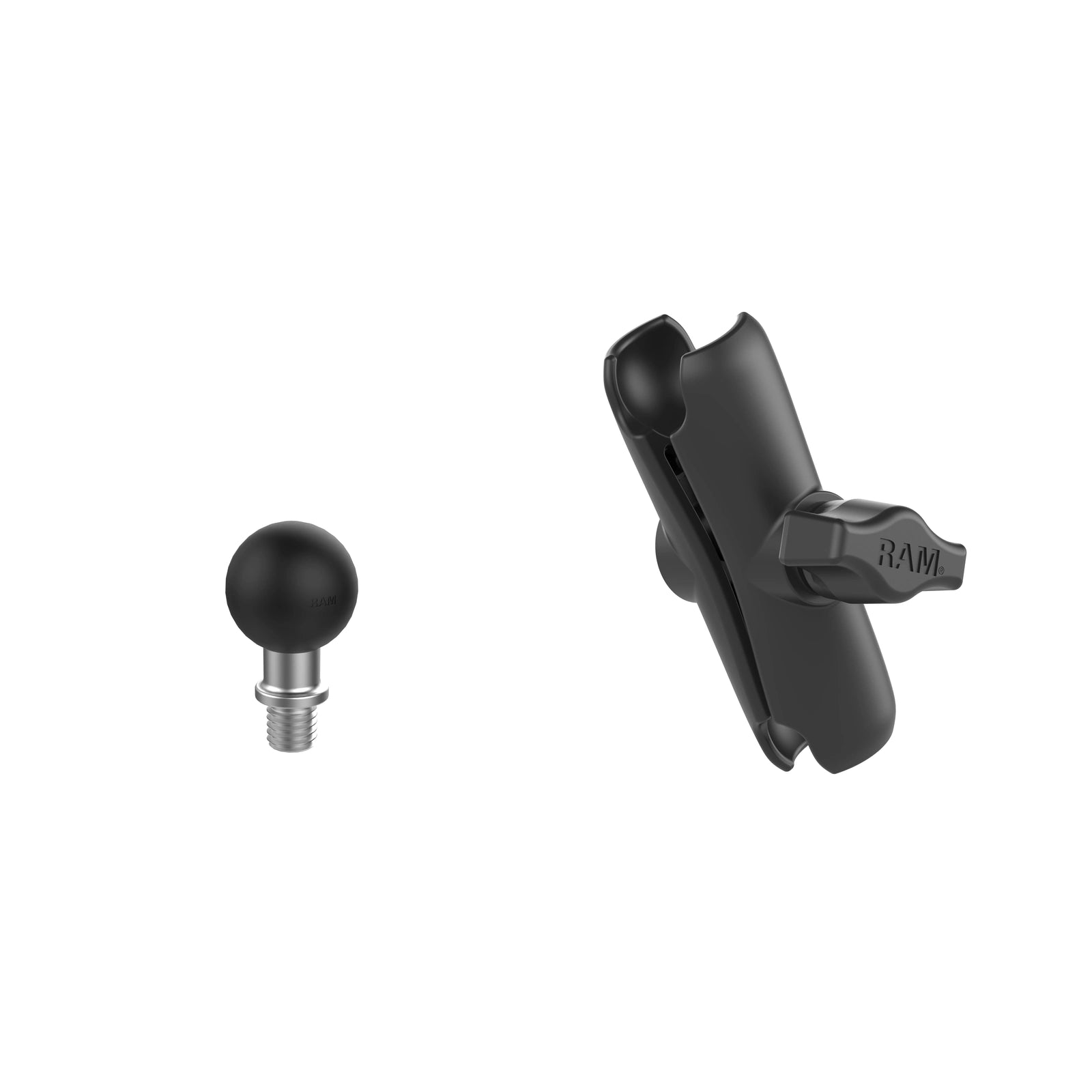

Included:

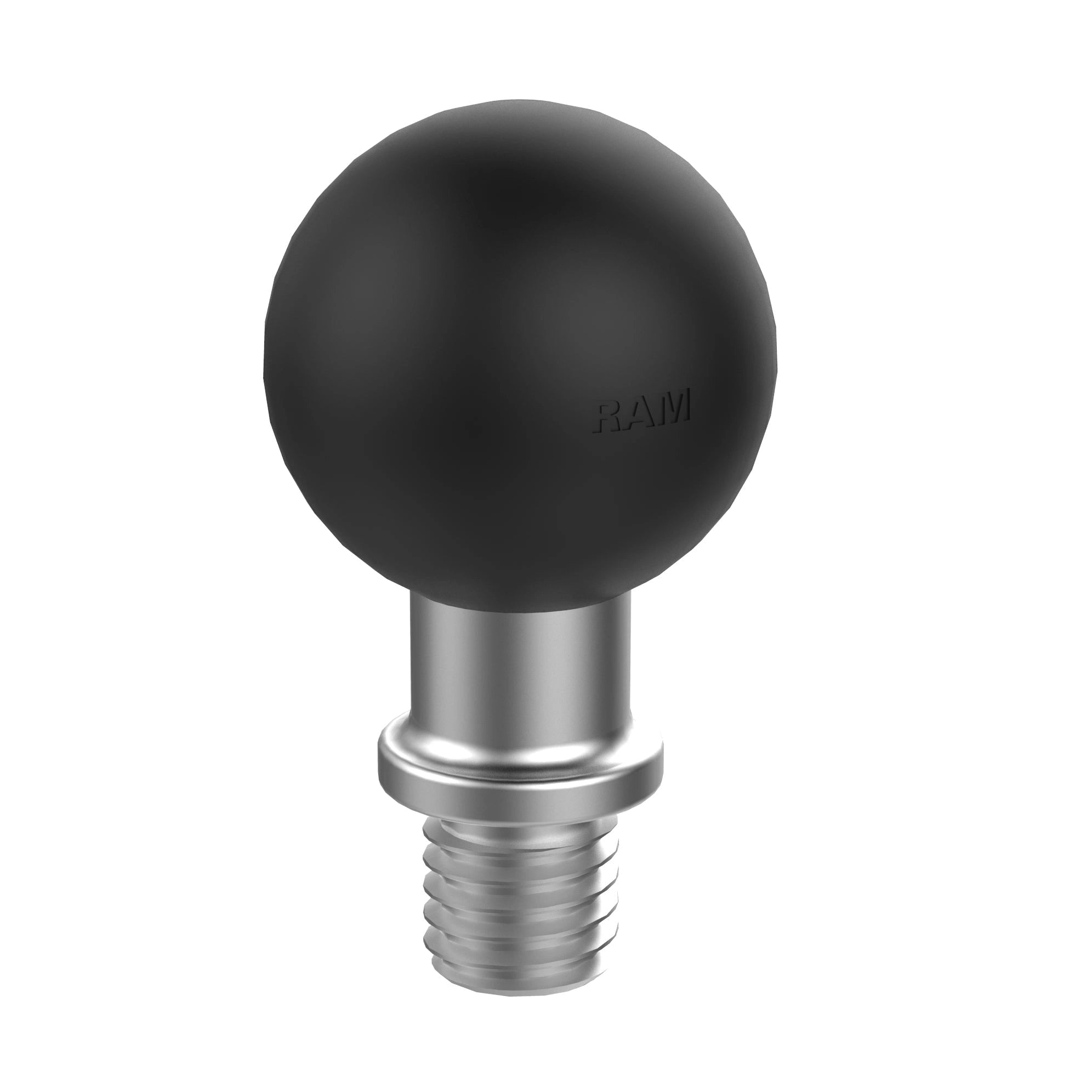

• 1 x RAM Ball with M10 X 1.5 Male Thread (RAM-B-349-1U)
• 1 x RAM Standard Double Socket Arm B Size (RAM-B-201U)

This kit combines the RAM-B-349-1U M10 x 1.5 male-thread base with a medium B Size arm. It is for a compatible female threaded mounting point, with enough clearance for the base flange and arm.

Holder sold separately. The open upper socket accepts a holder with its own B Size ball. A flat-backed cradle needs a suitable B Size ball plate or adapter, selected to match its hole pattern, purchased separately.

Specifications

• Mounting Thread: M10 x 1.5 male
• Thread Length: 10.5 mm
• Base Flange Diameter: 14.3 mm
• Holder Connection: Open B Size socket for a holder with a 1" (25.4 mm) B Size ball
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: Powder-coated marine-grade aluminium

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Confirm thread direction, pitch and usable depth on the exact vehicle. M10 x 1.5 is not interchangeable with M10 x 1.25. This kit contains no reverse-thread adapter; check mirror retention, steering and control clearance before use.

RAM component limited lifetime warranty.

No device holder or upper mounting plate is included.
