RAM Harley-Davidson Fairing Ball and Medium Socket Arm Bundle (MM-B-HARLEY-MEDIUM-SOCKET)

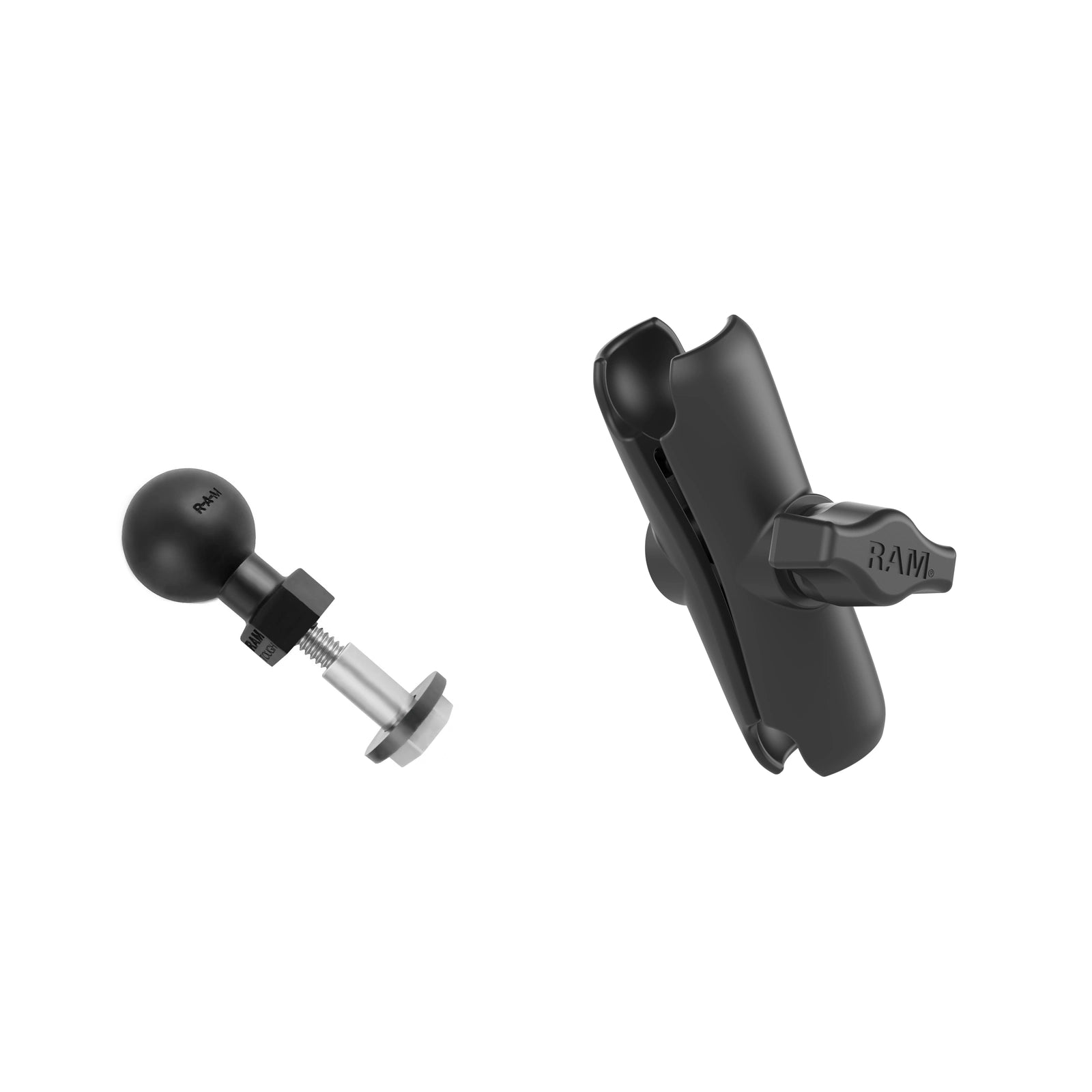

Included:

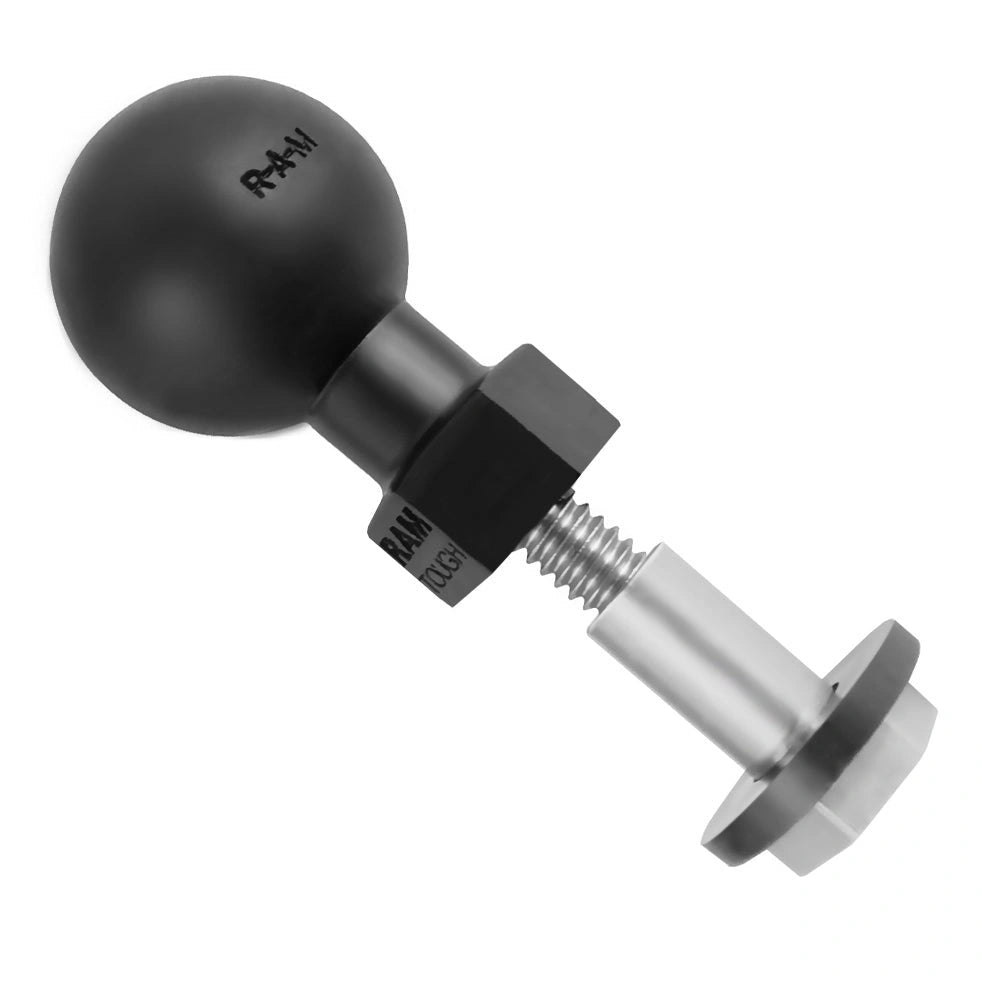

• 1 x RAM Harley Davidson Mirror Post (RAP-B-379-HA1U)
• 1 x RAM Standard Double Socket Arm B Size (RAM-B-201U)

This kit pairs RAM's RAP-B-379-HA1U Tough-Ball mirror base with a medium B Size arm. The base uses a threaded ball and blind barrel nut through a suitable fairing-mirror hole on the controls of compatible Harley-Davidson motorcycles.

Holder sold separately. The open upper socket accepts a holder with its own B Size ball. A flat-backed cradle needs a suitable B Size ball plate or adapter, selected to match its hole pattern, purchased separately.

Specifications

• Ball-Base Thread: 1/4"-20 x 1" (25.4 mm)
• Mounting Method: Through a suitable mirror/control hole using the included barrel nut and nylon washer
• Holder Connection: Open B Size socket for a holder with a 1" (25.4 mm) B Size ball
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: High-strength composite and stainless-steel base; marine-grade aluminium arm
• Hardware Included:
  • 1 x 1/4"-20 x 0.87" (22.1 mm) blind barrel nut
  • 1 x 0.77" (19.6 mm) nylon washer

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Confirm the exact motorcycle's mirror/control-hole configuration and clearance. RAM's instructions place the washer on the barrel nut, insert it through the control hole, then screw in the ball from the opposite side. RAM specifies 5/8" and 1/2" wrenches. Hydraulic-clutch models may require modification of the included washer; check suitability before installation. This is not a promise of fit for every Harley-Davidson.

RAM component limited lifetime warranty.

No device holder or upper mounting plate is included.
