RAM Centred Reservoir Cover Double Ball Mount (RAM-B-182U)

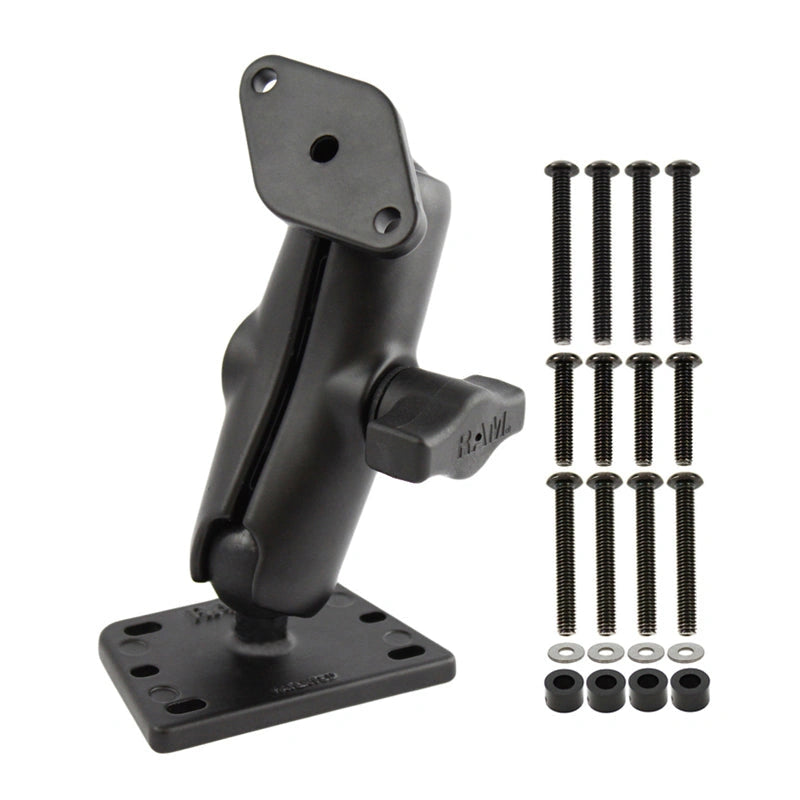

Included:

• 1 x RAM Motorcycle Brake/Clutch Reservoir Base w 1" Ball (RAM-B-345U)

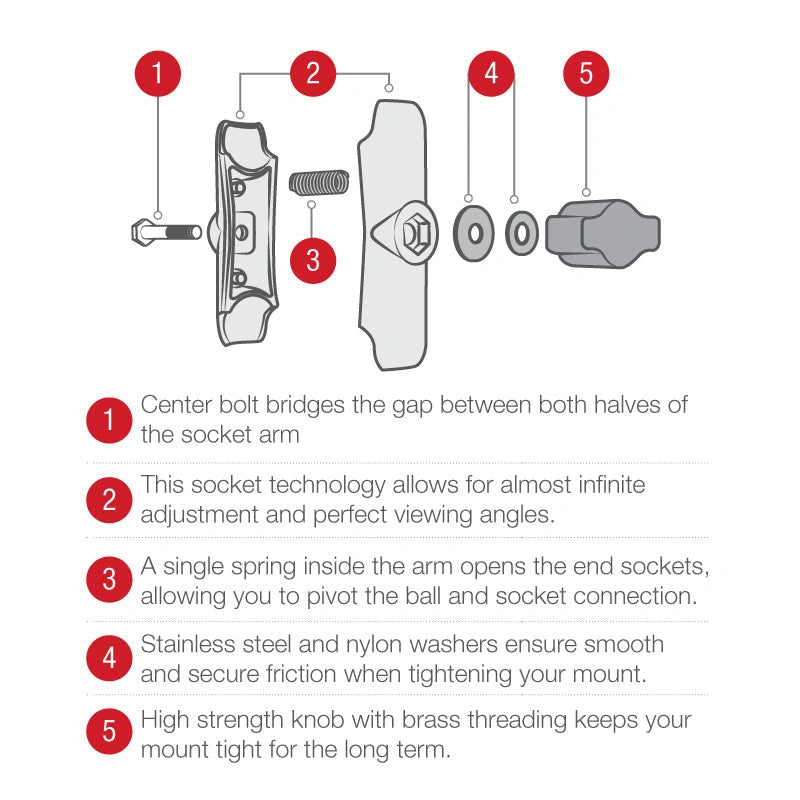

• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

The RAM-B-182U combines a centred reservoir-cover ball base, medium double socket arm and diamond AMPS plate. The base mounts above the motorcycle’s existing brake/clutch reservoir cover, which remains installed.

Device holder and device are sold separately. The supplied diamond plate fits a holder with a matching two-hole AMPS pattern. A holder with its own 1" B-size ball can connect directly to the arm in place of this plate.

Reference price shown is the combined RRP of the included components.

Specifications

• Base Plate Footprint: 2.87" x 1.82" (72.9 x 46.2 mm), from the RAM drawing
• Ball Position: Centred
• Reservoir Cover: Original cover remains installed
• Excluded Vehicle: 2016 BMW R1200RT
• Plate Connection: Diamond plate with two-hole AMPS pattern, 1.912" (48.6 mm) centre-to-centre
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: Powder-coated marine-grade aluminium
• Hardware Included:
  • 4 x M4 x 20 mm, 4 x M4 x 30 mm and 4 x M4 x 35 mm machine screws
  • 4 x M4 flat washers and 4 x 0.188" (4.8 mm) nylon spacers

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Check the existing screw pattern and cover shape against RAM's drawing. Select the correct included M4 screw length and ensure proper seating, thread engagement, cover sealing and control clearance. Follow the vehicle's service requirements; the plate is not a replacement reservoir cover.

RAM component limited lifetime warranty.
