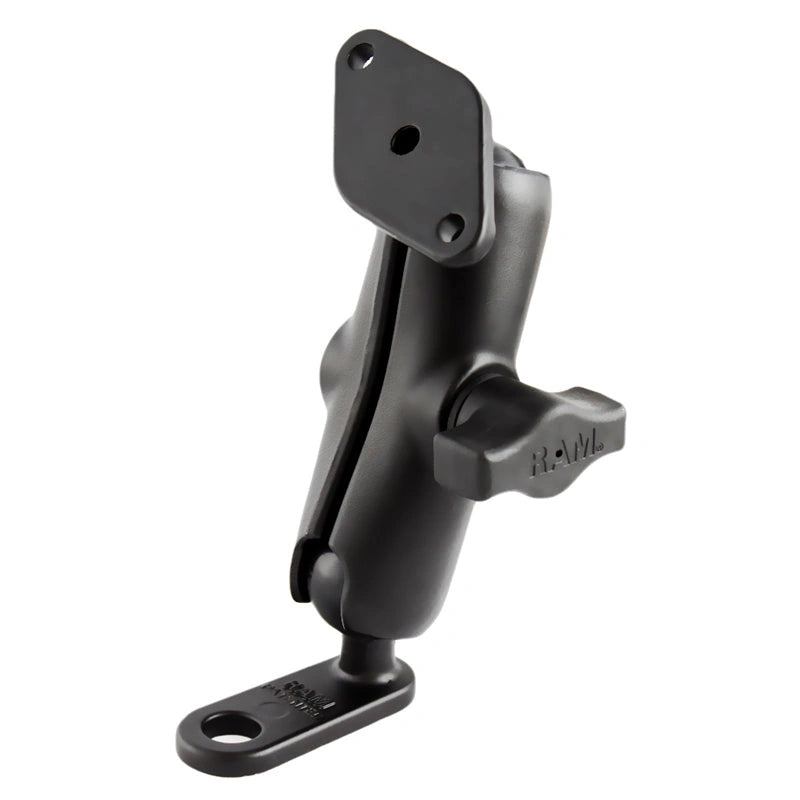

RAM Double Ball Mount with 11mm Bolt Head Adapter (RAM-B-179U)

Included:

• 1 x RAM Motorcycle Base with 11mm hole and 1" Ball (RAM-B-252U)
• 1 x RAM Standard Double Socket Clamp Arm B Size (RAM-B-201U)
• 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)

The RAM-B-179U combines an 11 mm clearance-hole ball base, medium double socket arm and diamond AMPS plate. It provides an adjustable mounting point beneath a suitable existing fastener on a motorcycle or other compatible installation.

Device holder and device are sold separately. The supplied diamond plate fits a holder with a matching two-hole AMPS pattern. A holder with its own 1" B-size ball can connect directly to the arm in place of this plate.

Reference price shown is the combined RRP of the included components.

Specifications

• Plate Hole: 11 mm clearance hole
• Plate Size: 2.25" x 0.875" (57.2 x 22.2 mm)
• Plate Thickness: 5 mm
• Plate Connection: Diamond plate with two-hole AMPS pattern, 1.912" (48.6 mm) centre-to-centre
• Arm Length: 3.73" (94.7 mm) overall; 3" (76.2 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: Powder-coated marine-grade aluminium

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Check bolt diameter, head/washer seating and the remaining thread engagement after adding the 5 mm plate. Confirm clearance, the original fastener's required function and tightening specification with the vehicle manufacturer or installer. An 11 mm hole does not mean it fits an 11 mm bolt head. Mounting bolt and washer are not included.

RAM component limited lifetime warranty.
