RAM 1" Ball Short Arm 2.5" Diamond Plate Set (RAM-B-138U-A)

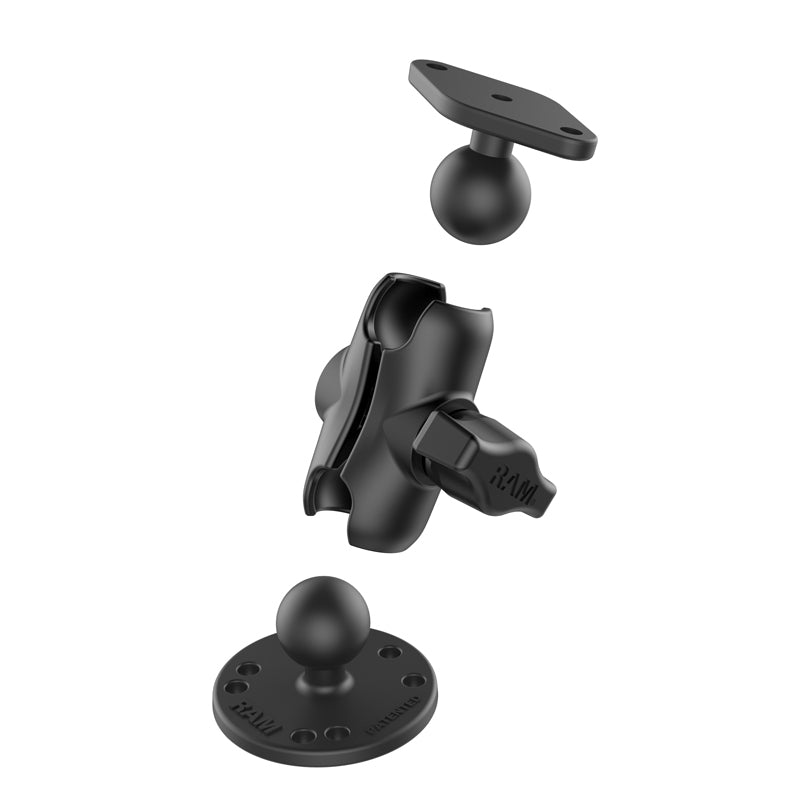

Included:

• 1 x RAM Short Double Socket Clamp Arm B Size (RAM-B-201U-A)
• 1 x RAM Diamond Base with 1" B Size Ball (RAM-B-238U)
• 1 x RAM Round Base with 1" B Size Ball (RAM-B-202U)

Features

• Drill-down mounting solution; diamond plate features 2-hole AMPS hole pattern for attachment to compatible device holders
• Includes round ball base, diamond ball base, and B size short length double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

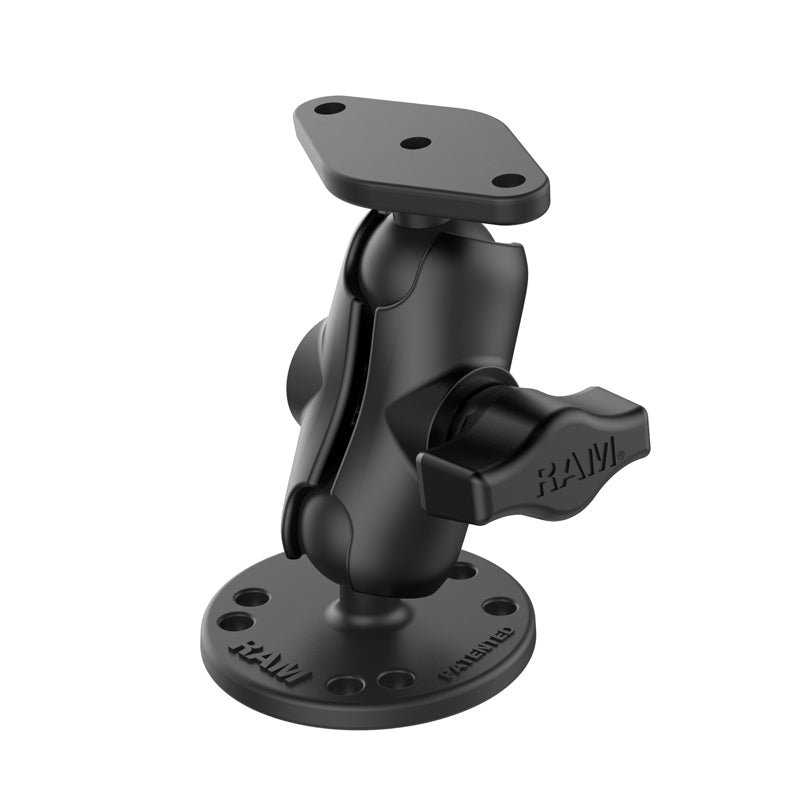

The RAM-B-138U-A mount is designed with a 1" diameter patented rubber ball-and-socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-138U-A consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, SHORT double socket arm and diamond base adapter.

The AMPS hole pattern found on the diamond base adapter will connect to most RAM cradles.

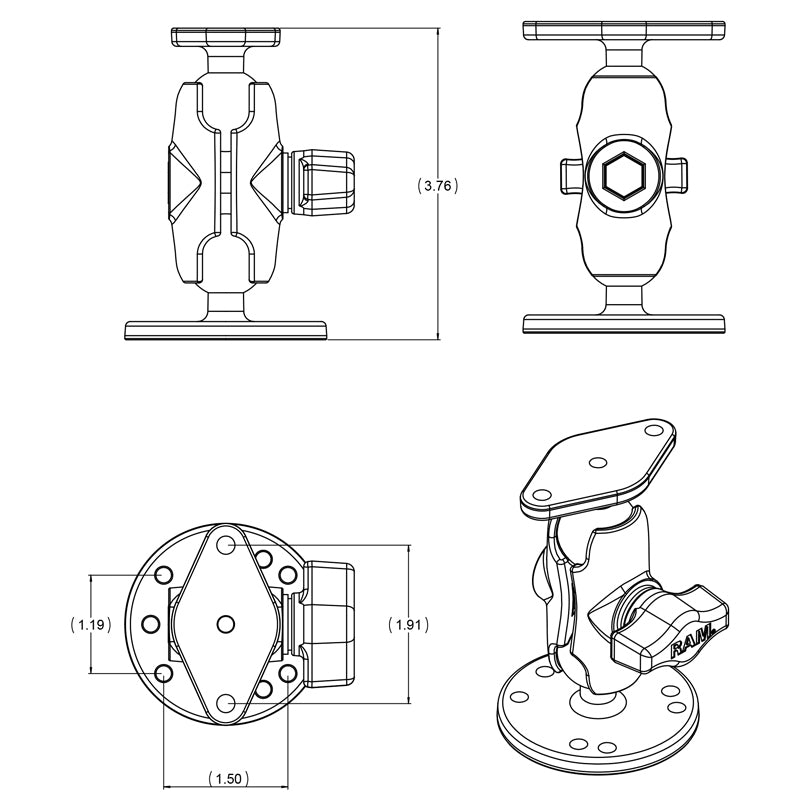

Specifications:

• Overall Height: 3.75"
• Hole Pattern:
  Diamond Plate: 2-Hole AMPS: 1.912"
  Round Plate: 4-Hole AMPS: 1.181" x 1.496"
  & 3-Hole 120-Degree: 1.812" Diameter
• Material: Powder Coated Marine Grade Aluminium
• Ball Size: 1" B Size Rubber Ball
• Weight Capacity: Up to 2 lbs
• Weight: 0.5 lbs.
• Lifetime Warranty

Note: The "U" in the part number reflects product packaged in poly bag.
