RAM-HOL-UN12WB-V7M

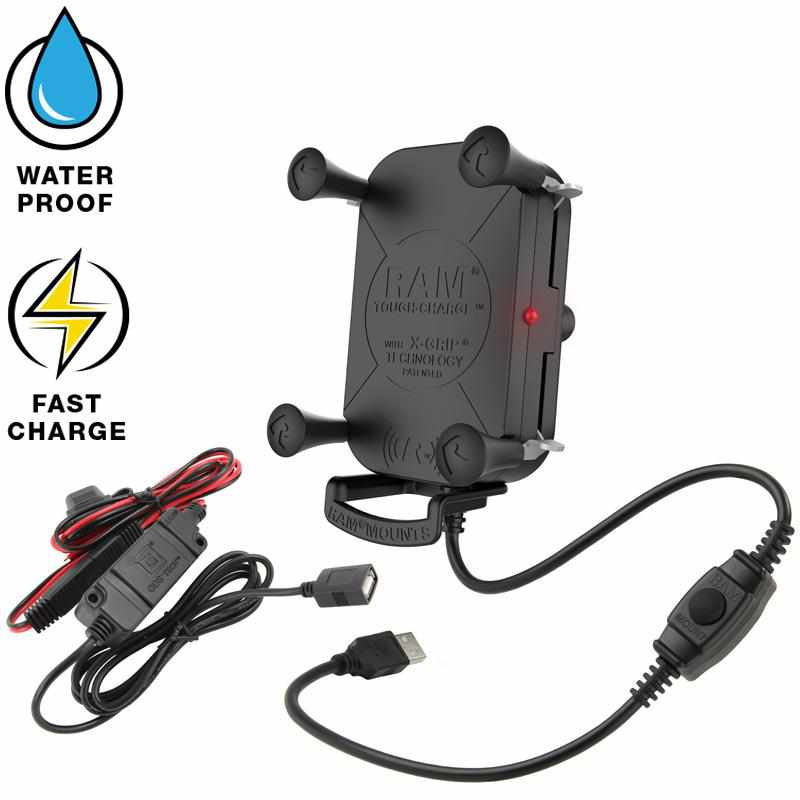

RAM Tough-Charge 10W Waterproof Wireless Charging Holder w Charger (RAM-HOL-UN12WB-V7M)
$270.00$238.00
Size Guide
Included:
- 1 x RAM Tough-Charge X-Grip Cradle (RAM-HOL-UN12WB)
- 1 x Hardwire Charger for Motorcycles (RAM-CHARGE-V7MU)
The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones.
-
Waterproof Qi wireless phone charging cradle features spring-loaded RAM® X-Grip® technology
-
Built out of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
-
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty
-
All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones.
Cradle Dimensions:
Width Range: 2.375" - 3.25"
Depth Range: 0.875" max
CHARGING
The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use.
For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
Specs
HARDWARE INCLUDED
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) Hardwire Charger with Cable
(4) Small zip ties
(4) Large zip ties
HOLDER DIMENSIONS
Width Range: 2.375" - 3.25"
Depth Range: .875" max
Depth Range: .875" max
BALL/SOCKET SIZE
B Size (1")
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
High strength composite
Stainless steel
POWER SPECIFICATIONS
Input Power:5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
COMPLIANCE
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
CERTIFICATIONS
CE Certification
e-Mark Certification
RCM Certification
FCC Certification
e-Mark Certification
RCM Certification
FCC Certification
WARRANTY STATUS
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty
ADDITIONAL INFORMATION
Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
Help
To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.
