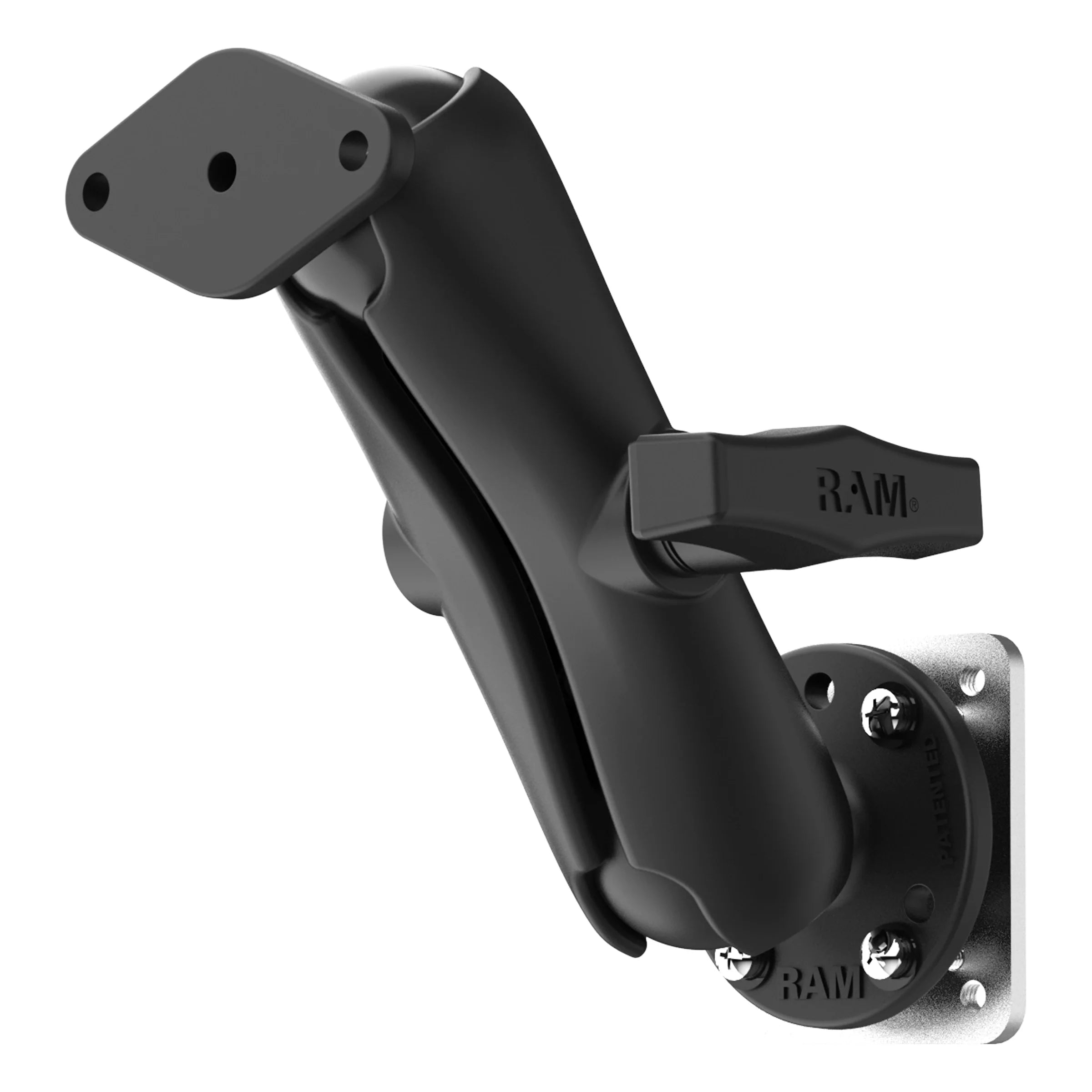

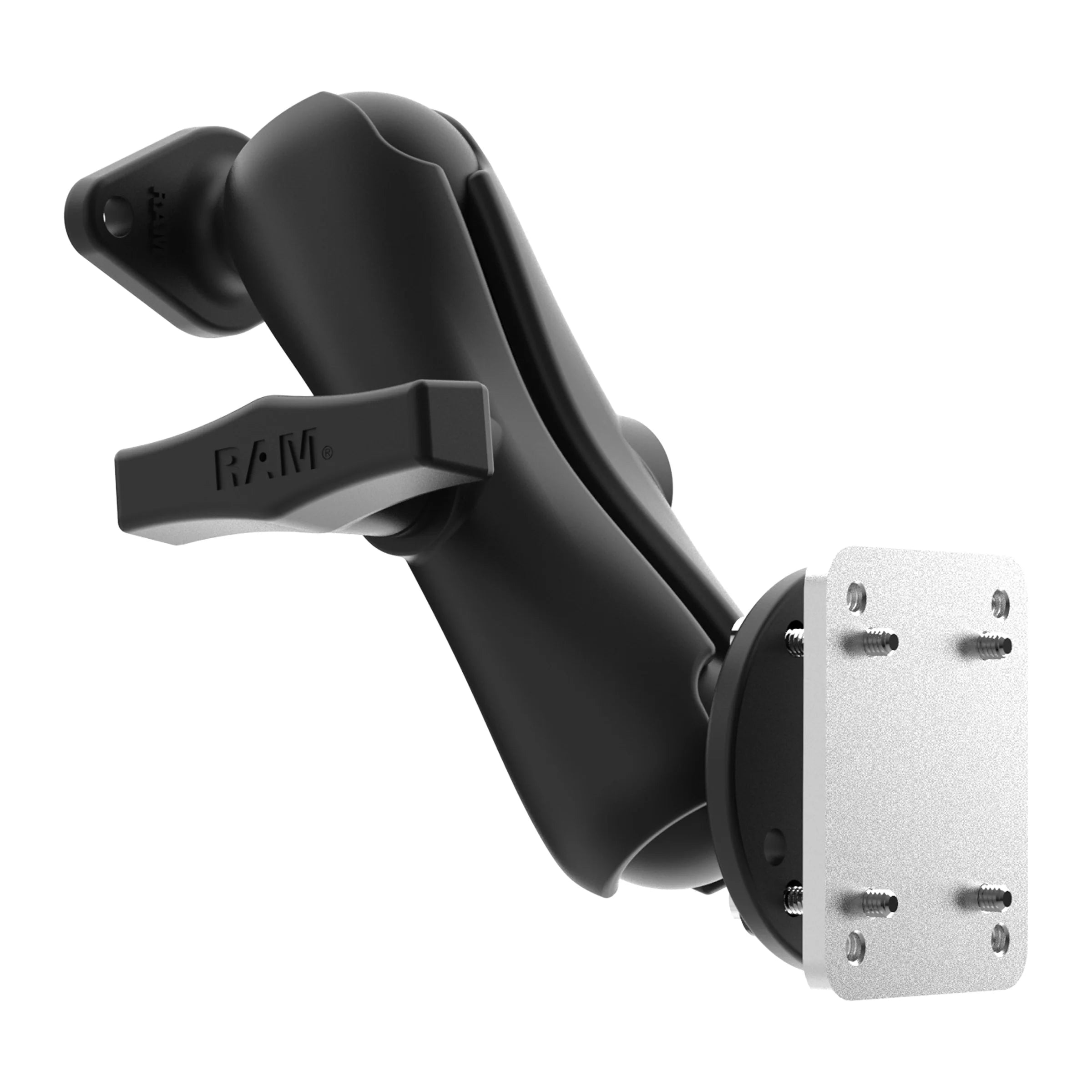

RAM Drill-Down Mount w/ Steel Backing Plate & C-Size Medium Arm (RAM-138-225B2U)

Included:

• 1 x RAM Dashboard Ball Base with Backing Plate, C Size (RAM-202-225-2U)
• 1 x RAM Medium Double Socket Arm, C Size (RAM-201U)
• 1 x RAM Diamond Plate with 1.5" C Size Ball (RAM-238U)

A medium-arm dashboard mounting combination with a C size backing-plate base and diamond holder-side plate. The components match the manufacturer’s RAM-138-225B2U mechanical configuration.

The steel backing plate supports the mount behind a suitable dashboard or other thin panel. Check panel strength and access behind it before drilling.

The rubber ball-and-socket joints adjust at both ends of the arm and help dampen shock and vibration.

Holder and device are sold separately. Use the supplied diamond plate for a matching flat-backed 2-hole AMPS holder or dock. A holder with its own 1.5" C size ball can connect directly to the arm without the upper diamond plate.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Arm Length: Medium
• Output Connection: 2-hole AMPS diamond plate, 1.912" (48.56mm) centre-to-centre
• Overall Height: 7.35" (186.69mm)
• Overall Arm Length: 5.69" (144.5mm), RAM-201U
• Socket-to-Socket Length: 4.66" (118.36mm)
• Base Plate: 2.5" (63.5mm) diameter
• Diamond Plate: 2.43" x 1.31" (61.72 x 33.27mm)
• Backing Plate: 2.10" x 2.60" (53.34 x 66.04mm)
• Holder-Side Pattern: 2-hole AMPS: 1.912" (48.56mm) centre-to-centre
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Materials: Powder-coated marine-grade aluminium and steel
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.
• Hardware Included:
  • 4 x #8-32 x 1" machine screws and 4 x #8 lock washers
  • 4 x #10-24 x 1" machine screws and 4 x #10 lock washers

Packaging may vary; all listed components are genuine RAM.

Help

Check panel strength, rear access, fastener clearance and combined load.

Check the complete assembly’s weight and loading conditions. The weakest component and mounting surface determine the usable capacity.

Official RAM product information
