RAM-109VS-4U
RAM Vertical Straight Swing Arm (RAM-109VS-4U)
$39.00$173.00
Size Guide
Included:
- 1 x RAM Vertical Straight Swing Arm (RAM-109VS-4U)

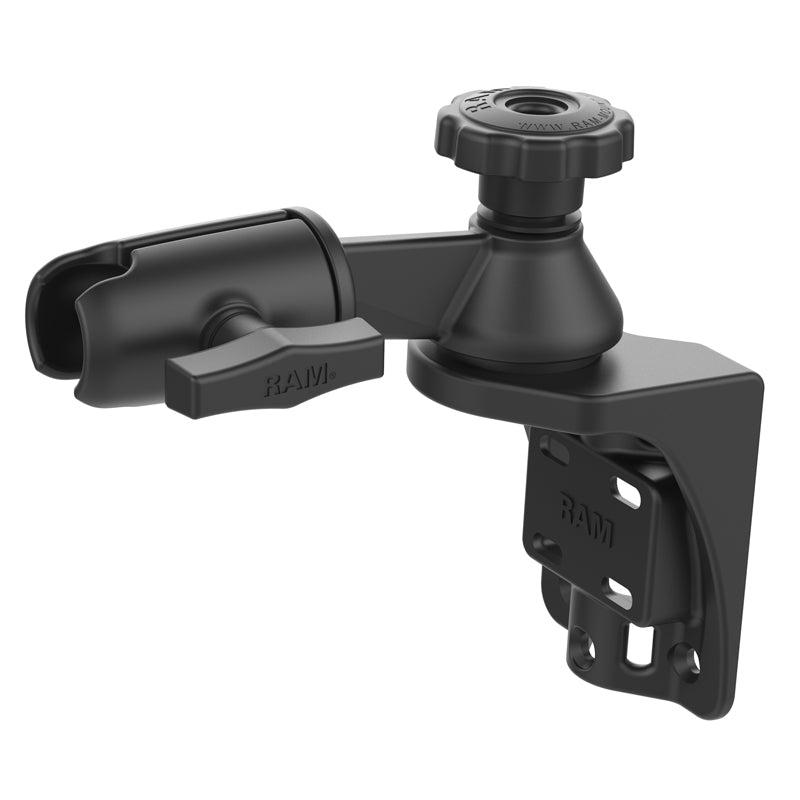

The RAM RAM-109VS-4U consists of a single swing arm mount with 1.5" socket, 6" long straight swing arm that is mounted on a vertical surface base. The connection between the swing arm and the base is a bolt pivot point.
The open socket end will accept mounting bases with a RAM 1.5" diameter ball, enabling a versatile RAM ball and socket system. The bolt pivoting point allows a complete 360 degree rotation and the ball and socket system allows a 180 degree vertical pivot with a 360 degree rotation.
Specifications
-
HOLE PATTERN
See Drawing -
BALL/SOCKET SIZE
C Size (1.5") -
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs -
MATERIALS
Marine-grade aluminum -
PACKAGING TYPE
Poly Bag -
WEIGHT
2.38 lbs.
More
Plate Hole Patterns

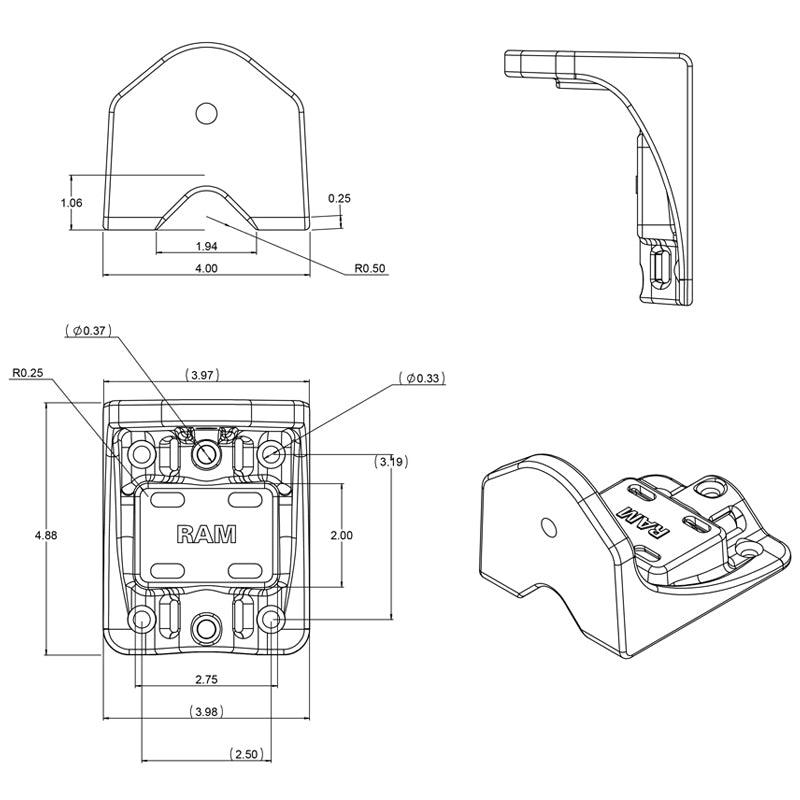

VERTICAL BASE DRAWING FILE
See Drawing
