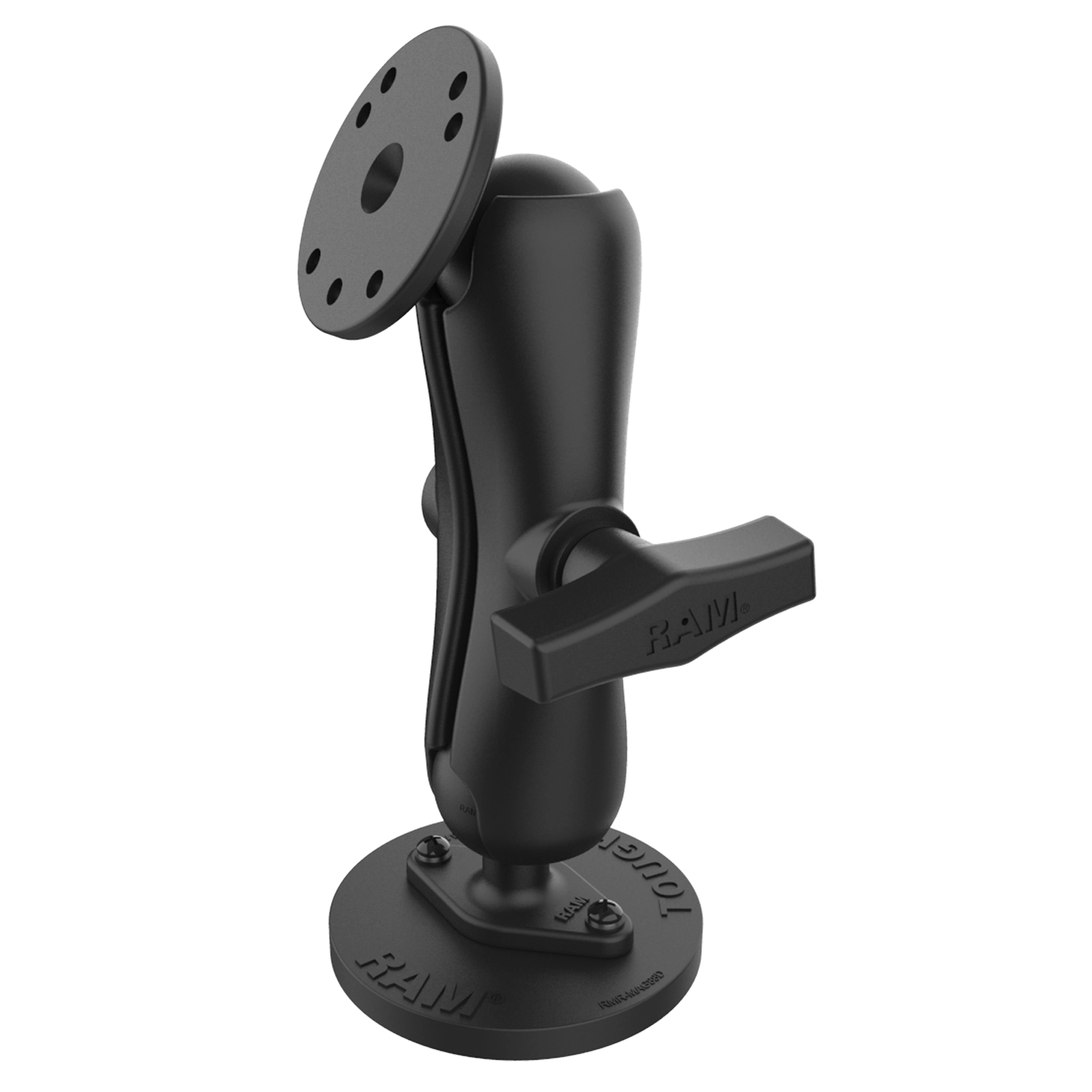

RAM Tough-Mag Round Plate Mount C Size Medium (RAM-101-MAG88U)

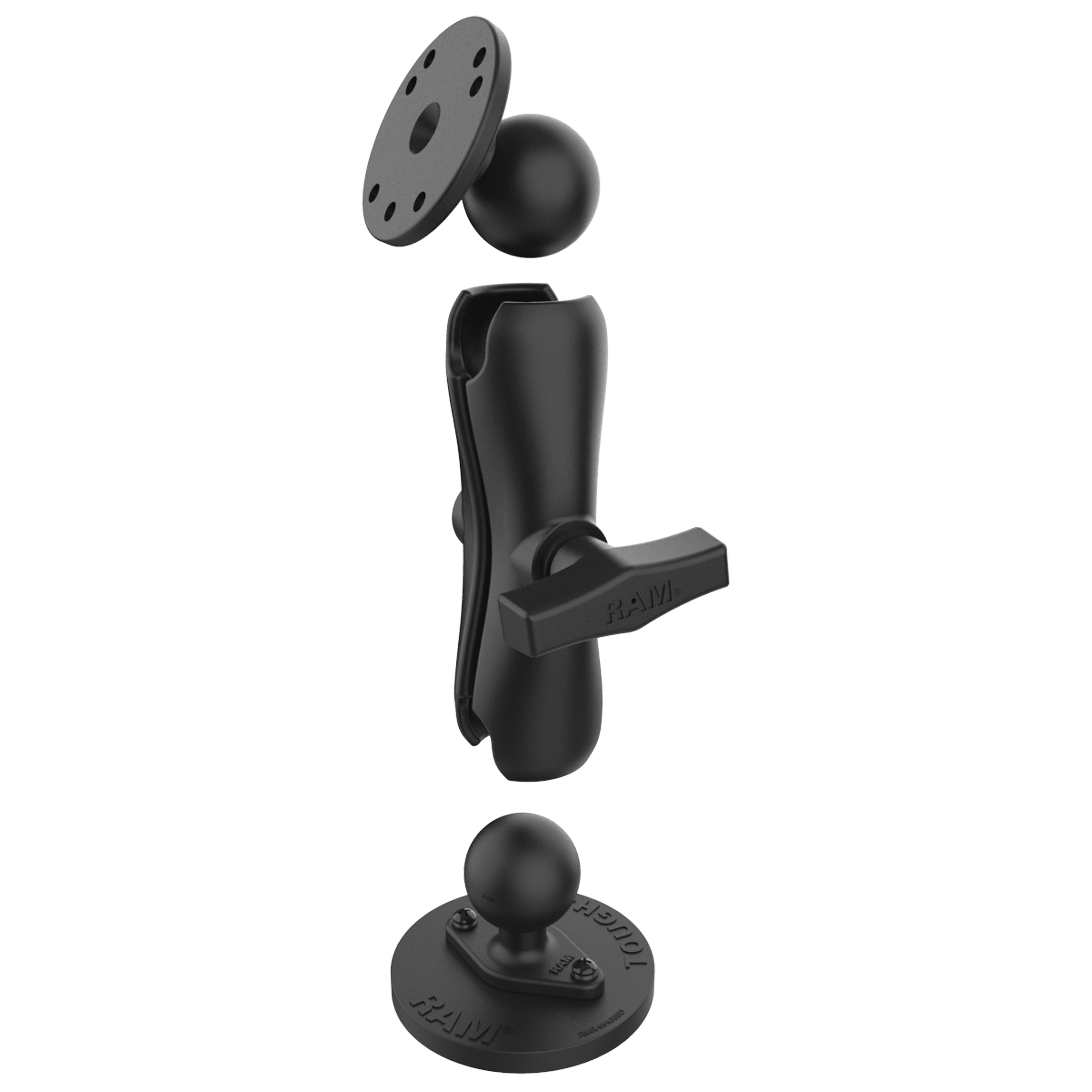

Included:

• 1 x RAM Tough-Mag 88mm Magnetic Ball Base, C Size (RAM-238-MAG88U)
• 1 x RAM Medium Double Socket Arm, C Size (RAM-201U)
• 1 x RAM Round Plate with 1.5" C Size Ball (RAM-202U)

The RAM-101-MAG88U is a removable magnetic mounting kit for a suitable ferrous-metal surface. The rubber-coated 88mm Tough-Mag base uses ten N52 magnets, while a medium C size arm positions the upper round AMPS plate for a compatible holder or dock.

RAM’s rubber ball-and-socket system provides adjustment at both ends of the arm and helps dampen shock and vibration.

A compatible holder or dock and device are sold separately. The supplied holder-side round plate presents the 4-hole AMPS (30 x 38mm) pattern for a matching flat-backed holder or dock. A holder with its own compatible 1.5" C size ball can attach directly to the arm instead, without the upper plate.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Arm Length: Medium
• Socket-to-Socket Length: 4.66" (118.36mm)
• Overall Height: 7.67" (194.82mm)
• Plate Size: 2.5" (63.5mm) round output plate; 3.46" (88mm) magnetic base
• Hole Pattern: 4-hole AMPS: 1.181" x 1.496" (30 x 38mm); 3-hole 120-degree pattern: 1.812" (46.02mm) diameter
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Materials: Powder-coated marine-grade aluminium, rubber-coated base and 10 x N52 magnets
• Weight: 1.49 lb (approximately 676g)
• Packaging: Poly bag
• Manufacturer Part Number: RAM-101-MAG88U
• UPC: 793442025075
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.

Help

Match the holder’s connection and ball size before choosing the setup.

The mounting surface must be ferrous metal. Check adhesion on the actual surface and account for coatings, surface thickness, movement and leverage.

Include the holder, device and attached accessories when checking the load. Choose the heavy-duty rating for more demanding conditions and follow the manufacturer’s installation instructions.
