RAM Tough-Mag Mount w Short C Size Arm & Diamond Plate (RAM-138-B-MAG88U)

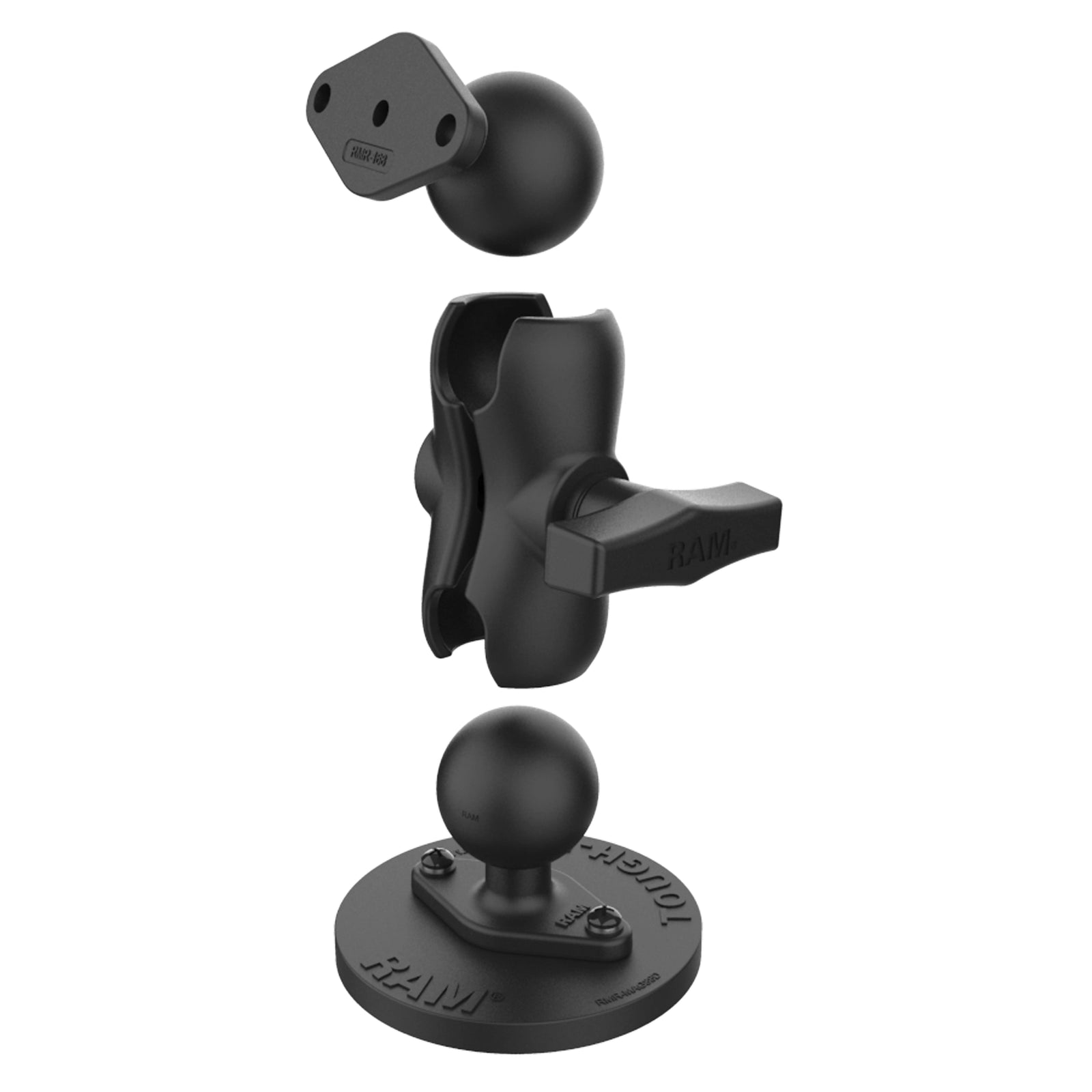

Included:

• 1 x RAM Tough-Mag 88 mm Magnetic Ball Base C Size (RAM-238-MAG88U)
• 1 x RAM Short Double Socket Arm C Size (RAM-201U-B)
• 1 x RAM Diamond Ball Plate C Size (RAM-238U)

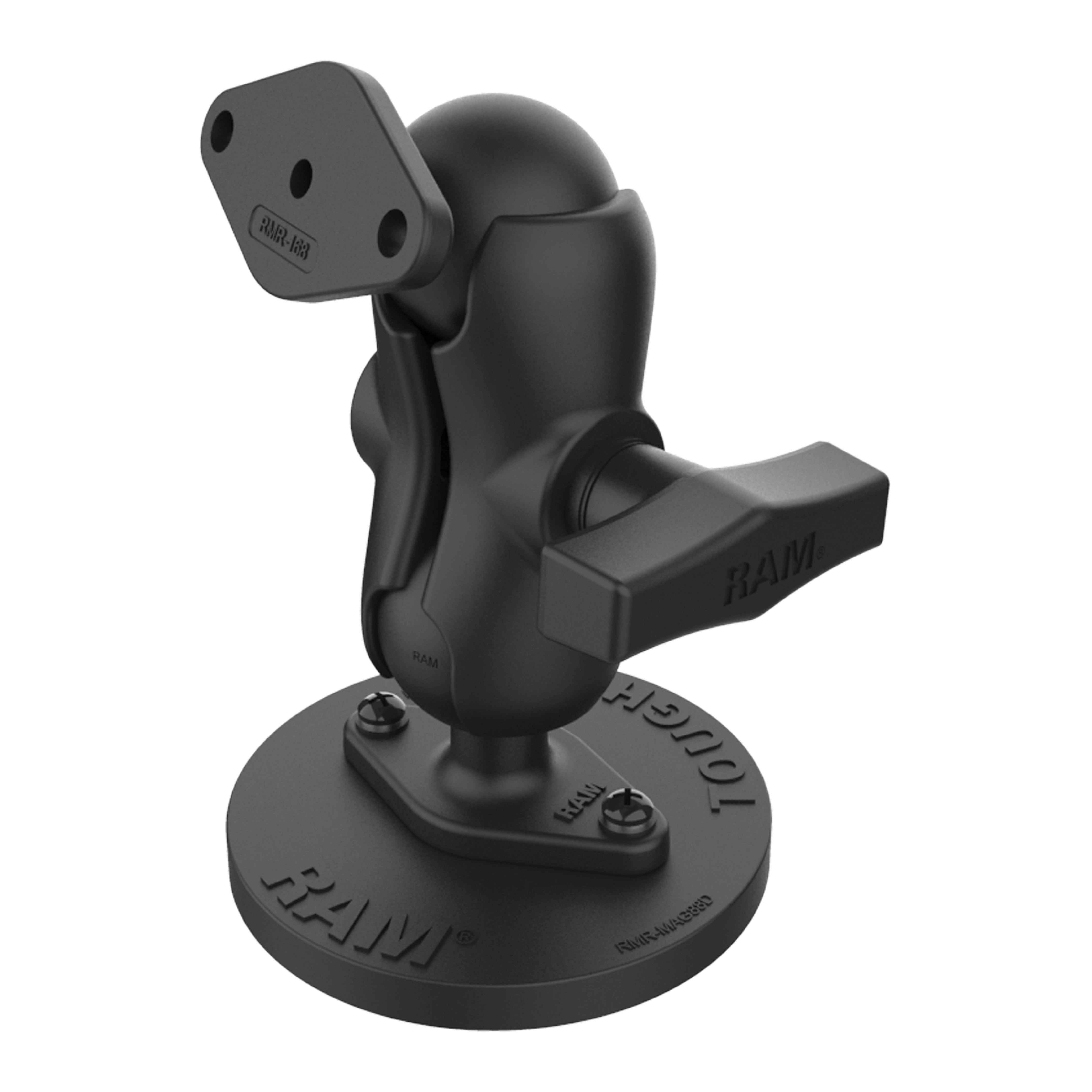

The RAM-138-B-MAG88U combines an 88 mm Tough-Mag base with a short C Size arm and diamond plate. It provides a removable mounting point on suitable ferrous metal, with a rubber-coated base to help protect the surface.

The rubber ball-and-socket arm adjusts at both ends and helps dampen shock and vibration. Attach a compatible holder using the plate's AMPS pattern. Device holder sold separately.

Specifications

• Magnetic Base: 3.46" (approximately 88 mm) diameter; 10 N52 magnets
• Ball Size: C Size 1.5" (38.1 mm) rubber balls
• Arm Length: 3.56" (90.4 mm) overall; 2.5" (63.5 mm) socket-to-socket
• Holder Plate: 2.43" × 1.31" (61.7 × 33.3 mm)
• Hole Pattern: 2-hole AMPS, 1.912" (48.6 mm) spacing
• Weight Capacity: Standard use: 4 lbs (1.81 kg); heavy-duty use: 3 lbs (1.36 kg)
• Material: Powder-coated marine-grade aluminium, N52 magnets and rubber-coated magnetic base
• Overall Height: 5.54" (140.7 mm)
• Weight: 1.21 lb (approximately 549 g)
• Packaging: Poly bag
• Warranty: RAM limited lifetime warranty

Fitment: Check that the surface is ferrous, flat and suitable for the magnetic base. Confirm secure attachment for the intended load and movement; magnetic pull strength is not the mount's payload rating.

Holder Connection: The supplied diamond plate is for a flat-backed holder with the matching 2-hole AMPS pattern. A holder with its own C Size ball can connect directly to the arm in place of the upper plate.
