RAM-HOL-UN12WB-1
RAM Tough-Charge w X-Grip Waterproof Wireless Charging Holder (RAM-HOL-UN12WB-1)
$257.00$217.00
Size Guide
Included:
- 1 x RAM Tough-Charge w X-Grip Waterproof Wireless Charging Holder (RAM-HOL-UN12WB-1)
(HOLDER ONLY)

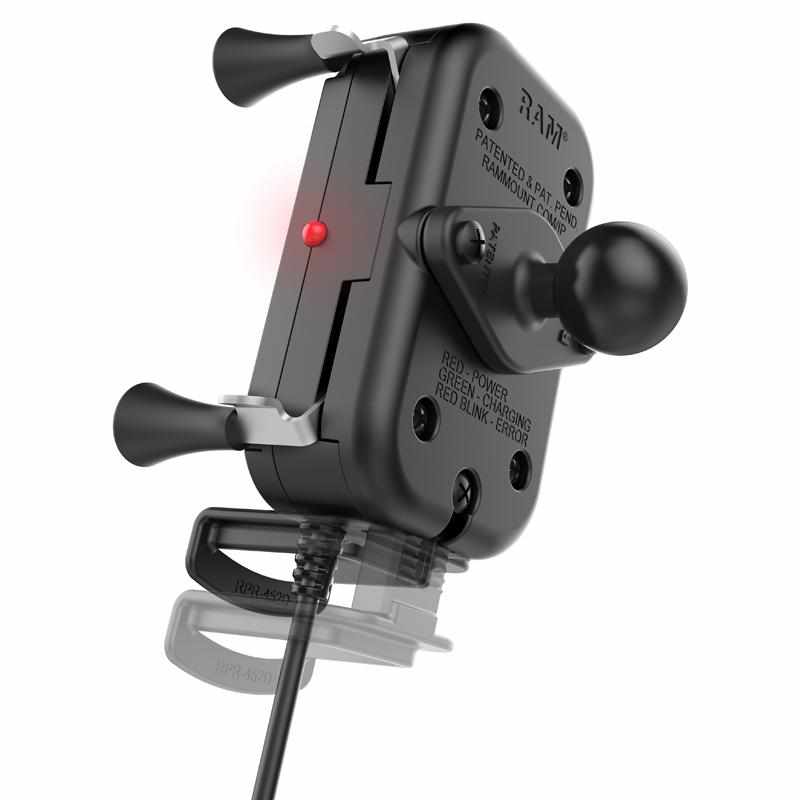

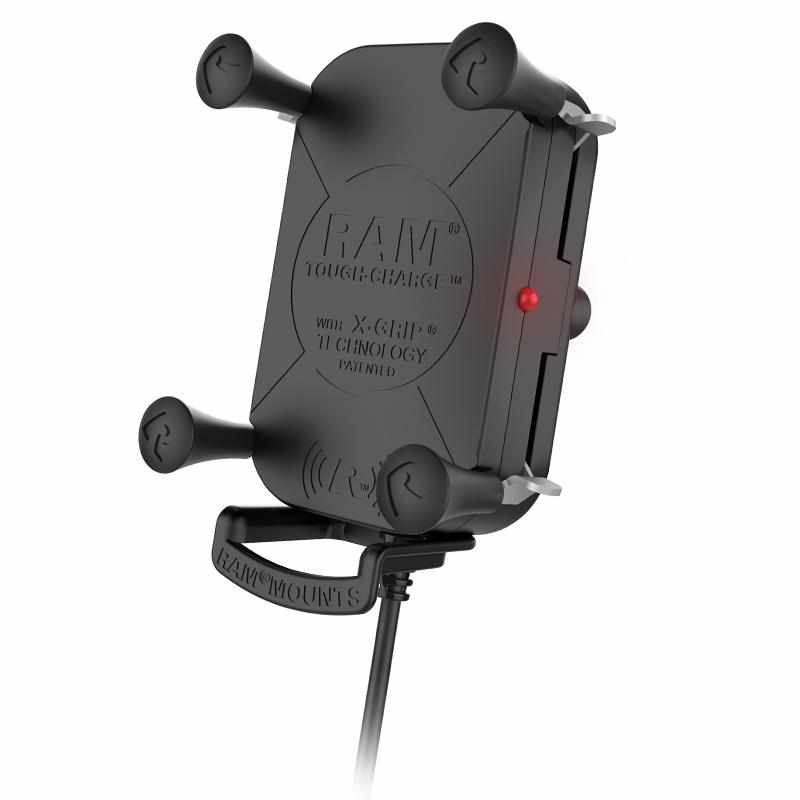

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. This new 15W version replaces old 10W part number RAM-HOL-UN12WB.
FEATURES

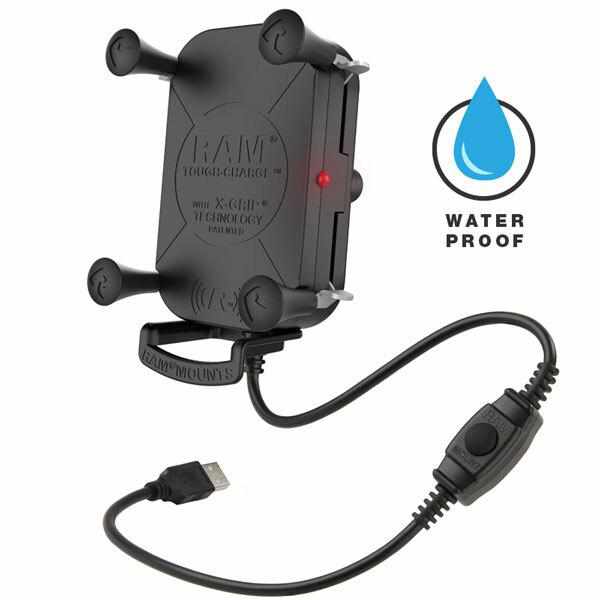

- Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output
- RAM® Mounts Compatible™ with B size double socket arms and ball bases for mounting in your preferred location
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
THE KIT
This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm.
Cradle Dimensions:
Width Range: 2.375" - 3.25" (60.33mm to 82.55mm)
Depth Range: 0.875" max (22.23mm max)
CHARGING

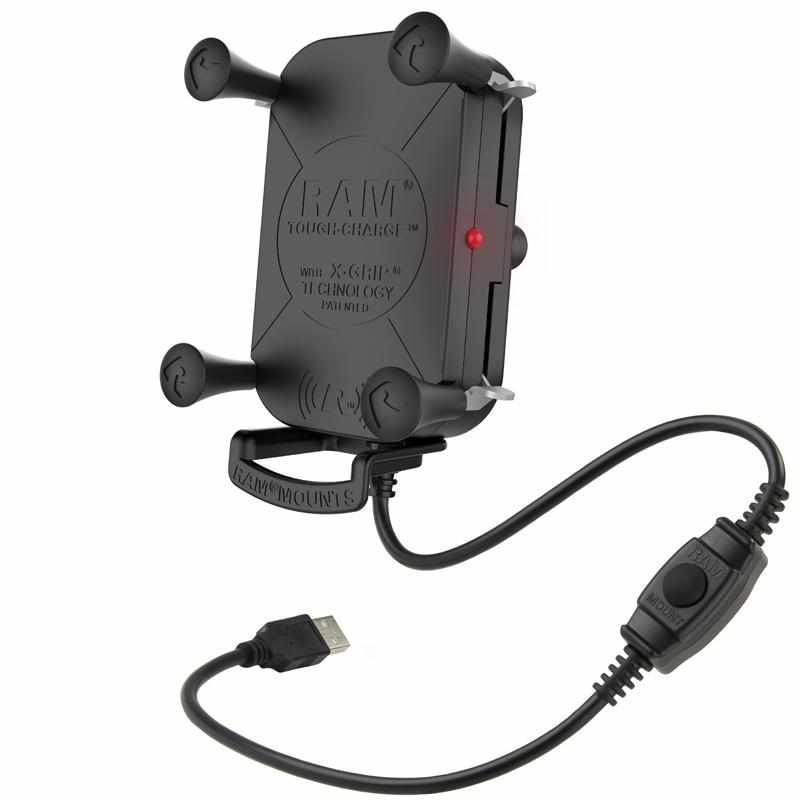

The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use.

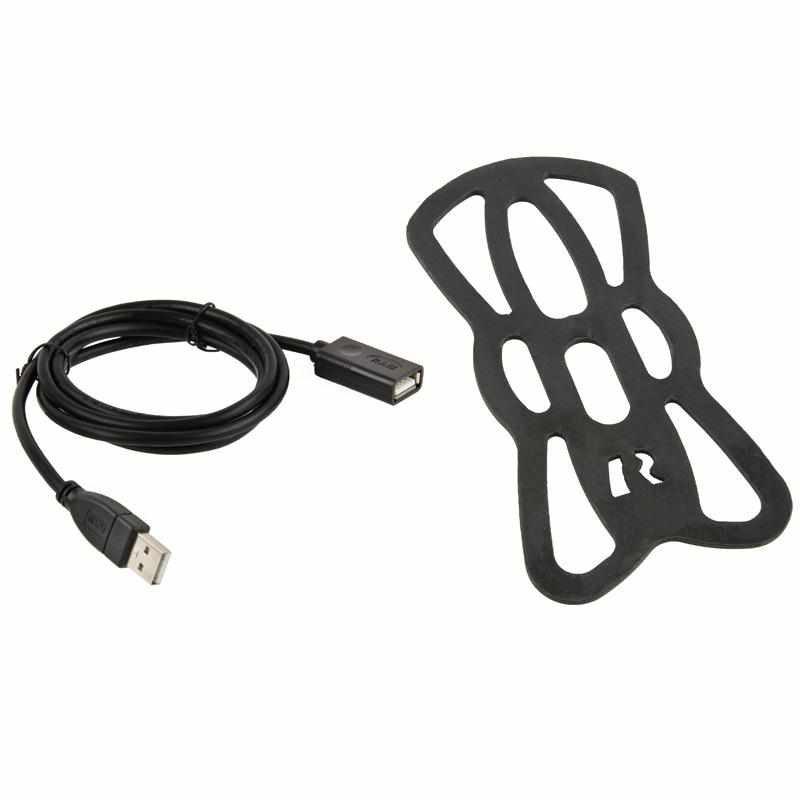

For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
Specs
HARDWARE INCLUDED
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(2) Large zip ties
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
(4) Small zip ties
(2) Large zip ties
HOLDER DIMENSIONS
Width Range: 2.375" - 3.25"
Depth Range: .875" max
Depth Range: .875" max
BALL/SOCKET SIZE
B Size (1")
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
High strength composite
Stainless steel
POWER SPECIFICATIONS
Input Power:5V-2A; 9V-1.67A
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
Output: 15W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
CONNECTOR TYPE
USB Type-A Male
INPUT CABLE LENGTH
20" with optional 1.2M extension cable
COMPLIANCE
Over current protection, short circuit protection and over temperature protection
CERTIFICATIONS
FCC, IC, KC, CE, e-Mark, WEEE, RCM, and RoHS Compliant
WARRANTY STATUS
RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty
ADDITIONAL INFORMATION
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standard today up to 15W.
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
MagSafe is a registered trademark of Apple, Inc., Cupertino, CA
Help

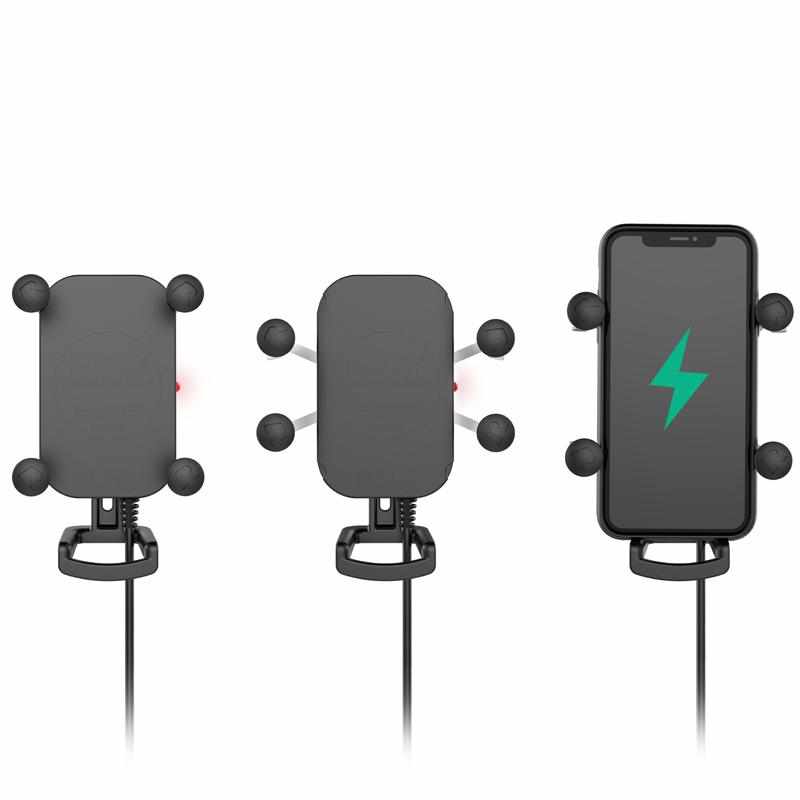

To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms.
Collections: All, Best Selling Products, Car Mounts, Charging | Cables | Electronics, Newest Products, Phone Mounts, X-Grip®
Type: Kits
