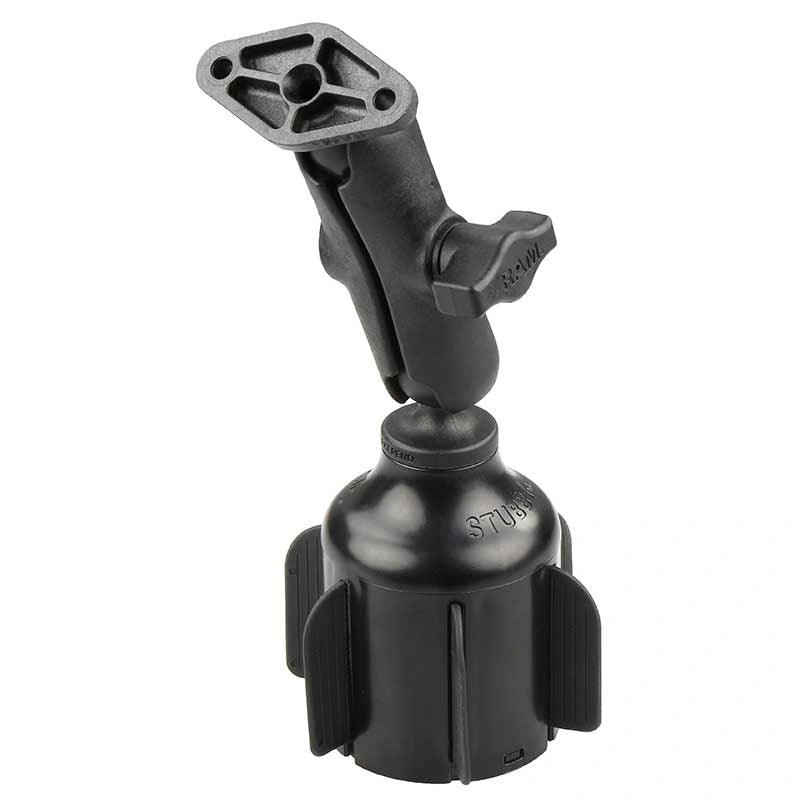

RAM Stubby Cup Holder Mount with Diamond Plate (RAP-B-299-4-238U)

Included:

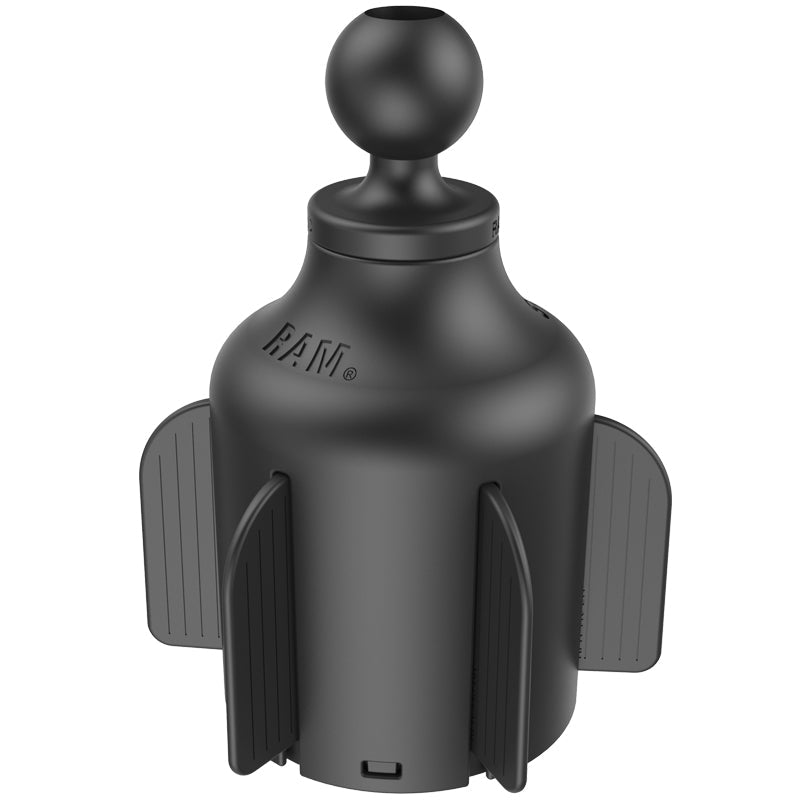

• 1 × RAM Stubby Cup Holder Base (RAP-B-299-4U)
• 1 × RAM Standard Composite Clamp Arm B Size (RAP-B-201U)
• 1 × RAM Composite Diamond Base with 1" B Size Ball (RAP-B-238U)

A removable RAM Stubby cup-holder mount with a medium B-size composite arm and diamond AMPS plate. The flexible fins help locate the base inside a suitable vehicle cup holder, while the ball joints let you adjust a compatible holder into position.

A device holder or cradle and the device are sold separately.

Specifications

• Cup-holder fit: inside diameter 2.57–3.5 inches (65.3–88.9 mm).
• Materials: high-strength composite with flexible support fins and rubber ball surfaces.
• Ball and socket system: B size, 1 inch (25.4 mm).
• Medium arm: 3 inches (76.2 mm) socket-to-socket.
• Diamond plate: 2.43 × 1.31 inches (61.7 × 33.3 mm); two-hole AMPS spacing 1.912 inches (48.6 mm).
• RAM’s published load rating: 2 lb (0.91 kg) standard use; 1 lb (0.45 kg) heavy-duty use. Assess the full holder-and-device load, leverage, vibration and support from the vehicle cup holder.
• Packaging may vary; all listed components are genuine RAM.
• Combined component RRP: A$115.00. The compare-at price is the total RRP of the three included components.
• Warranty: RAM components are covered by the manufacturer’s limited lifetime warranty terms.

Compatibility

The supplied diamond plate fits a flat-backed holder with a matching two-hole AMPS attachment. Check the holder’s thread and screw length before assembly. A holder with its own B-size ball can connect directly into the arm instead of the supplied plate. Use matching B-size balls and sockets.

Help

Measure the cup holder’s inside diameter, depth and taper, then check the base sits securely. Follow RAM’s fitting instructions before trimming the flexible fins; trim gradually to retain a snug fit. Check the arm knob, cup-holder retention, console clearance and complete holder-and-device stability before use. Keep the mount clear of controls, airbags and your line of sight.
