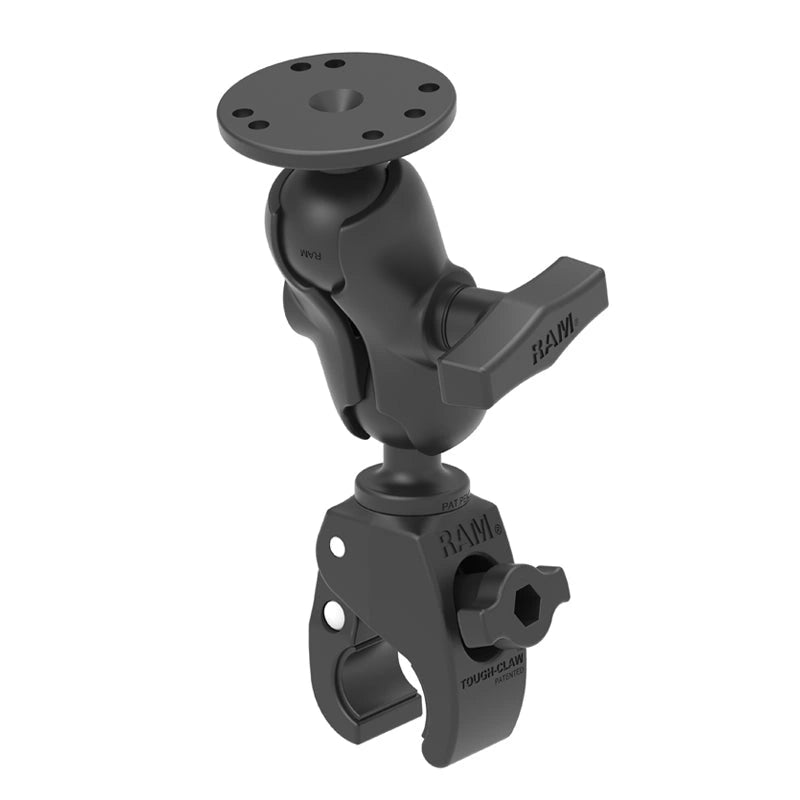

RAM Small Tough-Claw Round Plate Mount C Size Short (RAM-202-B-400U)

Included:

• 1 x RAM Small Tough-Claw Clamp Base with 1.5" C Size Ball (RAP-400U)
• 1 x RAM Short Double Socket Arm, C Size (RAM-201U-B)
• 1 x RAM Round Plate with 1.5" C Size Ball (RAM-202U)

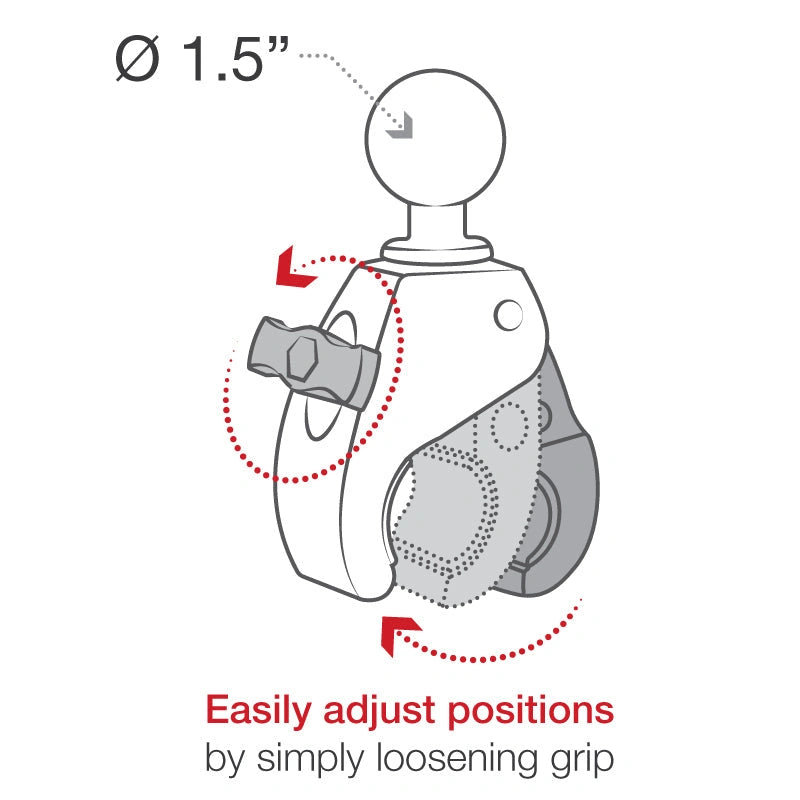

The RAM-202-B-400U is a compact, removable rail mount combining the small Tough-Claw base, short C size arm and round AMPS plate. The hand-adjusted clamp allows quick installation and removal, and both ball joints let you position a compatible holder.

RAM’s rubber ball-and-socket system provides adjustment at both ends of the arm and helps dampen shock and vibration.

A compatible holder or dock and device are sold separately. The supplied holder-side round plate presents the 4-hole AMPS (30 x 38mm) pattern for a matching flat-backed holder or dock. A holder with its own compatible 1.5" C size ball can attach directly to the arm instead, without the upper plate.

Specifications

• Ball Size: C Size, 1.5" (38.1mm)
• Arm Length: Short
• Socket-to-Socket Length: 2.5" (63.5mm)
• Clamp Range: Round rail: 0.625"–1.14" (15.88–28.96mm) outside diameter, as specified for this kit
• Plate Size: 2.5" (63.5mm) diameter round output plate
• Hole Pattern: 4-hole AMPS: 1.181" x 1.496" (30 x 38mm); 3-hole 120-degree pattern: 1.812" (46.02mm) diameter
• Manufacturer-rated Capacity: Standard use: 4 lb (1.81kg); heavy-duty use: 3 lb (1.36kg)
• Materials: Powder-coated marine-grade aluminium and high-strength composite
• Weight: 1.09 lb (approximately 494g)
• Packaging: Poly bag
• Manufacturer Part Number: RAM-202-B-400U
• UPC: 793442949593
• Warranty: RAM limited lifetime warranty, subject to manufacturer terms.

Help

Match the holder’s connection and ball size before choosing the setup.

Measure the rail’s outside diameter and check clearance before ordering. The range shown is the manufacturer’s specification for this complete kit.

Include the holder, device and attached accessories when checking the load. Choose the heavy-duty rating for more demanding conditions and follow the manufacturer’s installation instructions.
