RAM Headrest Base and Short B-Size Socket Arm Bundle (MM-B-HEADREST-SHORT-SOCKET)

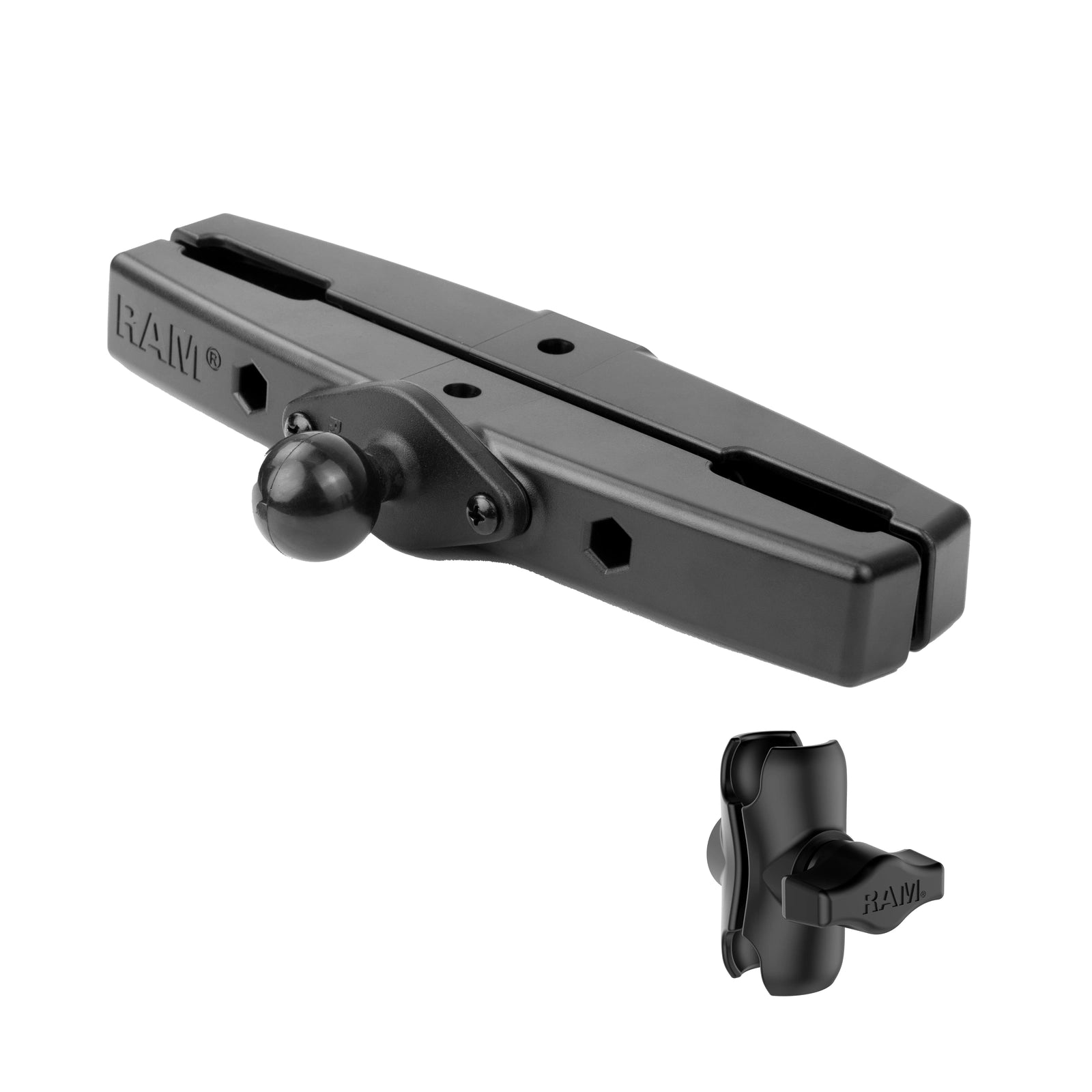

Included:

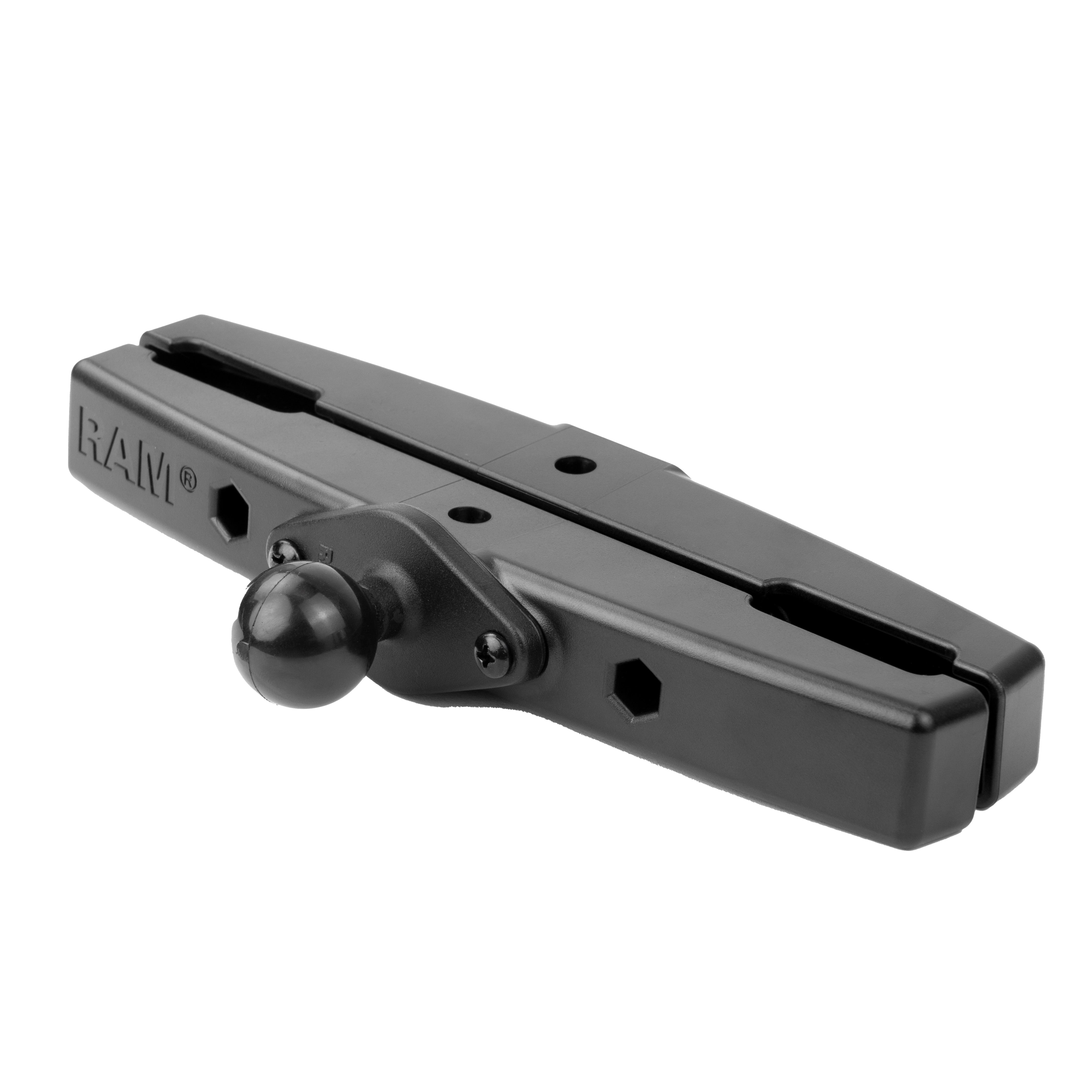

• 1 x RAM Headrest Ball Base - B Size (RAM-B-469U)
• 1 x RAM Short Double Socket Arm B Size (RAM-B-201U-A)

The headrest base clamps around suitable exposed headrest posts to create a mounting point for a rear-seat passenger's holder. Its pre-fitted B Size ball connects to the included short arm.

Holder sold separately. The open upper socket accepts a holder with its own B Size ball. A flat-backed cradle needs a suitable B Size ball plate or adapter, selected to match its hole pattern, purchased separately.

Specifications

• Base Body Width: 7.99" (202.9 mm), from the RAM drawing
• Headrest Fit: Exposed posts must fit the clamp channels and clear the seat/headrest; compare post spacing and diameter with the linked drawing
• Holder Connection: Open B Size socket for a holder with a 1" (25.4 mm) B Size ball
• Arm Length: 2.42" (61.5 mm) overall; 1.75" (44.5 mm) socket-to-socket
• Component Weight Capacity: Standard use: 2 lbs (0.91 kg); heavy-duty use: 1 lb (0.45 kg), subject to the mounting surface and installed connection
• Material: Marine-grade aluminium, high-strength composite and stainless-steel base hardware
• Hardware Included:
  • 2 x #6-32 x 1" screws and 2 x #6-32 Nyloc nuts
  • 2 x #8-32 x 5/8" screws and 2 x #8-32 Nyloc nuts (base assembly hardware)

Packaging may vary; all listed components are genuine RAM.

Installation & Fitment: Check the post geometry against the drawing and verify secure clamping. Keep the installation clear of airbag deployment areas, passenger movement, headrest adjustment and vehicle controls. Headrests without suitable accessible posts are not covered by this design.

RAM component limited lifetime warranty.

No device holder or upper mounting plate is included.
