RAM-D-202U-CRO1
RAM Ball Base for Crown Work Assist - D Size (RAM-D-202U-CRO1)
$75.00$88.00
Size Guide
Included:
- 1 x RAM Ball Base for Crown Work Assist - D Size (RAM-D-202U-CRO1)

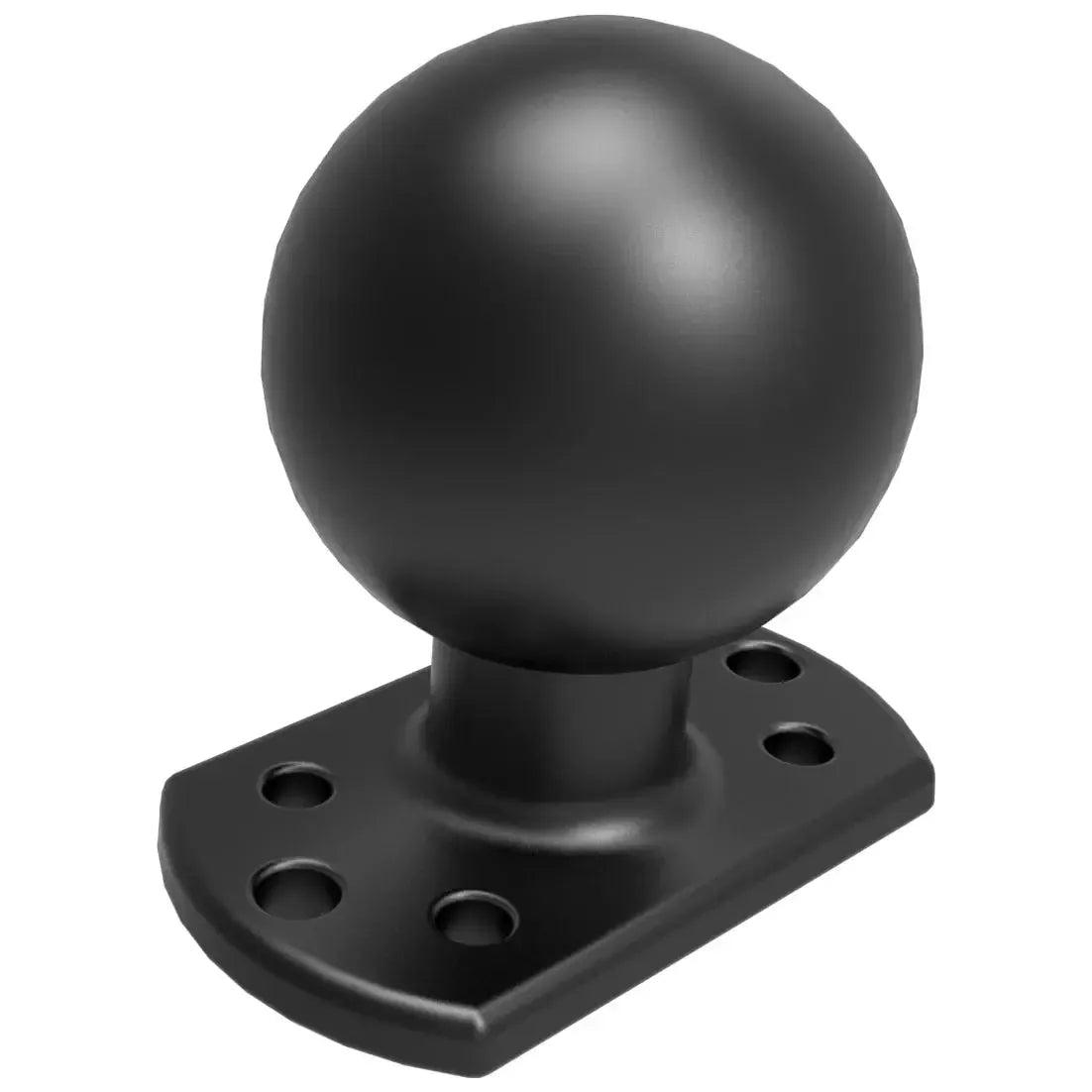

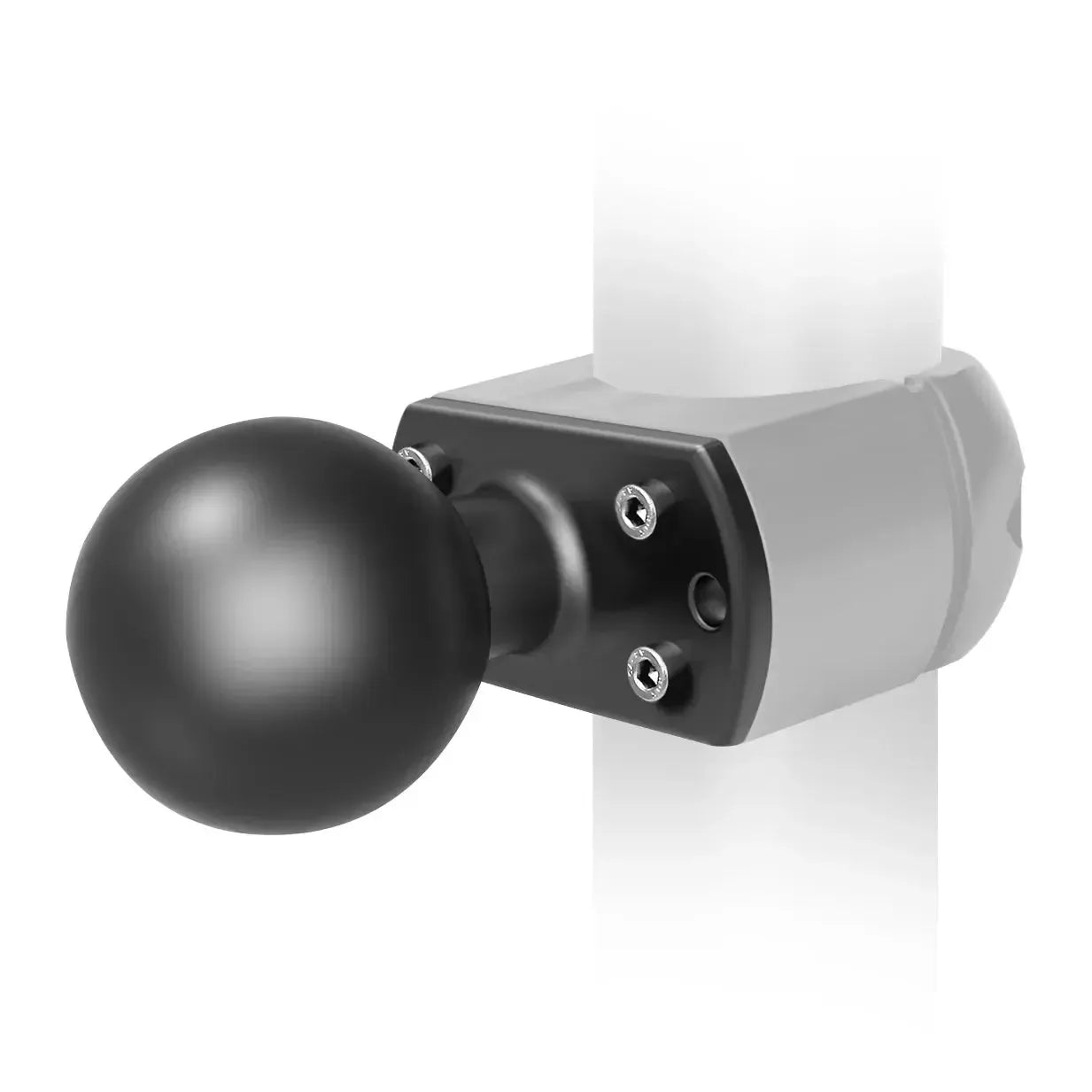

The RAM-D-202U-CRO1 Crown ball base contains mounting holes aligned to work with Crown Work Assist® clamp accessories. It features a D-Size (2.25" diameter) ball, for connecting to other D-Size components from RAM.
The addition of the RAM mounting system allows you to position your accessories for the best access and prevent damage due to shock and vibration.
Crown Work Assist® Clamp not included with purchase.
Specifications
Hole Pattern:
The 4-hole pattern measures 1" x 1.75", with 2.5" spacing between the wider 2-hole pattern.
RAM recommends:
• M5 x 14 screws for the 4-hole pattern
• M6 x 14 or M6 x 25 screws for the 2-hole pattern
Ball Size:
D Size (2.25")
Weight Capacity:
6 lb (2.72 kg)
Material:
Marine-grade aluminium
Packaging Type:
Poly bag
Weight:
0.57 lb
Additional Information:
Crown Work Assist® Clamp not included.
Product packaged in a poly bag.
