RAM-109H-1U
RAM 12" Horizontal Swing Mount for Fishfinders (RAM-109H-1U)
$193.00$250.00
Size Guide
Included:
- 1 x RAM 6" Horizontal Swing Arm for Fishfinders (RAM-109HU)
- 1 x RAM 6" Curved Extension Arm for Swing Mount (RAM-109-1AU)
12" total

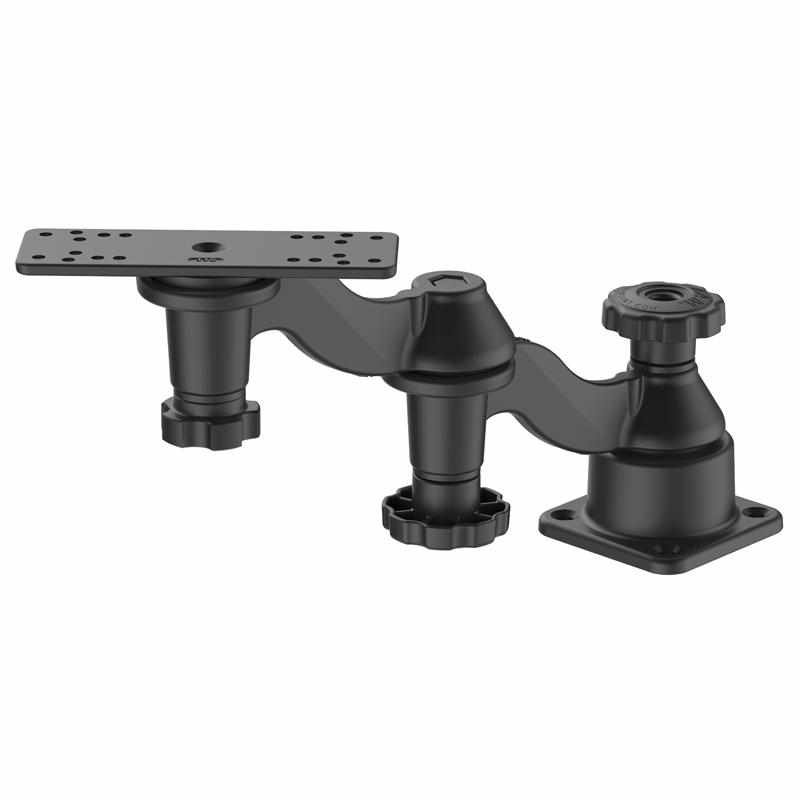

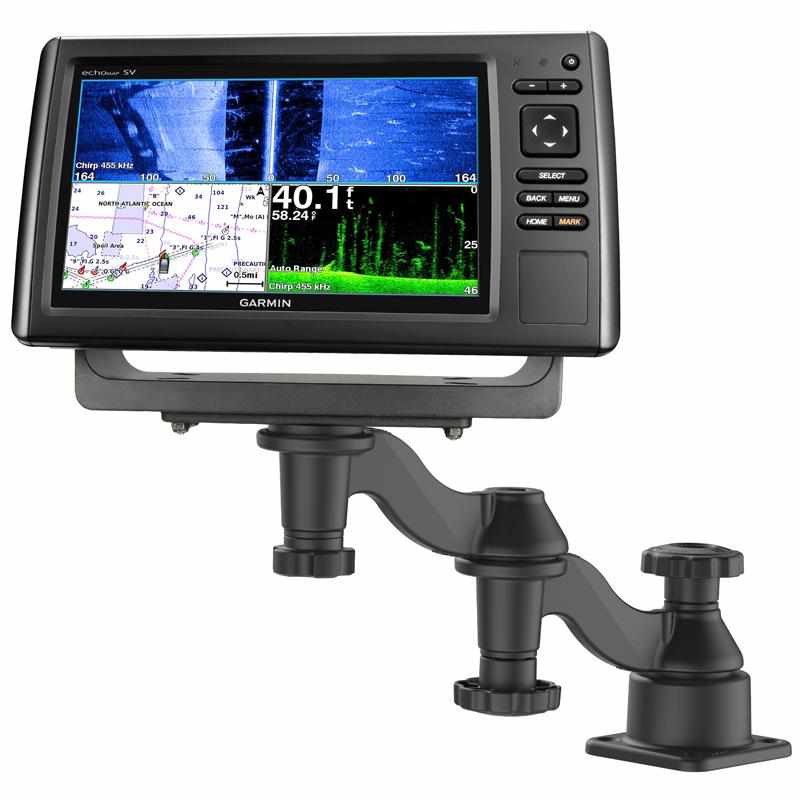

The RAM-109H-1U double swing arm mount includes two 6" long BENT swing arms mounted on a horizontal surface mounting base.
At the device mounting end of the mount is a rectangular 6.25 x 2" rectangular top base. The pivoting points of the mount allow a complete 360 degree rotation.
Specs
PRODUCT DIMENSIONS / SPECS- Overall Height: 8.58"
- Total Swing Arm Length: 12"
-
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5" - Top Plate Size: 6.25" x 2"
- Bottom Plate: 3.47" x 3.47"
- WEIGHT CAPACITY: 8 lbs
- MATERIALS: Marine-grade aluminum
- PACKAGING TYPE: Poly Bag
-
WEIGHT: 2.6 lbs.
Compatibility
-
Garmin
echoMAP Chirp 72-95 Series
ECHOMAP Plus 72-97 Series
ECHOMAP UHD 62-95 Series
ECHOMAP Ultra 102sv
ECHOMAP Ultra 105sv
ECHOMAP Ultra 106sv
GPSMAP 722
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
GPSMAP 8410
GPSMAP 8410xsv
GPSMAP 8412
GPSMAP 8412xsv
GPSMAP 8416
GPSMAP 8416xsv
GPSMAP 8610
GPSMAP 8610xsv
GPSMAP 8612
GPSMAP 8612xsv
GPSMAP 8616
GPSMAP 8616xsv
GPSMAP 922
GPSMAP 922xs
GPSMAP 923
GPSMAP 923xsv
GPSMAP 942
GPSMAP 942xs
GPSMAP 943
GPSMAP 943xsv
GPSMAP 1223
GPSMAP 1223xsv
GPSMAP 1243
GPSMAP 1243xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Striker Plus 9sv
Striker Vivid 9sv
Fishfinders and GPS Chartplotters - Humminbird Helix 8
- Humminbird Helix 9
- Humminbird Helix 10
- Humminbird Helix 12
- Lowrance HDS Carbon 7
- Lowrance HDS LIVE 7
- Lowrance HDS LIVE 9
- Lowrance HDS LIVE 12
- Lowrance HOOK2-7
- Lowrance Hook 7 Reveal
- Lowrance Hook 9 Reveal
- Lowrance HOOK2-9
- Garmin Fishfinders and GPS Chartplotters
- Humminbird Fishfinders and GPS Chartplotters
- Lowrance Fishfinders and GPS Chartplotters
- Raymarine Fishfinders and GPS Chartplotters
