RAM-107U
RAM 1.5" Mount for Humminbird, Matrix & Lowrance Series (RAM-107U)
$73.00$138.00
Size Guide
Included:
- 1 x RAM Standard Double Socket Clamp Arm C Size (RAM-201U)
- 1 x RAM Round Base with 1.5" C Size Ball (RAM-202U)
- 1 x RAM Fishfinder Plate for Lowrance & Humminbird C (RAM-107BU)
The RAM-107U features a C-Size double socket arm, 2.5" diameter round base (with the universal AMPS hole pattern) and a base plate suited for Lowrance, Humminbird and Raymarine marine GPS devices (See 'Compatibility' tab below)

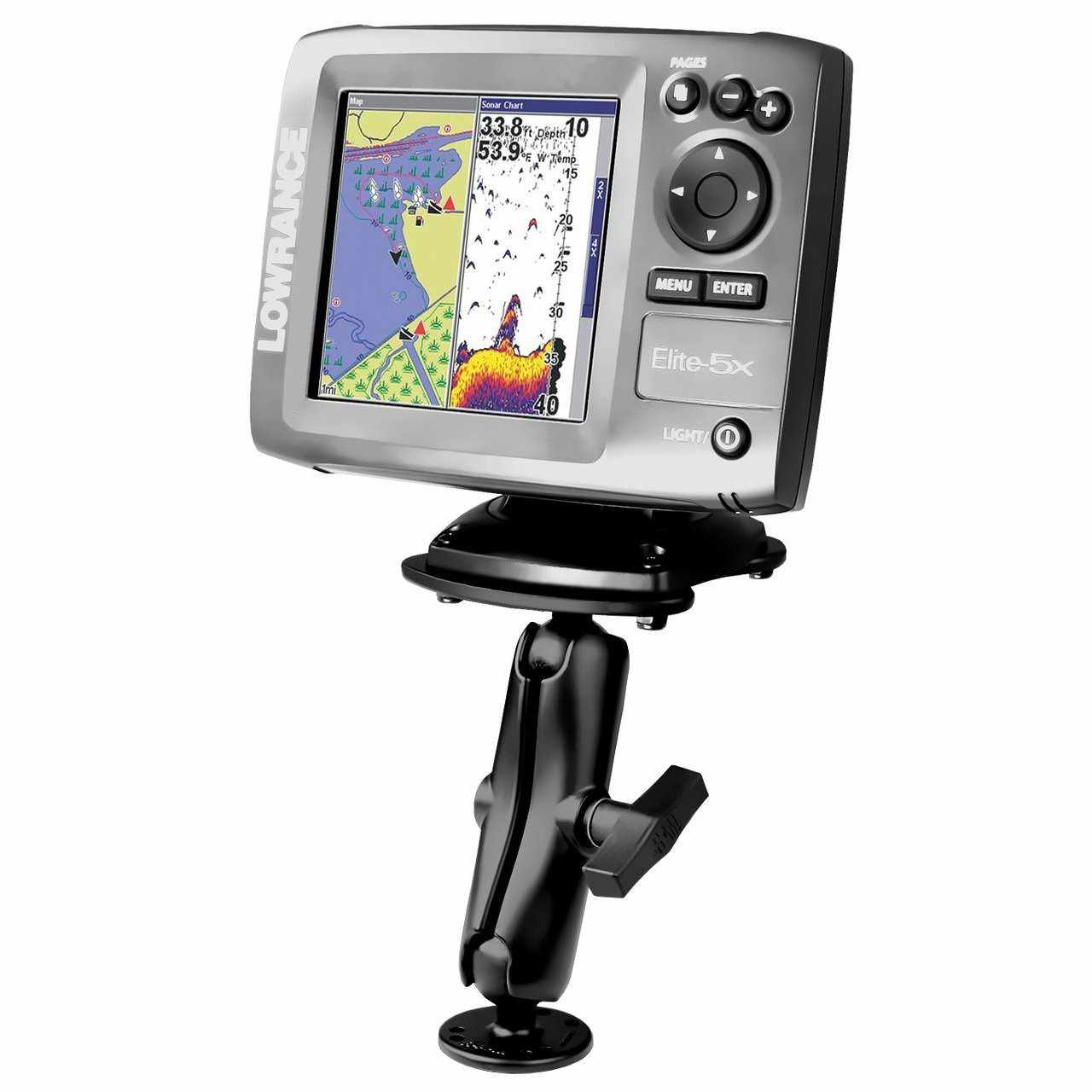

The RAM-107U will allow you to attach your Humminbird/Lowrance unit to your boat, kayak, etc.
The socket arm uses the RAM 1.5" ball system which is designed for heavier applications, and has adjustment points at both ends, giving you infinite viewing angles.
Specs
- Overall Height: 7.35"
- Material: Powder Coated Marine Grade Aluminum
- Ball Size: C Size 1.5" Rubber Ball
- Weight Capacity: Up to 4 lbs
- Weight: 1.3 lbs.
This mount includes a double socket arm, 2.5" diameter round base (with univerals AMPS hole pattern) and a Humminbird/Apelco adapter base.
Note: The "U" in the part number reflects product packaged in poly bag. This product is a "rugged use" mount, designed to hold large marine electronic devices.
Compatibility
- Humminbird 700 Series
- Humminbird 500 Series
- Humminbird 300 Series
- Humminbird 100 Series
- Humminbird Matrix Series (excluding Matrix 97)
- Lowrance Elite-5
- Lowrance Elite-5M
- Lowrance Elite-5X
- Raymarine Apelco Fishfinders
Collections: All, Best Selling Products, C Size Components 1.5", Marine Mounts, Newest Products
Type: Kits
Category: Arm, Base, C Size, Fishfinder, Humminbird, Lowrance, Marine, Raymarine
